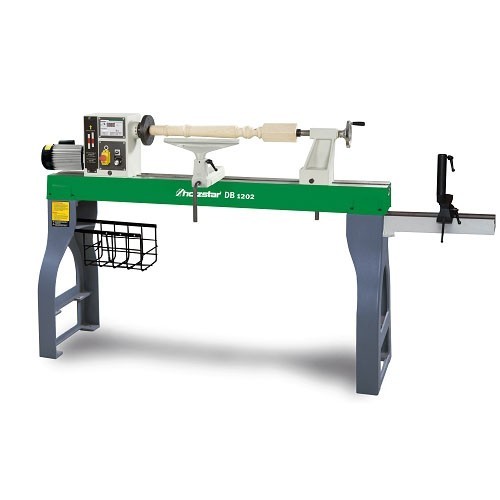

5921202 DB 1202 WOOD LATHE HOLZKRAFT MAX TURNING DIAMETER 460 MM

Industrial Power and Operational Versatility

Item 592 1202 (HOL5921202) was developed to overcome the limitations of standard turning. The solidity of the cast iron bed and the precision of the mechanics allow you to confidently tackle both the creation of small artistic objects and the machining of structural elements or large-diameter bowls.

Technical Features and Precision Mechanics

• Anti-Vibration Structure: The bed, head and tailstock are made of heavy grey cast iron , a construction choice that ensures smooth operation and millimetric precision even under heavy loads.

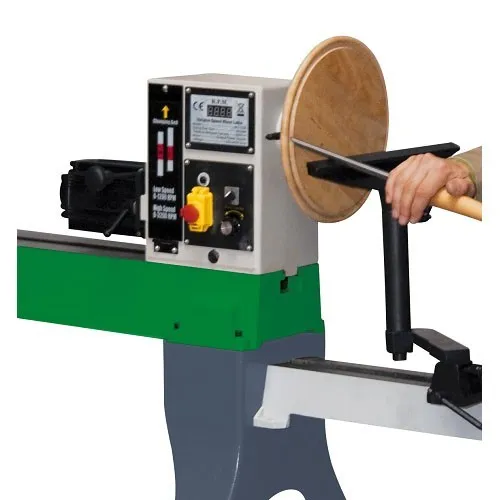

• Rotatable Head: For cross-cut machining, the head can be rotated if the workpiece is larger than the bed capacity, transforming the machine into a true overturning lathe.
• Electronic Speed Control: The speed is adjustable in two stages (0-1,200 / 0-3,200 rpm) and can be monitored in real time via a practical integrated digital display .
• Professional Tailstock: Equipped with a quick-release lever and ergonomic handwheel for rapid centering of the workpiece. The tailstock shaft features a through hole , essential for drilling deep holes directly into the rotating workpiece.
• Simplified Setup: Changing the transmission via belts is quick and intuitive, and can be done without the use of tools.
• Maximum Stability: Comes standard with a sturdy grey cast iron base , making the machine a freestanding and stable workstation.

Areas of Application

Ideal for advanced carpentry workshops, furniture component production (table legs, columns), and design objects. The 1,185 mm center distance allows for the machining of very long pieces, making it an extremely flexible tool.

Technical Reference Data

Standard Equipment Included:

• Cast iron machine base.
• Movable dragger on the work table.
• Tailstock with driver, quick lever and handwheel.
