5900471 HBS 471 BAND SAW FOR WOOD HOLZKRAFT 400 V CUTTING HEIGHT 285 MM 1500 V TABLE DIMENSIONS 535X485 MM

The wood-fired Model HBS 471 band saw (Code 5900471) is a professional machine that combines robust construction with compact dimensions, ideal for cutting wood, plastic and non-ferrous metals . Featuring a heavy ground cast iron table (535x485 mm) that can be tilted up to 45° and balanced cast iron flywheels , it ensures smooth, vibration-free operation. With a cutting height of 285 mm and a powerful 1.5 kW motor, it represents a reliable solution for workshops that require clean finishes and operational safety.

Shipping cost: €60.00 for
2649,24 €
Tax included

2.171,51 € Tax excluded

Quantity
Available product, order it now.

Construction Solidity and Operational Precision

The HBS 471 band saw is designed for the craftsman who requires superior performance in an optimized space. The torsion-resistant structure and solid base ensure excellent stability when working with demanding workpieces, allowing for consistently orthogonal and precise cuts.

Precision and Safety Mechanics

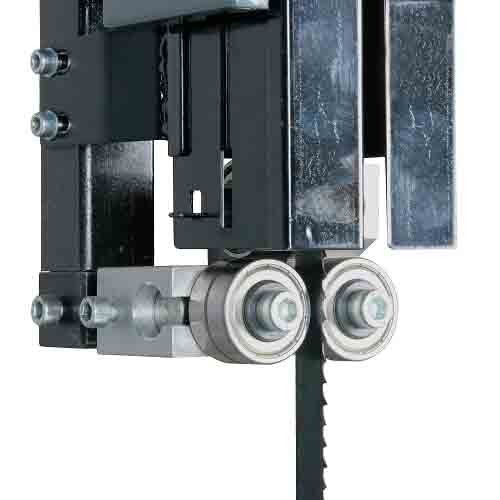

  • Advanced Guide System: Equipped with 3 ball bearing blade guides positioned both above and below the table, it ensures stable band movement, reducing lateral flexion during cutting.
  • Quick Tensioning: Thanks to the eccentric lever, you can quickly loosen or tighten the blade without having to reset the basic tension each time. A built-in display, readable through a slot, allows you to check the correct tension for each cutting height.
  • Cutting Versatility: The machine has two speeds adjustable via a V-belt (380/820 m/min), adapting perfectly to the density of the material being processed.
  • Maximum Safety: The closing covers are protected by safety micro switches that prevent accidental starting with the doors open, ensuring operator protection.
  • Professional Parallel Guide: Made of aluminum and equipped with a quick and eccentric locking system, it allows millimetric positioning for repetitive longitudinal cuts.

Areas of Application

Ideal for carpentry, model-making, and light carpentry workshops. Its ability to accommodate blades from 6 to 25 mm wide makes it suitable for both curved and shaped cuts and for trimming thick boards.

Technical Reference Data

Characteristic Detail
Product Code 590 0471 (HOL5900471)
Flywheel Diameter 470 mm
Max cutting width (with/without guide) 390 / 465 mm
Max cutting height 90° 285 mm
Blade speed 380 / 820 m/min
Blade length 3,455 mm
Compatible blade width 6 - 25 mm
Table dimensions 535 x 485 mm
Motor power (400 V - 50 Hz) 1.5 kW (1,500 W)
Ø Suction nozzle 100 mm
Overall dimensions 800 x 490 x 2,000 mm
Net weight 157 kg

Standard Equipment Included:

  • Band saw blade (3455x16x0.5 mm).
  • Aluminum parallel guide with eccentric locking.
  • Integrated blade guard.

Try the UWT Universal Support and Roller Conveyor with your HOLZKRAFT machine tool.
Per falegnami e artigiani della lavorazione del legno, macchine professionali di produzione tedesca. Holzkraft è un leader del settore commercializzato in Italia da LTF

HOLZKRAFT: MACCHINE PROFESSIONALI PER LA LAVORAZIONE DEL LEGNO

Holzkraft è un marchio tedesco specializzato in macchine professionali per la lavorazione del legno, progettate per garantire precisione, stabilità e continuità operativa nelle falegnamerie, nei laboratori artigianali e nelle produzioni industriali. Le sue soluzioni sono pensate per utilizzi intensivi, con strutture robuste e componenti ad alta affidabilità.

La gamma comprende seghe circolari, seghe a nastro, pialle, combinati, levigatrici, aspiratori industriali, banchi da lavoro e macchine speciali per taglio, fresatura, piallatura e finitura del legno. Ogni linea si distingue per motori performanti, piani di lavoro stabili, guide di precisione, sistemi di sicurezza avanzati e qualità costruttiva tipica della produzione tedesca.

Holzkraft è distribuita in Italia da LTF, con un’offerta completa dedicata a falegnami, artigiani, carpentieri e professionisti del woodworking. Il marchio è riconosciuto per affidabilità, durata nel tempo e prestazioni costanti, elementi fondamentali per chi lavora il legno con elevati standard di qualità.

I professionisti scelgono Holzkraft per precisione, robustezza e versatilità, caratteristiche che rendono queste macchine ideali per lavorazioni complesse, produzioni continuative e finiture di alto livello.
