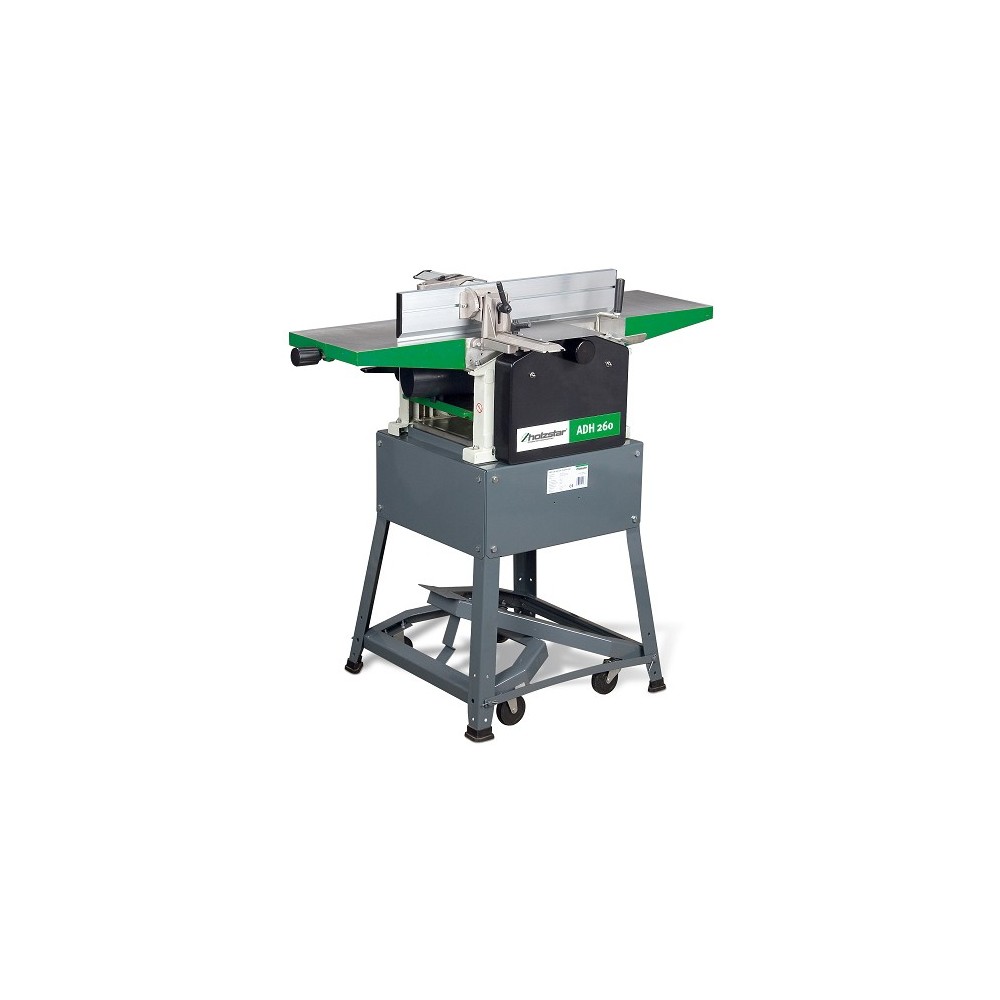

5903260 ADH260 COMBINED PLANER AND THICKNESSER HOLZKRAFT FIXED TABLE DIMENSIONS 1030X280 MM

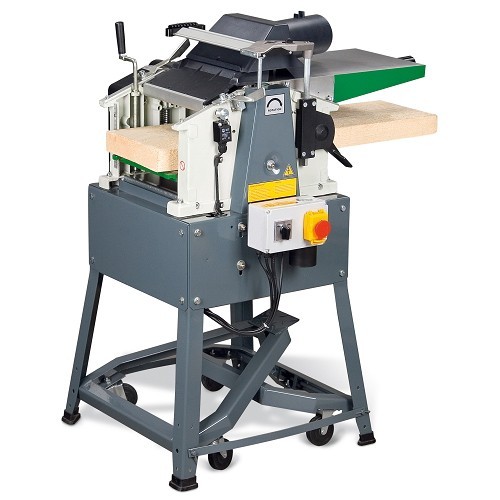

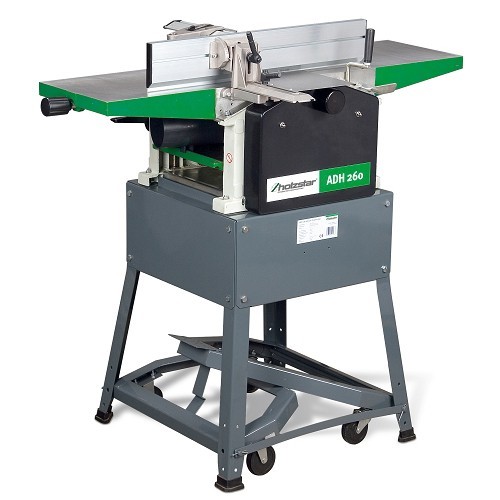

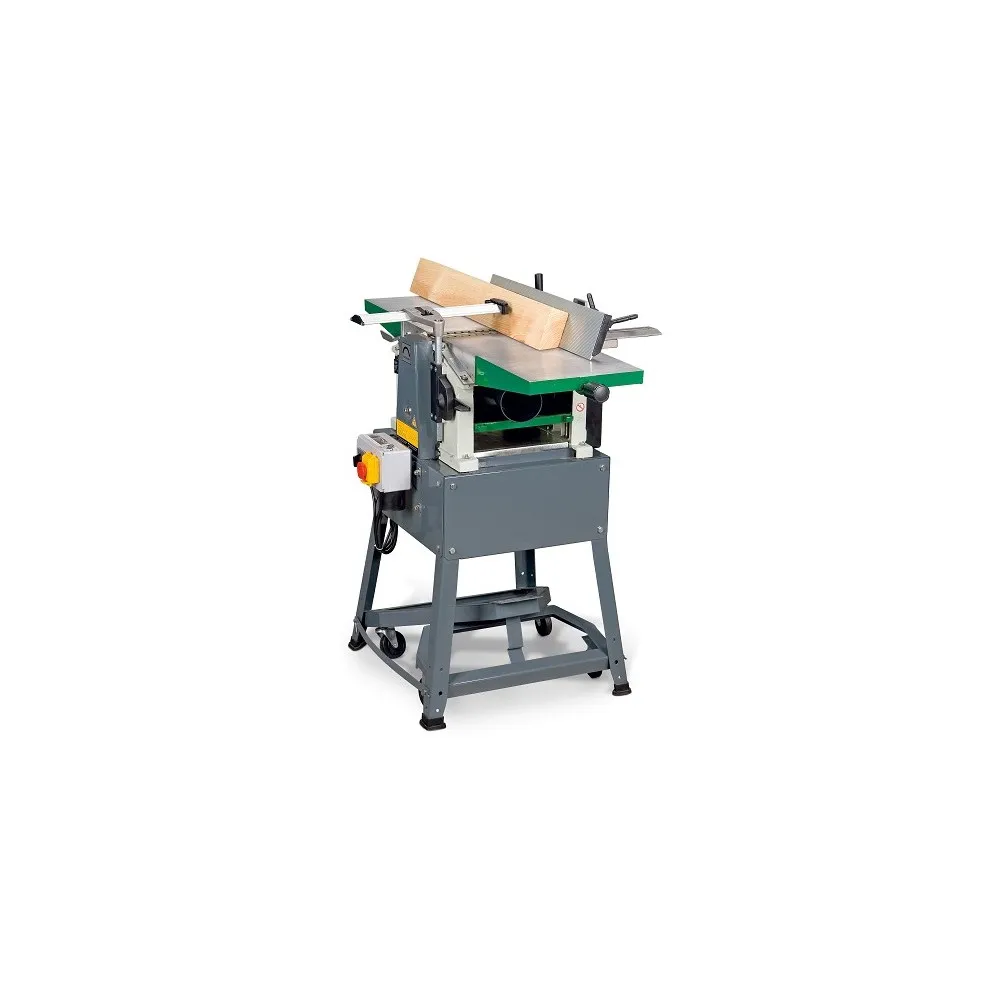

The wood-fired Model ADH 260 Combination Planer and Thicknesser (Code 5903260) is the perfect solution for those seeking professional performance in a compact size. Designed for extremely precise planing of solid wood, boards, and panels , this 2.0 kW machine stands out for its solid ribbed die-cast aluminum table and ground cast iron thicknessing table. Thanks to the automatic feed and integrated swivel wheel system, it combines a high-quality finish with extraordinary ease of movement in the workshop.

Shipping cost: €50.00 for
1999,12 €
Tax included

1.638,62 € Tax excluded

Quantity
Available product, order it now.

Versatility and Robustness for the Craftsman and the Hobbyist

The 590 3260 was designed to optimize space without compromising on build quality. The ADH 260 allows for perfect 90° joints and smooth surfaces, ensuring complete control over cutting depth and superior stability when machining challenging workpieces.

Technical Features and Operational Benefits

  • Impeccable Surface Finish: The two-knife HSS blade spindle operates at 6,500 rpm; the rubberized outfeed roller and spring-mounted rollers ensure the wood is free of imprints or marks when finished.

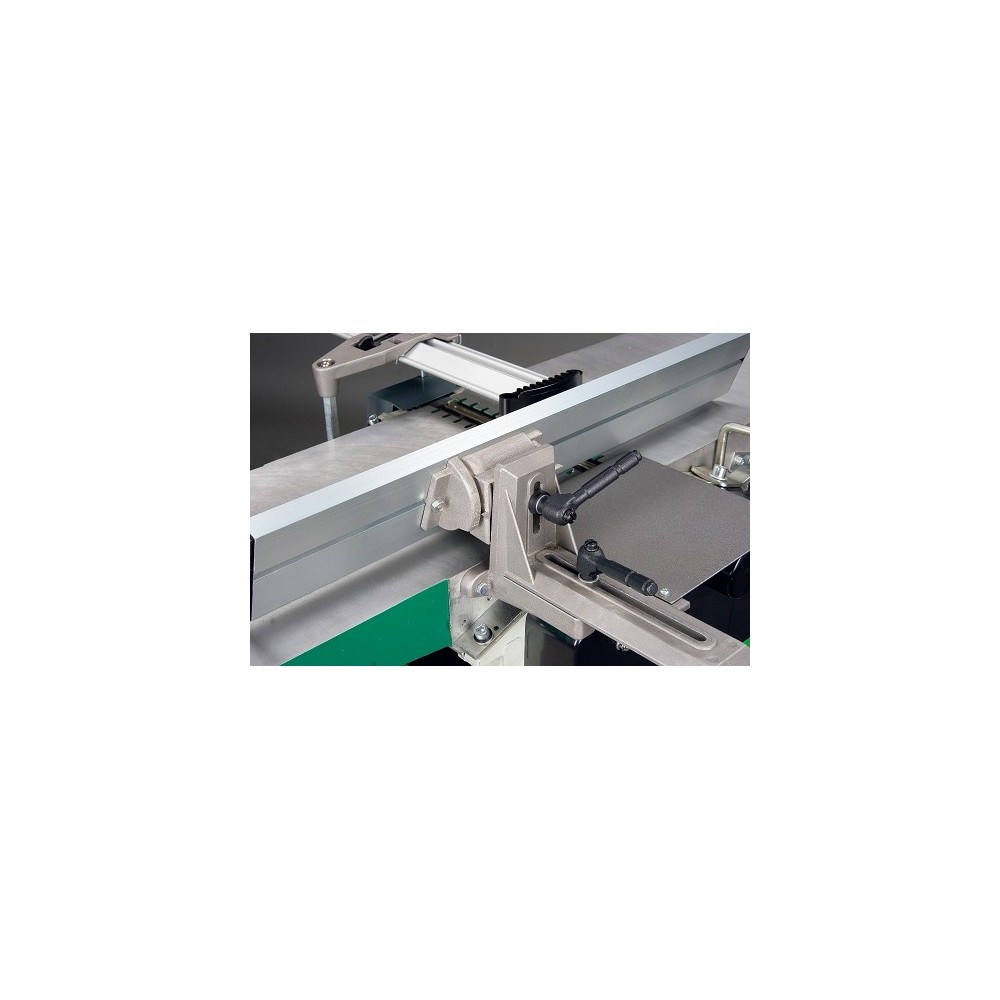

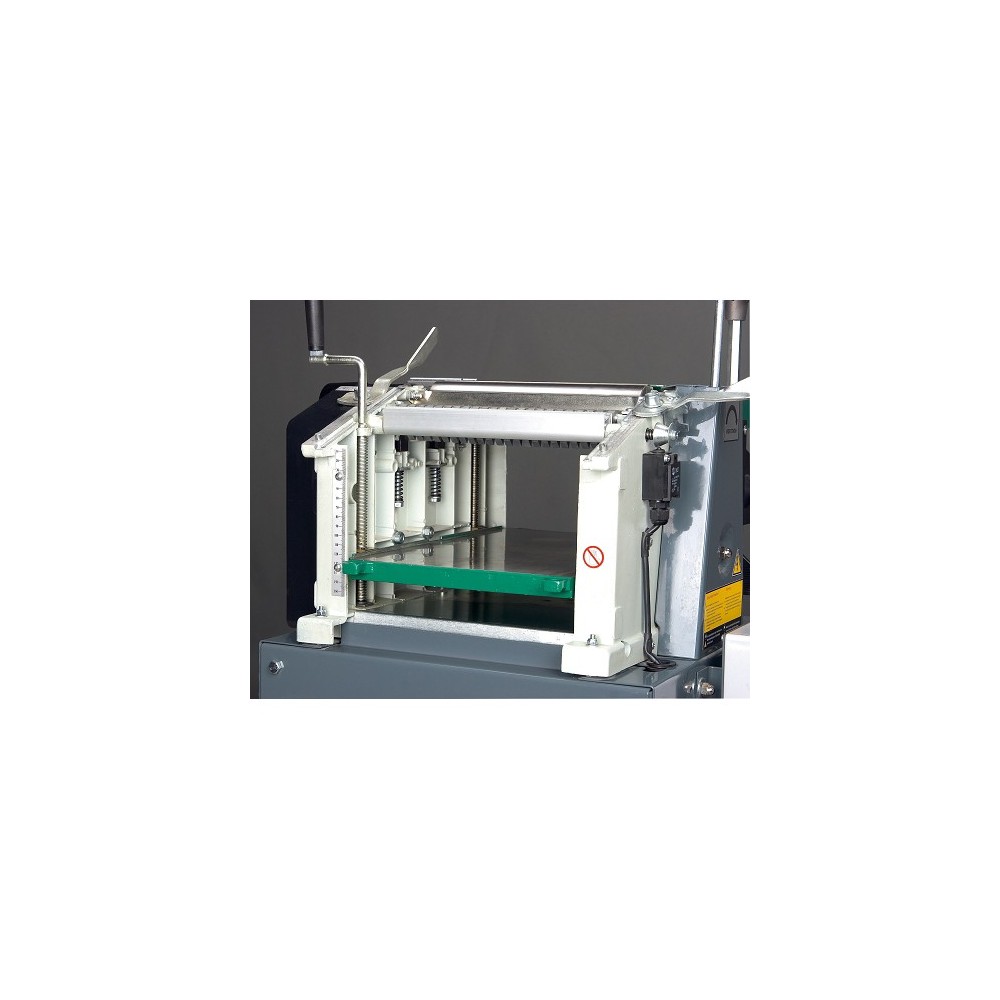

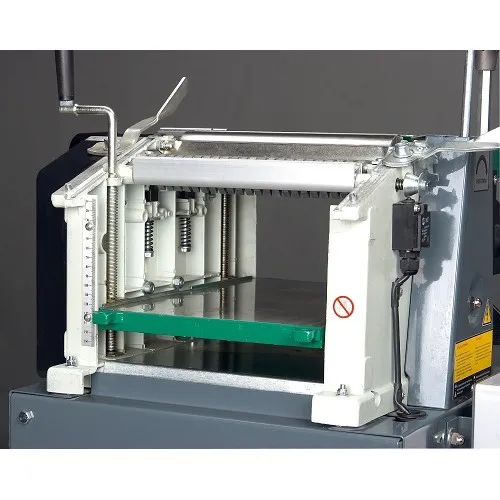

  • Precision Mechanics: The movable thicknesser table slides on 4 guided columns and is adjusted to the millimeter using a practical crank with a graduated scale. The fixed aluminum guide can be tilted from 90° to 45° for precise angled work.

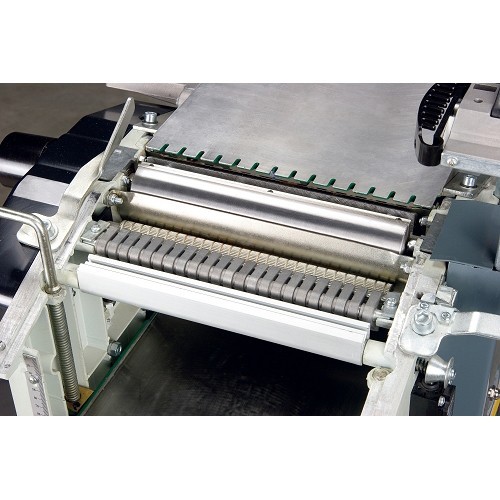

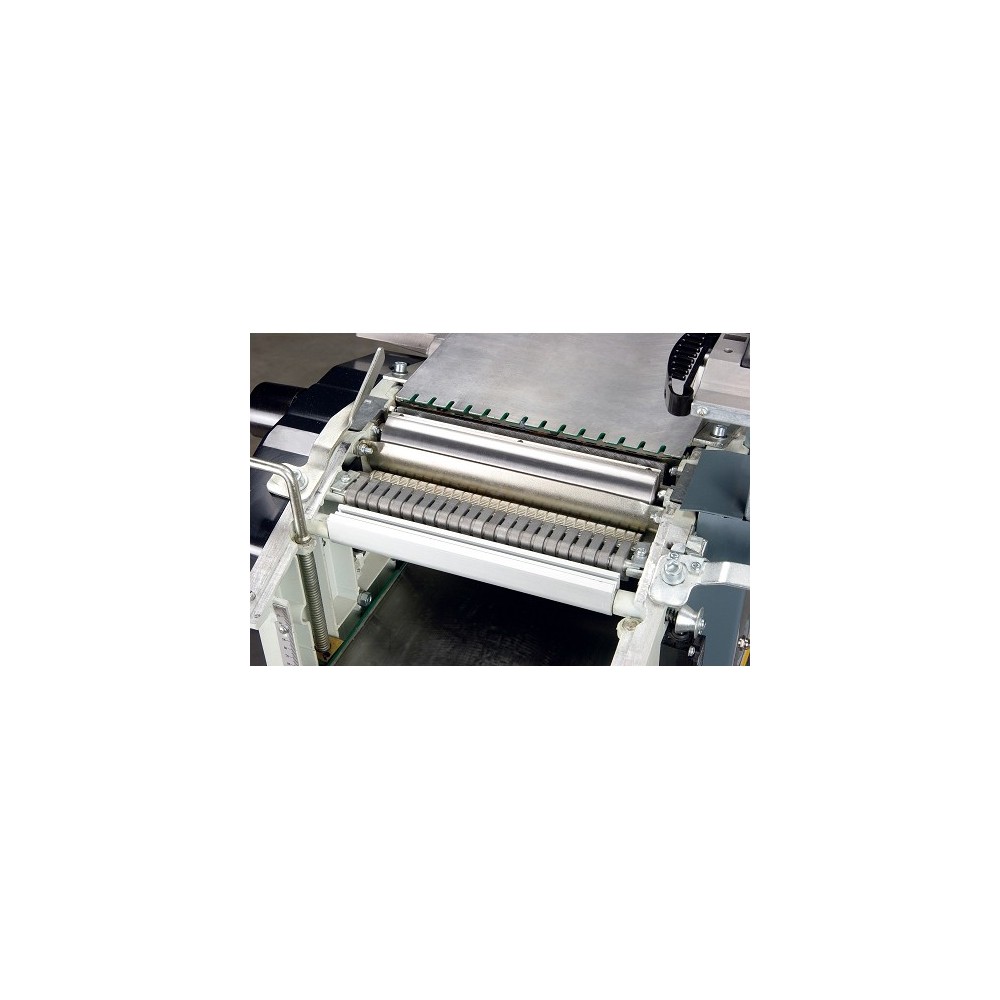

  • Safety and Functionality: The machine is equipped with anti-kickback protection , emergency switch and an interchangeable chip extractor hood, usable in both planing modes to keep the work area clean.

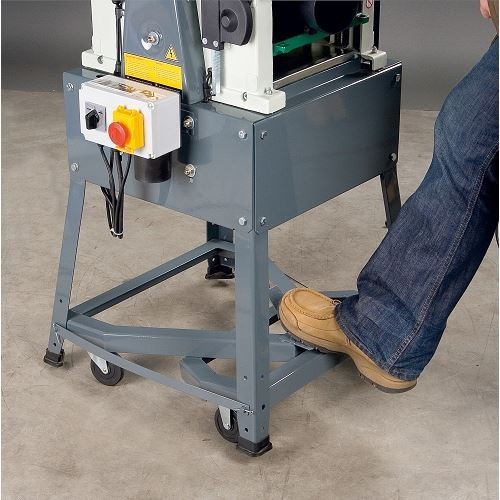

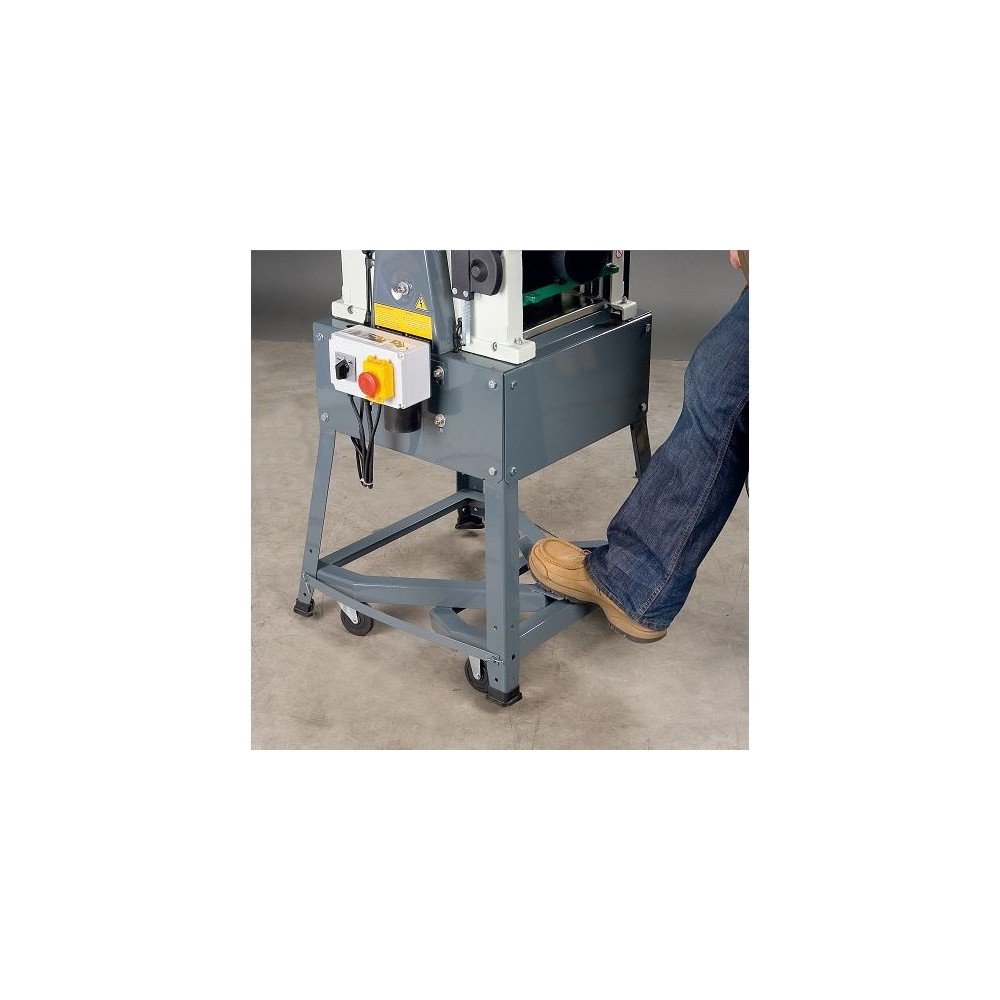

  • Extreme Mobility: The standard frame includes pivoting wheels that are activated simply by pressing a pedal, allowing the 66 kg machine to be easily moved around the workshop.

Applications

Ideal for straightening rough boards and subsequently calibrating the thickness. Its removal capacity of up to 3 mm and working width of 260 mm make it an indispensable tool for creating furniture components and solid wood products.

Technical Reference Data

Characteristic Detail
Product Code 590 3260 (HOL5903260)
Fixed table dimensions (Thread) 1,030 x 280 mm
Moving table dimensions (Thickness) 260 x 400 mm
Max planing width 260 mm
Min/max piece height (Thickness) 4 / 160 mm
Max chip removal 3 mm
Number of knives / Shaft Ø 2 / 63 mm
Feed rate 5 m/min
Power supply / Engine power 230 V ~ 50 Hz / 2.0 kW
Ø Suction nozzle 120 mm
Net weight 66 kg
