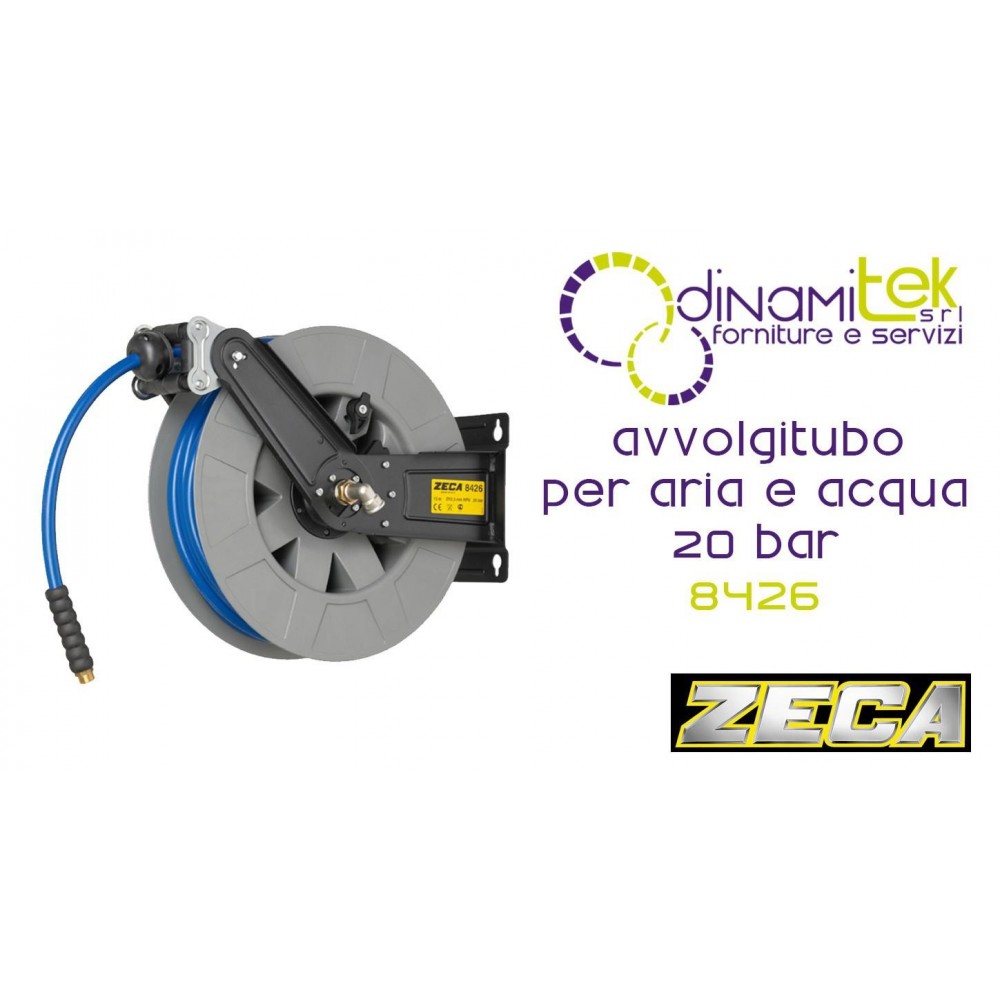

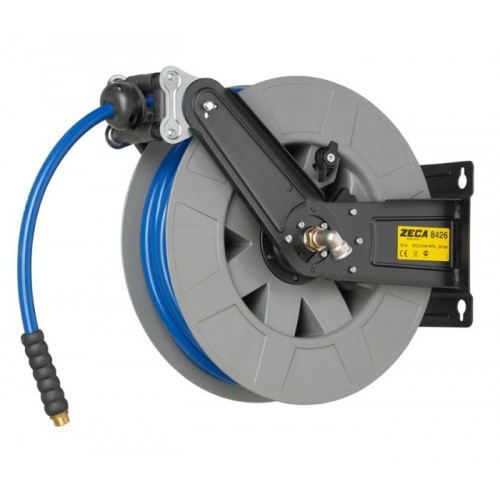

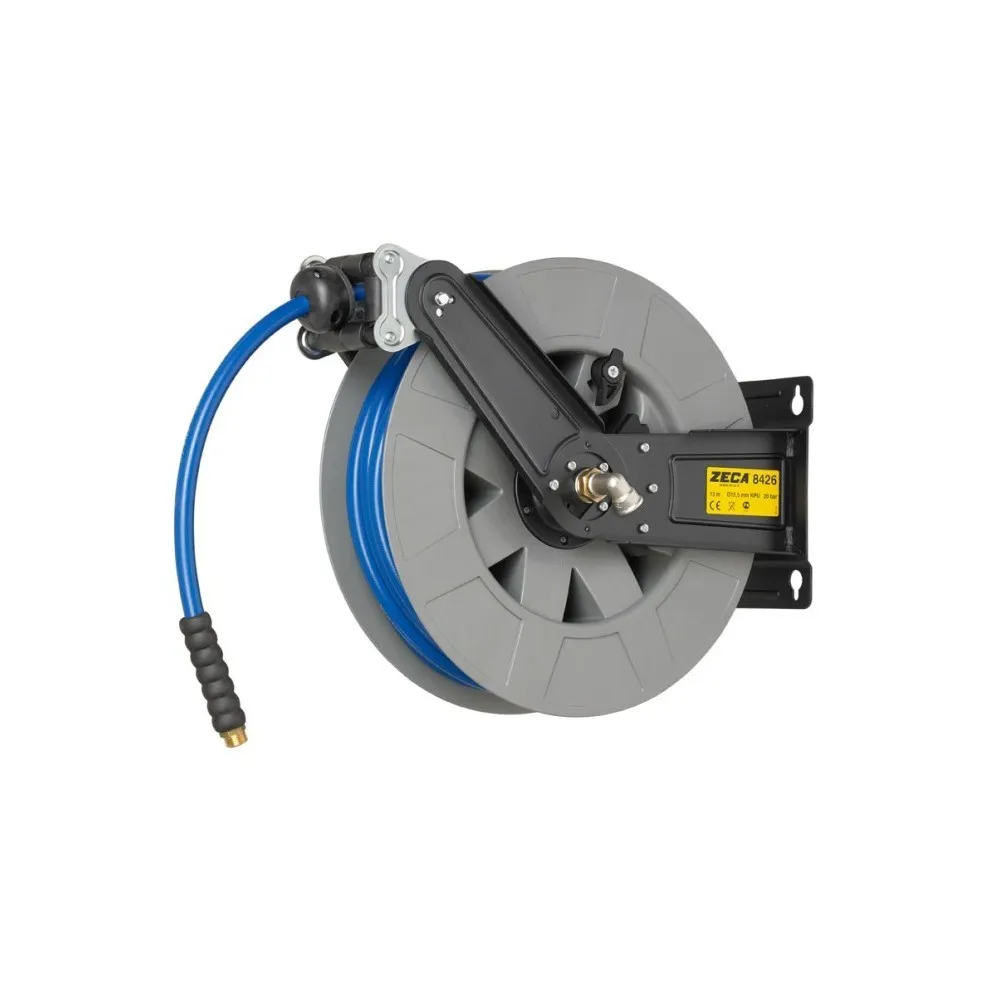

8426 HOSE REEL ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE 15 M - DIAM INT PIPE 12.5 MM Dinamitek 1
  • 8426 HOSE REEL ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE 15 M - DIAM INT PIPE 12.5 MM Dinamitek 1
  • 8426 HOSE REEL ZECA SERIES 8400 FOR AIR AND WATER 20 BAR-HOSE 15 M - DIAM INT PIPE 12.5 MM Dinamitek 2

8426 HOSE REELS SERIES 8400 FOR AIR AND WATER 20 BAR ZECA TUBE M 15 - DIAM INT PIPE 12.5 MM

HOSE reels SERIES 8400 FOR AIR AND WATER 20 BAR model 8426 ZECA

With the tube in the kpu, with the diameter of 12.5 mm and 15-metre-long

The directive-compliant Atex 94/9/EC

Bracket in steel painted with epoxy powders. The standard coupling. Connector in brass. Steel bolts and screws.

Shipping cost: Free for
312,15 €
Tax included

255,86 € Tax excluded

Quantity
Available product, order it now.

HOSE REELS SERIES 8400 FOR AIR AND WATER 20 BAR model 8426ZECA

With the tube in the kpu, with the diameter of 12.5 mm and 15-metre-long

Made of steel brackets, epoxy powder coated. Has the mouth roller can be positioned and the buffer bracket adjustable for maximum versatility of use and ease of use. It is equipped with automatic stop system of the tube

Fluid temperature: -10° to +50° C

Connector: 3/8” M

Connection inlet: ½” F

In detail, the support brackets of the coils are in the auto-lubricating material and the coils are in the ABS. The spring rewind is built according to the technology MAXIMO PROCESS. The rotary joint is designed to have a low coefficient of friction and to avoid bottlenecks in the pipe as it flows.

CE marking

The directive-compliant
Atex 94/9/EC
II 2GD c IIB T4/T135°C X X X X
N. ro of the Technical Dossier: 8400/ATX/14
N. ro Deposit Receipt Dossier: 43EO00003Organismo Notified of deposit: IMQ (0051)

Size and weight 550x505x270 mm, 10 Kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



8426

SERIES 8400 INOX ZECA

Download (2.64M)

SERIES 8400 ZECA

Download (893.7k)
