DOCTOR CHARGE 50 6-12-24V 230V STARTER TELWIN

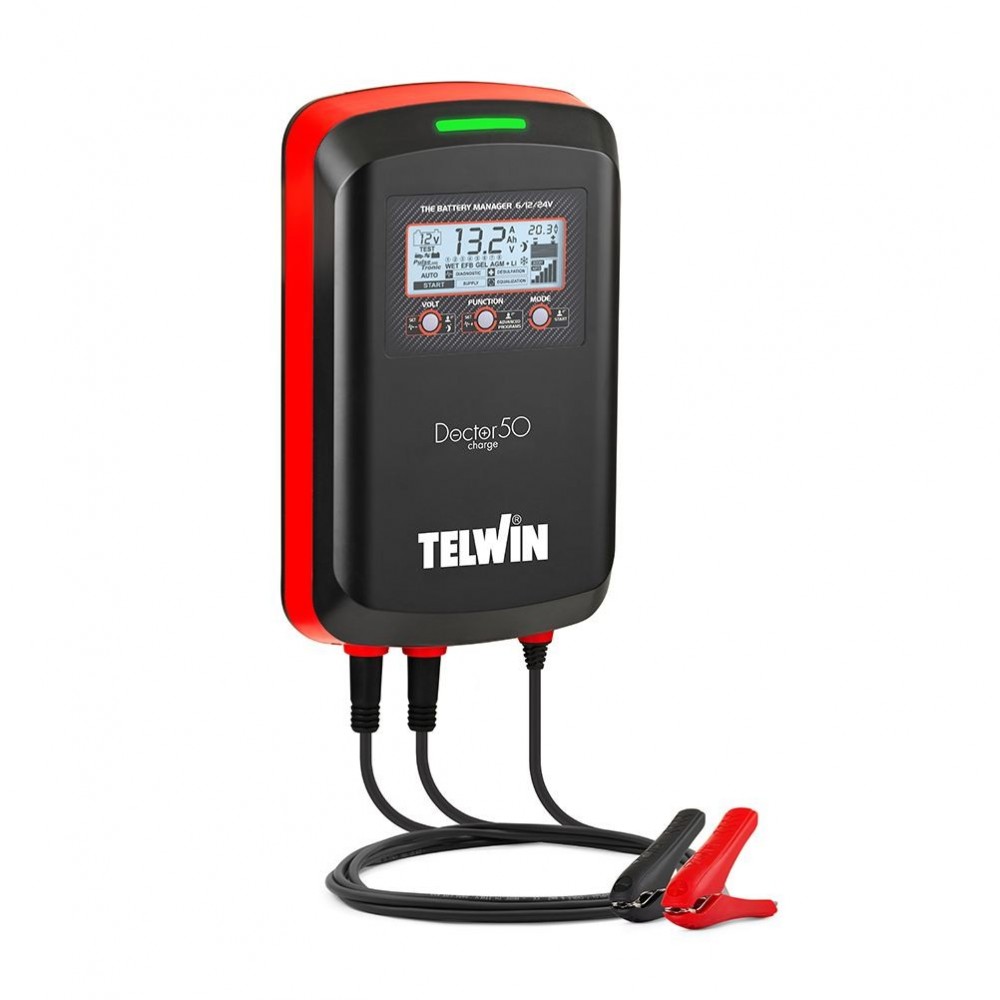

Telwin DOCTOR CHARGE 50: The Professional 8-Phase Battery Manager

The DOCTOR CHARGE 50 (code 807613) represents the state of the art in battery maintenance. It is a 230V multifunction electronic device that operates on 6V, 12V and 24V systems, compatible with all types of technology: WET, GEL, AGM, MF, PbCa, EFB and modern lithium (Li) batteries.

5 Professional Functions in One Tool

• CHARGE & MAINTAIN: Automatic charging and maintenance with Pulse Tronic technology. The 8 charging stages instantly diagnose the battery's condition and use specific pulses to restore optimal operation without overheating.
• TEST: Acts as a professional tester to check the voltage at the terminals, the starting capacity (CCA) and the correct functioning of the vehicle's alternator.
• RECOVERY: Includes advanced programs such as DESULFATION , for the recovery of batteries that have undergone sulfation processes, and EQUALIZATION , to periodically restore optimal functionality to AGM or WET batteries.
• SUPPLY: Acts as a stabilized power supply (BSU) to support diagnostic activities, maintain electronics during battery changes (avoiding setup losses) and power vehicles on display in showrooms.
• START AID: Provides effective starting aid for vehicles with partially discharged batteries.

Technological Advantages and Safety

• PFC (Power Factor Correction) technology: Reduces absorption by 25% and ensures total stability of the charging current even with variable mains voltages (from 150V to 270V).
• Advanced Diagnostic Support: Allows you to adjust the voltage extremely precisely according to the car manufacturers' specifications.
• LCD interface: Instant display of all working parameters and charging status.
• Cable Compensation: Intelligent function that compensates for any stretching of the charging cables for pinpoint accuracy.
• Total Protection: Guaranteed safety against reverse polarity, short circuit, overvoltage and failed batteries.

SAFE CHARGE

Ideal for professionals who need to power a vehicle during a control unit software update, or for dealers who need to keep the displays on their vehicles on display on standby without damaging the battery. Its ruggedness (IP33 rating) and 3-meter cable make it perfect for everyday workshop use.

Technical Specifications

• Product Code: 807613
• Charging/Starting Voltage: 6V / 12V / 24V
• Effective charging current: 45A (6/12V) / 23A (24V)
• Rated capacity ref. (min/max): 10 Ah - 600 Ah
• Power consumption during charging: 610 W
• Dimensions: 9.2 x 20 x 33 cm
• Weight: 3.77 kg

Accessories included: 3m cables complete with clamps.
