The Intelligent Support for the Modern Body Shop and Workshop

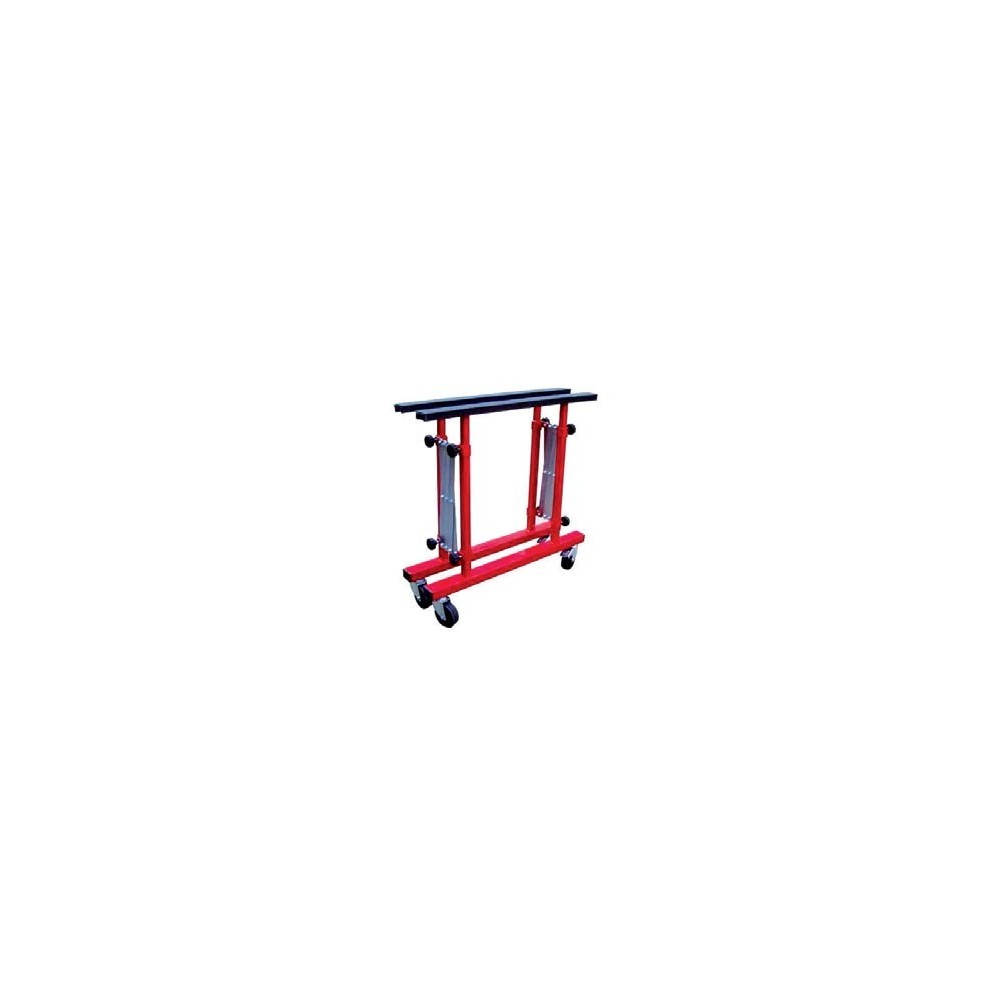

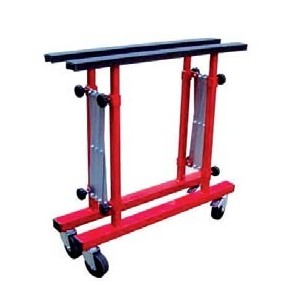

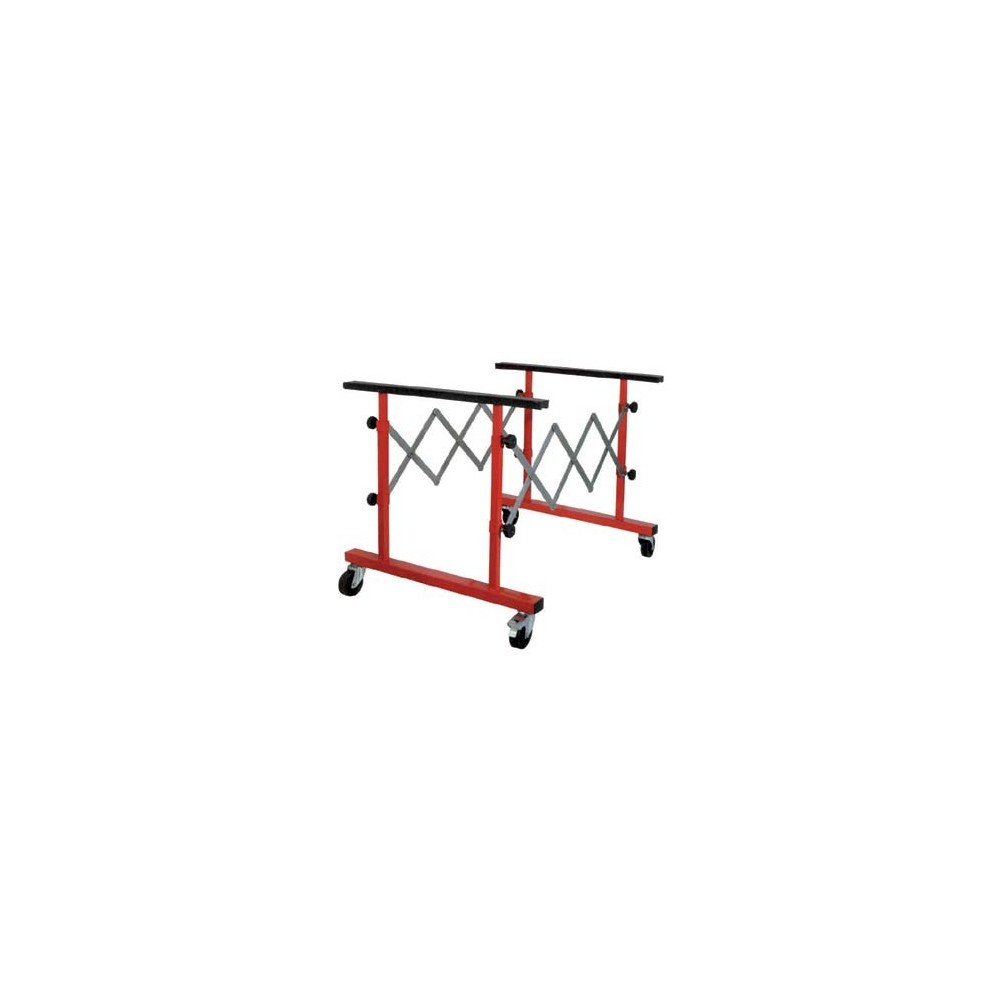

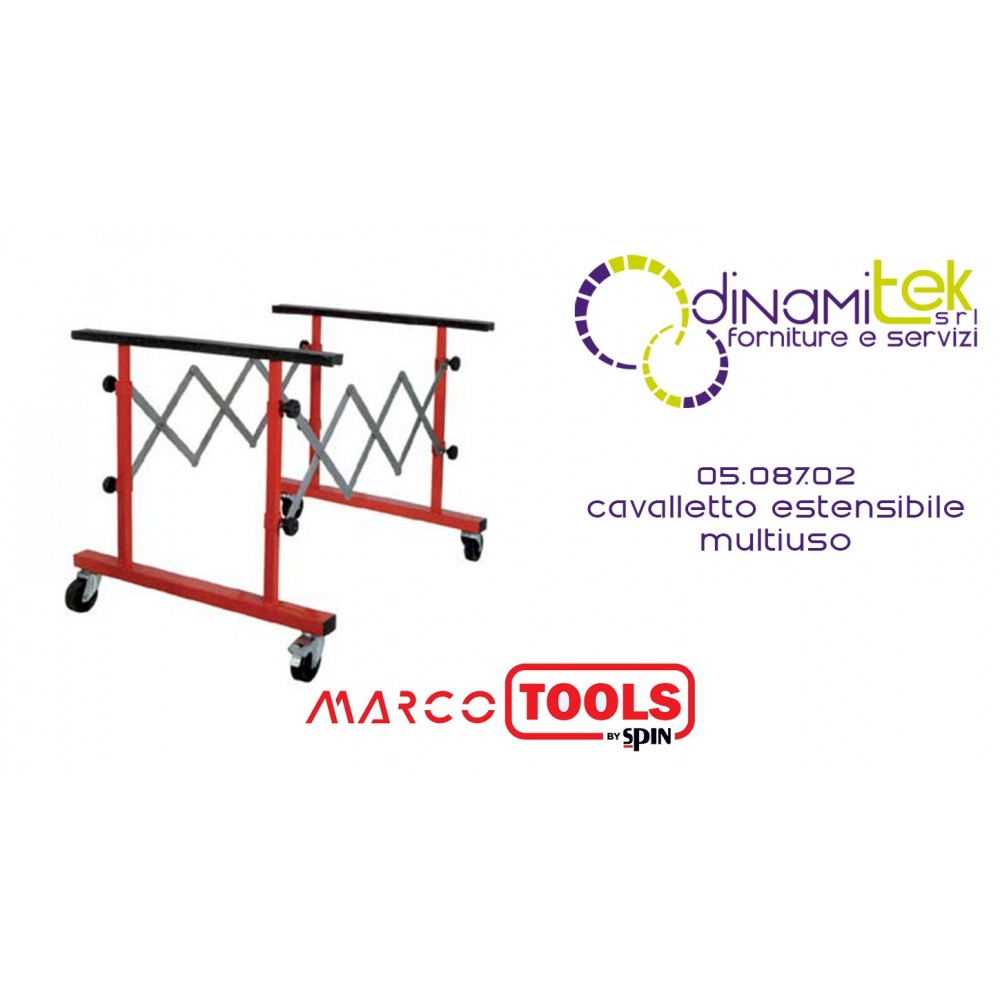

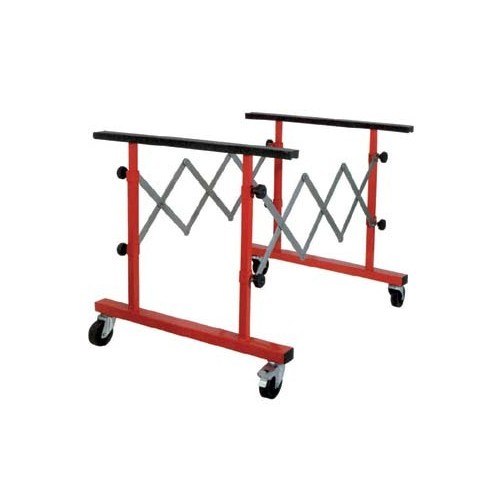

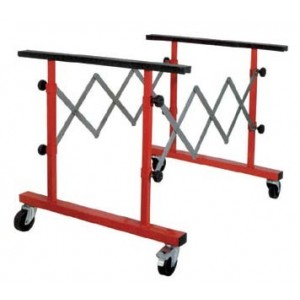

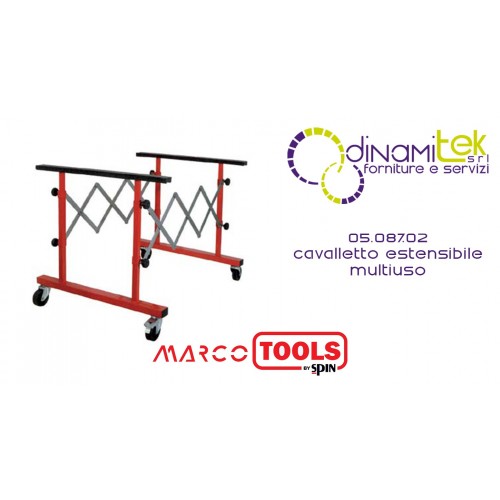

The Spin model, Cod. 05.087.02, represents a dynamic solution for professionals requiring a sturdy yet flexible work surface. Unlike fixed supports, this stand instantly adapts to the geometry of the workpiece being treated (such as hoods, doors, bumpers, or industrial profiles), ensuring stability and surface protection.
Technical Features and Adjustments
- Scratch-Resistant Worktops: The support surfaces are entirely covered in non-slip rubber , a solution that prevents components from slipping and protects paints or delicate materials from accidental scratches during work.
- Customizable Height: The system allows for millimetric height adjustment up to 132 cm , allowing the operator to always work in a correct ergonomic posture.
- Expandable Width: The frame is designed to open from a minimum of 22.5 cm (when closed) to a maximum width of 138 cm (fully open), accommodating both small pieces and bulky components.
- Mobility and Safety: Equipped with 2 wheels with brakes , it can be easily moved within the work area and locked securely in place once the ideal support point has been found.
Efficiency and Space-Saving Design
This tool has been designed to minimize space when not in use:
- Compact size: When not in use, the stand folds up to take up just 0.2 m² of space, allowing for easy storage even in workshops with limited space.
- Load Capacity: Despite its slim structure, it is certified to support a maximum load of 100 kg .
Areas of Application
Included in the Body Shop and Workshop Equipment line, it is the ideal tool for:
- Preparation and Painting: Stable support for sanding and applying primers and finishes.
- Industrial Assembly: Auxiliary support on assembly lines in general.
- Extraordinary Maintenance: Ideal for craftsmen and maintenance workers who need a portable and sturdy support surface.
Technical Specifications
- Product Code: 05.087.02
- Name: Multipurpose extendable easel
- Max capacity: 100 kg
- Width range: 22.5 cm - 138 cm
- Max height: 132 cm
- Wheels: 2 with braking system
Professional note: For those who work specifically in the glass sector, the Spin range also offers the stand (Code 05.087.10 ) to facilitate the management of glass during maintenance.
