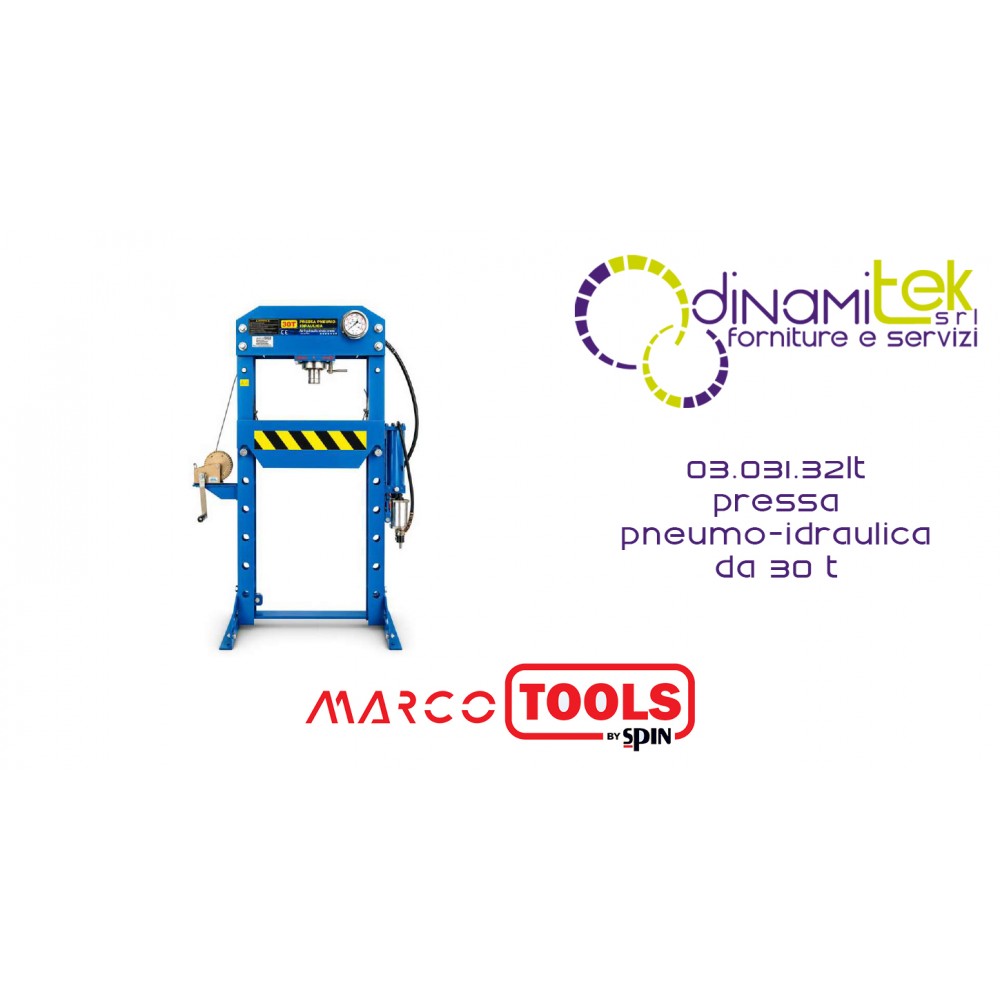

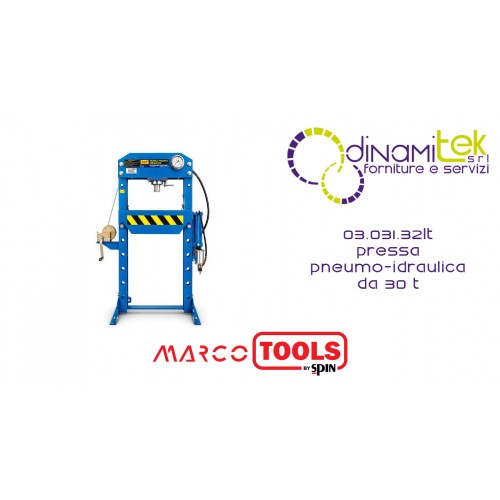

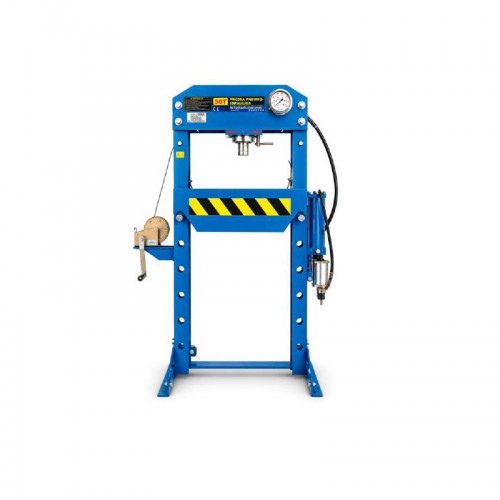

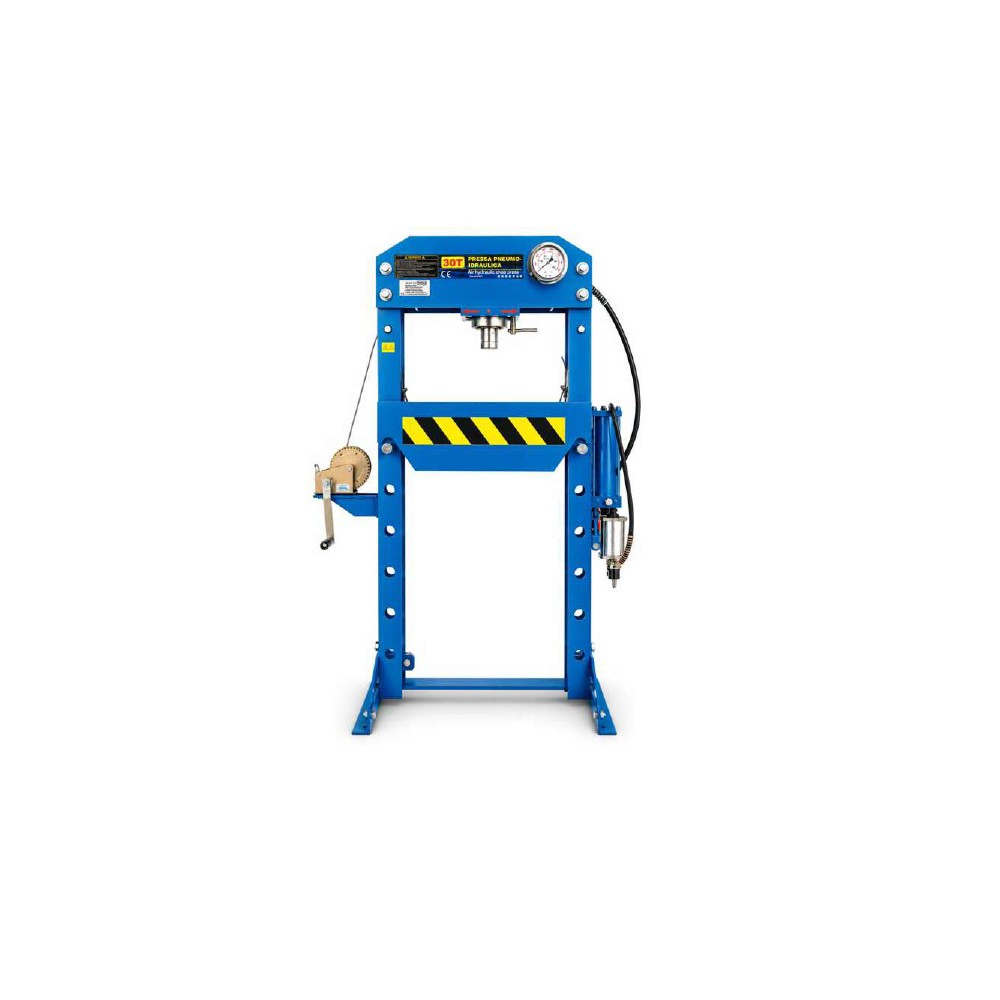

03.031.32LT 30-TON PNEUMATIC-HYDRAULIC PRESS MARCO TOOLS SPIN

Power, precision, and versatility for every heavy-duty compression job. The Spin pneumatic-hydraulic press (Code 03.031.32LT) is the ultimate professional tool for machine shops, agricultural service centers, and industrial maintenance. With an impressive 30-ton load capacity and a hybrid drive system, this unit easily handles operations on bearings, bushings, and the straightening of complex metal components.

Shipping cost: €35.00 for
973,56 €
Tax included

798,00 € Tax excluded

Quantity
Available product, order it now.

30 Ton Professional Efficiency

The Spin model (Code 03.031.32LT) represents a robust, cutting-edge solution for mechanical professionals. Thanks to its solid steel structure with 13 cm columns and adjustable worktable, this press offers a safe and highly configurable work environment for a wide range of heavy-duty applications.

Advantages and Distinctive Features

  • Dual Control System: Equipped with a powerful pneumatic-hydraulic pump for rapid and effortless advancement (air pressure up to 8 bar) and a manual lever for millimetric control of the final load.
  • Maximum Flexibility (Mobile Piston): The mobile piston allows the pressure point to be positioned exactly above the workpiece along the entire crosspiece, avoiding unnecessary load movements.
  • Lifting Winch: A practical crank mechanism makes it easy to position the work surface at the right height, making the equipment ergonomic and quick to set up.
  • High Precision Pressure Gauge: Integrated into the upper body of the machine for total shock protection and a clear view of the force applied during each operation.
  • Quality Details: Includes a pair of "V" notched steel plates to safely support shafts and cylindrical components.

Sectors of Use

Designed for intensive use, this press is the ideal ally for:

  • Car and motorcycle repair shops: Fitting bearings and bushings, straightening frames, and dismantling joints.
  • Agricultural and Earthmoving Vehicles: Heavy maintenance on transmission parts and bulky mechanical components.
  • Industrial Maintenance: Mechanical assembly and structural repairs.

Technical Specifications

  • Maximum capacity: 30 t
  • Piston stroke: 160 mm
  • Total height: 172 cm
  • Operating width: 70 cm
  • Operating distance (Min/Max): 130 mm / 820 mm
  • Maximum air pressure required: 8 Bar
  • Net weight: 150 kg

Optional Accessories

To maximize the press's versatility, specific accessories are available, such as a foot control or complete sets of punches and plates for the coordinated extraction of bearings and bushings. To request information or quotes on optional accessories, email info@dinamitek.com .
Professional equipment for car and motorcycle repair and maintenance


03.031.32LT
