DIFFERENCES BETWEEN HSS, HSS-R, HSS-G, HSS-CO, TIN AND DIN 338 DRILLS: COMPLETE GUIDE
Differences between HSS, HSS-R, HSS-G, HSS-Co, titanium, and DIN 338 drill bits: a complete guide
HSS drill bits are essential for drilling metals, plastics, and engineering materials. But not all HSS drill bits are created equal: there are rolled, ground, cobalt, titanium-coated variants, and they all comply with specific DIN standards. This guide helps you choose the right drill bit for every application, avoiding errors and improving precision, durability, and safety.
Want to see all available HSS drill bits?
Discover the Dinamitek selection
What does HSS mean?
HSS stands for High Speed Steel . It is designed to withstand the high temperatures generated during drilling, maintaining its cutting edge even under stress.
HSS drill bits are suitable for:
- mild steel
- iron
- aluminum
- copper and brass
- hard plastics
HSS-R drills: rolled
HSS-R drill bits are produced by cold rolling. They are economical, flexible, and suitable for standard drilling.
Characteristics
- good elasticity
- less precise tolerances
- average thermal resistance
- ideal for non-precision holes
Recommended materials
- mild steel
- iron
- aluminum
- plastic
HSS-G tips: ground
HSS-G tips are ground, making them more precise and aggressive in cutting.
Characteristics
- high precision
- less friction
- faster progress
- longer life than HSS-R
Recommended materials
- steel
- aluminum
- brass
- technical materials
HSS-Co drill bits: cobalt
HSS-Co drills contain a percentage of cobalt (5% or 8%), which increases hardness and heat resistance.
Characteristics
- very high heat resistance
- longer lifespan
- ideal for hard and abrasive materials
Recommended materials
- stainless steel
- alloy steels
- cast iron
- bronze
Titanium (TiN) HSS drill bits
Titanium nitride (TiN) coated bits are recognizable by their gold color. The coating reduces friction and increases durability.
Characteristics
- smoother scrolling
- less overheating
- longer life than standard HSS
Recommended materials
- steel
- aluminum
- hard plastics
What does DIN 338 mean?
DIN 338 defines:
- total length
- helix length
- tip angle (118°)
- dimensional tolerances
A DIN 338 compliant tip ensures consistent standards and professional compatibility.
Advanced comparison table
| Tip type | Production process | Precision | Heat resistance | Duration | Ideal materials | Recommended use |
|---|---|---|---|---|---|---|
| HSS-R | Rolling | Low | Average | Average | Mild steel, iron, plastic | Maintenance, standard holes |
| HSS-G | Correction | High | Good | High | Steel, aluminum, brass | Precise holes, professional use |
| HSS-Co | Steel + Cobalt | High | Very high | Very high | Stainless steel, cast iron, alloy steels | Hard materials, intensive use |
| HSS TiN | Titanium coating | High | High | High | Steel, aluminum, plastics | Repeated drilling, production |
| DIN 338 | Regulatory standard | Constant | Variable | Variable | All compatible materials | Professional applications |
Expert advice
Expert advice from Dinamitek
- For stainless steel, use only HSS-Co : other bits burn out in seconds.
- Always lubricate when drilling hard metals: it reduces heat and prolongs the life of the bit.
- Do not use high speeds on hard materials: you risk overheating the bit.
- Always clamp the piece : avoids vibrations and improves precision.
- If you have to make many repeated holes , choose TiN or HSS-G drill bits.
- For deep holes , use DIN 338 or DIN 340 (long) drill bits.
Common Mistake → Solution
Common mistakes and how to avoid them
Error: Using HSS-R bits to drill stainless steel.
Solution: Use only HSS-Co bits (5% or 8% cobalt).
Error: Drilling hard metals at high speed.
Solution: Set a low speed and use cutting lubricant.
Error: Do not clamp the workpiece to be drilled.
Solution: Use clamps or a vise to avoid vibrations.
Error: Continue using worn tips.
Solution: Replace the tip or sharpen it with appropriate equipment.
Mistake: Using TiN tips thinking they are good for stainless steel.
Solution: TiN improves sliding and durability, but is not a replacement for HSS-Co.
You may also be interested in
HM or HSS cutter? A selection guide for professional metal drilling.
Technical Glossary
- HSS – High-speed steel, heat-resistant.
- HSS-R – Rolled drill bits, economical and versatile.
- HSS-G – Ground, precise and professional tips.
- HSS-Co – Cobalt drill bits, ideal for stainless steel and hard materials.
- TiN – Titanium nitride coating, gold color.
- DIN 338 – Technical standard defining dimensions and angles.
- Tip Angle – Affects aggression and accuracy.
- Helix – The spiral that evacuates the chip.
- Cutting Lubricant – Reduces friction and heat.
- Alloy steel – Steel with additional elements that increase its hardness.
HSS drill bits aren't all the same: rolled, ground, cobalt-coated, titanium-coated, or DIN 338-compliant, each is designed for a specific purpose. Choosing the right drill bit means working better, faster, and with greater precision.
Do you want to buy professional HSS drill bits?
Visit the Dinamitek selection
You might also like

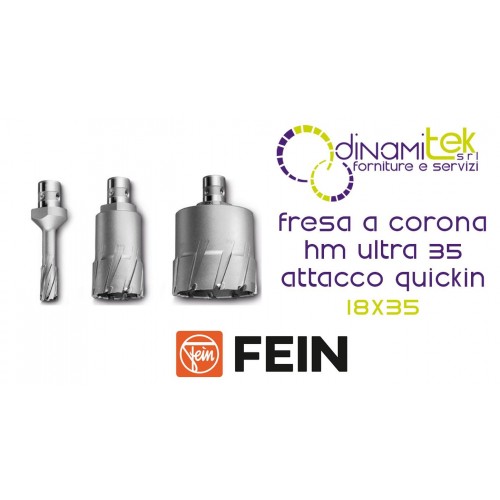

63127092019 HM ULTRA 35 CORE BIT WITH QUICKIN...
63127098010 HM ULTRA 35 CORE BIT WITH QUICKIN...
63127114018 HM ULTRA 35 CORE BIT WITH QUICKIN...

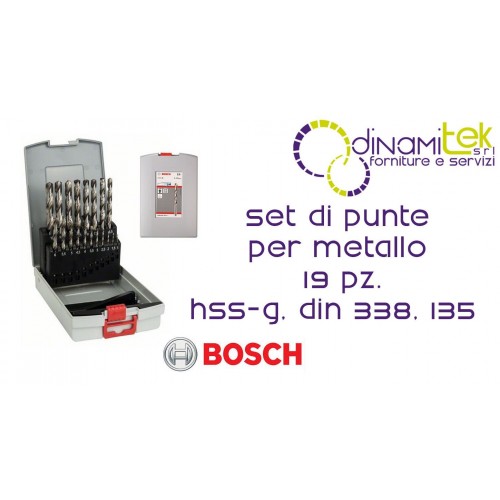

2.608.587.013 19-PIECE DRILL BIT SET 1-10 MM HSS-G BOSCH

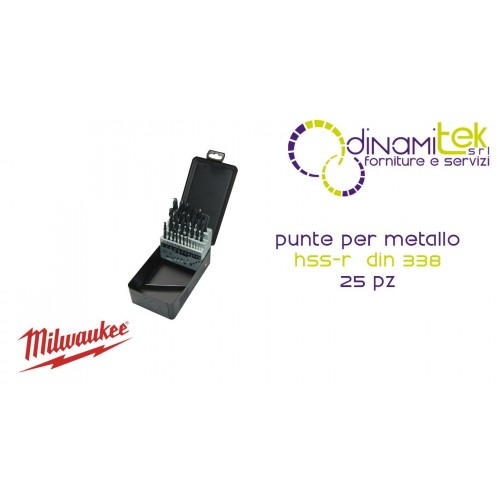

4932352469 SET OF 25 FORGED METAL DRILL BITS IN HSS-R...

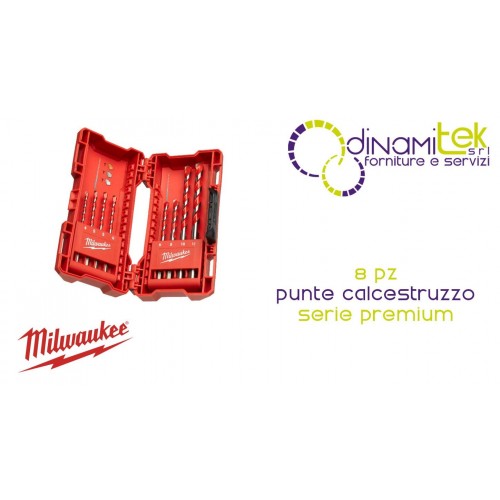

4932471192 8 PCS MILWAUKEE PREMIUM SERIES CONCRETE...

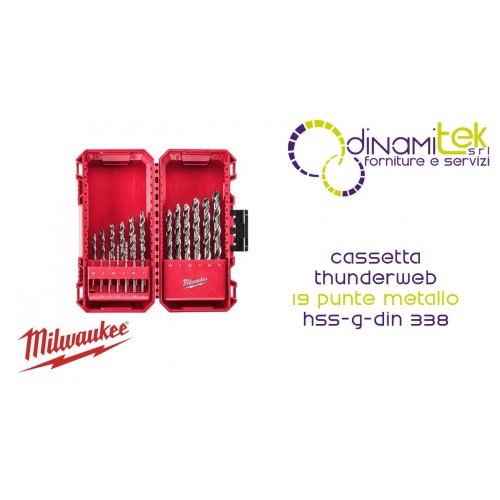

4932352374 THUNDERWEB 19-PIECE METAL DRILL BIT SET...

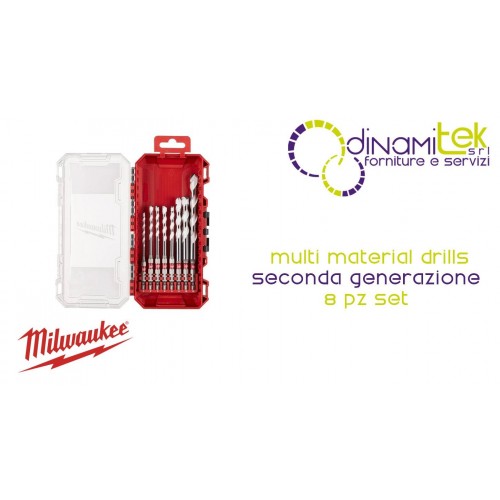

4932493871 MULTI MATERIAL DRILLS 8 PCS SET GEN. 2...
