COLUMN JIB CRANE IN CANTILEVER BEAM 4 m HIGH AS CARLO SAPORITI
JIB CRANE FIXED TO A COLUMN WITH CANTILEVER BEAM ARM
Painted with an anti-rust layer and finished with a zinc chromate layer
Fixing: the profiled steel column is fixed to the floor by means of a very thick plate connected to the foundation plate by means of fixing holes. The special foundation cages are equipped with threaded tie rods, suitable for any type of column.

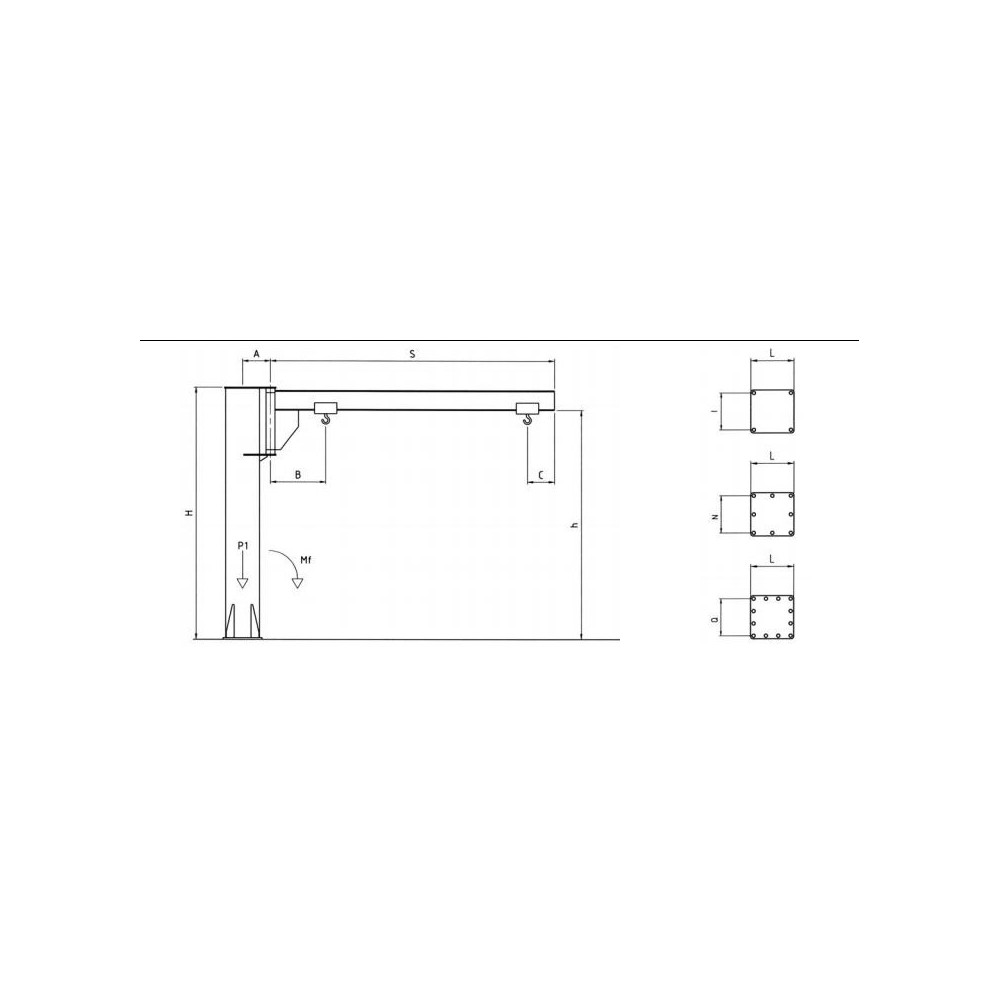

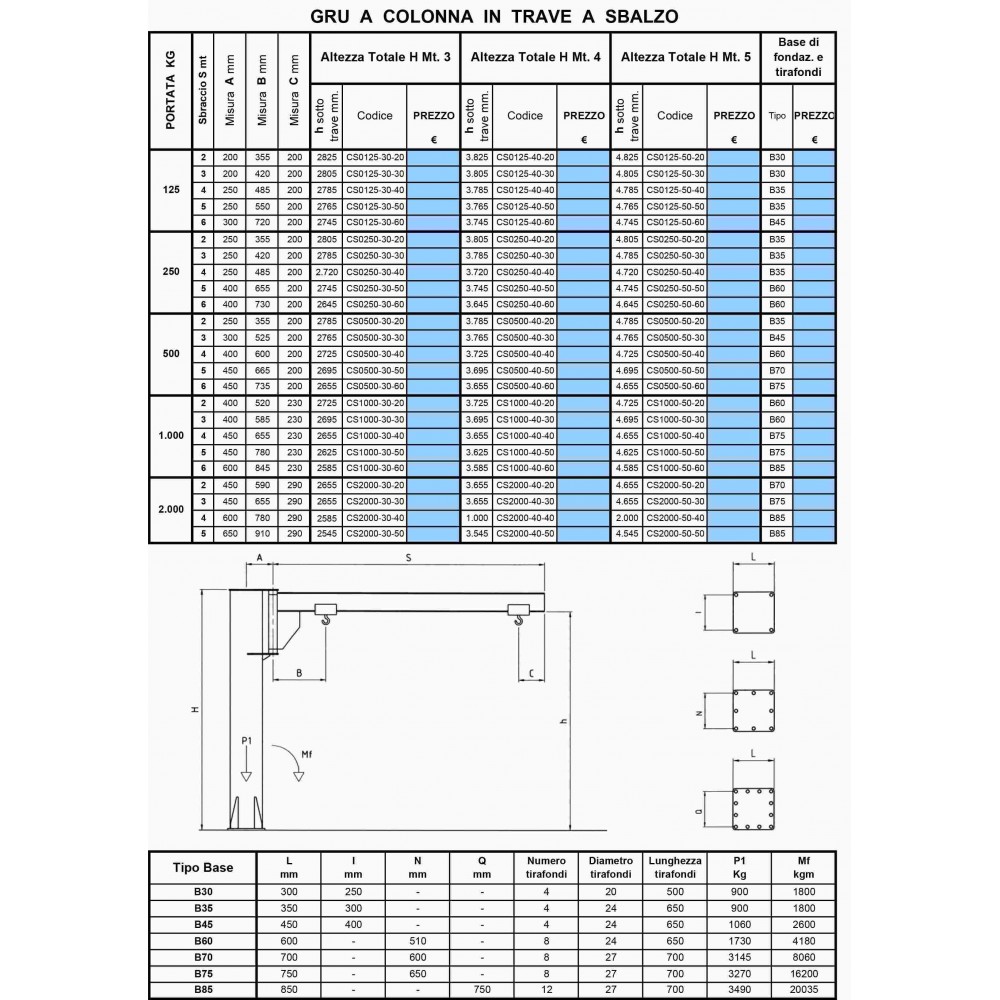

In the attached sheet you will find the diagram of the foundation base and bolts for column cranes. THE FOUNDATION BASE AND THE RODS ARE FOR SALE SEPARATELY, see under accessories. For the choice of the most suitable solution, you can get help from our technician by contacting customer service at info@dinamitek.com

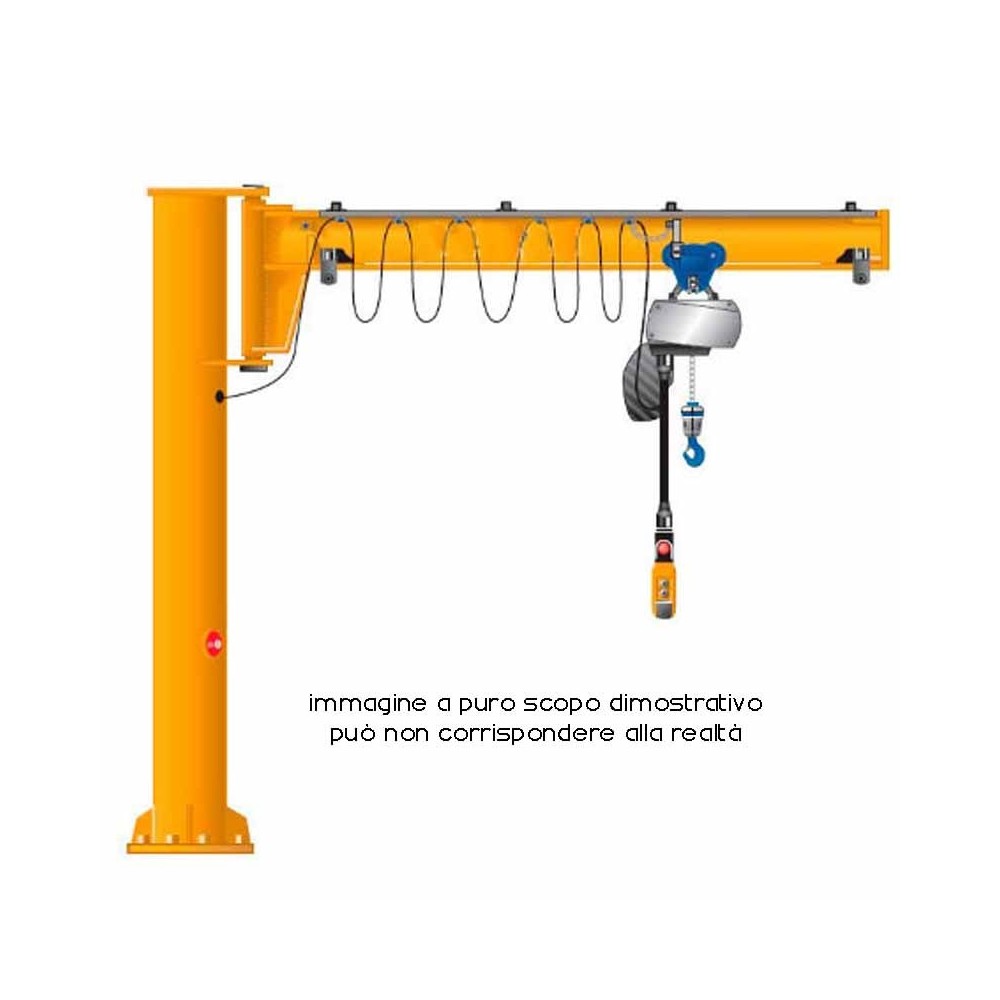

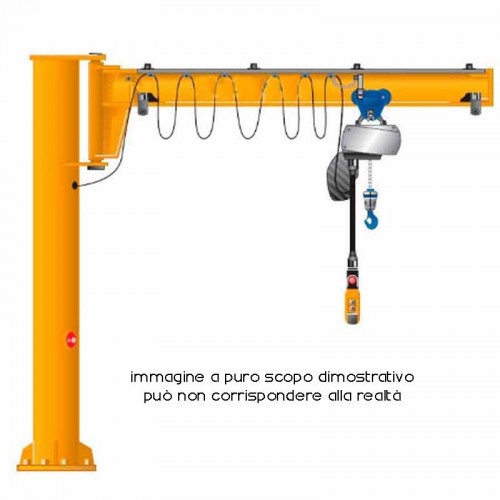

The jib crane with beam arm is a solution that offers greater capacity, suitable for applications where it is necessary to move very heavy loads. The cantilever is a horizontal beam supported at one end only. The connection between the arm in normal steel section and the column takes place via pins that rotate on bearings. Thanks to the adjustable braking device, the push rotation of the arm can be adjusted. The rotation of the arm covers an area of 270 degrees along the entire length of the arm. The cantilever version, without tie rods, maximizes the distance between the hook and the floor, as well as optimizing the available height (greater vertical hook travel).
With three simple movements it is possible to move loads of considerable weight: lifting by means of the hook of the lifting unit (hoist), translation of the trolley along the radial axis of rotation of the arm and rotation of the arm limited to the radius of the arm itself. The covered service area is intended for a single workstation.
The limits of use are those indicated in the instruction manual, it is recommended to limit yourself to the permitted use.
SAPORITI cranes are designed and manufactured in compliance with the Community Machinery Directive No. 2006/42/EC (in Italy Legislative Decree No. 17/2010); they are equipped with CE marking, CE declaration of conformity or Manufacturer's Declaration, test certificate/Suitability for use and instruction manual for use.
The travel unit and the lifting unit are not included with the crane: therefore, the trolley and the hoist are not included in the supply. The hoist can be purchased separately, the range of electric hoists type PT PHOLGOR is available
