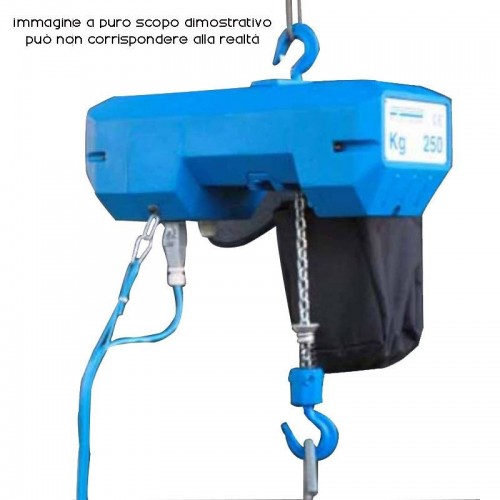

Electric chain hoist vt trolley type with mechanical translation, three-phase current supply with two lifting speeds PHOLGOR .
The trolleys translate the load horizontally along the longitudinal axis of the sliding beam positioned at a height. The sliding beam is double T
Hoist equipped with:
EC Declaration of Conformity (or Manufacturer's Declaration)
test certificate or suitability for use
user instruction manual

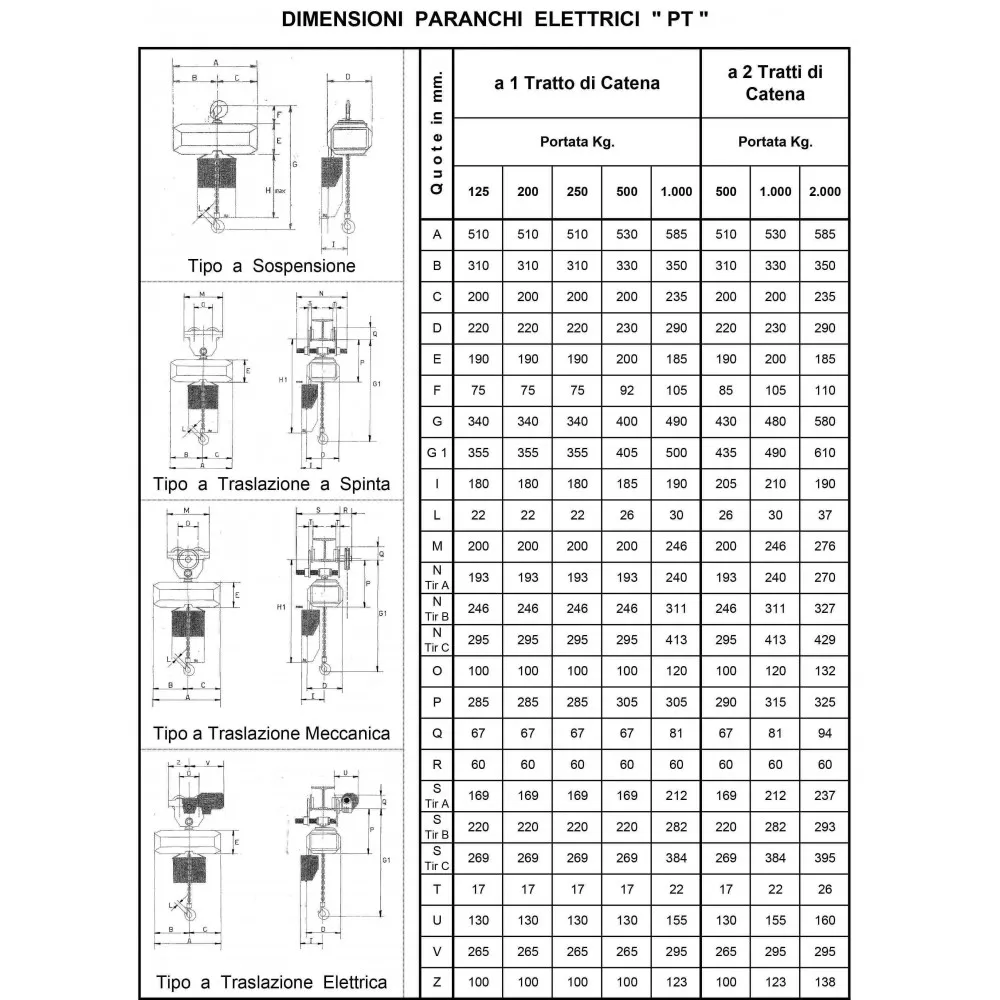

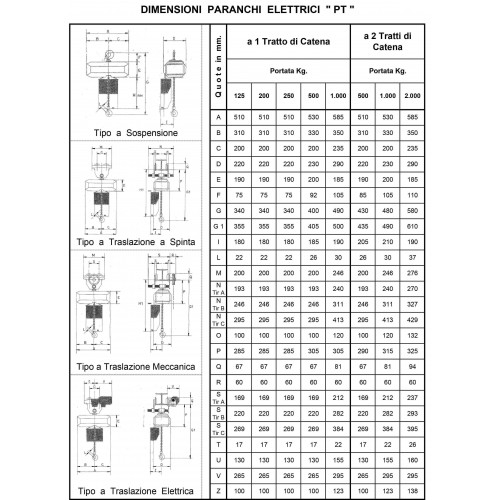

Real models available. Evaluate range, speed and power to identify the most suitable model
vt 285: capacity Kg 125 with 1 section of chain, lifting/translation speed m/min 8/2.7, power kW0.4-0.13, weight (with ~3 m of chain) Kg 43
vt 290: capacity Kg 200 with 1 section of chain, lifting/translation speed m/min 8/2.7, power kW0.4-0.13, weight (with ~3 m of chain) Kg 43
vt 295: capacity Kg 250 with 1 section of chain, lifting/translation speed m/min 8/2.7, power kW0.4-0.13, weight (with ~3 m of chain) Kg 43
vt 300: capacity Kg 500 with 1 section of chain, lifting/translation speed m/min 8/2.7, power kW0.9-0.13, weight (with ~3 m of chain) Kg 51
vt 305: capacity Kg 1000 with 1 section of chain, lifting/translation speed m/min 6.3/1.9, power kW1.6-0.55, weight (with ~3 m of chain) Kg 78
vt 310: capacity Kg 500 with 2 sections of chain, lifting/translation speed m/min 4/1.3, power Kw0.4-0.13, weight (with ~3 m of chain) Kg 46
vt 315: capacity Kg 1000 with 2 sections of chain, lifting/translation speed m/min 4/1.3, power kW0.9-0.13, weight (with ~3 m of chain) Kg 59
vt 320: capacity Kg 2000 with 2 sections of chain, lifting/translation speed m/min 3.15/0.8, power kW1.6-0.55, weight (with ~3 m of chain) Kg 94
The framework of the environmental conditions of use:
.Operating temperature min -10 degrees max +40 degrees centigrade
.Maximum relative humidity 85 %
.Maximum altitude 1000 meters above sea level
It is recommended to take into account what is indicated in the environmental conditions of use. Electric chain hoist for the vertical lifting of free loads in space, with mechanical chain driven trolley. Any use other than the intended use is the responsibility of the user. Use the hoist only in conditions of proven and controlled efficiency to preserve the safety of the load and the operators.
For safety purposes, the hoist is equipped with a load limiter and lifting limit switch. The load limiter is a friction device that stops movement in the event of an overload; the lifting limit switch is an electric device which limits the maximum upward and downward stroke.
The hoist and trolley have IP 45 degree of protection and insulation class "F" i.e.: Protected against solid bodies larger than 1 mm, Protected against water jets and thermal insulation up to 155 degrees Celsius. The electric hoist is equipped with a 48V low voltage low voltage pendant push-button panel, which has an IP 55 degree of protection. Furthermore, the push-button panel has an emergency stop button to interrupt movement immediately if the need arises.
Features electric chain hoist vt
Supply voltage 380/50V/Hz. Three-phase, asynchronous, double polarity self-braking motor
Noise dB(A): less than 80 decibels
The chain catcher for inactive chain is included. A practical and resistant soft bag in plastic material.
The hoist is very resistant in each of its components; it has a light alloy body and a grease-bathed reducer casing. The gears of the reducer are made of heat treated steel, and rotate on ball bearings. The milled steel loading nut is made with honeycombs.
The ring chain is made of steel with a special anti-wear treatment that hardens the surface. The hook is very strong, the lower one runs on ball bearings. The hook has a practical safety system: a carabiner against unhooking.
The undercarriage has steel bearing plates which connect to the sliding beam via adjustable tie rods, to perfectly adapt to the width of the wing. The tie rods have shim washers and lock nuts. This component too has a safety device that prevents unscrewing. The carrier plates each have two pins to support the wheels. So each plate has two mechanically machined cast iron wheels. The wheels are equipped with a guide edge and can be rotated thanks to ball bearings.
The vt electric chain hoist with mechanical translation trolley is equipped with a cast iron handwheel and a galvanized steel operating chain, very resistant to wear. The movement of the trolley wheels is imparted by the movement of the chain.
Product compliant with the Community Machinery Directive N 2006/42/CE and with the Low Voltage Directive 2006/95/CE and with the Electromagnetic Directive 2004/108/CE
