2-SPEED ELECTRIC HOIST WITH PHOLGOR SUSPENSION VT TYPE CHAIN

vt 235: capacity Kg 1000 with 2 sections of chain, lifting/translation speed m/min 4-1.3, power kW0.9-0.13, weight (with ~3 m of chain) Kg 47

vt 240: capacity Kg 2000 with 2 sections of chain, lifting/translation speed m/min 3.15-0.8, power kW1.6-0.55, weight (with ~3 m of chain) Kg 75

Below is the overview of the environmental conditions of use

Operating temperature min -10 degrees max +40 degrees centigrade

Maximum relative humidity 85%

Maximum altitude 1000 meters above sea level

Noise dB(A): less than 80 decibels

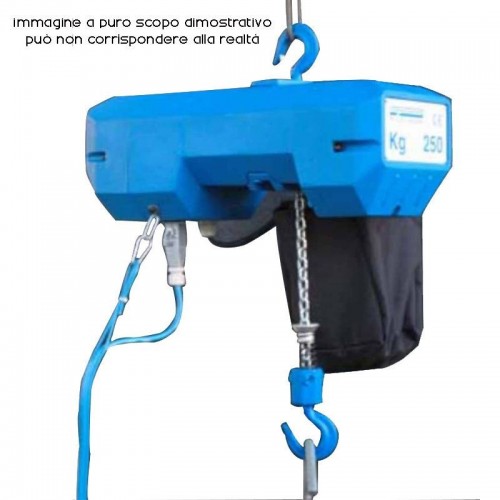

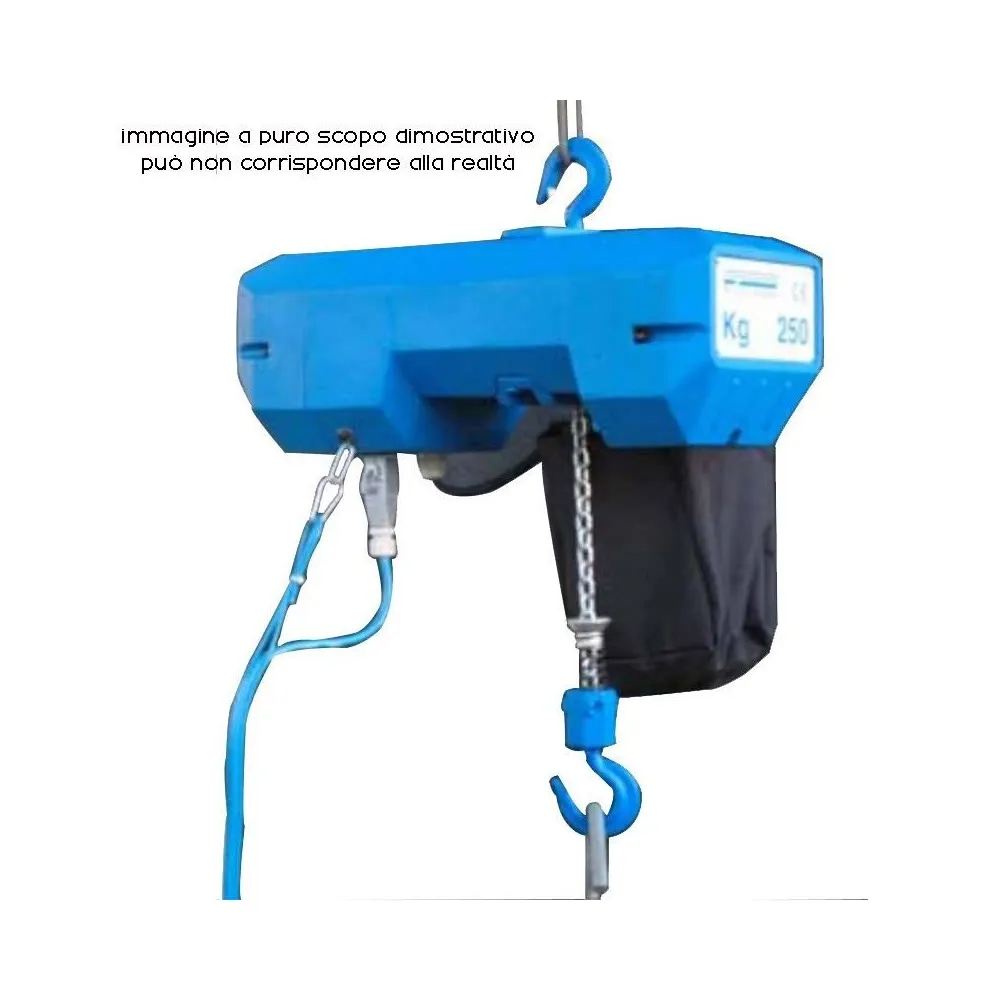

The hoist has a light alloy body. The gearbox housing is sealed in a grease bath. The reducer has heat treated steel gears. The gears run on ball bearings. The two-speed asynchronous three-phase electric motor is self-braking. The loading nut is made with honeycombs and is milled in steel.

The ring chain is made of high-strength steel, the anti-wear treatment has given it the surface hardness necessary to be extremely resistant. The chain collector consists of a soft plastic bag and is used to contain the inactive chain.

The hook is made of high resistance stamped steel. The lower hook is rotatable thanks to ball bearings. a safety carabiner against unhooking is provided. The load is perfectly handled and safe with a PHOLGOR vt electric chain hoist.

For maximum load safety, the hoist is equipped with a load limiter: a friction device that blocks movement if the permitted weight limit is exceeded. The lifting limit switch is also very practical, an electric device that limits the maximum up and down stroke.

Degree of protection of the hoist motor: IP 45 and insulation class "F"

IP 45: protected against solid bodies larger than 1 mm in diameter and protected against water jets

class "F": 155 °C maximum admissible temperature for class of insulation

Note for the safety of the load and of the operator: all handling operations must be carried out only in conditions of proven efficiency in full compliance with the indications of the limits of use contained in the instructions and only with accessories of the permitted type.

The hoist has the CE marking, is supplied with the CE declaration of conformity or the manufacturer's declaration; Certificate of testing or suitability for use and instruction manual.

PHOLGOR hoists are manufactured in compliance with the Community Machinery Directive No. 2006/42/EC, the Low Voltage Directive 2006/95/EC and the Electromagnetic Compatibility Directive 2004/108/EC
