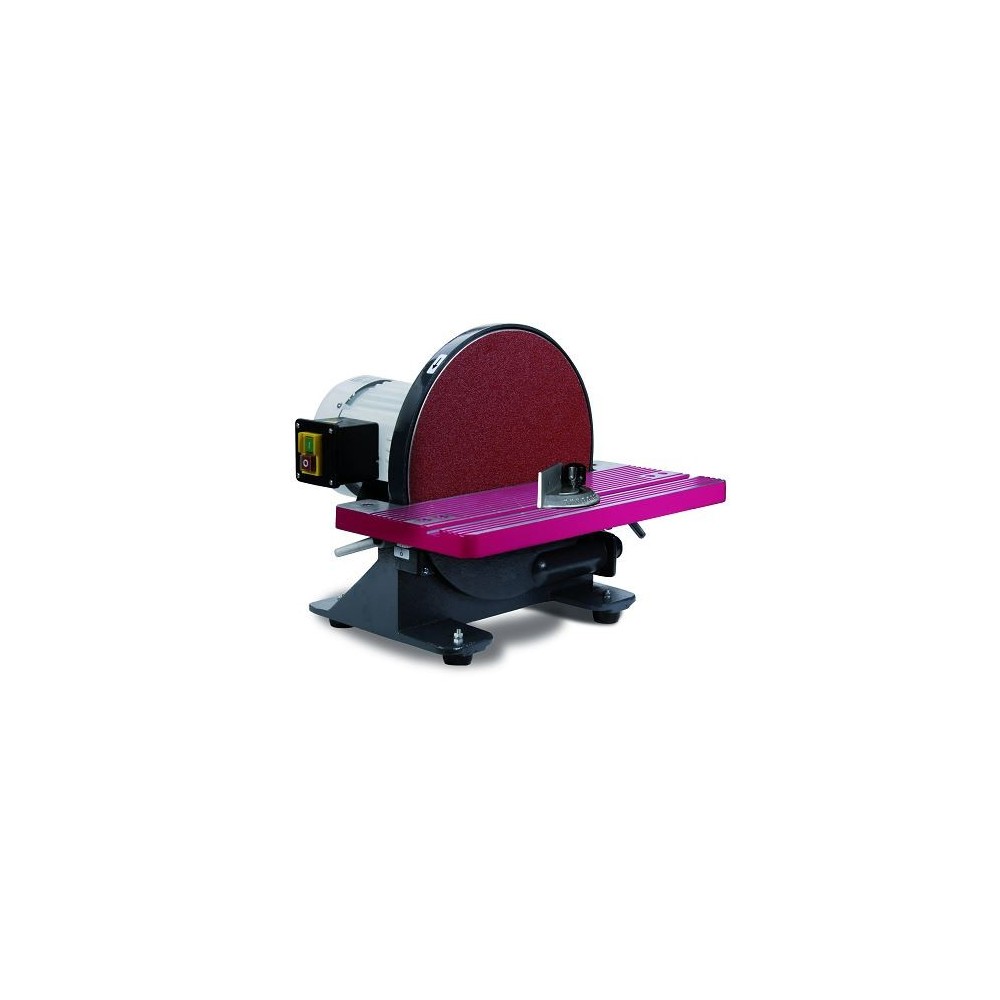

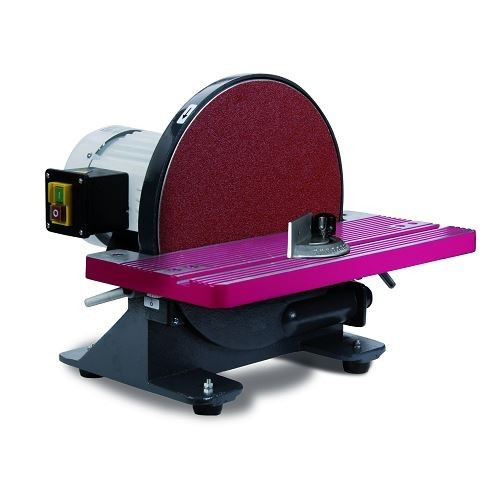

054OP0305 TS 305 OPTIMUM DISC SANDER FOR METALWORKING 900W

The optimum TS 305 disc sander is the ideal 900W professional tool for roughing, precision grinding, and metal shaping. Equipped with a 305 mm balanced aluminum plate and a tilting worktable, this machine guarantees stability and versatility, allowing for flawless finishes on various types of profiles and surfaces.

Shipping cost: €25.00 for
565,54 €
Tax included

463,56 € Tax excluded

Quantity
Available product, order it now.

Precision and Versatility in Metalworking

The optimum TS 305 model (Code 054OP0305) is a disc sander designed to offer high performance in a variety of applications. Thanks to the combination of a powerful motor and an extremely stable body, it is effective for both heavy-duty removal and detailed finishing, always ensuring maximum operator safety.

Technical and Functional Features

  • Balanced Grinding Platter: Made of high quality aluminum to minimize vibration and ensure smooth rotation.
  • Angular Flexibility: The work table can be tilted up to ± 45° , while the standard square for bevel cuts can be rotated by ± 60° , allowing for precise processing of edges and chamfers.
  • Integrated Extraction System: The machine is equipped with standard sleeves of two diameters (nominal external ± 30/38 mm) for easy connection to a chip extraction system, keeping the work environment clean.
  • Superior Stability: The sturdy design and 30kg weight ensure the machine remains stable during use, preventing inaccuracies due to accidental movement.

Areas of Use

The TS 305 is ideally suited for use in mechanical workshops, model making laboratories and maintenance departments for:

  • Roughing of metal parts.
  • Shaping of external edges and profiles.
  • Precision surface grinding.

Technical Reference Data

Characteristic Detail
Engine power 230 V ~ 50 Hz – 900 W
Disc diameter 305 mm
Rotation speed 1,420 rpm
Work table dimensions 155 x 440 mm
Table tilt adjustment ± 45°
Angle stop adjustment ± 60°
Overall dimensions 440 x 445 x 365 mm
Net weight 30 kg

Standard Equipment Included:

  • Adjustable angle stop for precise geometric work.
  • Adhesive abrasive disc already mounted for immediate use.
  • Square for inclined cuts.
Qualità, precisione, longevità e stabilità di valore caratterizzano le macchine per la lavorazione dei metalli, garanzia tedesca


054OP0305
