Technology and Performance for Industrial Turning
The optimum OPT050OP1668 set is the ideal choice for the modern workshop that doesn't compromise on quality. Unlike standard sets, these tools feature interchangeable titanium-coated inserts, a surface treatment that reduces friction and heat during chip removal, preventing premature wear of the cutting edge.
Excellent Technical Features
- Titanium Coating: Significantly increases the surface hardness of the cutting edge, allowing for higher cutting speeds and a more accurate surface finish of the workpiece.
- Interchangeable Plates (MD): The mechanical fastening system allows you to quickly replace only the worn plate, keeping the steel stem always operational.
- ISO Geometries Assortment: The set includes 5 different standardized geometries (PWLN, PSDNN, CKJN, MDJN) to tackle roughing, finishing and profiling operations both right and left.
- Protection and Transport: The supply includes a dedicated aluminum box , ideal for protecting tools and delicate plates from impacts and dust inside the laboratory.
Versatility of Use
With a 16mm shank, this assortment is perfectly compatible with medium-sized lathes and quick-change tool turrets, ensuring structural rigidity that minimizes vibrations during operation.
Technical Data and Composition
| Characteristic | Detail |
|---|
| Product Code | 050OP1668 (OPT050OP1668) |
| Stem size (h1) | 16 mm |
| Number of Pieces | 5 |
| Cutting Edge Type | MD plates with titanium coating |
| Container | Aluminum box included |

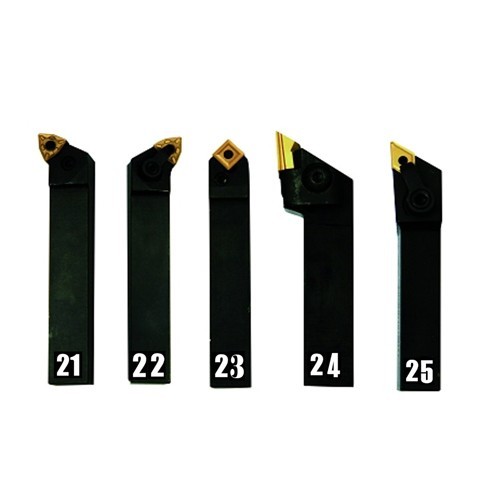

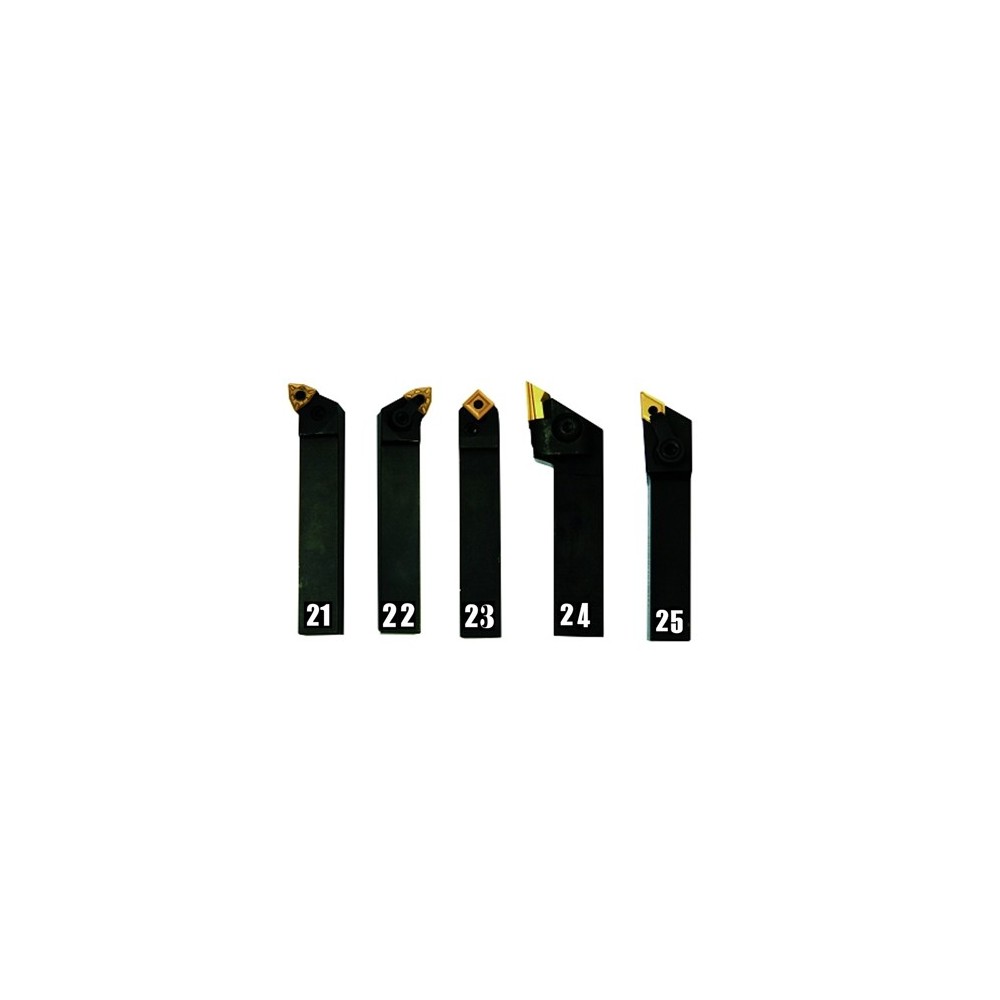

Set Composition (ISO Standard):
- No. 21: PWLN R1616 H06
- No. 22: PWLN L1616 H06
- No. 23: PSDNN 1616 H09
- No. 24: CKJN R1616 H16
- No. 25: MDJN R1616 H11
Relying on original optimum accessories means choosing mechanical excellence supported by the experience of LTF, a leader in the sector since 1965.
