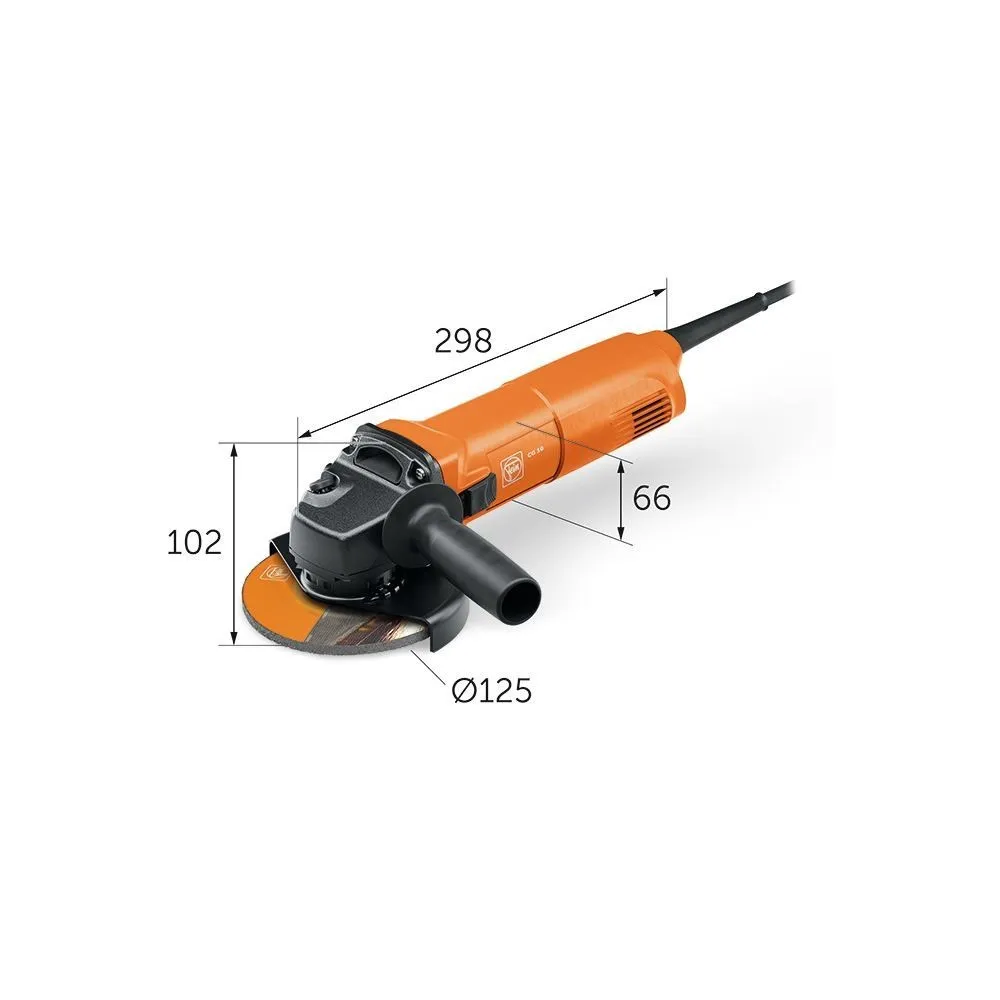

The fine CG 10-125 is a professional angle grinder designed for compactness, ease of handling, and high performance in various applications such as cutting, deburring, and sanding. It operates on a nominal voltage of 220–230 V.
Construction and Features
- Robust and Powerful Motor: Equipped with a 1,000W motor (rated absorbed power) and an output power of 630W, it guarantees reliability for daily use and a high processing speed.
- Compact and Easy to Handle Design: The slim motor housing and low weight of just 2.1 kg make it extremely compact and easy to handle.
- Versatility: The gear head can be rotated 90°, allowing for a wide range of applications and adapting to different work needs.
- Direct Cooling: High overload resistance is ensured by an efficient direct engine cooling system.
- Quick Accessory Replacement: The supplied quick-locking ring allows for quick accessory replacement without the use of service keys.
Safety and Operational Comfort
- Soft Start: The soft start system reduces reaction forces when starting and accelerating, improving operator comfort and safety.
- Accidental Start Protection: The integrated restart lockout prevents the grinder from starting accidentally after a power failure, increasing safety during use.
Recommended Applications
The fine CG 10-125 is very suitable for:
It is also suitable for:
The power tool is intended for use as a hand-held angle grinder for dry sanding, wire brushing, and cutting metal and stone with FEIN-recommended bits and accessories, in a weather-protected environment and without the use of coolant. It is also designed for use with AC generators with sufficient power, compliant with ISO 8528, performance class G2 (not compliant if the distortion factor exceeds 10%). It is not suitable for working with light metals or for polishing work.
Technical Data
- Rated voltage: 220 – 230 V
- Rated power consumption (P1): 1,000 W
- Power output (P2): 630 W
- No-load speed (n0): 11,000 min⁻¹
- Ø abrasive disc: 125 mm
- Ø elastic backing pad: 125 mm
- Housing hole diameter (ØH): 22.23 mm
- Grinding/Cutting Disc Thickness (T): 1 – 7 mm
- Tool holder shaft thread (M): M 14
- Cable with plug: 4 m
- Weight (EPTA-Procedure 01): 2.10 kg
- Sound pressure level LpA: 91 dB(A) (Uncertainty KpA: 3 dB)
- Sound power level LWA: 102 dB(A) (KWA uncertainty: 3 dB)
- Average vibration value for angle grinding (h,AG): 5.6 m/s²
- Average vibration value for grinding with sanding sheet (h,DS): 2.7 m/s²
- Uncertainty of the measured value Kα: 1.5 m/s²
Standard Equipment
- 1 protective cap
- 1 protective cap for cutting work
- 1 quick lock ring
- 1 handle
- 1 key
The fine CG 10-125 is a versatile and reliable tool, ideal for professionals looking for performance and safety when working with metal and stone.
