Power and Versatility for Professional Maintenance

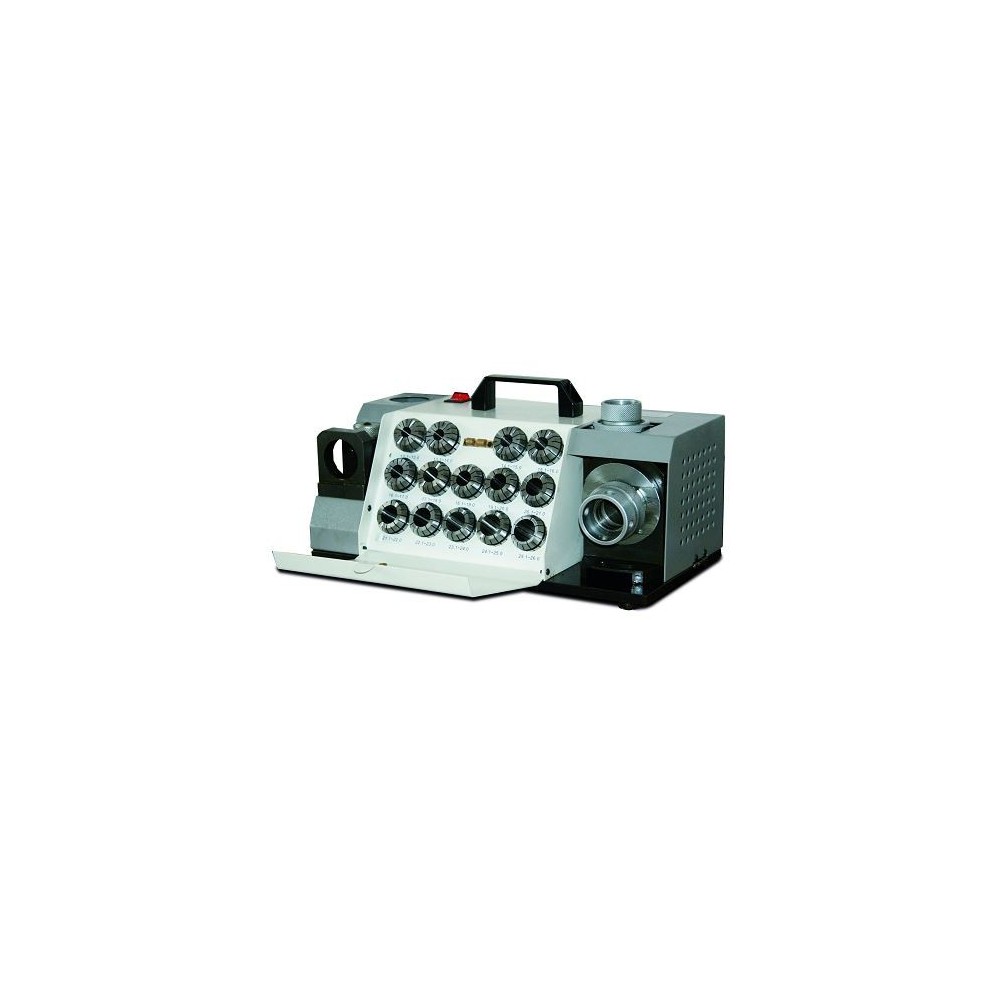

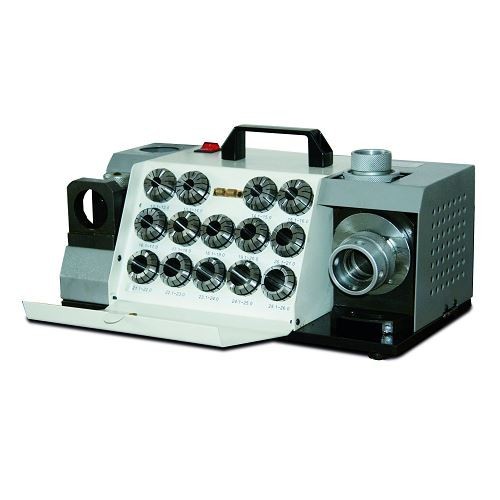

The optimum GH15T model (Code OPT050OP0015) represents the top of the range for compact sharpening solutions. Designed to handle larger twist drills than standard models, this machine offers a power of 450 W that ensures smooth and fast processing even on high-hardness materials such as carbide.
Precision Guided and Optimized Operation
The sharpening process is designed to eliminate human error, guiding the operator through each phase:

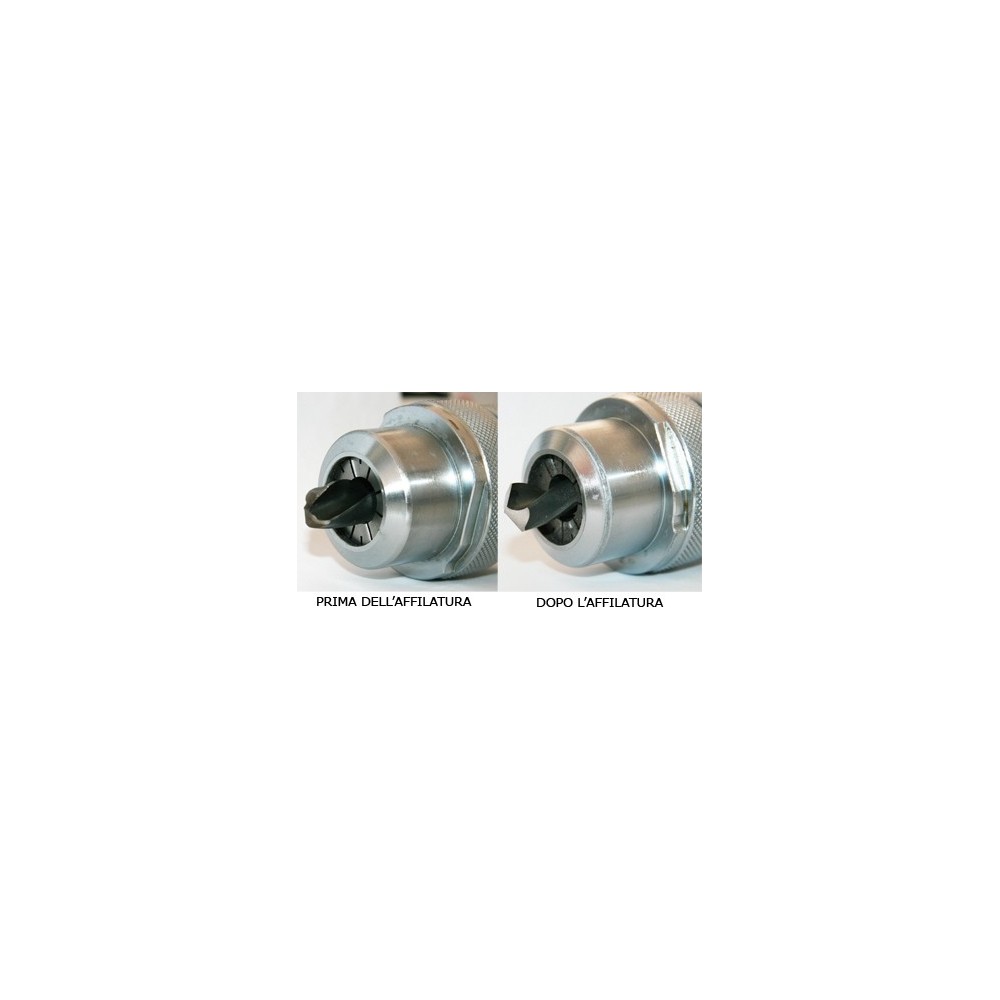

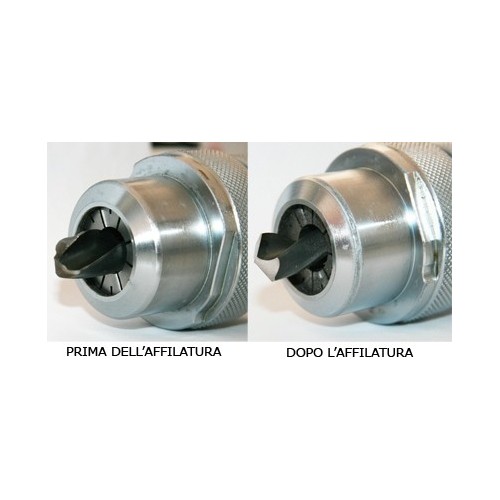

- Millimetric Setting: The cutting edges of the bits are locked in an exact position in the collet holder thanks to an integrated mechanical stop.
- Sequential Procedure: Sharpening is done by inserting the support into the appropriate openings in a pre-established order, completing the operation with simple rotary movements.
- Customizable Geometry: The sharpening angle can be adjusted over a wide range from 90° to 145° , allowing the tool to be adapted to different types of industrial drilling.
Technical Features and Premium Equipment
In line with the reliability standards of the LTF catalogue, the GH15T stands out for:
- Electronic Regulation: The number of revolutions is continuously adjustable up to 5,000 rpm , allowing total control over the finishing of the cutting edge.
- Complete Collet Set: Supplied with a total of 28 collets (6 ER20 collets for Ø 3-8 mm and 22 ER40 collets for Ø 8-30 mm), fully covering the declared working range.
- Quality Consumables: Includes a CBN (Cubic Boron Nitride) grinding wheel, ideal for achieving clean, long-lasting edges.
Technical Reference Data
| Characteristic | Detail |
|---|
| Product Code | 050 OP 0015 (OPT050OP0015) |
| Engine power | 230 V ~ 50 Hz - 450 W |
| Number of revolutions (continuously adjustable) | 5,000 rpm |
| Sharpening field | Ø 3 ÷ 30 mm |
| Tip sharpening angle | 90° ÷ 145° |
| Grinding wheel diameter | 108 mm |
| Dimensions | 450 x 240 x 270 mm |
| Net weight | 33 kg |
Standard Equipment Included:
- 6 Collets Ø 3-8 mm ER20.
- 22 Collets Ø 8-30 mm ER40.
- CBN (Cubic Boron Nitride) grinding wheel.
- Clamping pliers attachment.
Choosing an optimum sharpener means investing in efficiency: reducing the consumption of new bits and always guaranteeing maximum drilling precision in your production cycle.
