Precision and Ease of Use for the Mechanical Workshop

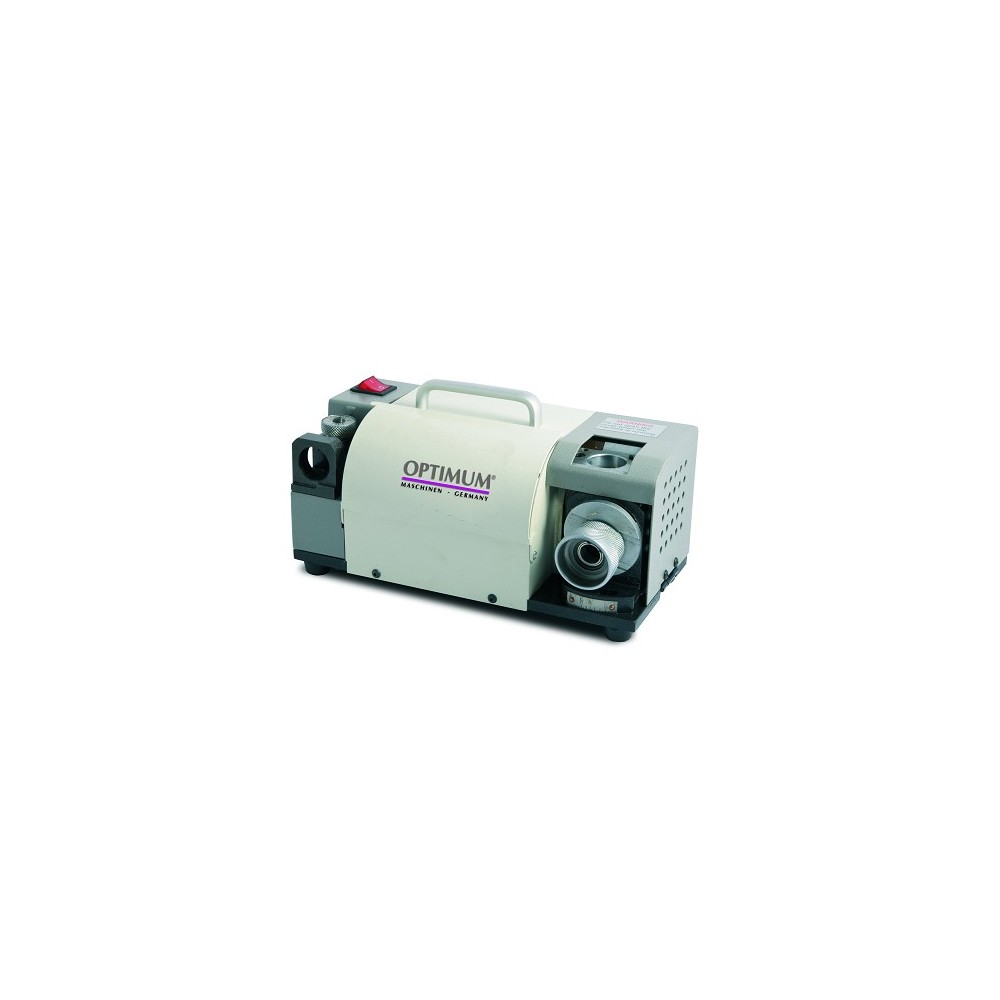

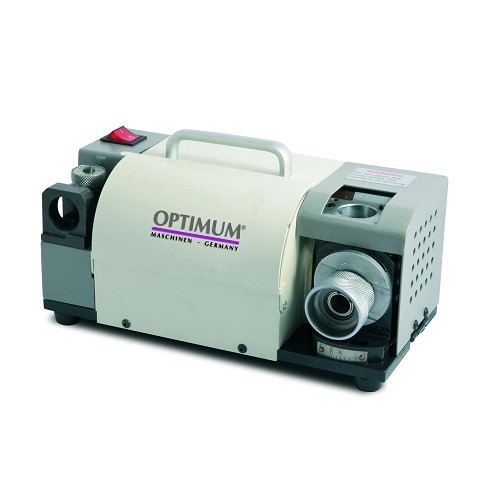

The optimum GH10T model (Code OPT050OP0010) is the ideal solution for those who need to keep their drill bits in tip-top condition with minimal effort. Its robust yet lightweight construction makes it easy to transport , allowing it to be used wherever quick tool maintenance is required.
Intuitive Operation
The sharpening process is designed to be performed in a few guided steps:

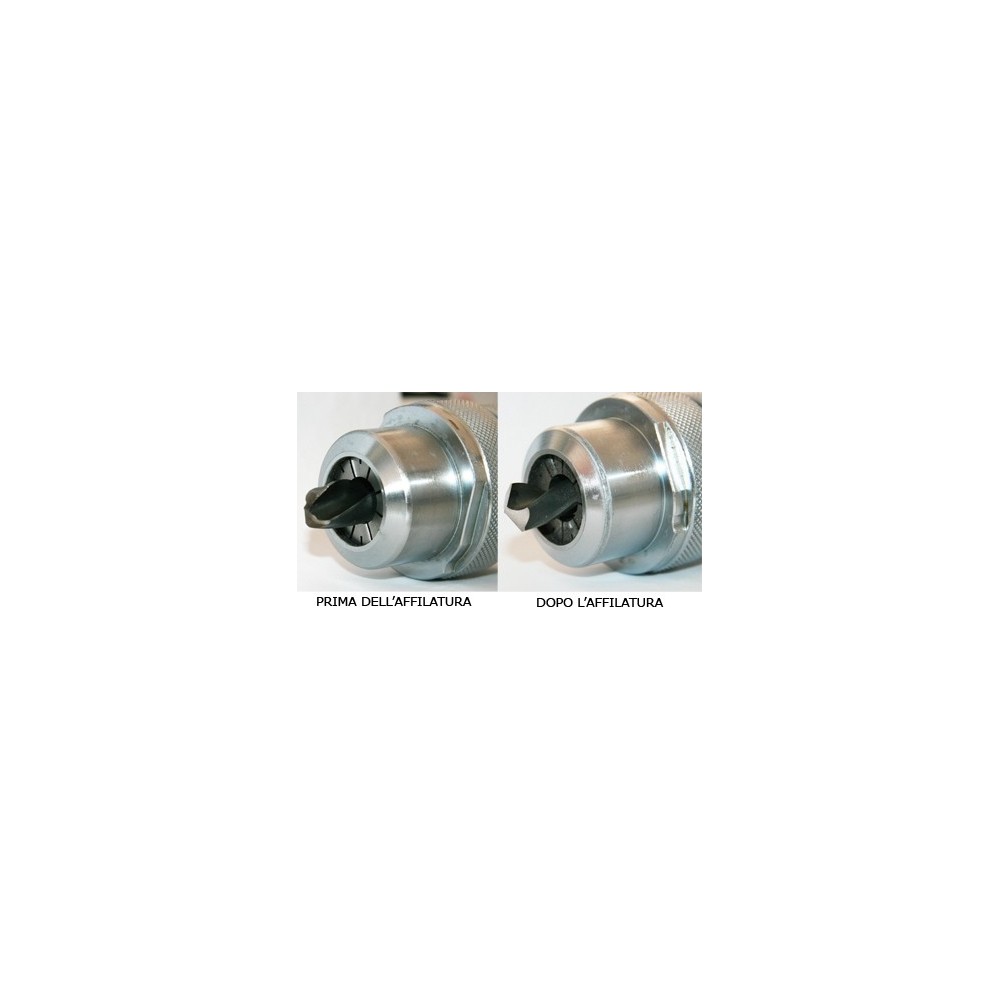

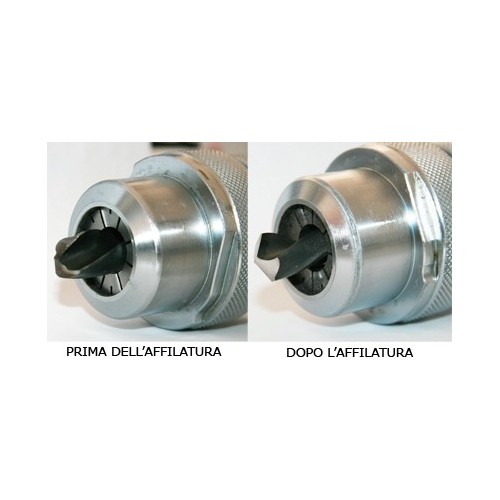

- Fixing: The cutting edges of the tip are locked in the collet holder in exact position by a mechanical stop.
- Insertion: The media is inserted into the appropriate openings according to a pre-established order.
- Sharpening: The cutting edge is restored by simple rotary movements of the collet holder against the grinding wheel.
Technical Features of Relief
- Material Versatility: Optimized for both high-speed steel (HSS) and carbide drills.
- Continuously Adjustable: The 180W motor offers continuously adjustable rotation speed up to 5,300 rpm .
- Variable Geometry: The sharpening angle can be set between 90° and 135° to suit different drilling applications.
- Professional Equipment: Comes standard with a CBN grinding wheel and a complete set of 11 ER20 collets to cover the entire operating range.
Technical Reference Data
| Characteristic | Detail |
|---|
| Product Code | 050 OP 0010 (OPT050OP0010) |
| Engine power | 230 V ~ 50 Hz - 180 W |
| Number of revolutions (continuously adjustable) | 5,300 rpm |
| Sharpening field | Ø 2 ÷ 13 mm |
| Tip sharpening angle | 90° ÷ 135° |
| Grinding wheel diameter | 77.5 mm |
| Dimensions | 310 x 180 x 190 mm |
| Net weight | 9.5 kg |
Standard Equipment Included:
- 11 Collets Ø 2-13 mm ER20.
- CBN (Cubic Boron Nitride) grinding wheel.
- Clamping pliers attachment.
Choosing optimum means relying on reliable machinery that improves productivity, ensuring consistent industrial sharpening, supported by LTF's technical expertise.
