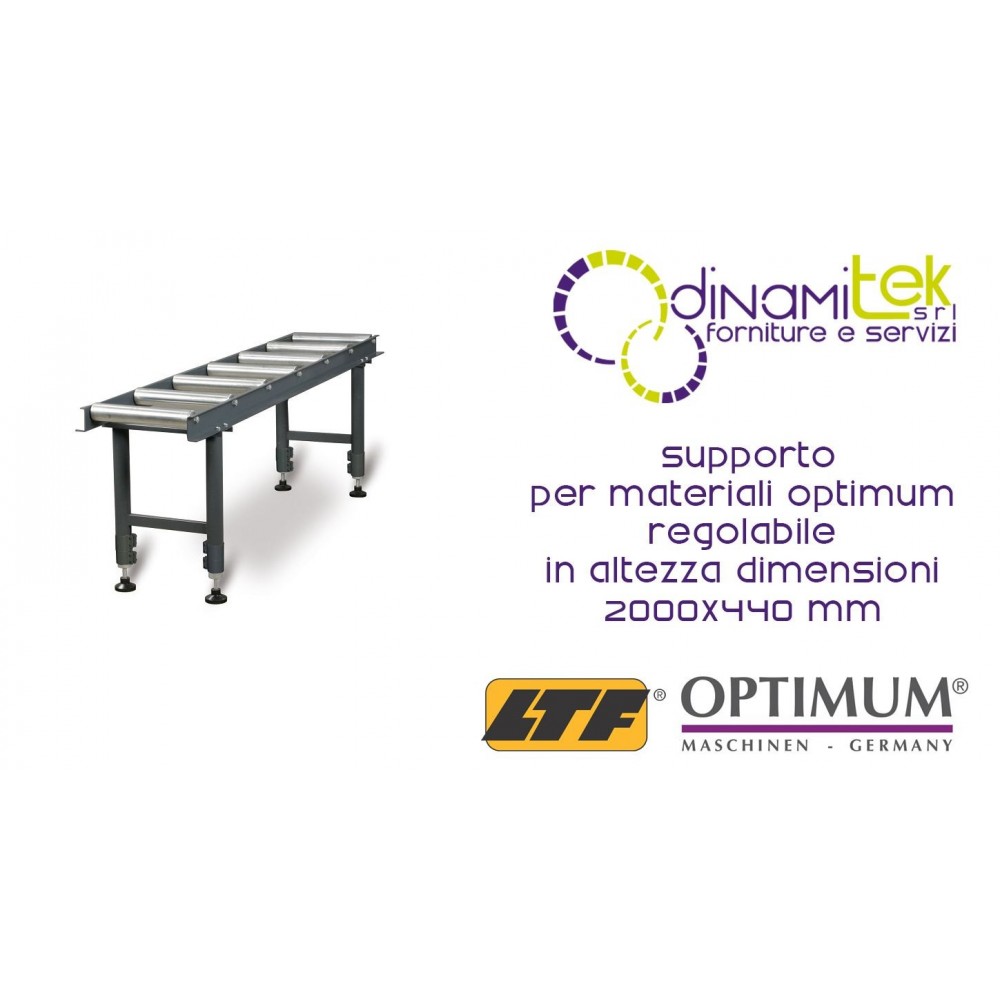

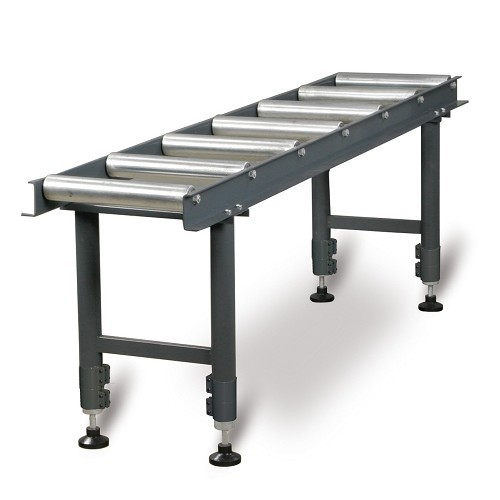

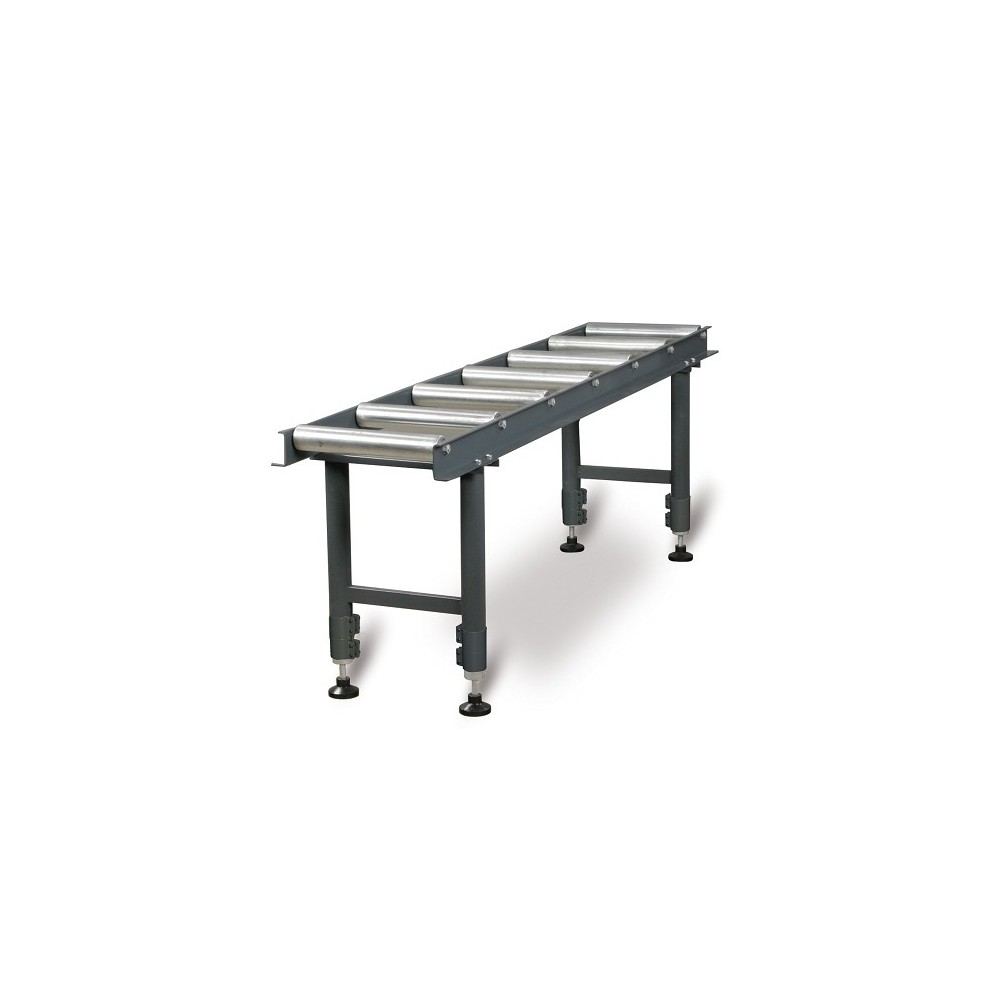

Efficiency and Robustness for Large Formats
The optimum MSR 7 model was developed to meet the needs of workshops that machine large components. Its solid construction and secure support surface allow for easy handling of long, bulky workpieces, significantly improving safety and positioning accuracy relative to the cutting tool.
Excellent Technical Features
- High Strength Rollers: The bearing surface is made of solid steel tube rollers with a diameter of 60 mm , mounted on ball bearings on both sides to ensure smooth rotation even under high loads.
- Versatile Adjustment: The height is easily adjustable within a range from 650 to 950 mm , allowing for pinpoint alignment with the work surface of various machine tools.
- Modular Design: The support is modular in length . Thanks to the fastening material included in the supply, multiple units can be joined together to create conveyor lines tailored to every production need.
- LMS Systems Ready: The structure is designed to integrate LMS length measuring systems , transforming the simple stand into a high precision workstation.
Areas of Application
The MSR 7 is the essential accessory for carpentry, metal cutting and woodworking departments that require a stable and long-lasting universal support.
Technical Reference Data
| Characteristic | Detail |
|---|
| Product Code | 057OP7611 (OPT057OP7611) |
| Max static load | 700 kg |
| Dimensions (L x W) | 2,000 x 440 mm |
| Adjustable height | 650 – 950 mm |
| Ø / Width of bearing rollers | 60 mm / 360 mm |
| Net weight | 58 kg* |
*Note: Weight may vary slightly depending on the specific configuration of the fastening materials.
Standard Equipment Included:
- Rollers in solid steel tube on bearings.
- Fastening material for extension (modularity).
Recommended Optional Accessories:
- LMS 20 measuring system (Art. 057OP3852): Length 2,000 mm.
- Connecting plate (Art. 335 7005): For joining multiple supports.
Choosing optimum means relying on high-quality engineering solutions, supported by LTF's experience in the mechanical sector since 1965.
