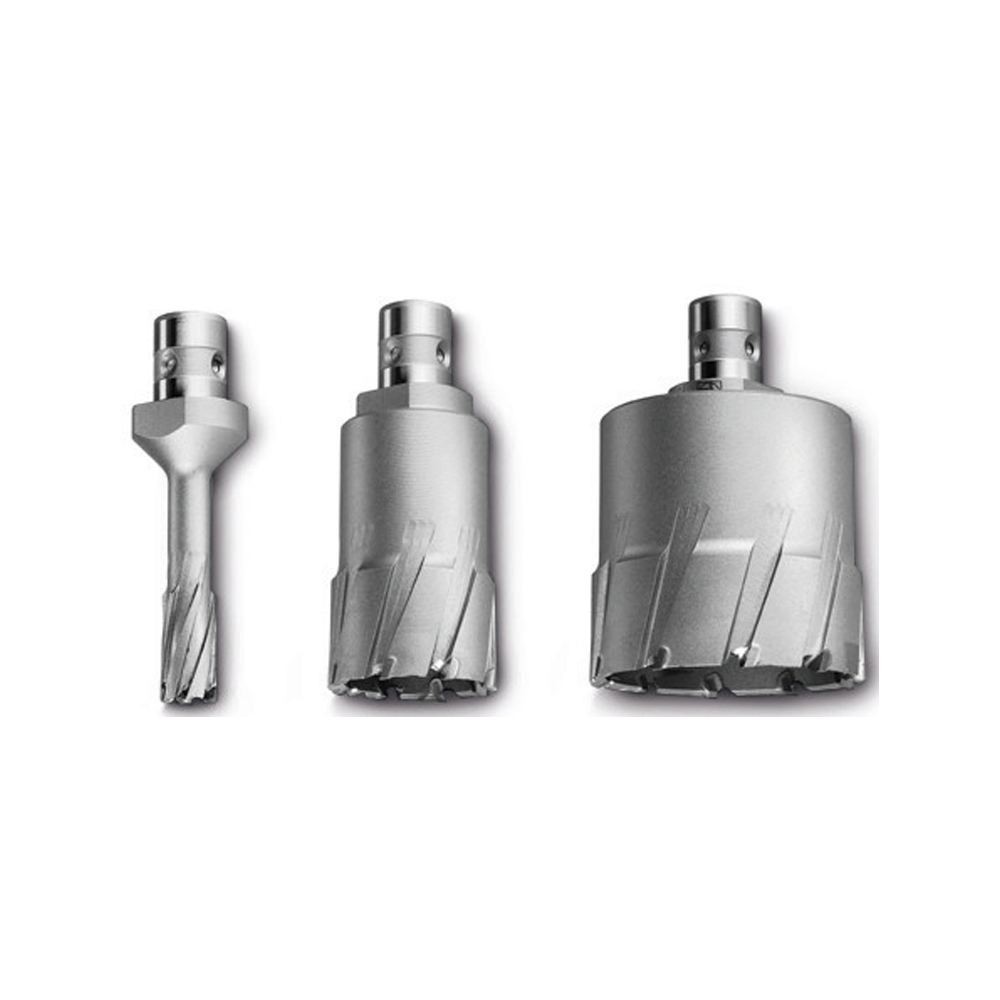

FEIN HM Ultra 35 core bit with QuickIN 40x35 mm shank: The Ultimate Tool for Professional Drilling
The FEIN Ultra 35 HM core drill bit with QuickIN adapter is the essential tool for professionals who require maximum reliability and high performance when drilling metal. This high-quality accessory is engineered to withstand continuous use, ensuring excellent results even under the most demanding conditions.
Distinctive Features and Operational Advantages:
- Unmatched Durability and Strength: The HM ULTRA 35 is specifically designed for continuous use, thanks to its carbide coating which makes it extremely resistant to wear and heat up to 800°C . This feature makes it the perfect choice for series drilling.
- Powerful and Easy Drilling: Allows for trouble-free drilling of even the hardest metals. The conical flute is designed for optimal chip flow , improving efficiency and work cleanliness.
- Superior Longevity: Provides exceptional longevity, estimated at 400 holes or 8 meters of total drilling . This estimate was determined under optimal conditions with an 18 mm diameter on 20 mm S235 steel, indicating longevity even for this 40 mm cutter.
- Maximum Cost Efficiency: Offers double the life and faster cutting speed compared to traditional HSS drill bits, helping to significantly reduce costs when drilling large quantities of holes. Designed for the tough everyday work of the workshop, it ensures optimal performance for economical drilling and fewer tool changes.
- Precision and Silence: Its innovative 3-cut design ensures incredibly quiet and vibration-free operation, for consistently precise drilling results.
- FEIN Historical Expertise: Benefit from decades of experience in core drilling technology, with expertise gained since 1977, to your advantage in everyday practice.
Product Technical Specifications (Ø 40 mm):
- Material: HM (hard metal coated)
- Resistance: 1 450 HV
- Maximum heat resistance: 800°C
- Hole diameter: 40 mm
- Cutting depth: 35 mm
- Overall length: 77 mm
- Crown cutter attachment: QuickIN
- Internal bore Ø: 6.35 mm
Recommended Accessories:
- 100 mm centering pin: Order code 63134998310, request by email info@dinamitek.com
Compatibility with FEIN machines:
This cutter is compatible with a wide range of FEIN magnetic core drills, both universal and automatic, ensuring versatility of use:
Universal Machines:
- KBM 65 U
- KBM 50 Q
- KBM 65 UQW
- KBM 50 UQW
- KBM 50 U
Automatic Machines:
- KBM 50 cars
- KBM 50 QW car
