Structural Solidity and Strength for Industrial Maintenance

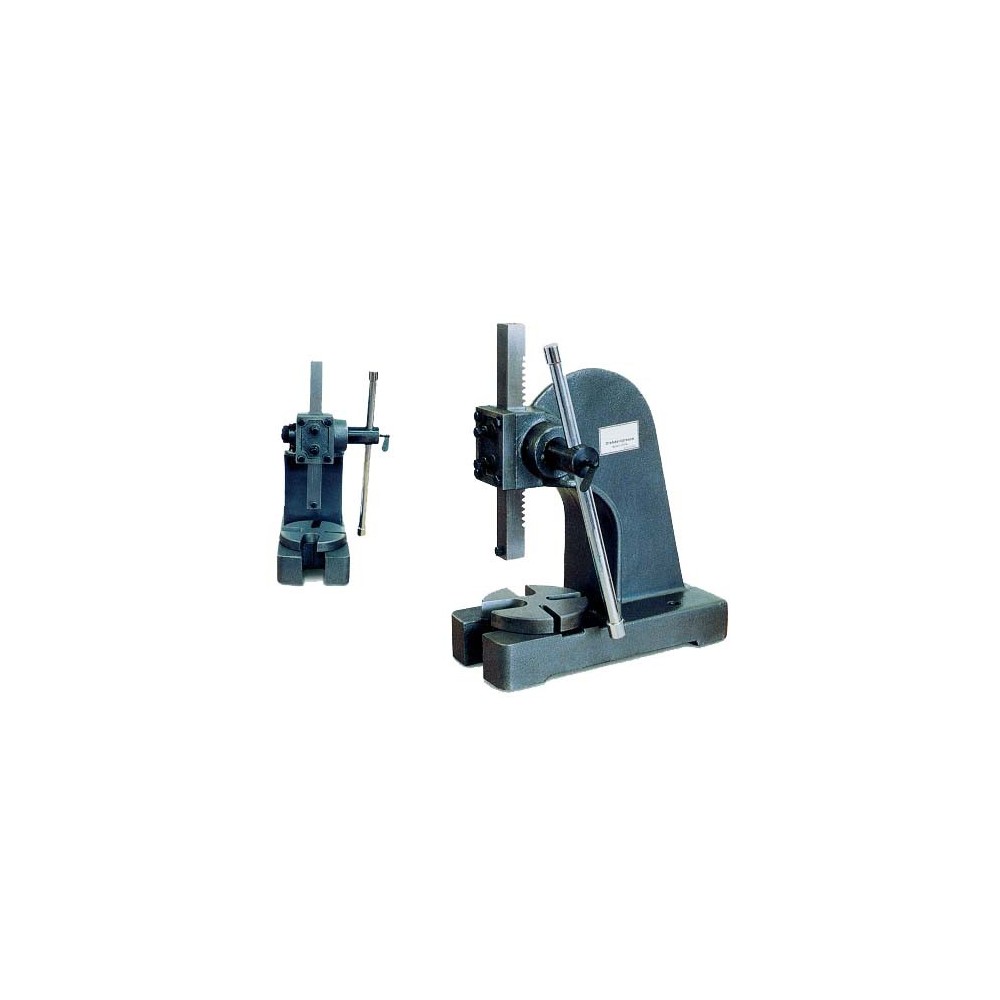

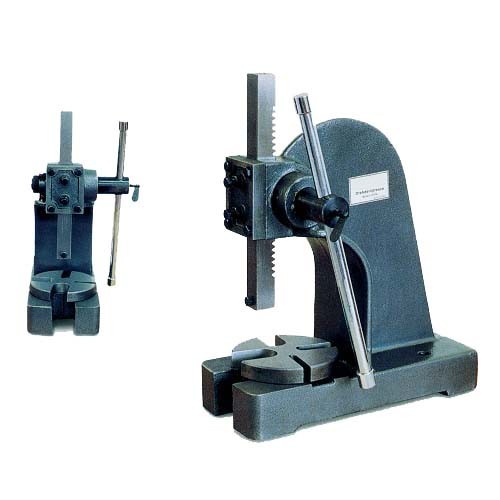

The optimum DDP 20 model (Code 111OP9012) represents a reliable choice for those who need a manual machine capable of handling significant loads with extreme stability. The machine body, made of gray cast iron , is designed to absorb stress and ensure maximum rigidity during shrink-fit and mechanical repair operations.
Mechanical Excellence and Operational Versatility
- Reinforced Mechanics: The pinion and ram (dimensions 32x32x345 mm) are made of chromed steel , ensuring a long operating life and excellent wear resistance even under constant stress.
- Adjustable Lever: The 450mm long lever arm can be adjusted to different positions, allowing the operator to set the most effective push angle based on the required force.
- Multifunction Base Plate: Included as standard, the rotating base plate can be set to four different positions , adapting to workpieces of various shapes and sizes.
- Safety Fixing: The base is equipped with holes for secure anchoring to the workbench, an essential requirement for safe operation when applying high forces.
Performance and Power Impact

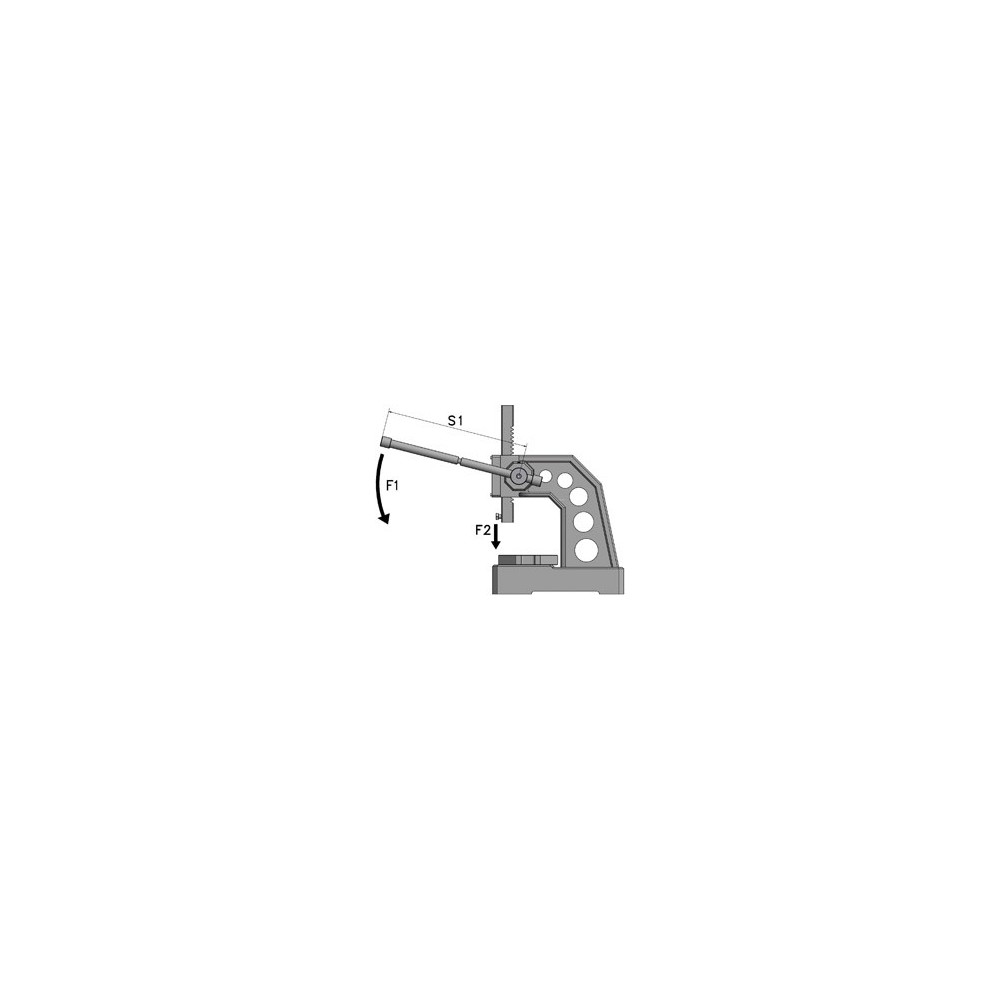

The DDP 20 is designed to effectively multiply the applied manual force:
- With a manual push of 392.4 N (about 40 kg), it develops a compressive force of 8,364 N (853 kg) .
- With a manual push of 589 N (about 60 kg), it is capable of generating a force of as much as 12,555 N (1,280 kg) .
Technical Reference Data
| Characteristic | Detail |
|---|
| Product Code | 111 OP 9012 (OPT111OP9012) |
| Maximum piece height | 195 mm |
| Overhang (Outreach) | 120 mm |
| Sled dimensions | 32 x 32 x 345 mm |
| Lever arm length (S1) | 450 mm |
| Overall dimensions (L x W x H) | 430 x 235 x 680 mm |
| Net weight | 33 kg |
Standard Equipment Included:
- Rotating base plate in four positions.
- Adjustable control lever.
Choosing optimum quality means relying on tools designed for maximum mechanical precision, supported by the technical expertise of LTF SpA.
