Cutting Efficiency and Hydraulic Control

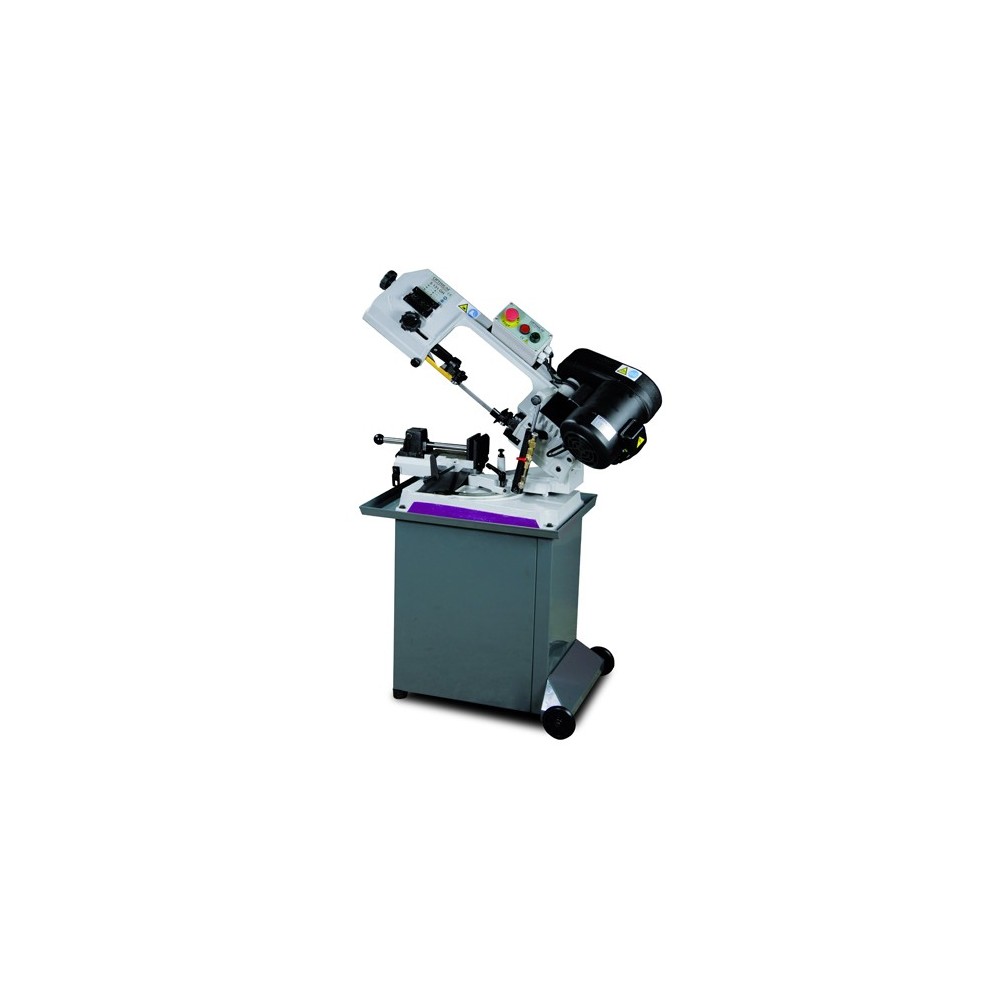

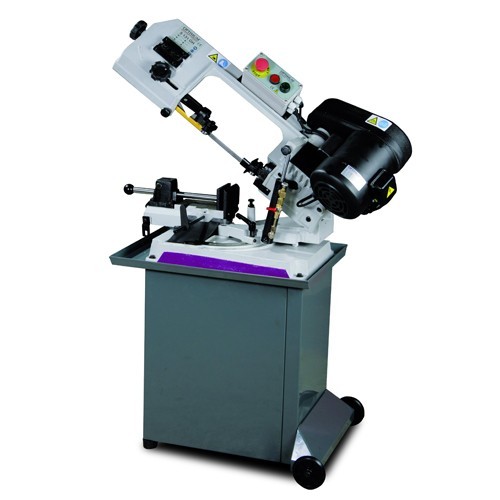

The optimum S 131GH model (Code 057OP0131) is a versatile and robust cutting station. The main feature of this machine is the precise and controlled descent of the blade holder, made possible by a hydraulic cylinder with an expansion valve that allows for continuous adjustment of the feed rate, optimizing the cut based on the material.
Safety and Precision Mechanics
Designed according to strict safety standards, the S 131GH integrates advanced solutions for operator protection:
- Certified Electrical System: Low voltage operation (24 V) with separate emergency switch and protection devices on the belt cover and tape.
- Professional Blade Guide: The bandsaw blade is supported by ball bearing mounted blade guides at 3 different points , ensuring stable movement and perfectly perpendicular cuts.
- Angular Flexibility: The swiveling bow allows for bevel cuts from -45° to +60° , with an easy-to-read graduated scale for quick setting.
- Speed Versatility: It has three cutting speeds (22, 31 and 55 m/min) to adapt to different profiles and metal hardnesses.
Operational Convenience
The machine is equipped with a quick-clamping vice to speed up workpiece positioning and a microswitch to automatically stop the blade at the end of the job. Blade tension is easily adjusted via an ergonomic front handwheel.
Technical Reference Data
| Characteristic | Detail |
|---|
| Engine power | 230 V ~ 50 Hz - 500 W |
| Tape speed | 22 / 31 / 55 m/min |
| Tape dimensions | 1.638 x 13 x 0.65 mm |
| Cutting capacity 0° (Round / Rect.) | Ø 128 mm / 100 x 145 mm |
| Cutting capacity 45° (Round / Rect.) | Ø 90 mm / 70 x 85 mm |
| Bow Tilt | -45° / +60° |

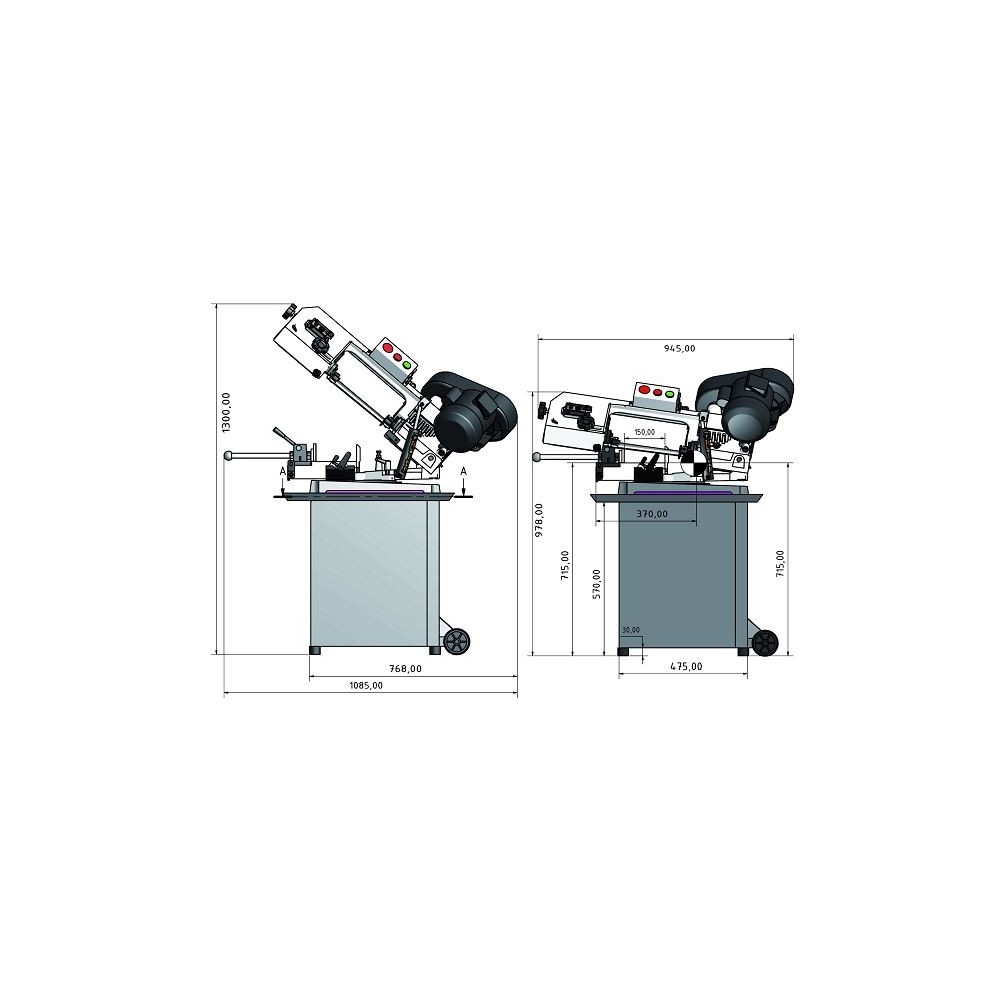

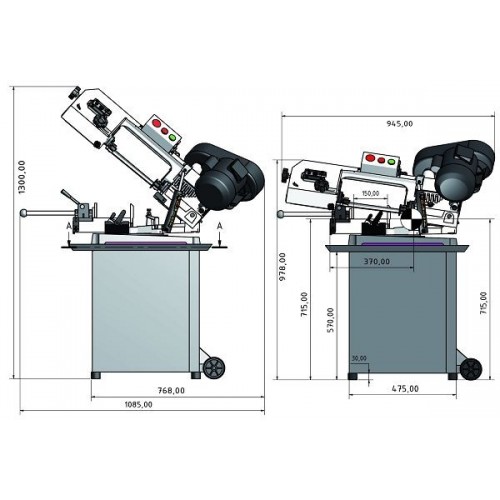

| Dimensions (L x W x H) | 965 x 498 x 978 mm |
| Net weight | 81 kg |
Standard Equipment Included:
- High quality bimetallic tape.
- Sturdy machine base for optimal stability.
- Adjustable material stop limit for series processing.
Note: Please note that for code 057OP0131 the machine is supplied without a potentiometer for electronic regulation, but includes the hydraulic descent system.
