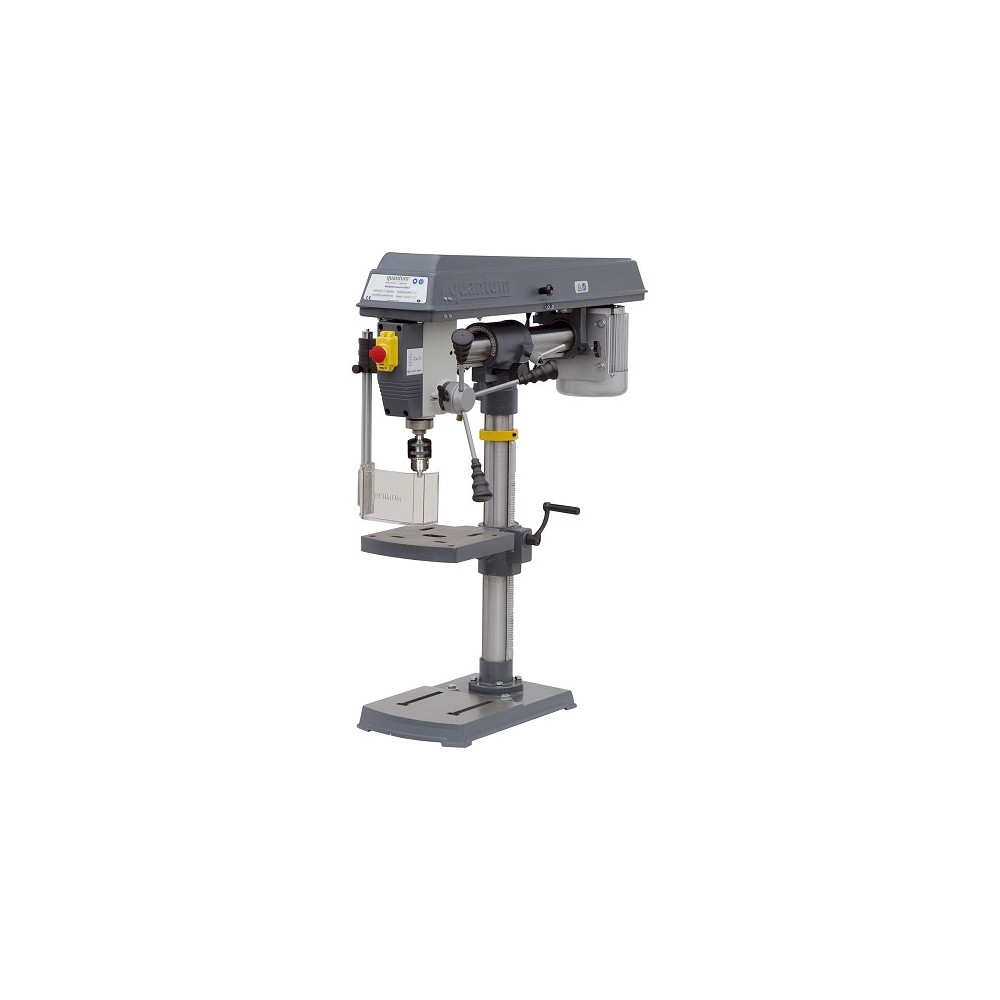

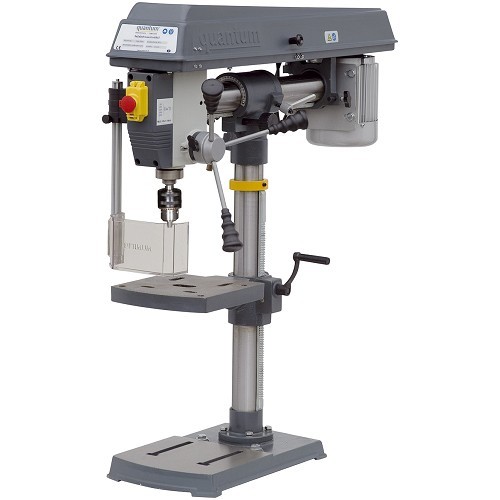

058OP9161 RB 6T RADIAL DRILL OPTIMUM DRILLING MAX DIAMETER 16 MM 750 W

The optimum RB 6T Radial Drill is the professional benchtop solution designed to offer maximum operational flexibility on wood, plastic and aluminum . Thanks to its horizontally movable head , it guarantees a wide projection and the possibility of making precise angled holes thanks to the head and worktable that can be tilted by ±45° . With a 750 W motor and robust construction, it is the ideal tool for workshops that require versatility and quietness.

Shipping cost: €50.00 for
789,65 €
Tax included

647,25 € Tax excluded

Quantity
Available product, order it now.

Flexibility and Precision for Multi-Material Machining

The optimum RB 6T model (Code 058OP9161) stands out among benchtop drills for its radial configuration, which allows it to handle large workpieces thanks to the adjustable reach. The machine head can slide horizontally, varying the distance between the spindle and the column from 115 to 430 mm , offering greater positioning freedom than fixed column models.

Excellent Technical Features

  • Superior Quietness: Featuring a ground multi-tooth drive and aluminum pulleys with high-quality GATES timing V-belts, it ensures smooth transmission and reduced vibration.
  • Total Orientation: Both the drill head and the work table can be tilted by ± 45° , allowing complex oblique drilling without the need for dedicated jigs.
  • Precision Mechanics: The spindle shaft is mounted on precision ball bearings and features a drilling depth stop for consistent series machining.
  • Certified Safety: Meets IP 54 standards, with separate emergency switch and undervoltage relay for maximum operator protection.

Robust Design

Stability is ensured by a high-quality steel column and a precisely machined drill table, equipped with fixing holes for stable support during industrial or artisanal use.

Technical Reference Data

Characteristic Detail
Engine power 230 V ~ 50 Hz - 750 W
Max drilling capacity (S235JR steel) Ø 16 mm
Spindle/column distance 115 ÷ 430 mm
Spindle speed 390 ÷ 3,000 rpm (5 speeds)
Spindle attachment CM 2
Steerer tube race 80 mm
Head/Board Tilt ± 45° / ± 45°
Dimensions / Net Weight 820 x 335 x 930 mm / 47 kg

Standard Equipment Included:

  • 1-16mm B16 Keyless Chuck.
  • Cone connection CM 2 / B16.

ART. OPTIONAL ACCESSORIES

305 0571 Self-tightening chucks with CM 2 / 1 - 16 mm attachment

305 0572 Self-tightening chucks with CM 2 / 1 - 13 mm attachment

305 0636 CM1-3 Extractor

305 0659 Cone connection CM 2 - B16

335 2017 SPW 12 mounting kit, 58 pcs

335 2002 Universal refrigeration system 230 V

335 2042 Tapping machines with reversing clutch

335 6660 KMS 2 Coolant Hose

335 6663 Cooling system

024OP0100 BSI-Q 100 vice

025OP0075 MSO 75 vice

025OP0100 MSO 100 vice

025OP0125 MSO 125 vice

027OP0100 BMS 100 vice

027OP0120 BMS 120 vice

027OP0150 BMS 150 vice

3352042 Tapping Machine with Reversing Clutch from M5 to M12
