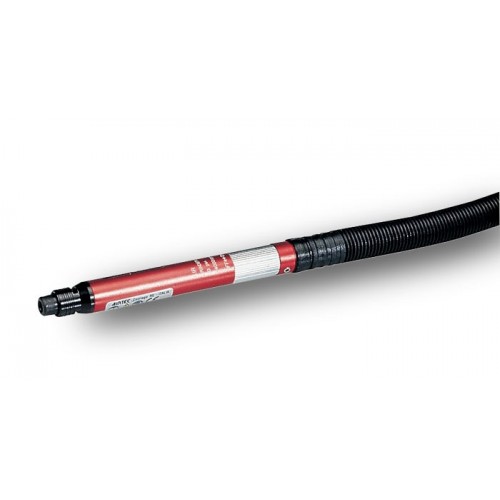

700 MICRO PNEUMATIC STRAIGHT GRINDER 54000 RPM AIRTEC
Perform micro-grinding, engraving and finishing operations at very high speed with the Airtec Mod. 700 pneumatic fast grinder.
The Airtec Mod. 700 pneumatic pencil grinder (Code 13200500) is the ideal precision compressed air tool for fine grinding, detail deburring, and micro-engraving on molds and metals. With an extraordinary no-load speed of 54,000 rpm and a power output of 0.19 kW , it ensures impeccable control and uniform material removal.
- Ultra-lightweight pencil-like design (200g): compact body just 135mm long and weighing just 0.20kg to hold it like a pen and perform micro-machining with maximum accuracy.
- Progressive ring adjustment: equipped with an integrated adjustment ring for gradual and precise control of the air flow.
- Exhaust Pipe Included: Rear hose system directs airflow and reduces noise from the workplace.
- Collet Ø 3 mm: designed for pin grinders and micro rotary cutters with 3 mm shank (and Ø 2.35 mm).
Shipping cost: Free
for
Technical Features and Advantages of the Airtec Mod. 700 Fast Grinder
Designed by Airtec Srl to meet the needs of industrial model-making, jewelry-making, and mold-making departments, the Mod. 700 micro-grinder combines extremely high rotation speed with exceptional maneuverability. Its balanced pen-shaped structure minimizes operator fatigue.
Control and Operational Silence
- Flow Control Ring: Rotating the ring on the machine body allows you to calibrate the speed up to 54,000 rpm depending on the sensitivity of the piece.
- Conducted Air Exhaust: The rear silencer tube prevents the air exhaust from hitting the workpiece and reduces the sound pressure to only 84 dB(A).
Air Supply Specifications
The tool operates at a recommended pressure of 6.2 bar with an average air consumption of just 5 l/sec (300 l/min). It features a 1/4" NPT threaded connection and requires an air hose with a recommended internal diameter of 8 mm.
Detailed Technical Data Sheet
- Item Code (SKU): Cod. 13200500
- Model: Mod. 700
- Manufacturer / Brand: Airtec Srl
- Type: Pneumatic pencil grinder (Micro die grinder)
- No-load speed: 54,000 rpm
- Motor power: 0.19 kW
- Collet size: Ø 3 mm (and Ø 2.35 mm)
- Air regulation: Progressive ring
- Recommended air pressure: 6.2 bar
- Average air consumption: 5 l/sec
- Air connection: 1/4" NPT
- Recommended tube diameter (internal): 8 mm
- Air exhaust type: Rear piped
- Overall length: 135 mm
- Net weight: 0.20 kg (200 g)
- Sound pressure: 84 ± 3 dB(A)
- Vibration level: 5 m/sec²
