PV3 MODULAR RADIANT HEATING SCREEN, BASIC KIT, 3 MODULES, 1.5X0.5M, 1680W KRS

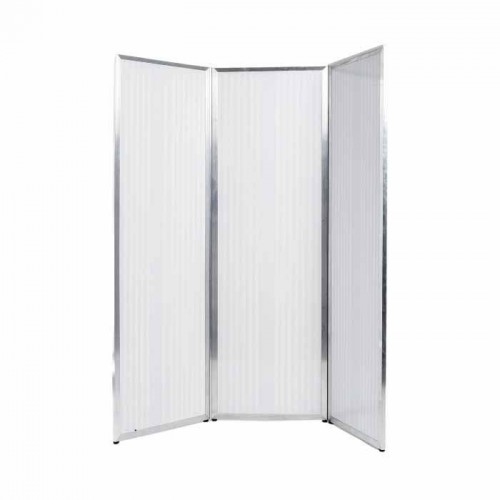

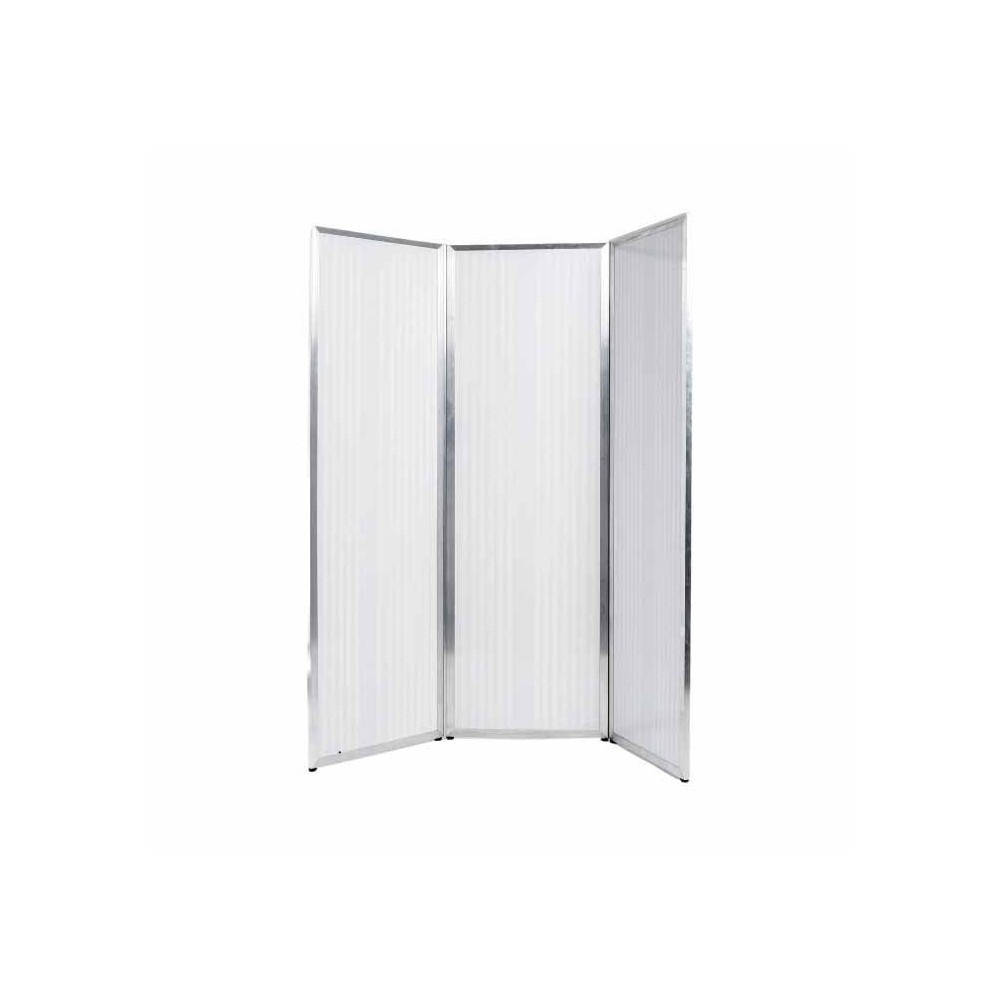

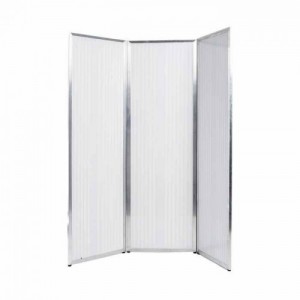

Technical Features and Performance of the KRS PV3 Modular Heating Screen

The self-supporting KRS PV3 (Klima Rental System) heating screen is an innovative radiant thermal barrier developed to ensure the well-being of operators in large warehouses, production departments and offices where traditional heating systems are ineffective or too far from fixed workstations.

Unlike convection systems that heat and move air masses, the patented radiant technology integrated into the panels emits direct, localized heat—similar to solar radiation—that directly affects people and objects in the targeted area. The two-wire structure ensures the complete absence of electromagnetic emissions. The lightweight honeycomb polycarbonate body is surrounded by a sturdy aluminum perimeter profile that ensures mechanical stability and elegance.

Modular Composition and Order Configuration

The PV3 heating screen is based on a modular structure with single modules measuring 1.5 x 0.5 metres (560 W/module):

• Basic Proposal (3-Module Kit): the ideal self-supporting standard solution is proposed in the configuration consisting of 3 heating modules connected to each other (total surface area 1.5 x 1.5 m for a total power of 1,680 W).
• Multi-Module Solutions (Custom/Extended Layouts): If your workspace or room layout requires more extensive protection and you'd like a solution with 4 or more modules, you can request a custom configuration. Send your technical request to info@dinamitek.com to receive a customized design and quote.

Installation and Safety

• Plug & Play connection between modules: the individual heating modules are electrically connected in sequence via practical quick-fit male/female connectors.
• Class II Electrical Safety: enhanced insulation that does not require connection to an earth socket, making installation quick and safe in any work context.

Detailed Technical Data Sheet

• Manufacturer / Brand: KRS (Klima Rental System Srl)
• Model Code / Reference: PV3 / KRS-PARAVENTORISC
• Type: Self-supporting modular radiant heating screen
• Proposed Composition: Self-supporting basic kit with 3 heating modules
• Single Module Dimensions: 1.5 x 0.5 m (Height x Width)
• Single Module Electrical Power: 560 W
• Total Power Proposed Base (3 Modules): 1,680 W
• Specific Power: 300 – 700 W/m²
• Surface Temperature: up to 90°C (at 20°C ambient temperature)
• Construction Materials: Honeycomb polycarbonate with aluminum perimeter frame
• Electrical Insulation Class: Class II (double insulation, no earth)
• Electromagnetic Emissions: None (two-wire technology)
• Electrical Connection Between Modules: Integrated quick male/female connectors
• Extended Configurations (>3 Modules): Upon request via email to info@dinamitek.com
