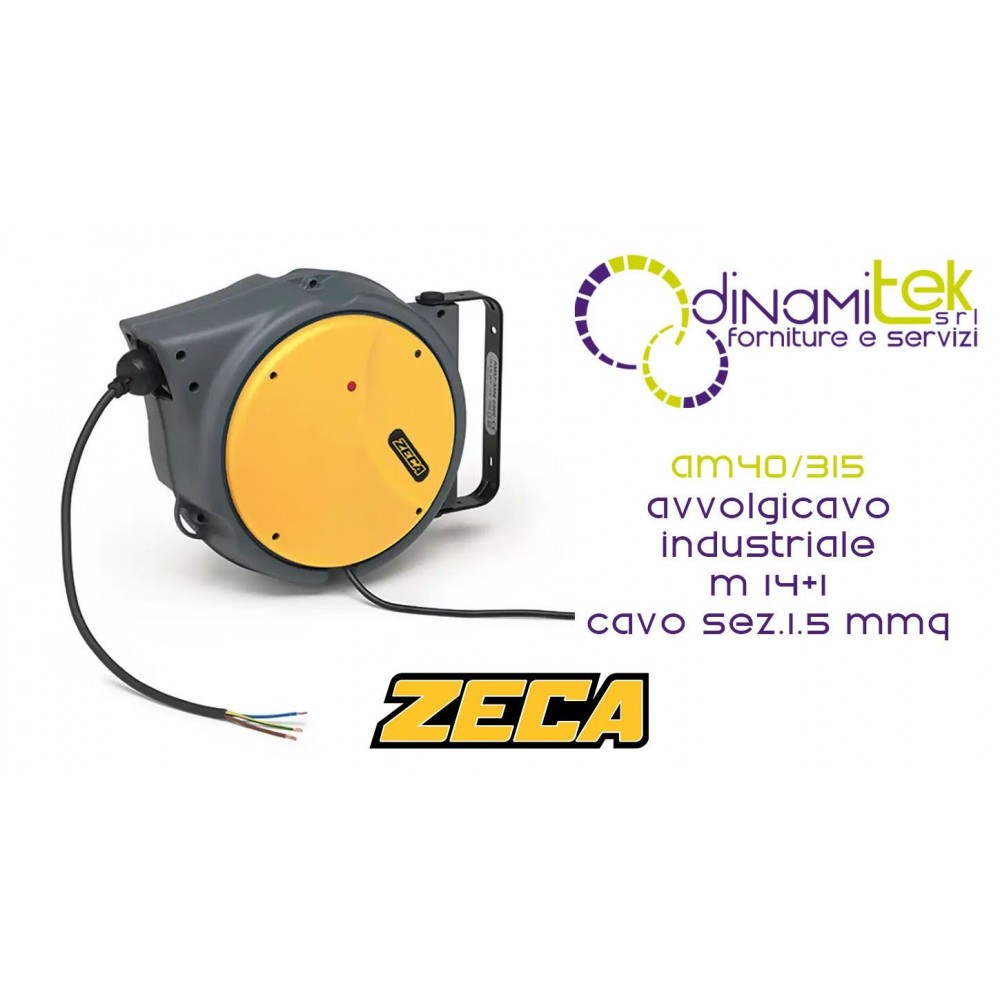

AM40/315 INDUSTRIAL CABLE REEL AM SERIES M 14+1 CABLE CROSS-SECTION 1.5 MMQ ZECA

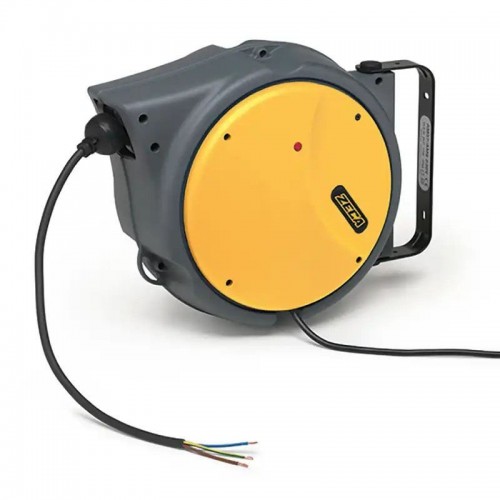

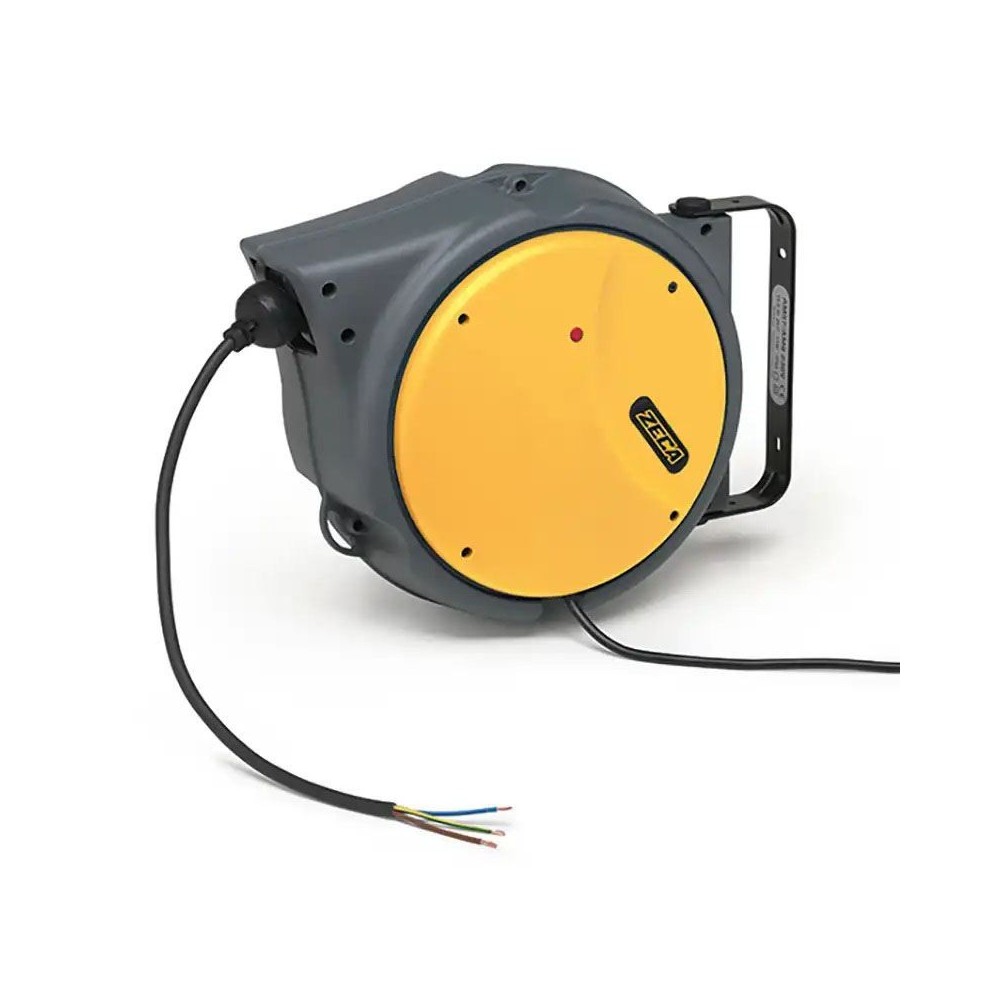

Automatic spring cable reel with 15 m of 3G1.5 mm² PVC cable, thermal protector and swivel bracket Zeca AM Series Art. AM40/315.

The Zeca Art. AM40/315 automatic cable reel (belonging to the AM Series) is a professional winding drum with automatic spring return characterised by a yellow case, supplied with 15 metres of PVC electric cable (14 m wound on a reel + 1 m of free section at the input), designed by Zeca SpA to guarantee a practical, orderly and safe power supply in workshops, garages and industrial departments.

  • 15 metres of PVC electrical cable (3G1.5 mm²): consisting of 14 m of cable wound on an internal drum plus 1 m of free section with 1.5 mm² cross-section conductors.
  • Direct Industrial Version (Without Wired Sockets): supplied without socket and plug to allow direct connection to machinery or custom wiring by the installer.
  • Rack Stop Device and Swivel Bracket: equipped with a cable stop that can be disengaged every 50 cm and a swivel metal fixing bracket for wall or ceiling mounting.
  • Integrated Thermal Protector and Shockproof Case: equipped with an automatic thermal cut-out for safety against overloads and a case with high mechanical resistance.
Shipping cost: Free for
114,91 €
Tax included

114,91 € Tax excluded

Quantity
Available product, order it now.

Technical Features and Performance of the Automatic Cable Reel Zeca Art. AM40/315

The Zeca Art. AM40/315 automatic spring-loaded extension cable reel represents the compact and reliable solution in the AM Zeca Series for the dynamic electrification of workstations and workshops. Thanks to the integrated automatic retraction mechanism and the rack-and-pinion locking system (engageable/disengageable every 50 cm), the operator can unwind only the length of cable strictly necessary, avoiding clutter and tripping hazards on the work surface.

Supplied without wired sockets or plugs at the ends, the Art. AM40/315 allows for maximum installation flexibility in industrial and artisanal settings. It comes with a swivel mounting bracket for wall or ceiling mounting, a built-in thermal protector to protect against overheating, and an electrical capacity of 1.2 kW with the cable wound and 1.8 kW with the cable unwound at 230V.

Detailed Technical Data Sheet

  • Product Code / Article: Art. AM40/315
  • Manufacturer / Brand: Zeca SpA
  • Series of Belonging: AM Series
  • Case Color: Yellow
  • Product Type: Automatic spring-loaded cable reel / extension cord
  • Total Cable Length: 15 meters (14 m wound on a reel + 1 m power supply section)
  • Number of Conductors and Section: 3G x 1.5 mm²
  • Cable Type: PVC
  • Socket and Plug Equipment: Without socket / free cable (NO sockets)
  • Maximum Voltage (V max): 500 V
  • Power and Electrical Range (@20°C):
    • Wrapped cable: 1.2 kW (1200 W)
    • Unwound cable: 1.8 kW (1800 W)
  • Thermal Safety Protector: Present / Built-in (YES)
  • Retraction System: Automatic spring
  • Construction and Functional Specifications:
    • Automatic spring cable retraction
    • Rack extension stop device that can be disengaged every 50 cm
    • Adjustable metal fixing bracket

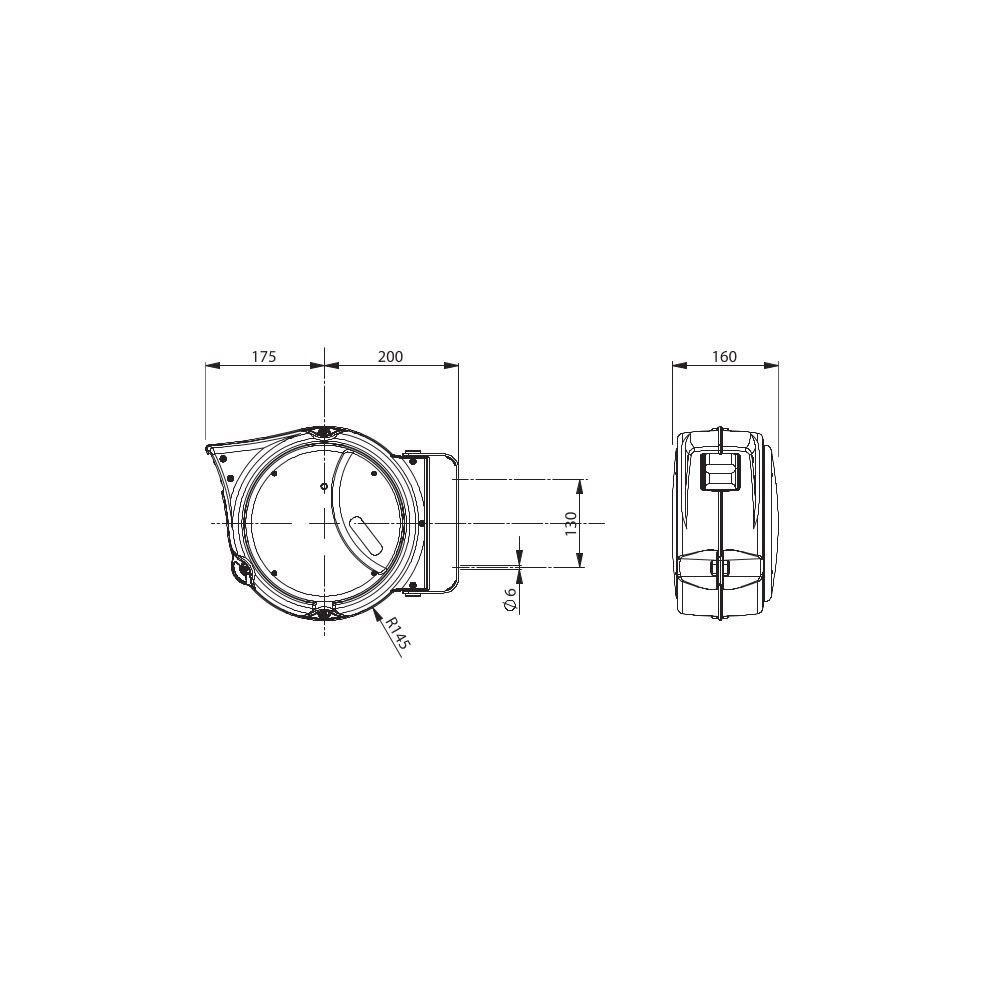

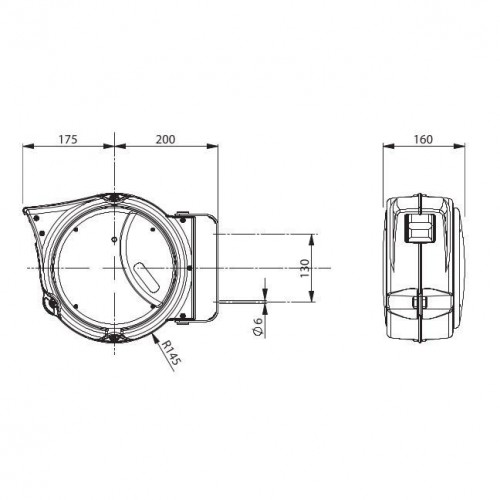

  • Overall dimensions:
    • Case dimensions: 360 x 310 x 185 mm
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.
