AL41/315 INDUSTRIAL CABLE REEL SERIES AL M 14+1 CABLE SECTION 1.5 MMQ ZECA

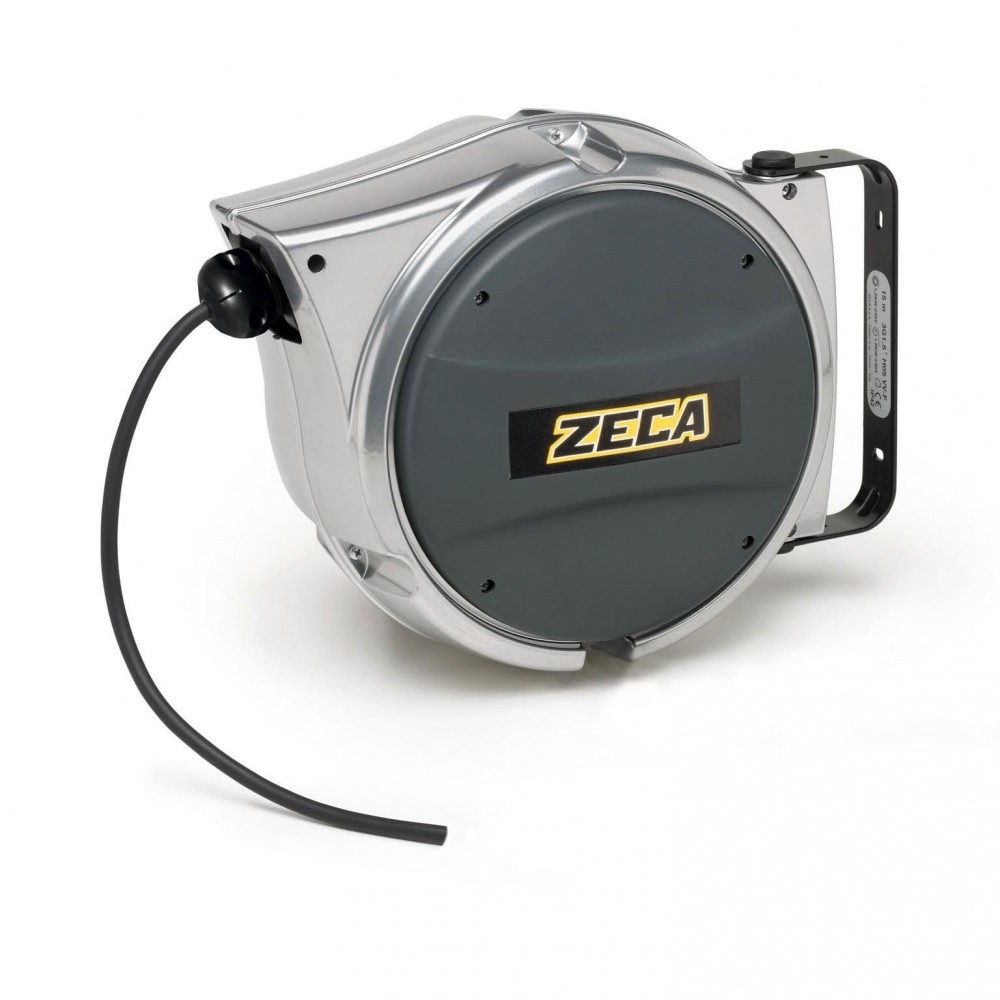

Automatic spring-loaded cable reel with die-cast aluminium body, 15 m of 3G1.5 mm² PVC cable and swivel bracket Zeca AL Series Art. AL41/315.

The Zeca automatic cable reel, item AL41/315 (part of the AL Series), is a high-end cable reel featuring a sturdy epoxy powder-coated die-cast aluminum body and automatic spring retraction. Equipped with 15 meters of PVC electric cable (14 m wound on a reel + 1 m of input power cable), it is designed by Zeca SpA to ensure maximum mechanical resistance, stability, and safety in workshops and industrial environments.

  • High Strength Die-Cast Aluminum Structure: Made with a die-cast aluminum body painted with epoxy powders for superior protection from impacts, wear and tear and chemical agents in the workshop.
  • 15 metres of PVC electrical cable (3G1.5 mm²): consisting of 14 m of cable wound on an internal drum plus 1 m of free power section with 1.5 mm² cross-section conductors.
  • Rack Stop Device and Swivel Bracket: equipped with a cable stop that can be disengaged every 50 cm and a swivel metal fixing bracket for wall or ceiling mounting.
  • Direct Industrial Version (Without Wired Sockets): Supplied with free cable at the end for easy direct connection to dedicated machinery or electrical panels.
Shipping cost: Free for
165,19 €
Tax included

165,19 € Tax excluded

Quantity
Available product, order it now.

Technical Features and Performance of the Automatic Cable Reel Zeca Art. AL41/315

The Zeca Art. AL41/315 self-winding extension cable reel represents the top-of-the-line solution in the AL Zeca Series, designed for those requiring extremely high structural strength and maximum operational longevity. The epoxy powder-coated die-cast aluminum housing offers significantly superior protection compared to traditional plastic enclosures, making this model suitable for the most demanding applications in industrial and workshop environments.

The internal automatic spring-loaded winding mechanism is combined with a rack-and-pinion locking device (engageable/disengageable every 50 cm), allowing the operator to extract and lock only the portion of cable strictly necessary for the job. Equipped with a double earth contact and suitable for operating temperatures between -5°C and +50°C, the Art. AL41/315 offers a continuous power of 1.2 kW with the cable wound and 1.8 kW with the cable unwound at 230V.

Detailed Technical Data Sheet

  • Product Code / Article: Art. AL41/315
  • Manufacturer / Brand: Zeca SpA
  • Belonging Series: Serie AL
  • Body / Case Material: Die-cast aluminum painted with epoxy powder
  • Case Color: Silver
  • Product Type: Automatic spring-loaded cable reel / extension cord in aluminium
  • Total Cable Length: 15 meters (14 m wound on a reel + 1 m power supply section)
  • Number of Conductors and Section: 3G x 1.5 mm²
  • Cable Type: PVC
  • Socket and Plug Equipment: Without socket / free cable (NO sockets)
  • Maximum Voltage (V max): 500 V
  • Power and Electrical Range (@20°C):
    • Wrapped cable: 1.2 kW (1200 W)
    • Unwound cable: 1.8 kW (1800 W)
  • Thermal Safety Protector: Not present (NO)
  • Degree of Protection: IP44
  • Ambient Operating Temperature: -5°C / +50°C
  • Construction and Functional Specifications:
    • Automatic spring cable retraction
    • Rack extension stop device that can be disengaged every 50 cm
    • Adjustable metal fixing bracket
    • Double ground contact
  • Overall dimensions and weight:

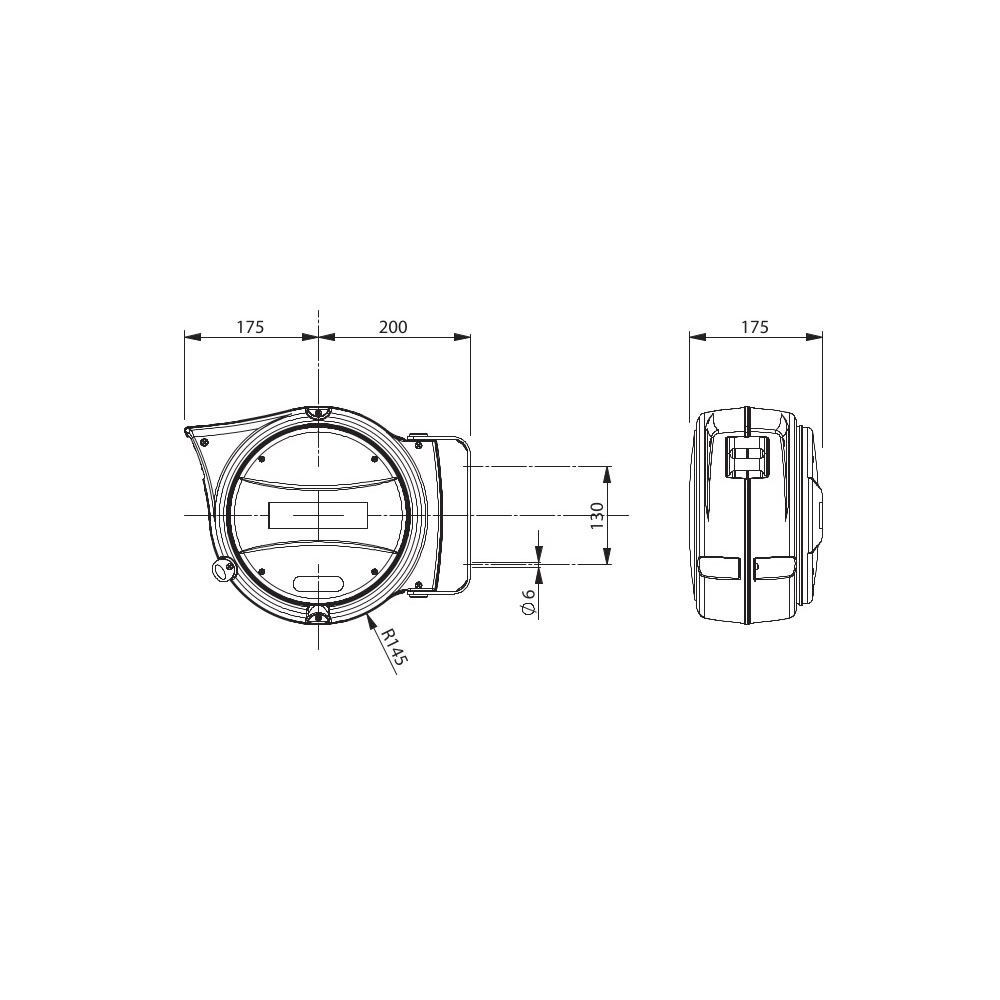

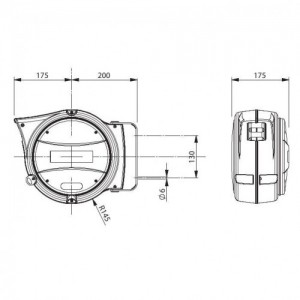

    • Case dimensions: 360 x 310 x 185 mm
    • Net weight: 5.0 kg
  • Conformity and Regulations: CE Directives and EN 61242, EN 60335-1
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



AL41/315
