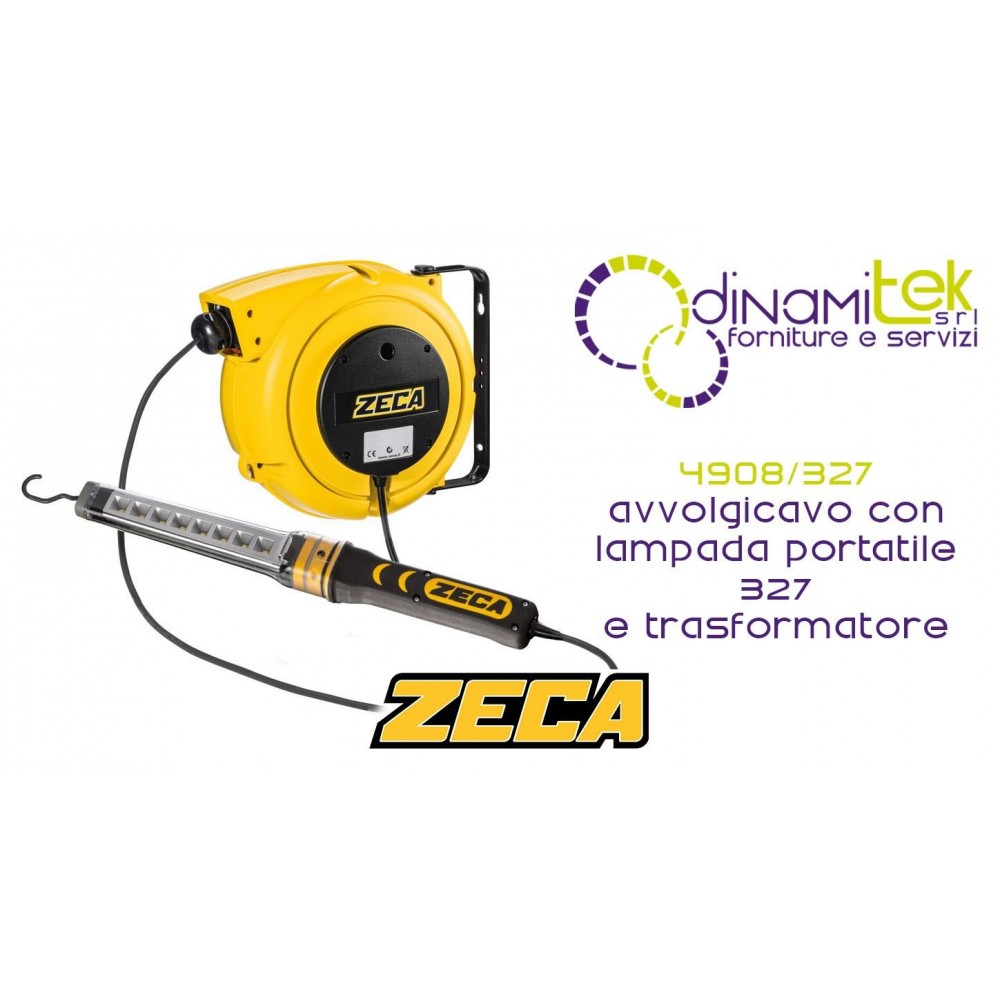

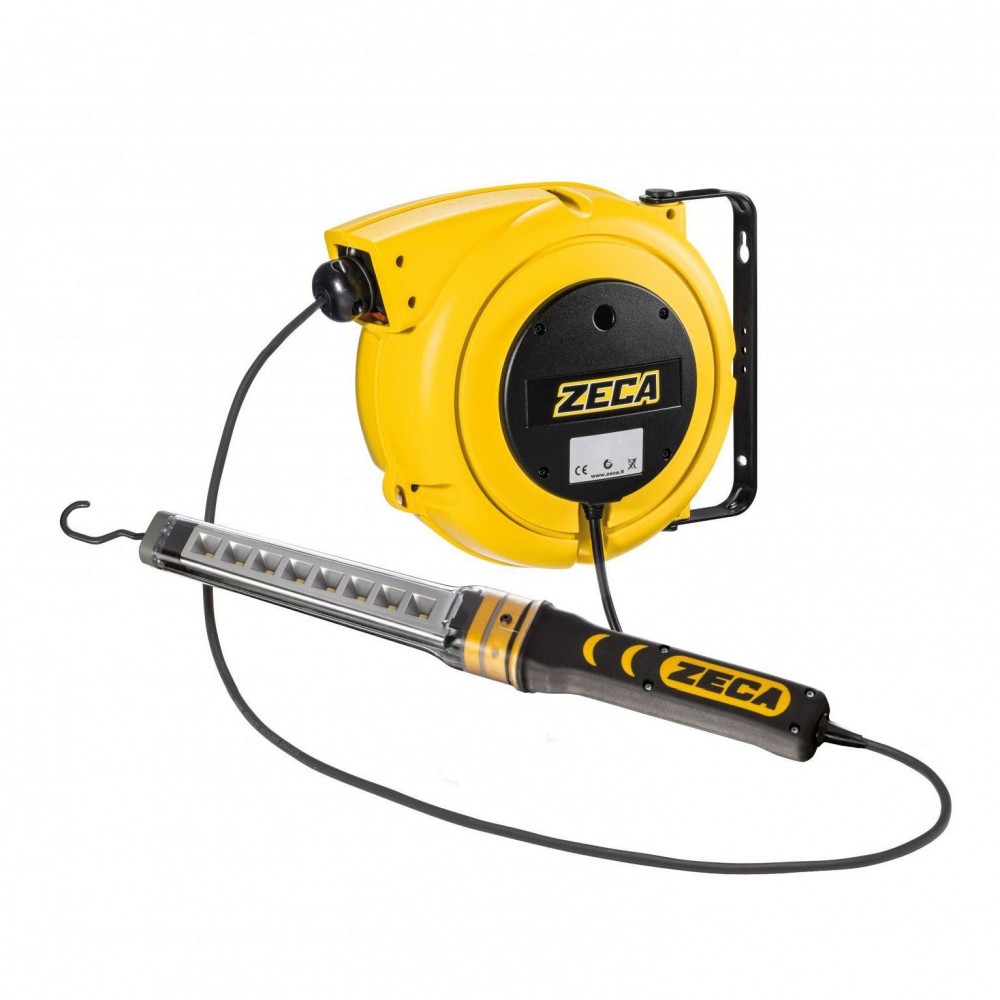

4908/327 CABLE REEL WITH PORTABLE LAMP 327 SERIES 4000 AND TRANSFORMER ZECA

Automatic spring-loaded cable reel with integrated 230V/24V transformer, 15.5 m cable and COB LED inspection lamp Model 327 Zeca 4000 Series Art. 4908/327.

The Zeca Art. 4908/327 cable reel with lamp (belonging to the 4000 Series) is a professional lighting and electrification system equipped with a safety transformer built into the reel drum. The transformer converts the 230V mains voltage to 24V safety low voltage to power the Model 327 COB LED portable lamp, ensuring maximum operator protection in compliance with workplace safety regulations.

  • Built-in Transformer (230V Power Supply - 24V Output): integrated directly into the body to supply low safety voltage (24V) to the portable lamp.
  • 15.5 metres of H05 RN-F rubber cable (2x1 mm²): consisting of 14 m of cable wound on an internal drum plus 1.5 m of input power section.
  • LED Inspection Lamp Model 327 (4W - 700 Lumen): ensures uniform and clear illumination of 1,000 Lux at 50 cm with a low consumption of just 4 W and a luminous flux of 700 Lumen.
  • IP55 / IP42 Protection Degree and IK07 Resistance: IP55 protected lamp against dust and splashes of water, IP42 winder housing and IK07 mechanical resistance to impacts.
Shipping cost: Free for
218,6 €
Tax included

218,60 € Tax excluded

Quantity
Available product, order it now.

Technical Features and Performance of the Cable Reel with Lamp and Transformer Zeca Art. 4908/327

The automatic cable reel with adjustable lamp Zeca Art. 4908/327 represents the maximum safety solution of the 4000 Zeca Series for inspection lighting in mechatronic workshops, maintenance pits and construction sites. The presence of the built-in transformer allows the reel to be connected directly to the normal 230V electrical network, supplying the lamp with an isolated low voltage 24V power supply.

The 4-watt Model 327 LED lamp offers a high light output of 700 lumens (1,000 lux at a distance of 50 cm) and features an ergonomic soft-touch handle, a protected switch, a replaceable transparent cover, and a retractable, swiveling hook for hands-free positioning. The automatic spring mechanism keeps the rubber cable taut and tidy.

Detailed Technical Data Sheet

  • Product Code / Article: Art. 4908/327
  • Manufacturer / Brand: Zeca SpA
  • Series: 4000 Series
  • Product Type: Automatic spring-loaded cable reel with built-in transformer and COB LED inspection lamp
  • Integrated Transformer Features:
    • Input Power Supply Voltage: 230 V AC
    • Lamp Output Voltage: 24V AC (Safety Low Voltage)
    • Transformer Power: 14 VA
  • Total Cable Length: 15.5 meters (14 m wound on a reel + 1.5 m power supply section)
  • Cable Section and Type: 2x1 mm² - H05 RN-F rubber cable
  • Connected Lamp Model: Model 327 24V
  • Light Source: COB LED
  • Lamp Power Consumption: 4 W
  • Luminous Flux and Illuminance: 700 Lumen / 1,000 Lux @ 50 cm
  • Degree of Protection: IP55 for the lamp, IP42 for the winder
  • Lamp Impact Resistance: IK07
  • Construction and Functional Specifications:
    • Automatic spring cable retraction with rack stop
    • Ergonomic soft-touch lamp handle
    • Adjustable and retractable hook
    • Protected soft-touch switch in the handle
    • Replaceable transparent cap (Replacement item 527)

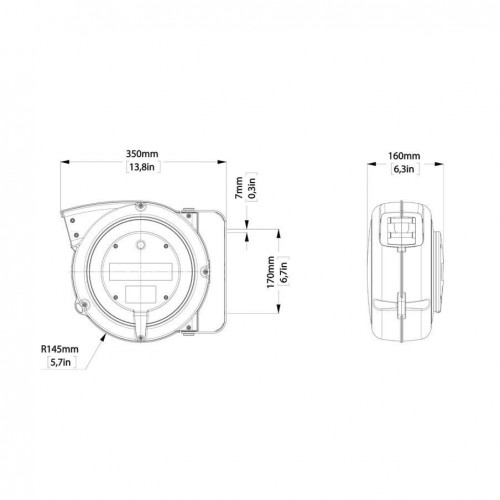

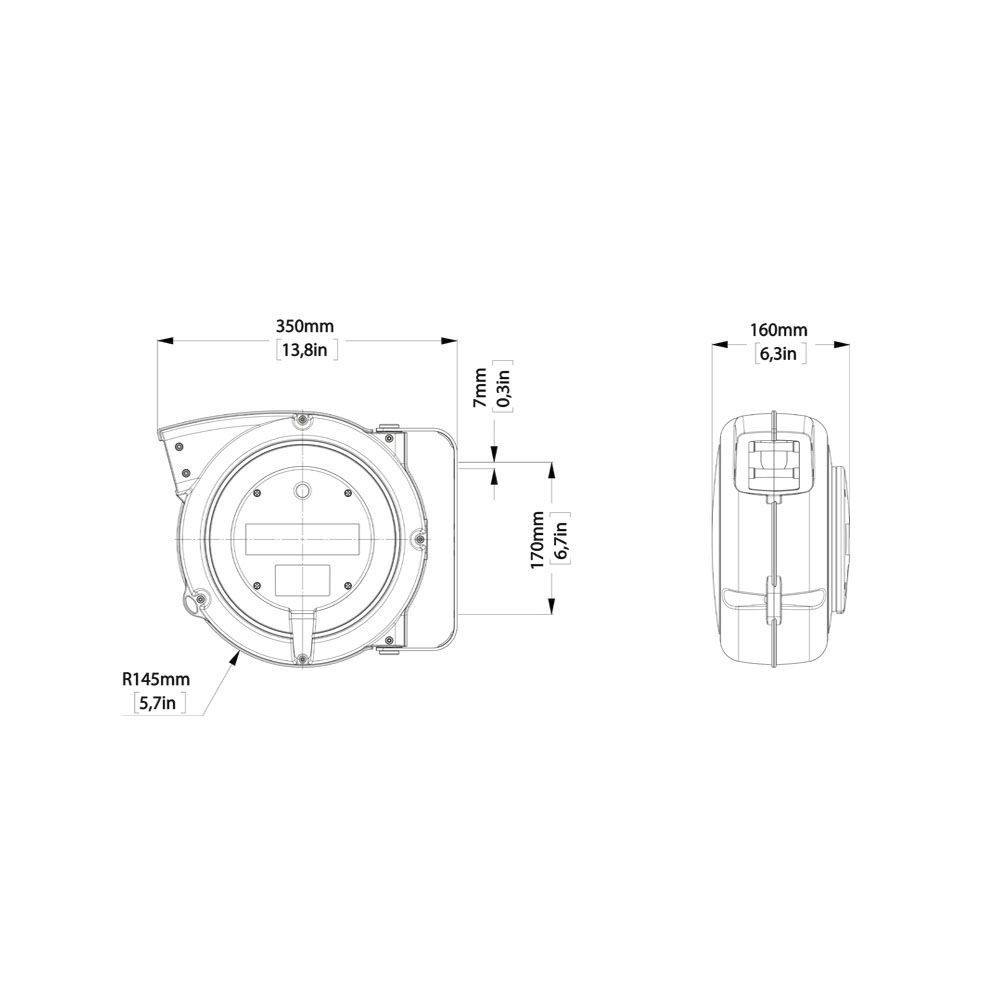

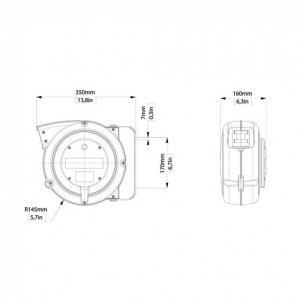

  • Dimensions and Weight: Net weight 4.5 kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.
