ZECA 4907/330 24V AVVOLGICAVO CON LAMPADA PORTATILE 330 Dinamitek 1
  • ZECA 4907/330 24V AVVOLGICAVO CON LAMPADA PORTATILE 330 Dinamitek 1
  • ZECA 4907/330 24V AVVOLGICAVO CON LAMPADA PORTATILE 330 Dinamitek 2
  • ZECA 4907/330 24V AVVOLGICAVO CON LAMPADA PORTATILE 330 Dinamitek 3

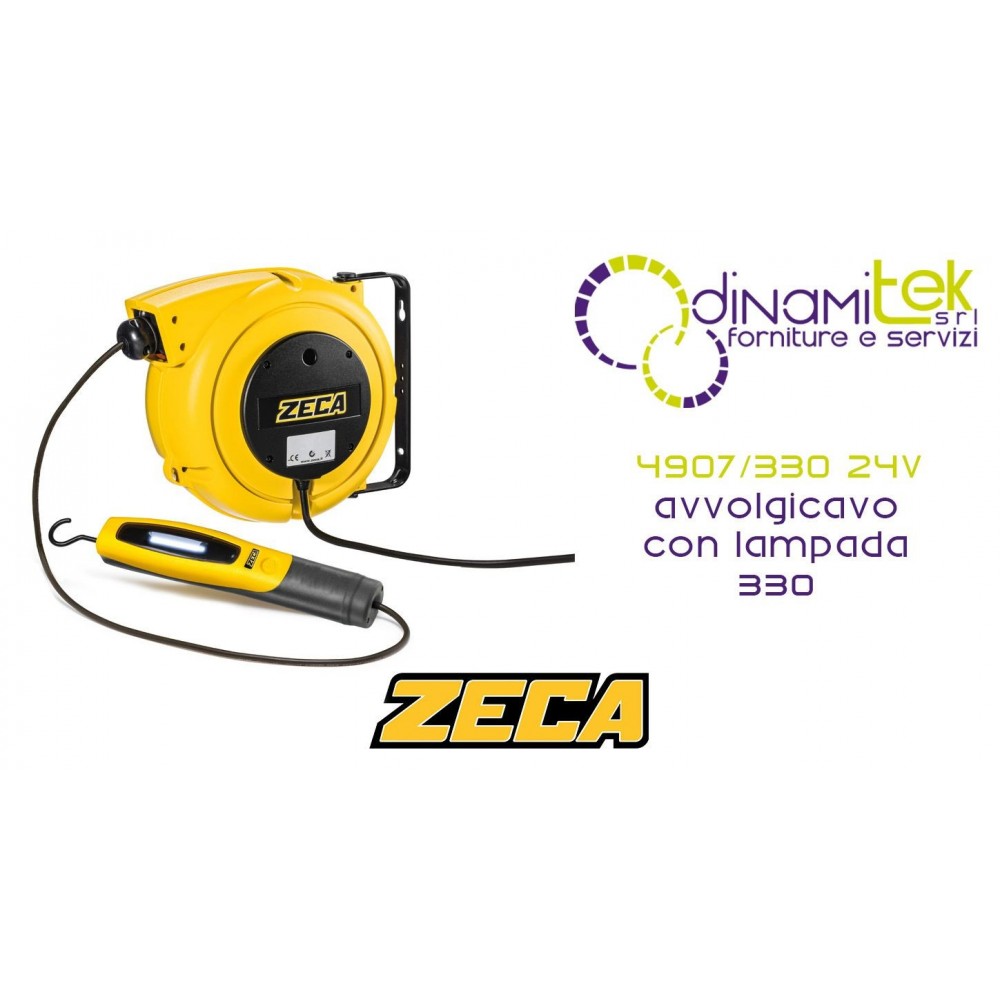

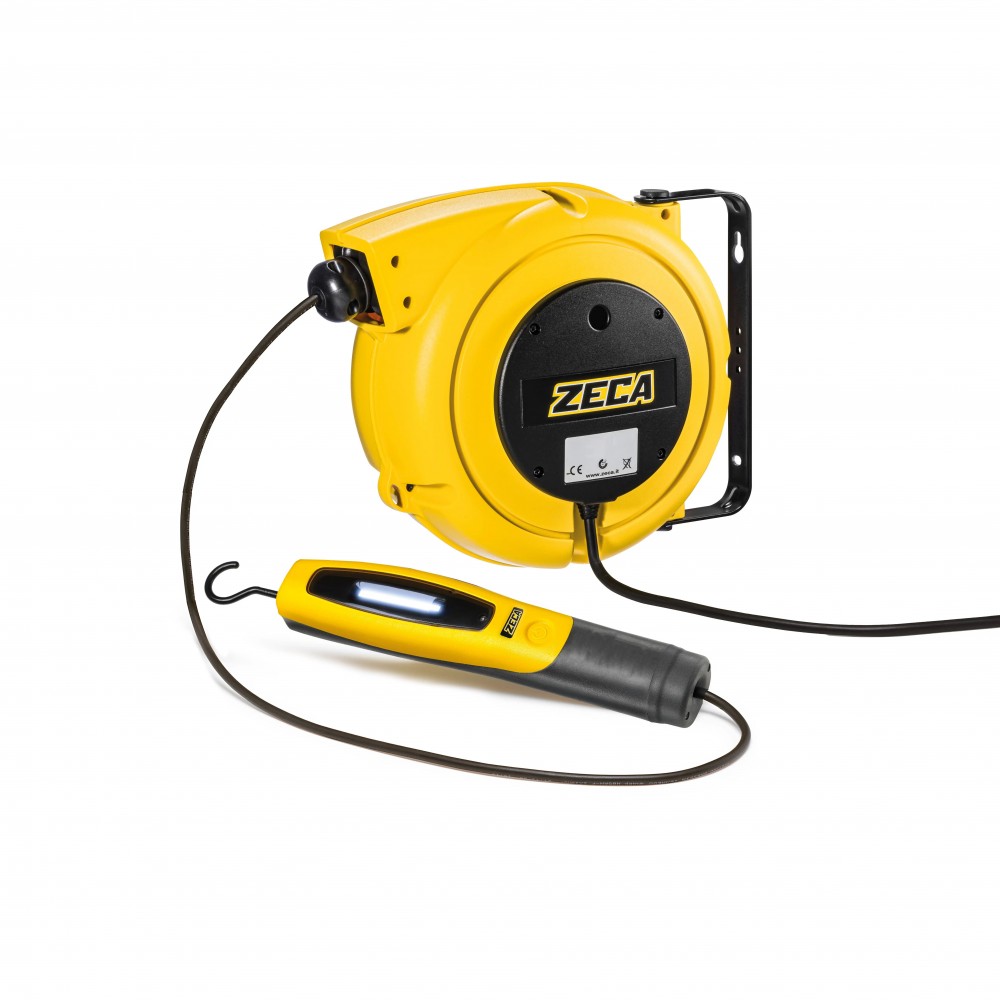

4907/330 24V CABLE REEL WITH PORTABLE LAMP 330 SERIES 4000 24V ZECA

Automatic spring-loaded cable reel in safety low voltage (12-24V) with 15.5 m of 2x1 mm² cable and COB LED inspection lamp Model 330 high resistance (IP64/IK09) Zeca 4000 Series Art. 4907/330 24V.

The Zeca Art. 4907/330 24V cable reel with lamp (belonging to the 4000 Series) is a professional self-retracting lighting and electrification system operating at safety low voltage (12-24V DC/AC). Consisting of a high-resistance reel drum with 15.5 metres of rubber cable (14 m on the reel + 1.5 m of free section) and an adjustable COB LED inspection lamp Model 330 with IP64 and IK09 protection, it is designed by Zeca SpA to guarantee the maximum level of operator protection in high-risk electrical environments.

  • 15.5 metres of H05 RN-F rubber cable (2x1 mm²): consisting of 14 m of cable wound on an internal drum plus 1.5 m of input power section.
  • COB LED Inspection Lamp Model 330 (4.5W - 500 Lumen): High energy efficiency COB LED source with wide light beam (120°), light output of 900 Lux at 50 cm and luminous flux of 500 Lumen.
  • Low Voltage Power Supply 12-24V DC/AC (Without Transformer): suitable for direct connection to 12V or 24V safety power lines in both direct and alternating current.
  • IP64 Protection and IK09 Impact Resistance: lamp body with very high IP64 sealing against dust and splashes of water, combined with high mechanical resistance IK09.
Shipping cost: Free for
194,96 €
Tax included

159,80 € Tax excluded

Quantity
Available product, order it now.

Technical Features and Performance of the Cable Reel with Lamp Zeca Art. 4907/330 24V

The automatic cable reel with adjustable lamp Zeca Art. 4907/330 24V is the low safety voltage variant of the Series 4000 line combined with the high-performance inspection lamp Model 330. Developed for mechanical workshops, mechatronics, maintenance pits and industrial environments where regulations require the use of very low safety voltage, it guarantees a protected, orderly and functional working environment.

The 4.5-watt COB LED lamp delivers 500 lumens with uniform illumination of 900 lux at a distance of 50 cm and a wide 120° beam angle. The ergonomic soft-touch handle houses the protected switch, while the lamp head features a retractable swivel hook for hands-free mounting. The transparent protective cap is easily replaceable with the dedicated spare part Art. 344/VY.

Detailed Technical Data Sheet

  • Product Code / Article: Art. 4907/330 24V
  • Manufacturer / Brand: Zeca SpA
  • Series: 4000 Series
  • Product Type: Automatic spring-loaded low voltage cable reel with integrated COB LED inspection lamp
  • Total Cable Length: 15.5 meters (14 m wound on a reel + 1.5 m input section)
  • Cable Section and Type: 2x1 mm² - H05 RN-F rubber cable
  • Connected Lamp Model: Model 330
  • Light Source: COB LED
  • Lamp Power Consumption: 4.5 W
  • Luminous Flux and Illuminance: 500 Lumen / 900 Lux @ 50 cm
  • Beam Angle: 120°
  • Power Supply Voltage: 12 - 24 V DC/AC
  • Transformer: Not present / Direct low voltage power supply (NO)
  • Lamp Protection Rating: IP64
  • Winder Protection Rating: IP42
  • Lamp Impact Resistance: IK09
  • Construction and Functional Specifications:
    • Automatic spring-loaded cable retraction with disengageable stop device
    • Ergonomic soft-touch lamp handle
    • Adjustable and retractable hook for quick positioning
    • Protected switch in the handle
    • Replaceable transparent cap (Replacement item 344/VY)

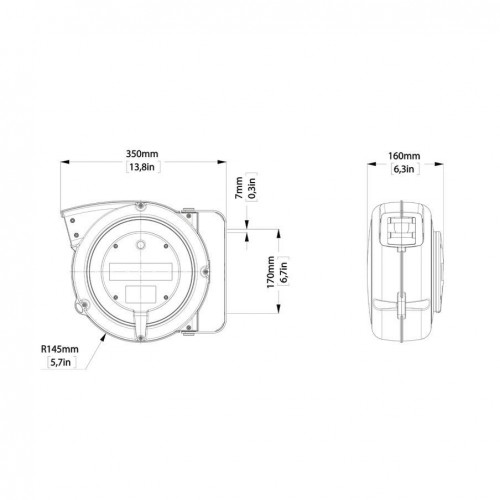

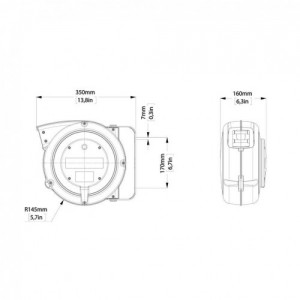

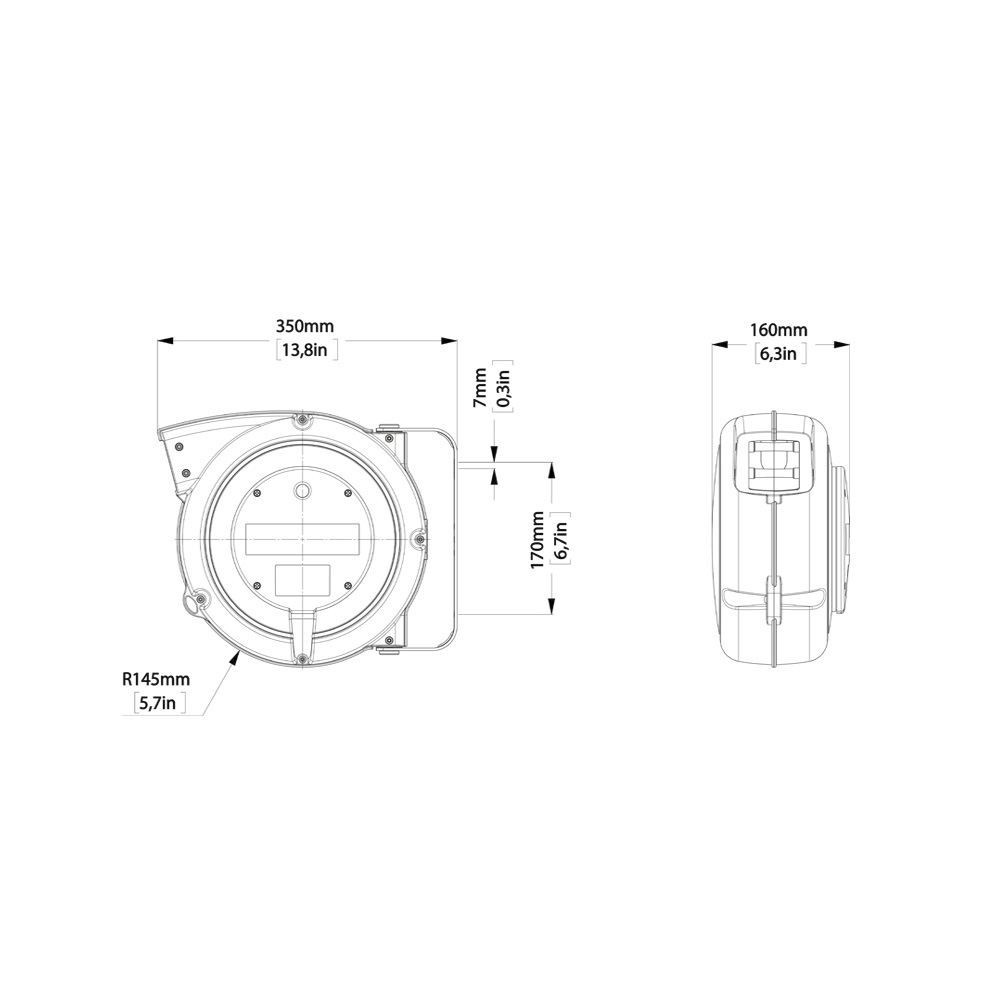

  • Dimensions and Weight: Net weight 4.5 kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



4907/330 24V
