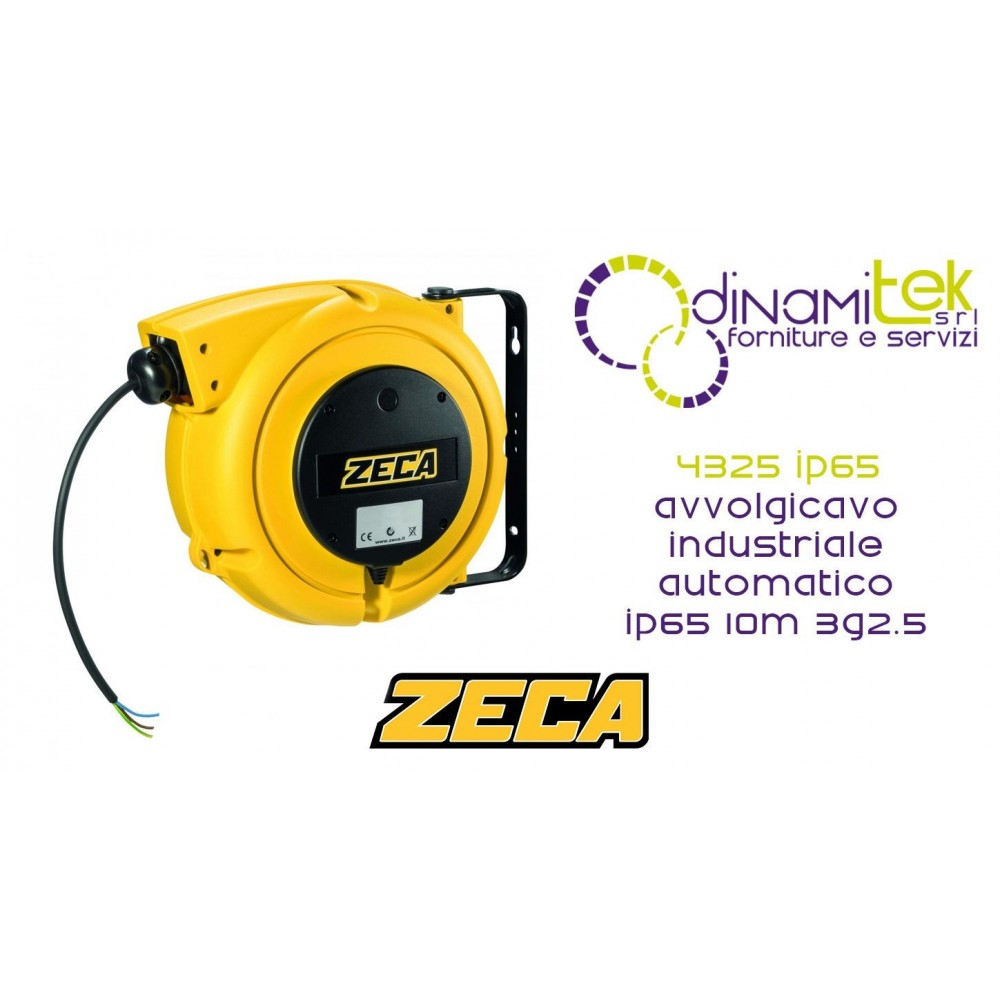

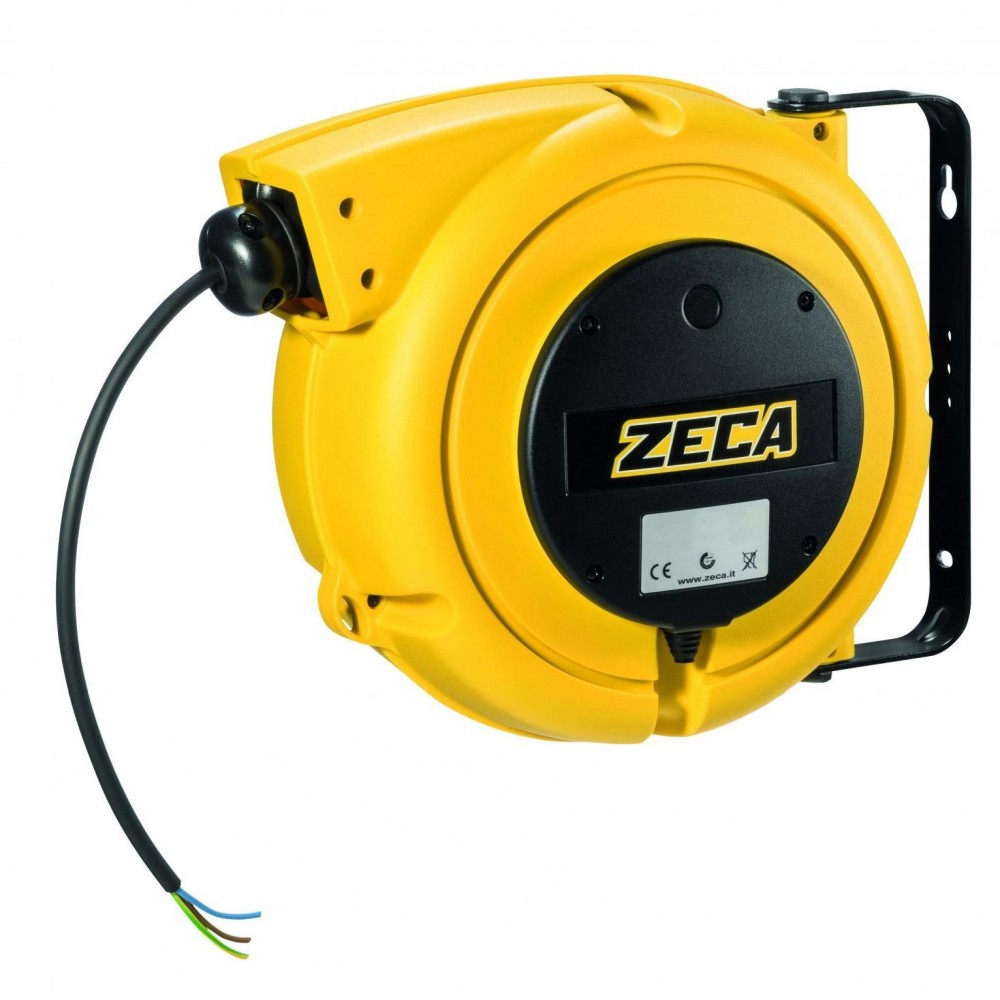

4325 IP65 AUTOMATIC INDUSTRIAL CABLE REEL IP65 10M 3G2.5 ZECA

Automatic spring-loaded industrial cable reel with high watertight protection (IP65) with 10 m of 3G2.5 mm² PVC cable and thermal protector Zeca Series 4000 Art. 4325 IP65.

The Zeca Art. 4325 IP65 industrial cable reel (belonging to the 4000 IP65 Series) is an automatically winding power supply device designed by Zeca SpA to guarantee high performance and maximum protection in industrial environments, construction sites and workshops subject to dust and water jets.

  • High Protection Rating IP65: The waterproof structure offers a complete hermetic seal against the penetration of dust and direct jets of water.
  • 10 Meters of PVC Cable (3G2.5 mm²): equipped with a total of 10 meters of 2.5 mm² three-wire cable (9 m wound on a reel + 1 m of power section).
  • Electrical rating up to 2.5 kW with thermal protector: delivers a maximum power of 1.9 kW with the cable wound and 2.5 kW with the cable fully unwound at 230V, with integrated thermal circuit breaker to protect against overloads.
  • Shockproof Structure with Rack Stop: shockproof plastic body with roller cable guide mouth and stop device that can be disengaged every 50 cm.
Shipping cost: Free for
179,55 €
Tax included

179,55 € Tax excluded

Quantity
Available product, order it now.

Technical Features and Performance of the Zeca Industrial Cable Reel Art. 4325 IP65

The Zeca Art. 4325 IP65 automatic cable reel for industrial use is the watertight and reliable solution of the 4000 Series designed for power distribution in demanding work environments. Thanks to the IP65 protection rating and the structural elements made of high-strength plastic, it guarantees continuous operation and superior protection of the internal electrical contacts.

The patented high-insulation (2.5 kV) collector uses a collector ring and brushes with sliding contacts and a double ground contact for flawless signal and power continuity. The rack-and-pinion stop device holds the cable at the desired length and can be easily disengaged if you prefer to keep the cable under constant tension. The built-in thermal circuit breaker interrupts power in the event of overheating due to overload.

Detailed Technical Data Sheet

  • Product Code / Article: Art. 4325 IP65
  • Manufacturer / Brand: Zeca SpA
  • Series: 4000 Series IP65 / Industrial
  • Product Type: Automatic spring-loaded industrial cable reel with high watertightness
  • Degree of Protection: IP65
  • Total Cable Length: 10 meters (9 m on reel + 1 m power supply section)
  • Number of Conductors and Cable Section: 3 G x 2.5 mm²
  • Cable Type: PVC
  • Cable Outer Diameter: 10 mm
  • Nominal and Maximum Voltage: 230 V (V max 500 V)
  • Electrical Rating and Power (@20°C):
    • Wrapped cable: 1.9 kW @ 230V (8.26 A)
    • Unwound cable: 2.5 kW @ 230V (10.86 A)
  • Thermal Protector Circuit Breaker: Present (YES)
  • Collector Isolation Voltage: 2.5 kV
  • Construction and Functional Specifications:
    • Shockproof plastic structure
    • Roller cable guide mouth
    • Rack and pinion stop device every 50 cm (disengageable)
    • Double earth contact
    • Sliding contacts with collector ring and brushes
    • Adjustable wall bracket
  • Operating Ambient Temperature: -5 °C / +50 °C
  • Packaging Dimensions and Weight: 335 x 310 x 185 mm / Weight 5.0 kg
  • Conformity and Directives: Directives 2014/35/EU, 2006/42/EC, 2011/65/EU, EN 61242, EN 60335-1, TÜV NORD Baumuster geprüft, CE
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



4325 IP65
