ZECA 4315 RNF IP65 AVVOLGICAVO INDUSTRIALE AUTOMATICO IP65 GOMMA 10M 3G1.5 Dinamitek 1
  • ZECA 4315 RNF IP65 AVVOLGICAVO INDUSTRIALE AUTOMATICO IP65 GOMMA 10M 3G1.5 Dinamitek 1
  • ZECA 4315 RNF IP65 AVVOLGICAVO INDUSTRIALE AUTOMATICO IP65 GOMMA 10M 3G1.5 Dinamitek 2
  • ZECA 4315 RNF IP65 AVVOLGICAVO INDUSTRIALE AUTOMATICO IP65 GOMMA 10M 3G1.5 Dinamitek 3

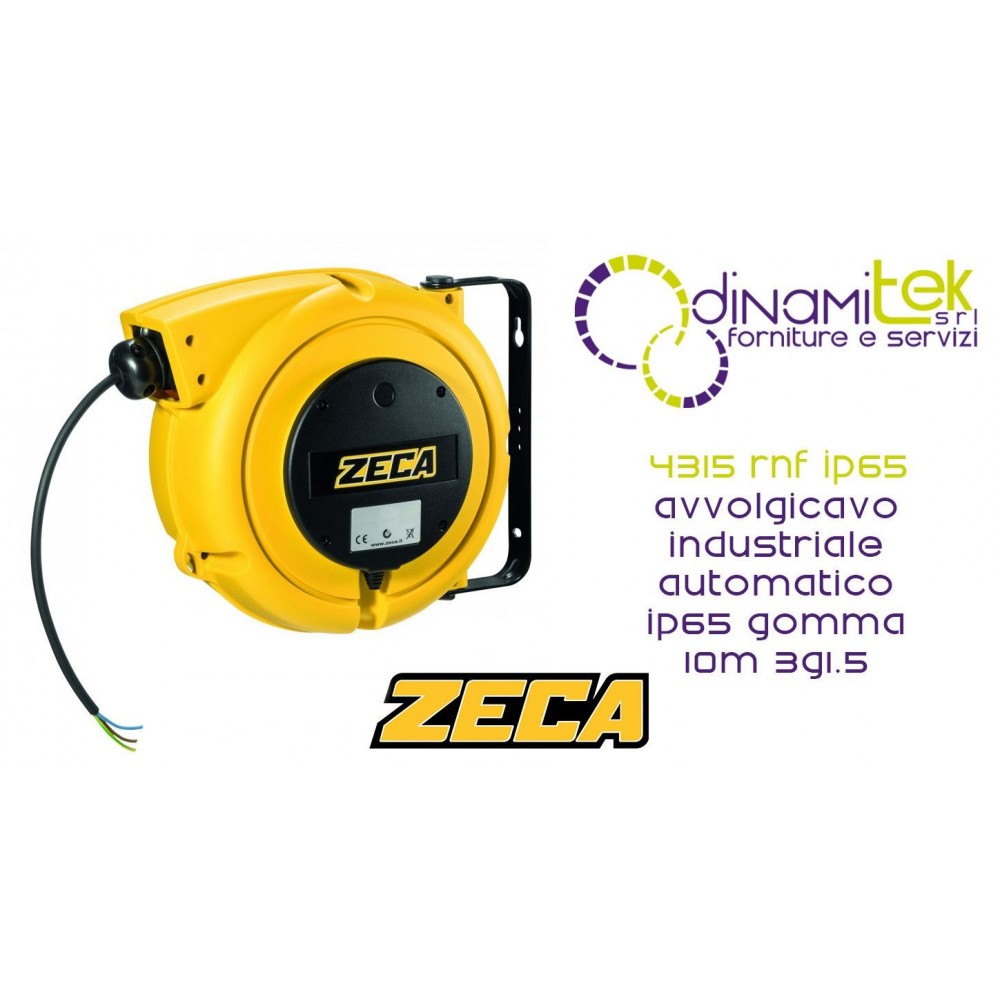

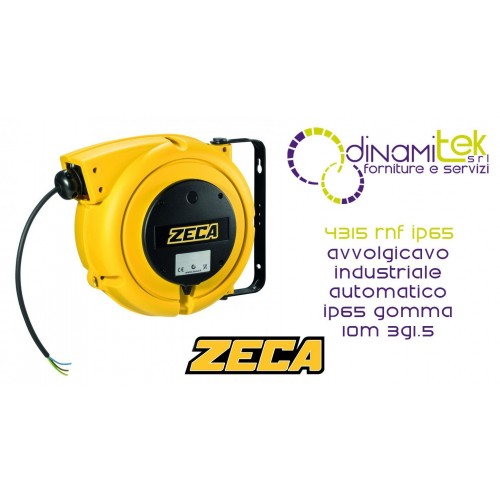

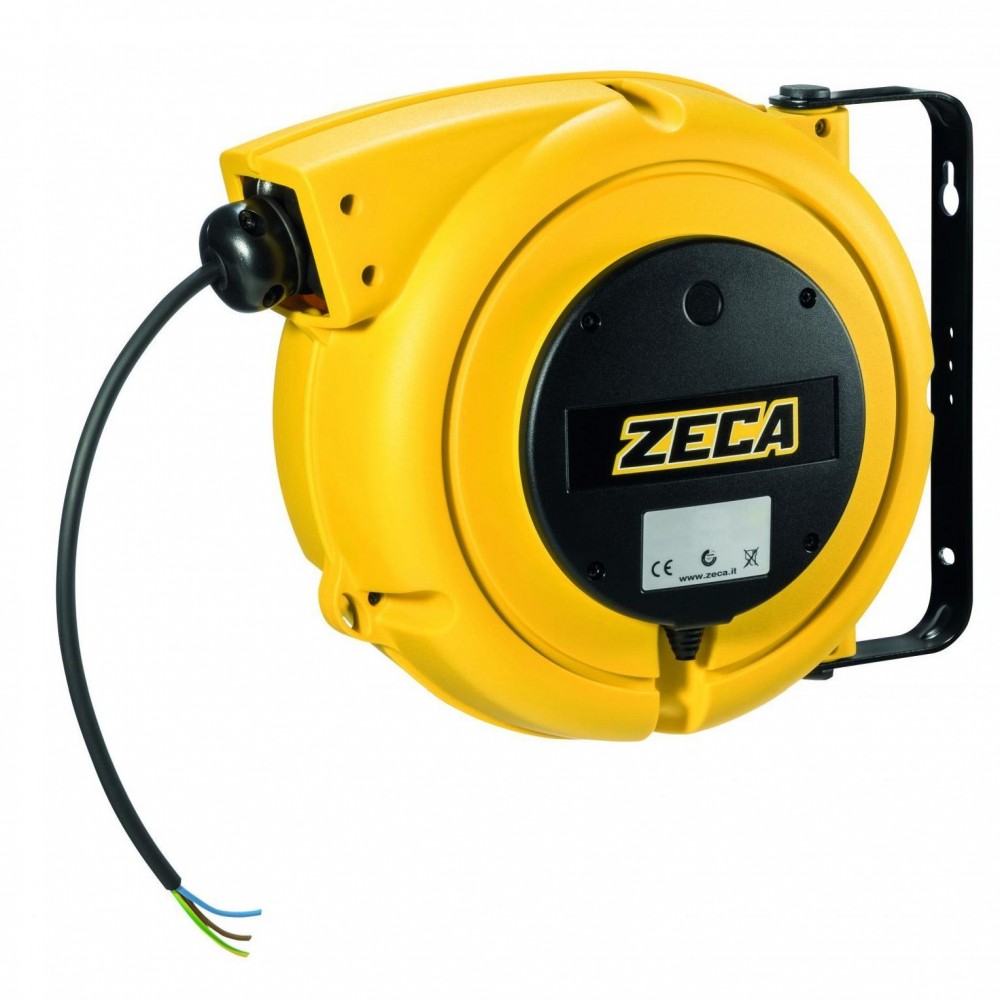

4315 RNF IP65 AUTOMATIC INDUSTRIAL CABLE REEL IP65 RUBBER 10M 3G1.5 ZECA

Automatic spring-operated industrial cable reel with high watertight protection (IP65) with 10 m of H07 RN-F 3G1.5 mm² rubber cable and thermal protector Zeca Series 4000 Art. 4315 RNF IP65.

The Zeca Art. 4315 RNF IP65 industrial cable reel (belonging to the 4000 IP65 Series) combines the performance of the H07 RN-F neoprene rubber cable with a high IP65 watertight seal, allowing electrical energy to be distributed safely in industrial environments, construction sites and workshops exposed to the open air, humidity and direct jets of water.

  • High Protection Rating IP65: the waterproof casing ensures complete isolation against the ingress of fine dust and direct jets of water.
  • 10 metres of H07 RN-F Neoprene Rubber Cable (3G1.5 mm²): consisting of a total of 10 metres of three-wire cable with a cross-section of 1.5 mm² (9 m wound on a reel + 1 m of free section) with an external diameter of 9.5 mm and a maximum voltage of up to 750V.
  • Electrical rating up to 1.8 kW with thermal circuit breaker: delivers a power of 1.2 kW (5.21 A) with the cable wound and 1.8 kW (7.82 A) with the cable fully unwound at 230V, with integrated thermal protector to prevent overloads.
  • Shockproof Structure with Rack Stop: high mechanical resistance plastic body with roller cable guide mouth and stop device that can be disengaged every 50 cm.
Shipping cost: Free for
220,15 €
Tax included

180,45 € Tax excluded

Quantity
Available product, order it now.

Technical Features and Performance of the Zeca Art. 4315 RNF IP65 Industrial Cable Reel

The Zeca Art. 4315 RNF IP65 automatic cable reel for industrial use represents the ideal combination of chemical and mechanical resistance of the cable and environmental insulation of the enclosure. Designed by Zeca SpA, it is specifically designed for harsh operating environments where the presence of liquids, oils, or dust requires high safety standards.

The H07 RN-F neoprene rubber cable guarantees flexibility even at low temperatures and high abrasion tolerance. The internal contact system uses a patented collector with sliding brushes, 2.5 kV insulation, and double ground contact for smooth and safe conduction. The disengageable rack stop and the thermal safety circuit breaker complete the operational functions of the drum.

Detailed Technical Data Sheet

  • Product Code / Article: Art. 4315 RNF IP65
  • Manufacturer / Brand: Zeca SpA
  • Series: 4000 Series IP65 / Industrial
  • Product Type: Automatic spring-loaded, watertight industrial cable reel with rubber cable
  • Degree of Protection: IP65
  • Total Cable Length: 10 meters (9 m on reel + 1 m power section)
  • Number of Conductors and Cable Section: 3 G x 1.5 mm²
  • Cable Type and Quality: Neoprene Rubber H07 RN-F
  • Cable Outer Diameter: 9.5mm
  • Nominal and Maximum Voltage: 230 V (V max 750 V)
  • Electrical Rating and Power (@20°C):
    • Wrapped cable: 1.2 kW @ 230V (5.21 A)
    • Unwound cable: 1.8 kW @ 230V (7.82 A)
  • Thermal Protector Circuit Breaker: Present (YES)
  • Collector Isolation Voltage: 2.5 kV
  • Construction and Functional Specifications:
    • Shockproof plastic structure
    • Roller cable guide mouth
    • Rack and pinion stop device every 50 cm (disengageable)
    • Double earth contact
    • Sliding contacts with collector ring and brushes
    • Adjustable wall bracket
  • Operating Ambient Temperature: -5 °C / +50 °C

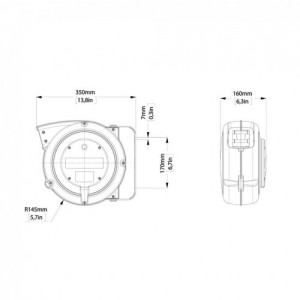

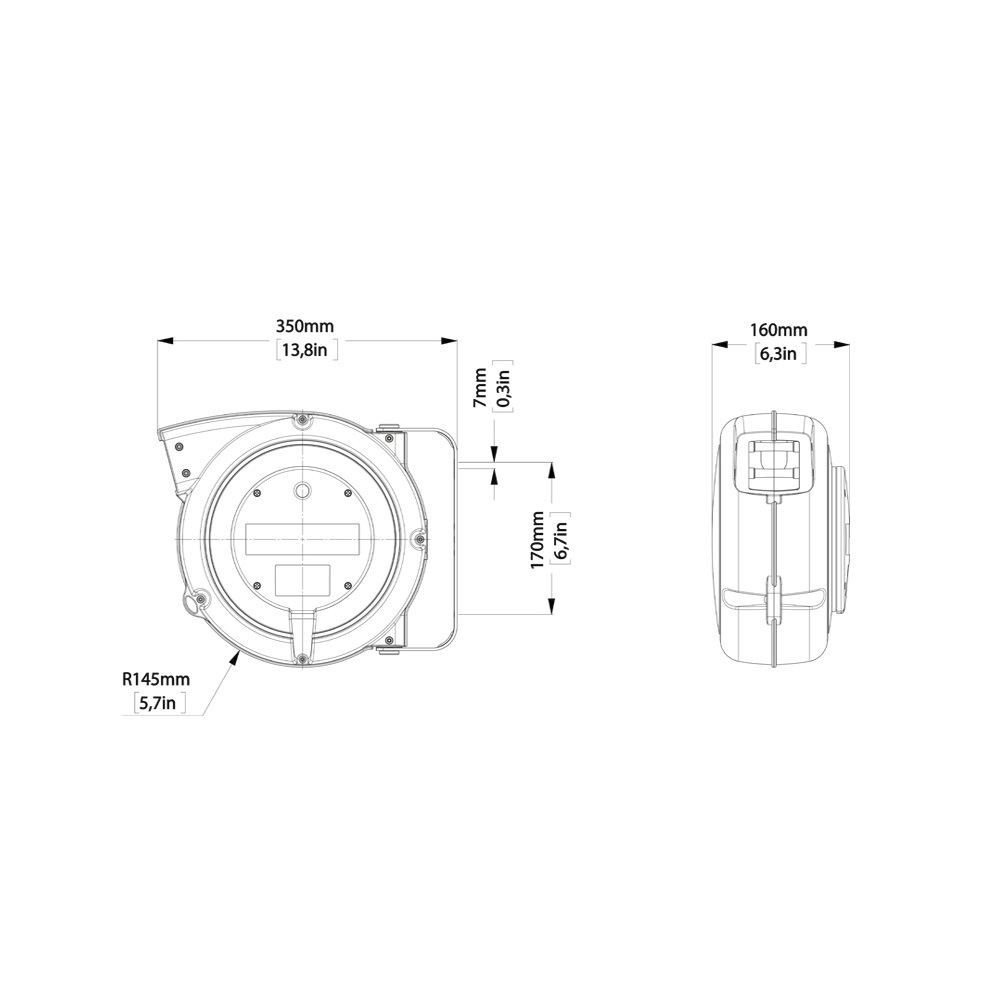

  • Packaging Dimensions and Weight: 335 x 310 x 185 mm / Weight 5.0 kg
  • Conformity and Directives: Directives 2014/35/EU, 2006/42/EC, 2011/65/EU, EN 61242, EN 60335-1, TÜV NORD Baumuster geprüft, CE
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.



4315 RNF IP65
