ZECA 3527 AVVOLGICAVO MANUALE 30M CAVO GOMMA 4G2.5 380V 2 PRESE CEE 16A ROSSE Dinamitek 1
  • ZECA 3527 AVVOLGICAVO MANUALE 30M CAVO GOMMA 4G2.5 380V 2 PRESE CEE 16A ROSSE Dinamitek 1
  • ZECA 3527 AVVOLGICAVO MANUALE 30M CAVO GOMMA 4G2.5 380V 2 PRESE CEE 16A ROSSE Dinamitek 2
  • ZECA 3527 AVVOLGICAVO MANUALE 30M CAVO GOMMA 4G2.5 380V 2 PRESE CEE 16A ROSSE Dinamitek 3

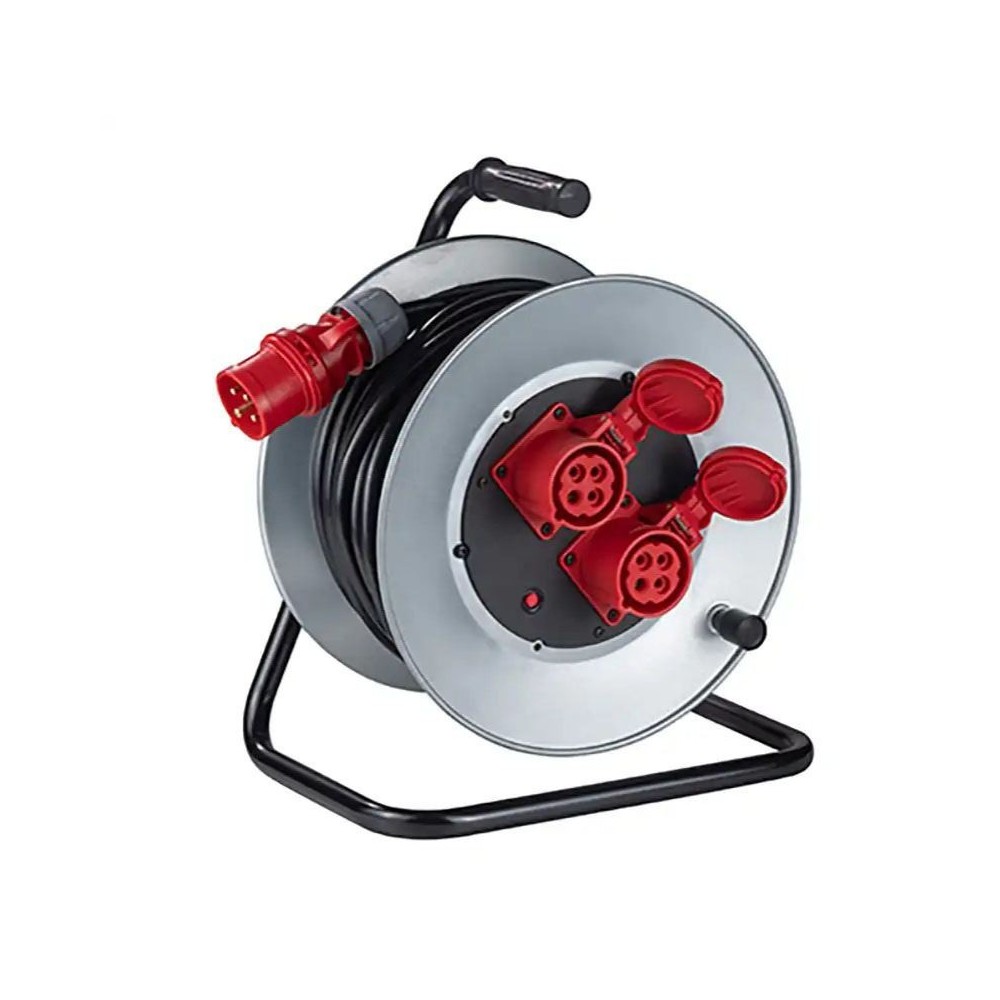

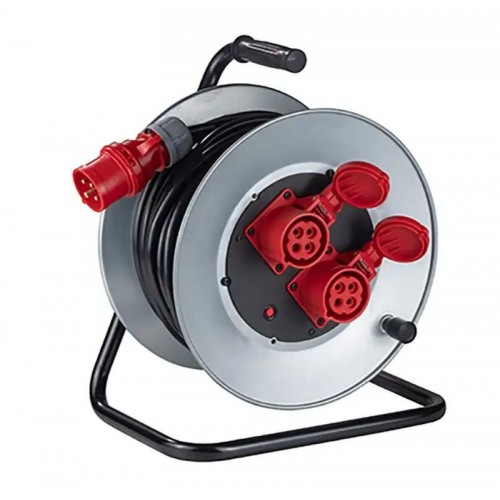

3527 MANUAL CABLE REEL 30M RUBBER CABLE 4G2.5 380V 2 RED CEE 16A SOCKETS 3500 SERIES ZECA

Heavy duty 380V three-phase manual cable reel with 30m of 4G2.5mm² high-strength rubber cable, panel with 2 red CEE 16A industrial sockets and thermal circuit breaker Zeca Series 3500 Art. 3527.

The Zeca Art. 3527 manual cable reel (belonging to the 3500 Series) is a professional manually wound cable reel for high-power three-phase lines, designed by Zeca SpA with 30 metres of larger-section rubber electric cable (4G2.5 mm²), developed to guarantee maximum operational stability and resistance on construction sites, workshops and industrial environments.

  • 30 Meters of High-Section Three-Phase Rubber Cable (4G2.5 mm²): Equipped with 30 m of superior quality 4-conductor 2.5 mm² rubber cable, resistant to trampling, abrasion and low temperatures for flawless three-phase power supply.
  • Panel with 2 Three-Phase Industrial Sockets CEE 16A 3P+T 380V (Red): equipped with 2 red industrial sockets CEE 16A 3P+T and supplied complete with a CEE 16A 3P+T plug for the immediate connection of three-phase machinery.
  • High Power Up to 2.5 kW (2500 W) with Thermal Cut-Out: ensures an electrical output of 2,500 W and integrates an automatic thermal cut-out to protect against overloads.
  • Robust Structure with Galvanized Flanges and Steel Tube: made with Ø 310 mm galvanized sheet metal containment flanges, insulating internal body in plastic and support stand in fire-painted steel tube.
Shipping cost: Free for
233,42 €
Tax included

233,42 € Tax excluded

Quantity
Available product, order it now.

Technical Features and Performance of the Zeca Cable Reel Art. 3527

The Zeca Art. 3527 manually wound extension cable reel represents the top-of-the-range model of the 3500 Zeca Series for three-phase 380V/400V industrial electrification in harsh working conditions. Compared to the PVC versions, the Art. 3527 uses a special 30-meter, 4-conductor rubber cable (4G2.5 mm²), designed to resist mechanical wear, rubbing on abrasive surfaces, and the temperature changes typical of construction sites.

The combination of the high-section rubber conductor with the panel featuring two red 16A 3P+T CEE industrial sockets (380V/400V) and the 16A 3P+T CEE plug allows for the safe delivery of up to 2.5 kW continuous power to power welders, pressure washers, construction pumps, and power machinery. The sturdy metal structure includes a stove-enameled tubular steel stand, a mechanical locking brake, and a thermal circuit breaker to protect against overheating.

Detailed Technical Data Sheet

  • Product Code / Article: Art. 3527
  • Manufacturer / Brand: Zeca SpA
  • Series: 3500 Series
  • Product Type: Three-phase (380V) manual winding cable reel / extension cord with high-resistance rubber cable
  • Cable Length: 30 meters
  • Number of Conductors and Section: 4G x 2.5 mm²
  • Cable Type: RUBBER
  • Sockets and Plugs: 2 CEE 16A 3P+T 380V sockets (red) and CEE 16A 3P+T plug included
  • Rated voltage: 380V / 400V three-phase
  • Power and Electrical Range (@20°C):
    • Wrapped cable: 2.5 kW (2500 W)
    • Unwound cable: 2.5 kW (2500 W)
  • Thermal Circuit Breaker: Present / Integrated (YES)
  • Retraction System: Manual by crank
  • Construction Specifications:
    • Mechanical brake to block the reel rotation
    • Insulating internal body made of plastic for maximum safety
    • Side flanges in galvanized sheet metal
    • Support stand in fire-painted steel tube

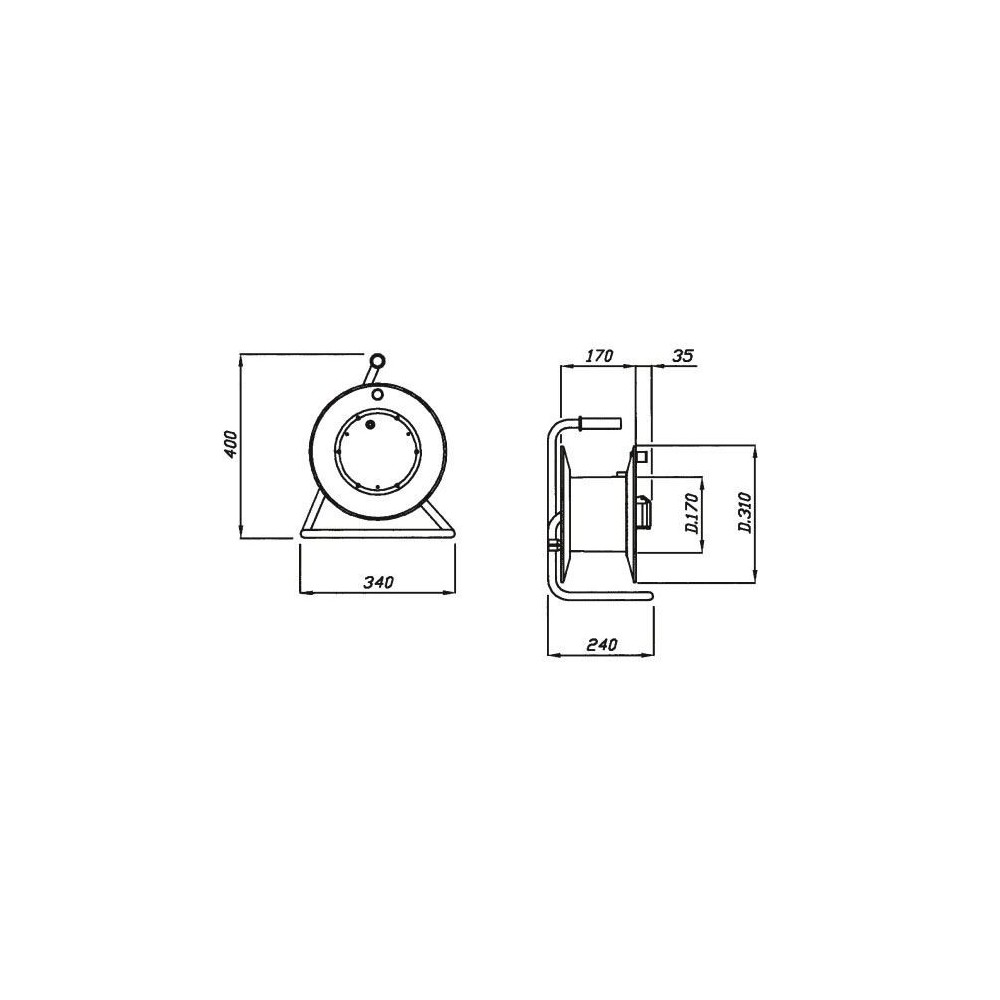

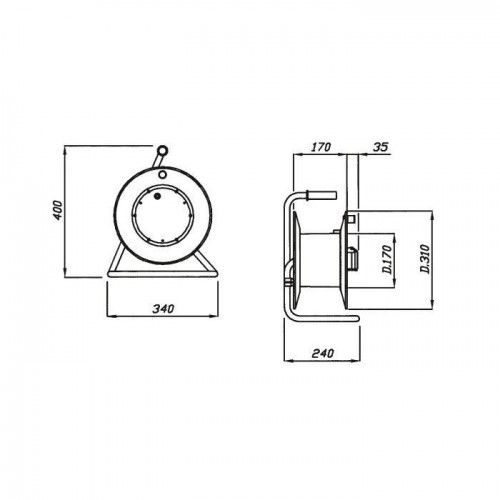

  • Overall dimensions:
    • Total height: 400 mm
    • Base width: 340 mm
    • Depth: 240 mm
    • Diameter of galvanized flanges: Ø 310 mm
    • Internal drum diameter: Ø 170 mm
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.
