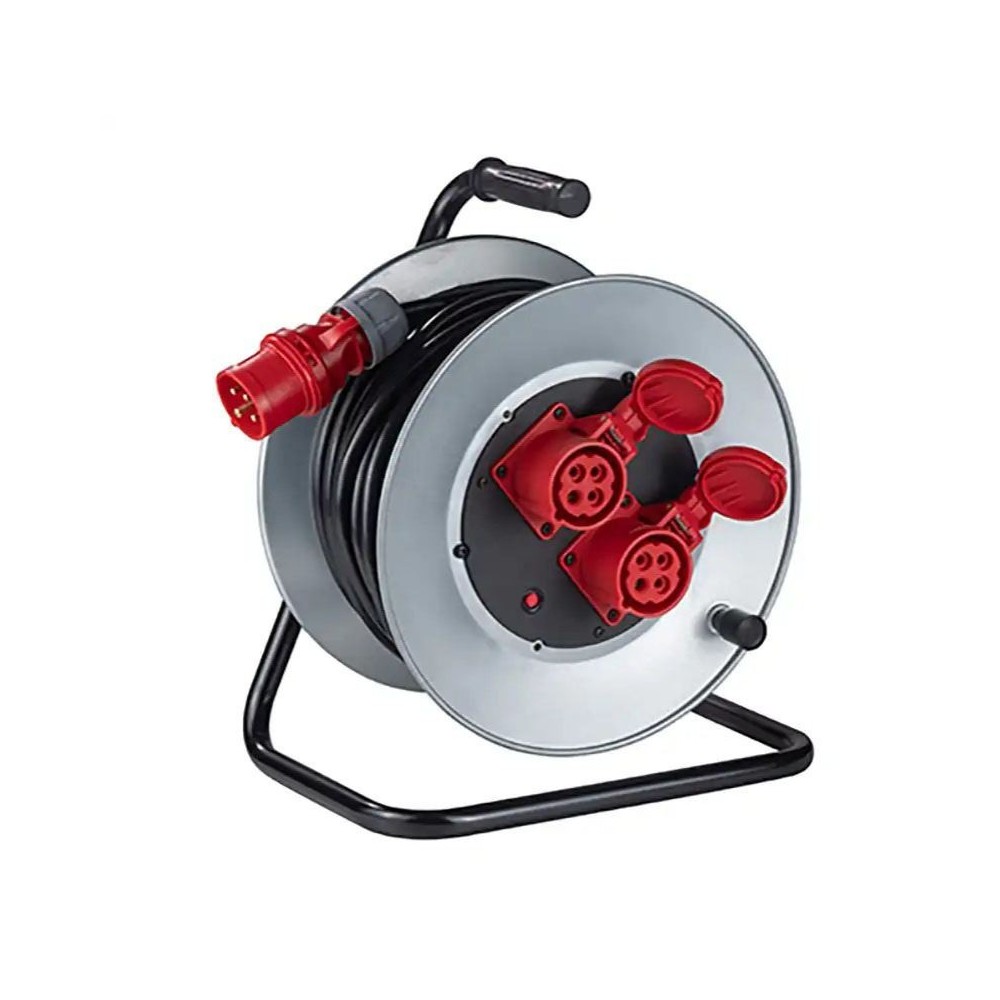

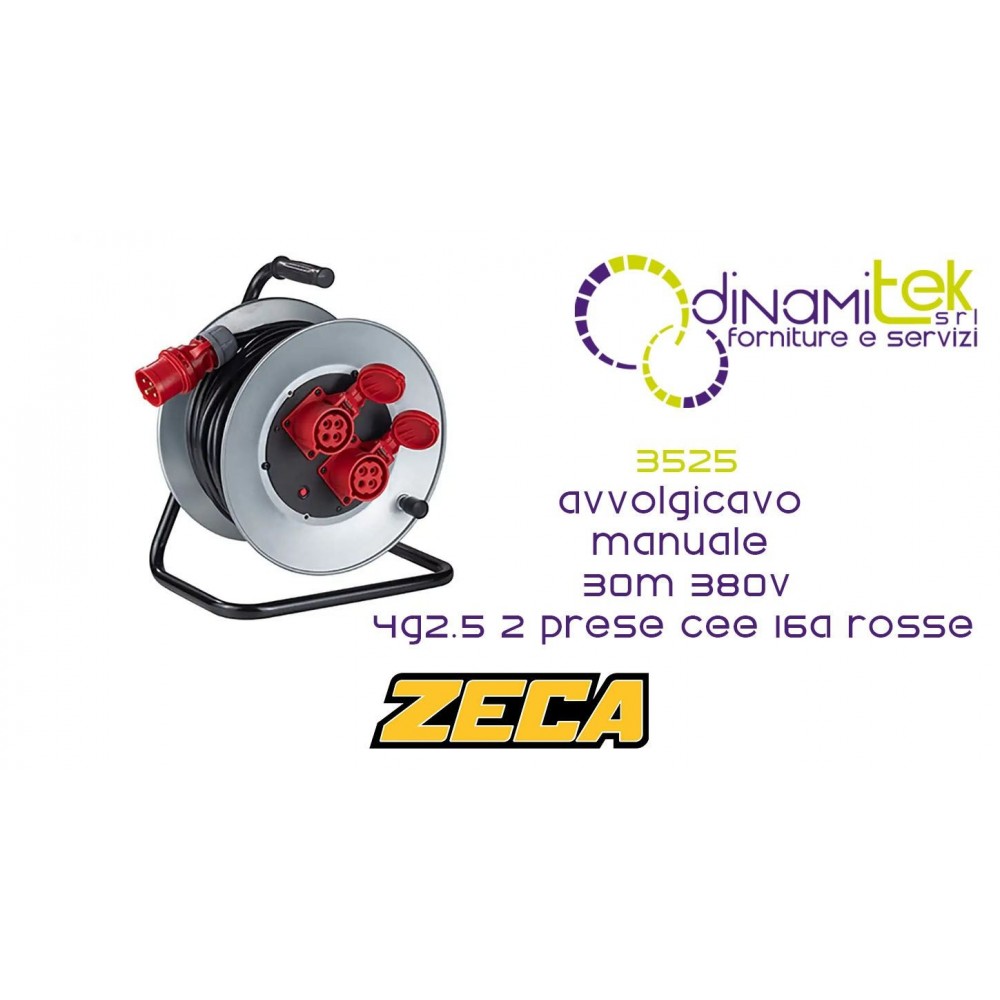

3525 30M 4G2.5 380V MANUAL CABLE REEL WITH 2 RED 16A CEE SOCKETS, 3500 SERIES ZECA

380V three-phase manual cable reel with high capacity, 30 m of 4G2.5 mm² cable, panel with 2 red CEE 16A industrial sockets and thermal circuit breaker Zeca Series 3500 Art. 3525.

The Zeca Art. 3525 manual cable reel (belonging to the 3500 Series) is a professional, enhanced manual winding drum for three-phase lines, equipped with 30 metres of high-section PVC cable (4G2.5 mm²), designed by Zeca SpA to ensure safe, stable and high-power 380V/400V power supply on construction sites, mechanical workshops and production departments.

  • 30 Meters of High Cross-Section Three-Phase Electrical Cable (4G2.5 mm²): Equipped with 30 m of 4-conductor 2.5 mm² cable to support high current absorption and reduce voltage drops under load.
  • High Power Up to 2.5 kW (2500 W): ensures an electrical output of 2,500 W both with the cable wound and with the cable fully unwound at 380V/400V.
  • Panel with 2 Three-Phase Industrial Sockets CEE 16A 3P+T 380V (Red): equipped with 2 red industrial sockets CEE 16A 3P+T and supplied complete with CEE 16A 3P+T plug for the direct connection of three-phase machinery and users.
  • Thermal Circuit Breaker and Galvanized Steel Structure: equipped with an automatic thermal circuit breaker, Ø 310 mm galvanized sheet metal containment flanges and a support stand in fire-painted steel tube.
Shipping cost: Free for
215,46 €
Tax included

215,46 € Tax excluded

Quantity
Available product, order it now.

Technical Features and Performance of the Zeca Cable Reel Art. 3525

The Zeca Art. 3525 manually wound extension cable reel represents the top-of-the-range model in terms of power and three-phase capacity of the 3500 Zeca Series for 380V/400V industrial electrification. The combination of the 2.5 mm² (4G2.5 mm²) PVC cable with a larger cross-section, developed over 30 metres in length, combined with the panel with 2 red 16A 3P+T CEE industrial sockets and the 16A 3P+T CEE plug allows the safe supply of up to 2.5 kW of continuous power to power welders, pressure washers, core drills and construction site machinery.

The solid metal structure includes a support stand in fire-painted steel tube, an insulating internal body in plastic material and an integrated mechanical brake to block the rotation of the coil at the desired measurement. The built-in thermal circuit breaker ensures automatic circuit interruption in the event of overload or overheating of the conductor.

Detailed Technical Data Sheet

  • Product Code / Article: Art. 3525
  • Manufacturer / Brand: Zeca SpA
  • Series: 3500 Series
  • Product Type: Three-phase (380V) high-capacity manual winding cable reel / extension cord
  • Cable Length: 30 meters
  • Number of Conductors and Section: 4G x 2.5 mm²
  • Cable Type: PVC
  • Sockets and Plugs: 2 CEE 16A 3P+T 380V sockets (red) and CEE 16A 3P+T plug included
  • Rated voltage: 380V / 400V three-phase
  • Power and Electrical Range (@20°C):
    • Wrapped cable: 2.5 kW (2500 W)
    • Unwound cable: 2.5 kW (2500 W)
  • Thermal Circuit Breaker: Present / Integrated (YES)
  • Retraction System: Manual by crank
  • Construction Specifications:
    • Mechanical brake to block the reel rotation
    • Insulating internal body made of plastic for maximum safety
    • Side flanges in galvanized sheet metal
    • Support stand in fire-painted steel tube

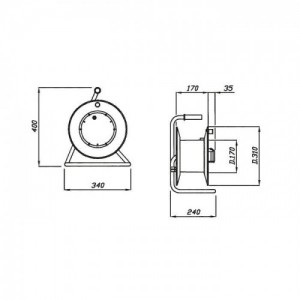

  • Overall dimensions:
    • Total height: 400 mm
    • Base width: 340 mm
    • Depth: 240 mm
    • Diameter of galvanized flanges: Ø 310 mm
    • Internal drum diameter: Ø 170 mm
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.
