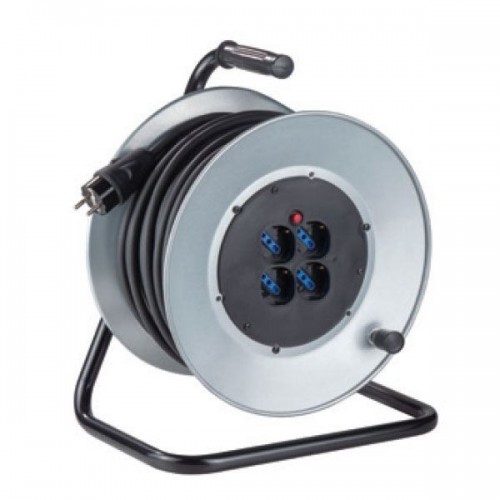

3511 40M 3G2.5 MANUAL CABLE REEL WITH 4 SCHUKO SOCKETS, 3500 SERIES ZECA

High capacity and extended extension manual cable reel with 40 m of 3G2.5 mm² cable, 4 universal Schuko sockets and thermal circuit breaker Zeca Series 3500 Art. 3511.

The Zeca Art. 3511 manual cable reel (belonging to the 3500 Series) is a professional manually wound cable reel that combines an extended range of action of 40 metres with a high-section PVC cable (3G2.5 mm²), designed by Zeca SpA to guarantee safe and stable electrical power supply over long distances on construction sites, workshops and industrial sectors.

  • 40 Meters of High Section PVC Cable (3G2.5 mm²): Equipped with 40 m of 3G2.5 electrical cable to reach distant work points while minimizing voltage drop under load.
  • High Power Up to 1.8 kW (1800 W): ensures an electrical output of 1,800 W both with the cable wound and with the cable fully unwound at 230V.
  • Panel with 4 Universal 10/16 A 2P+T Schuko Sockets: equipped with 4 universal Schuko sockets and supplied complete with a 16A 2P+T plug for connecting multiple high-power power tools.
  • Thermal Circuit Breaker and Galvanized Steel Structure: equipped with an automatic thermal circuit breaker, Ø 310 mm galvanized sheet metal containment flanges and a support stand in fire-painted steel tube.
Shipping cost: Free for
172,37 €
Tax included

172,37 € Tax excluded

Quantity
Available product, order it now.

Technical Features and Performance of the Zeca Cable Reel Art. 3511

The Zeca Art. 3511 manually wound extension cable reel represents the top-of-the-range combination of the 3500 Zeca Series for those who require both high electrical capacity and extensive construction site coverage. The use of PVC cable with a larger cross-section of 2.5 mm² (3G2.5 mm²) developed over 40 metres of length allows for the powering of high-absorption machinery and equipment in complete safety.

The solid metal structure consists of a stove-enamelled steel tube support stand, an insulating plastic inner casing, and a built-in mechanical brake to lock the reel's rotation at the desired speed. The built-in thermal cutout automatically shuts off the circuit in the event of overload or cable overheating.

Detailed Technical Data Sheet

  • Product Code / Article: Art. 3511
  • Manufacturer / Brand: Zeca SpA
  • Series: 3500 Series
  • Product Type: High capacity and increased extension manual winding cable reel / extension cord
  • Cable Length: 40 meters
  • Number of Conductors and Section: 3G x 2.5 mm²
  • Cable Type: PVC (H05 VV-F)
  • Sockets and Plugs: 4 universal 10/16 A 2P+T Schuko sockets and 16A 2P+T plug
  • Power and Electrical Range (@20°C):
    • Wrapped cable: 1.8 kW (1800 W)
    • Unwound cable: 1.8 kW (1800 W)
  • Thermal Circuit Breaker: Present / Integrated (YES)
  • Retraction System: Manual by crank
  • Construction Specifications:
    • Mechanical brake to block the reel rotation
    • Insulating internal body made of plastic for maximum safety
    • Side flanges in galvanized sheet metal
    • Support stand in fire-painted steel tube

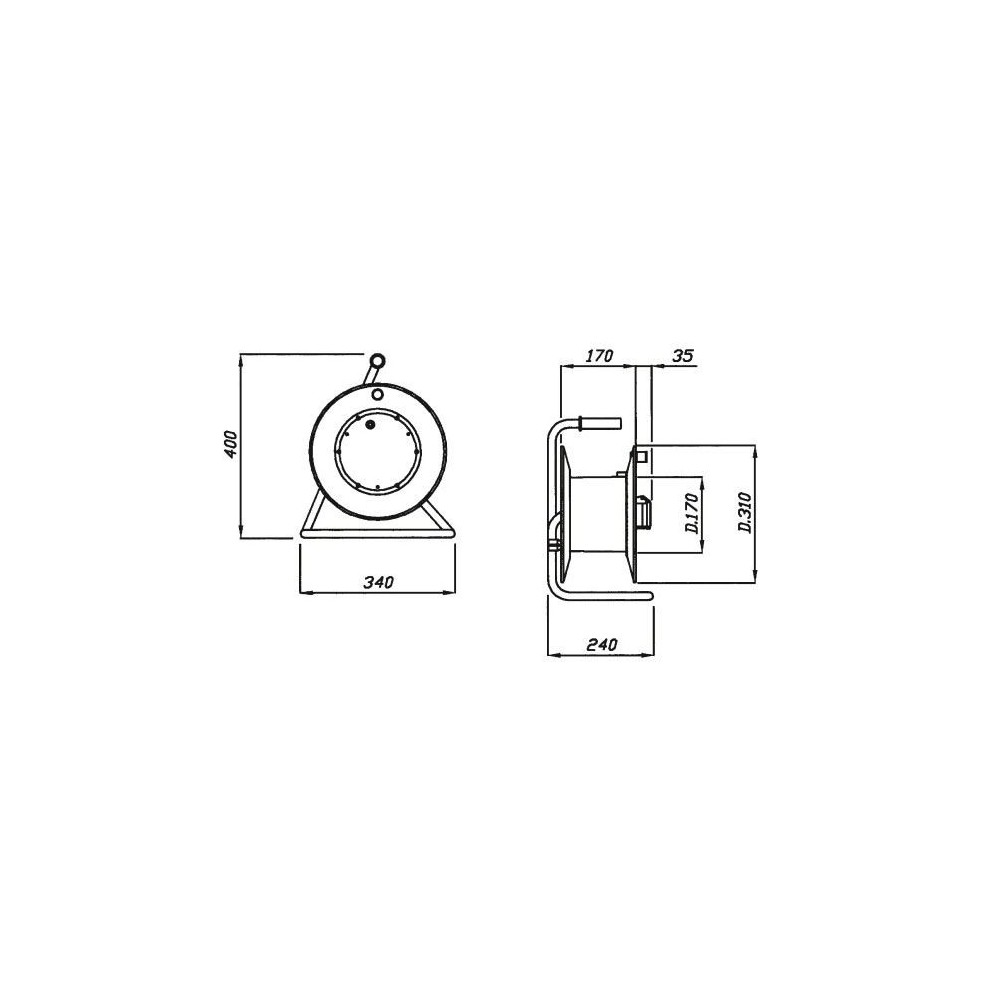

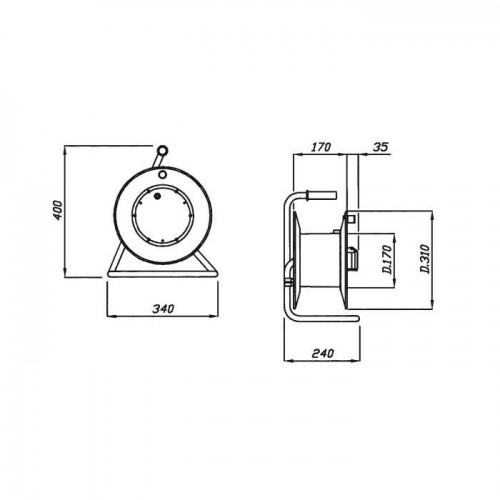

  • Overall dimensions:
    • Total height: 400 mm
    • Base width: 340 mm <
    • Depth: 240 mm
    • Diameter of galvanized flanges: Ø 310 mm
    • Internal drum diameter: Ø 170 mm
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.
