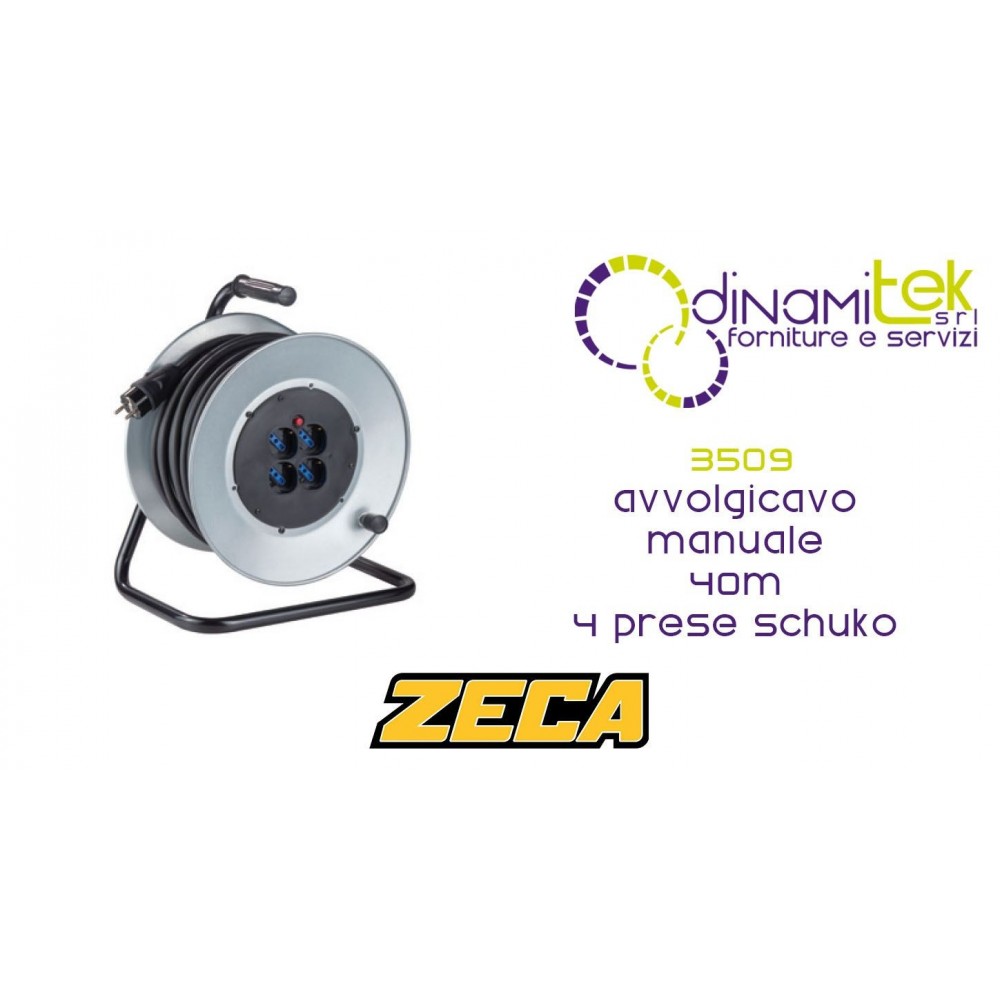

3509 40M MANUAL CABLE REEL WITH 4 SCHUKO SOCKETS, 3500 SERIES ZECA

Manual cable reel with 40 m of 3G1.5 mm² cable, 4 universal Schuko sockets and thermal circuit breaker Zeca Series 3500 Art. 3509.

The Zeca Art. 3509 manual cable reel (belonging to the 3500 Series) is a professional manual winding drum with a very high range of action with 40 metres of PVC electric cable, designed by Zeca SpA to ensure a safe, orderly and flexible power supply over long distances on construction sites, workshops and large work environments.

  • 40 Meters of PVC Cable (3G1.5 mm²): Equipped with 40 m of 3G1.5 electrical cable (3 conductors of 1.5 mm²) to reach work points very far from the mains socket.
  • Panel with 4 Universal 10/16 A 2P+T Schuko Sockets: equipped with 4 universal Schuko sockets and supplied complete with a 16A 2P+T plug for the simultaneous connection of multiple tools and appliances.
  • Integrated Thermal Protection Circuit Breaker: Equipped with an automatic thermal safety circuit breaker that interrupts the electrical flow in the event of overheating due to overload.
  • Sturdy Structure with Galvanized Flanges and Steel Tube: Made with Ø 310 mm galvanized sheet metal flanges and a support stand in fire-painted steel tube for maximum stability on the work surface.
Shipping cost: Free for
132,87 €
Tax included

132,87 € Tax excluded

Quantity
Available product, order it now.

Technical Features and Performance of the Zeca Cable Reel Art. 3509

The Zeca Art. 3509 manually wound extension cable reel represents the extended extension version of the 3500 Zeca Series for mobile electrification over large operating areas. The combination of 40 meters of PVC cable with a 3G1.5 mm² cross-section together with the plate with 4 universal Schuko sockets allows you to work at a great distance from wall sockets while keeping the conductors organized and protected from tangles.

The solid metal structure is integrated with a stove-enamelled steel tube support stand and a mechanical brake to lock the reel rotation at the desired position. The internal plastic electrical insulation and built-in thermal circuit breaker ensure high standards of protection and safety.

Detailed Technical Data Sheet

  • Product Code / Article: Art. 3509
  • Manufacturer / Brand: Zeca SpA
  • Series: 3500 Series
  • Product Type: Cable reel / Manual winding extension
  • Cable Length: 40 meters
  • Number of Conductors and Section: 3G x 1.5 mm²
  • Cable Type: PVC (H05 VV-F)
  • Sockets and Plugs: 4 universal 10/16 A 2P+T Schuko sockets and 16A 2P+T plug
  • Power and Electrical Range (@20°C):
    • Wrapped cable: 1.2 kW (1200 W)
    • Unwound cable: 1.2 kW (1200 W)
  • Thermal Circuit Breaker: Present / Integrated (YES)
  • Retraction System: Manual by crank
  • Construction Specifications:
    • Mechanical brake to block the reel rotation
    • Insulating internal body made of plastic material
    • Side flanges in galvanized sheet metal
    • Support stand in fire-painted steel tube

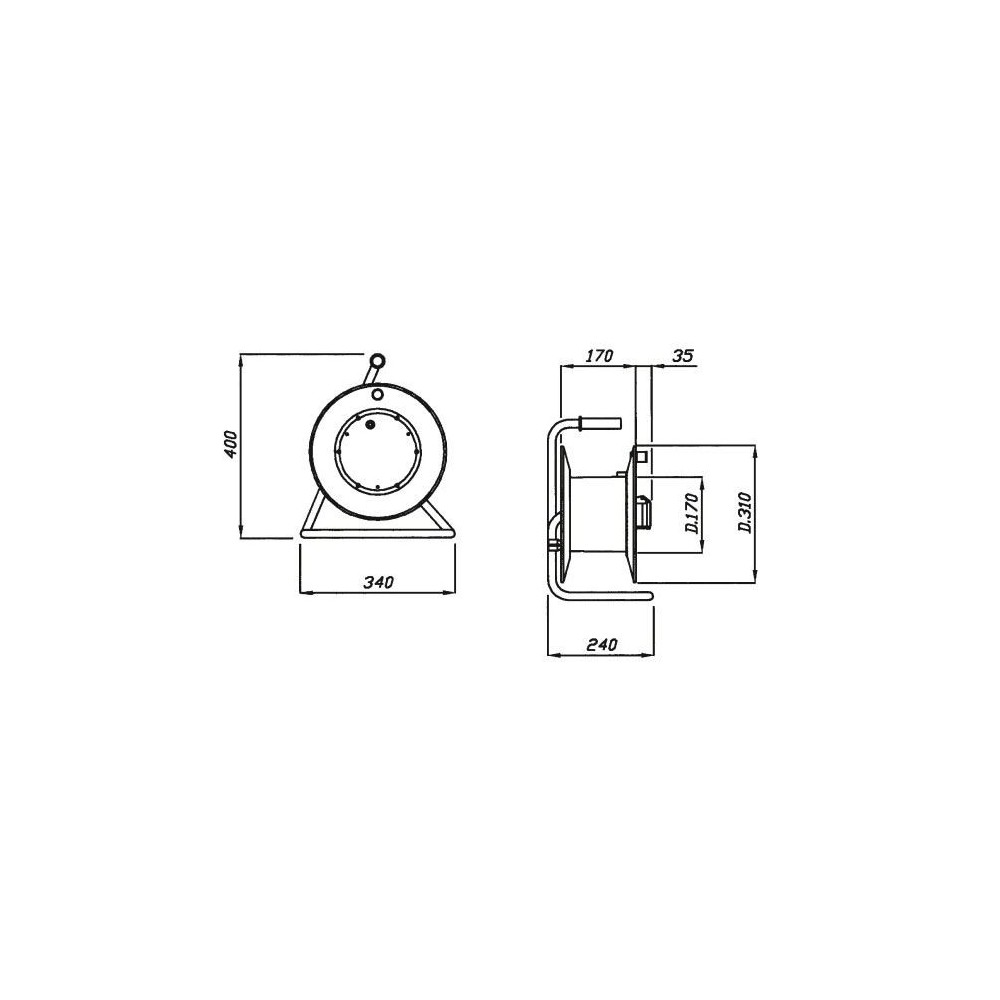

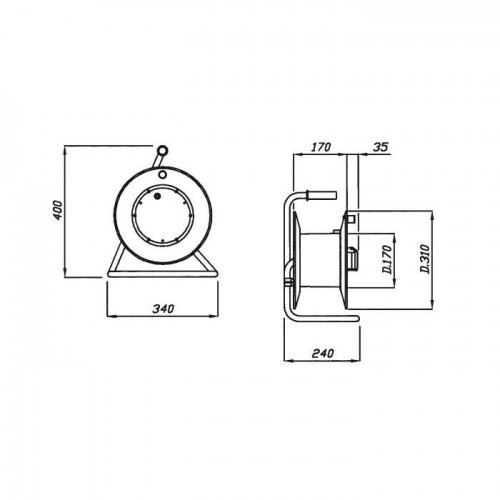

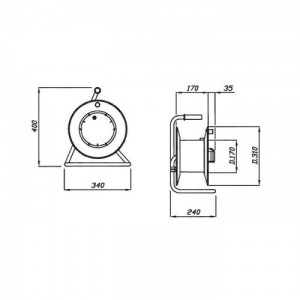

  • Overall dimensions:
    • Total height: 400 mm
    • Base width: 340 mm
    • Depth: 240 mm
    • Diameter of galvanized flanges: Ø 310 mm
    • Internal drum diameter: Ø 170 mm
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.
