3501 MANUAL CABLE REEL WITHOUT CABLE AND WITHOUT SOCKETS 3500 SERIES ZECA

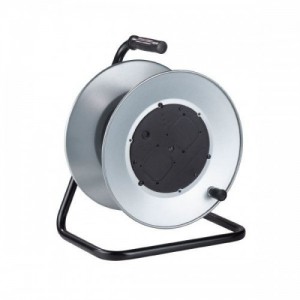

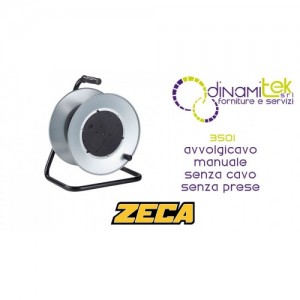

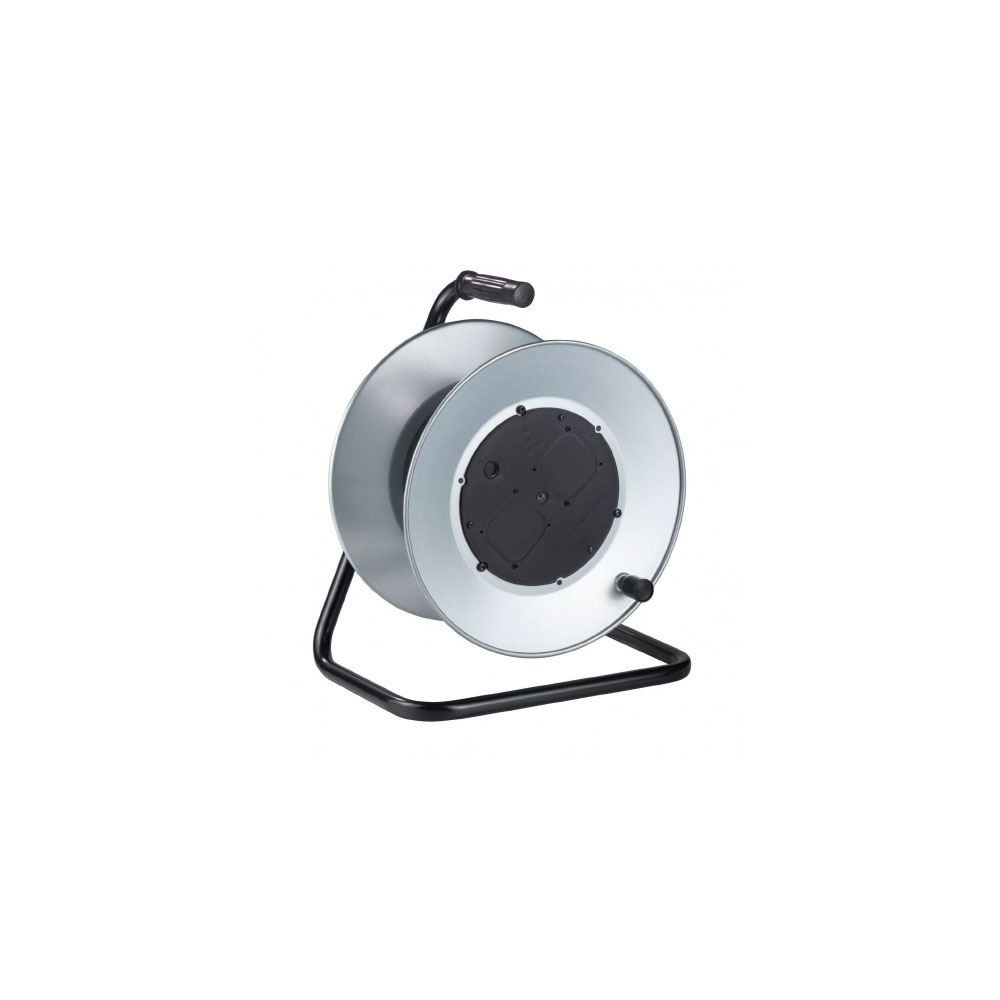

Empty manual cable reel without cable and without sockets with steel stand Zeca Series 3500 Art. 3501.

The Zeca Art. 3501 manual cable reel (belonging to the 3500 Series) is an empty professional winding drum, designed by Zeca SpA to allow the user or electrician to customize their own electrical extension cord by installing the cable and sockets most suited to their operating needs.

  • Sturdy Structure with Galvanized Flanges and Steel Tube: made with a drum with galvanized sheet metal flanges and a load-bearing stand in fire-painted steel tube to ensure maximum stability on the work surface.
  • Internal Plastic Body for Maximum Safety: Reliable internal electrical insulation to protect connections and live parts.
  • Integrated Reel Lock Brake: Equipped with a manual lever/brake to lock the rotation of the drum at the desired cable length.
  • Customizable Configuration (Supplied Without Cable and Without Sockets): prepared for the manual winding of electrical cables and the housing of panel sockets.
Shipping cost: Free for
41,75 €
Tax included

41,75 € Tax excluded

Quantity
Available product, order it now.

Technical Features and Performance of the Zeca Cable Reel Art. 3501

The Zeca Art. 3501 empty manual cable reel is the ideal base for the 3500 Series for creating customized electrical extensions for construction sites, workshops, and maintenance jobs. The stove-enameled tubular stand ensures solid support and a comfortable grip for manual transport.

The 310 mm diameter external flanges in galvanized sheet metal and the internal insulating plastic reel body protect the cable from mechanical friction and facilitate manual sliding during winding and unwinding. Regulatory note: all incomplete models supplied without sockets and/or without cable (such as Art. 3501) require CE marking, which must be carried out by the person performing the wiring and final commissioning.

Detailed Technical Data Sheet

  • Product Code / Article: Art. 3501
  • Manufacturer / Brand: Zeca SpA
  • Series: 3500 Series
  • Product Type: Cable reel / Manual winding extension (empty)
  • Cable Included: Supplied without cable (NO cable)
  • Sockets supplied: Supplied without sockets (NO sockets)
  • Retraction System: Manual by crank
  • Thermal Circuit Breaker: Not present / Not integrated
  • Construction Specifications:
    • Mechanical brake for locking the reel
    • Insulating internal body made of plastic material
    • Side flanges in galvanized sheet metal
    • Support stand in fire-painted steel tube

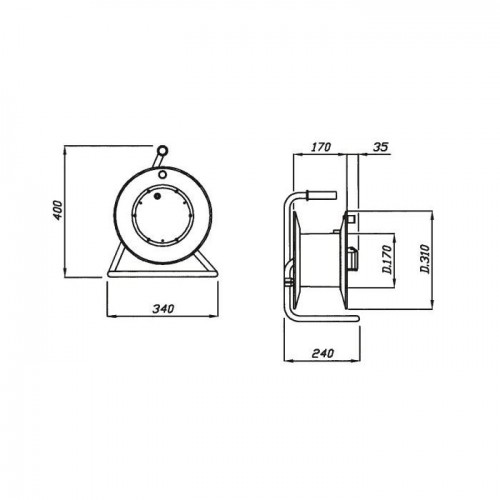

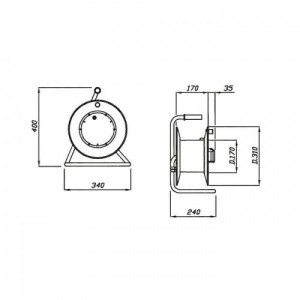

  • Overall dimensions:
    • Total height: 400 mm
    • Base width: 340 mm
    • Depth: 240 mm
    • Diameter of galvanized flanges: Ø 310 mm
    • Internal drum diameter: Ø 170 mm
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.
