H 5425 9005 CAMERAENDOSCOPEOTG5MPERCELLULARITOOLSH5425/9 ABC

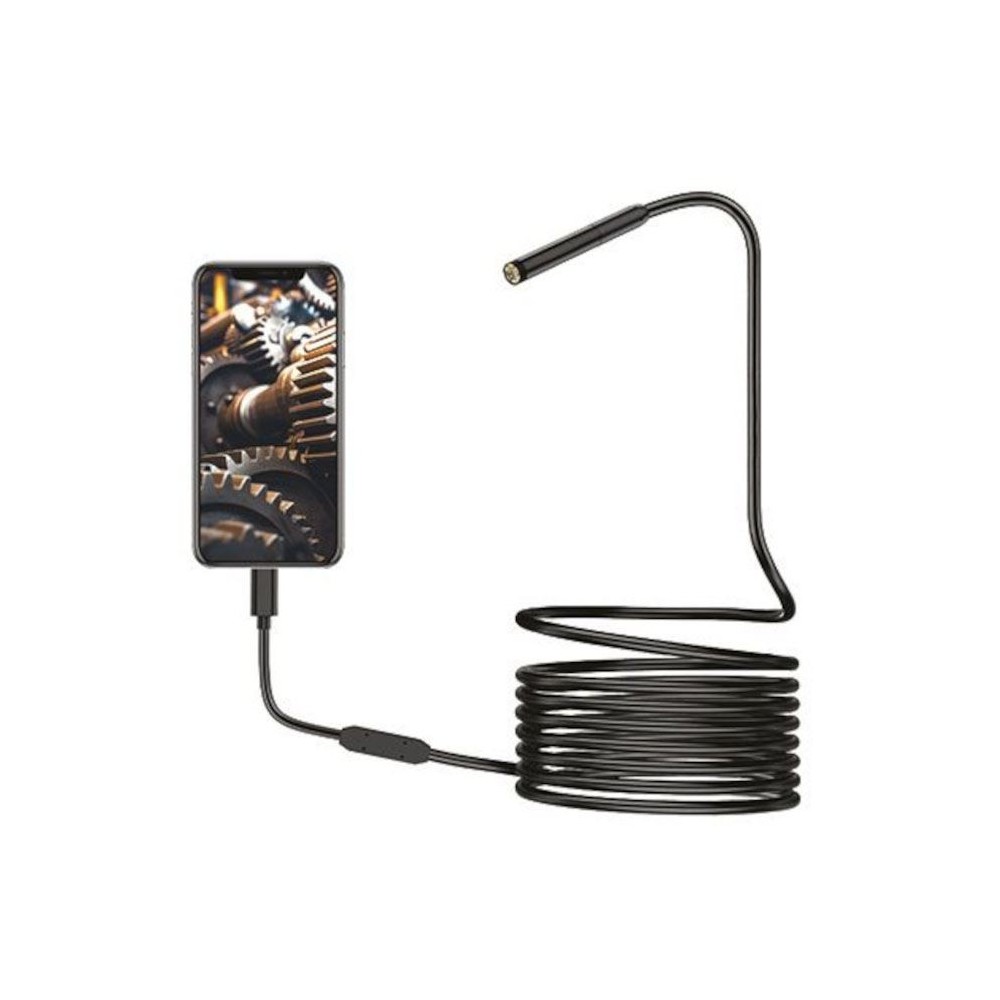

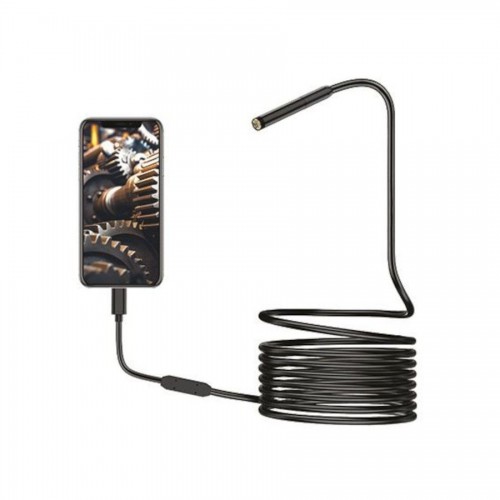

5 meter OTG (On-The-Go) endoscope camera for iOS and Android smartphones with Ø 8 mm IP67 probe and 8 adjustable LEDs ABC Tools Art. H 5425 9005.
The ABC Tools H 5425 9005 OTG endoscope camera (H 5425/9 Series) is a long-range visual inspection tool equipped with a 5-meter long flexible cable, which can be connected directly to your smartphone or tablet (compatible with iOS and Android) to perform diagnoses and checks in deep cavities and hard-to-reach places such as long ducts, flues, electrical panels and engine compartments.
- 5 Meter Extended Flexible Cable: ideal for in-depth inspections and along long pipelines while maintaining high insertion flexibility.
- Direct OTG Connection for Cell Phones (iOS and Android): Connects to your smartphone via the supplied USB-C, Micro-USB and Lightning adapters for instant viewing and recording of photos and videos.
- Thin Probe (Ø 8 mm) with IP67 Protection: 8 mm diameter waterproof head with IP67 protection rating for safe work even in the presence of dust or liquids.
- 2 MP Camera with 1080x720 Resolution and 8 Adjustable LEDs: 2 Megapixel sensor (1080x720 at 25 FPS) surrounded by 8 white LEDs with adjustable intensity for excellent visibility even in total darkness.
Shipping cost: €5.00
for
Technical Features and Performance of the ABC Tools H 5425 9005 OTG Endoscope
The ABC Tools H 5425 9005 OTG flexible endoscope (Part No. ABC 154259005) is the extended-range version for installers, plumbers, auto electricians, and industrial maintenance workers who need to perform visual inspections up to 5 meters deep. Using the smartphone's OTG protocol, it transforms your mobile device into a high-resolution diagnostic monitor without the need for external batteries or dedicated screens.
The probe integrates a 2 Megapixel camera with an 8 mm diameter head, capable of capturing clear images and videos with 1080x720P resolution at 25 FPS, a 70° field of view (FOV) and a focal length between 40 and 100 mm. The head illuminated by 8 adjustable white LEDs and the IP67 protection rating ensure maximum operability even inside humid ducts or completely dark cavities [1, 2, 4]. The kit includes 2 interface adapters and 4 terminal accessories (hook, fixing device, magnet and 90° mirror).
Detailed Technical Data Sheet
- Product Code / Catalog: H 5425 9005 / H 5425/9
- Code ABC Tools / EAN: 154259005
- Manufacturer / Brand: ABC Tools
- Product Type: OTG Endoscope Camera for Smartphone with 5m Long Cable
- Cable / Probe Length: 5 meters (5,000 mm)
- Head / Probe Diameter: Ø 8 mm
- Camera Resolution: 2 Megapixels (2 MP)
- Image / Video Resolution: 1080x720P (Frame rate 25 FPS)
- Field of View (FOV) and Focal Length: 70° / 40 - 100 mm
- Lighting: 8 white LEDs with adjustable intensity
- Probe Protection Rating: IP67
- Generated File Format: JPEG Photo / AVI Video
- Compatible Operating Systems: iOS 10.0+ / Android 6.0+
- Operating Temperature: -10 °C ÷ +80 °C
- Net Weight: 0.3 kg

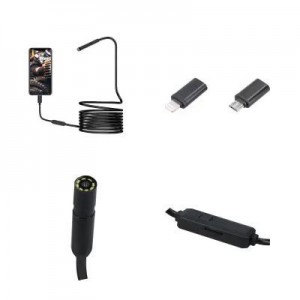

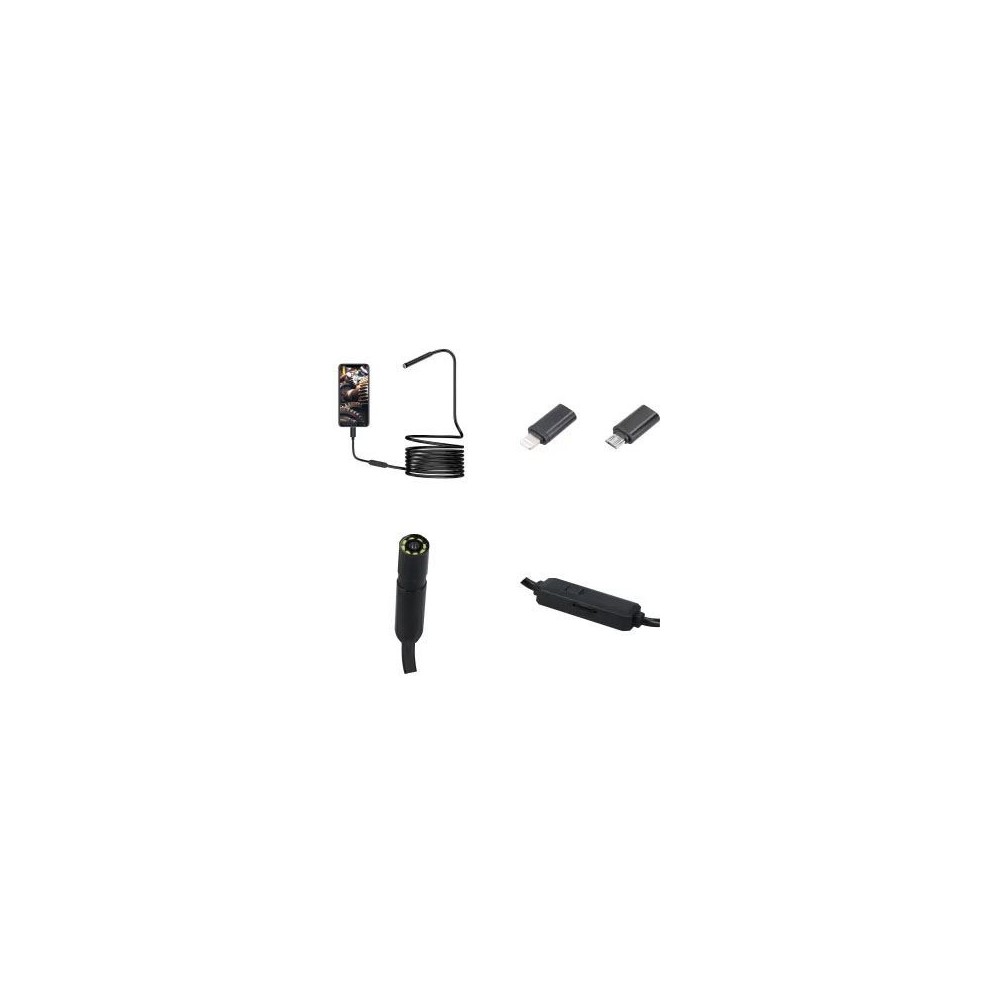

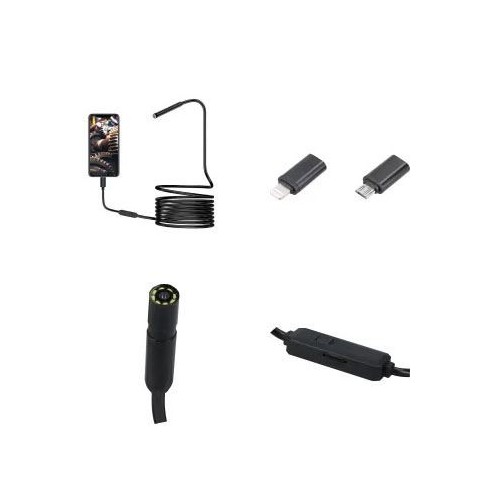

- Equipment and Accessories Included:
- 2 Interface Adapters (USB-C to Micro-USB and Lightning)
- 1 metal hook
- 1 Fixing cap
- 1 Extractor magnet
- 1 90° mirror for side viewing
