270 0.55 HP STRAIGHT PNEUMATIC GRINDER AIRTEC

0.55 HP Air Straight Grinder with Spindle Lock System and 6mm Collet Airtec Model 270 (Code 13200070).

The Airtec Mod. 270 pneumatic straight grinder is a compact and extremely powerful compressed air tool (0.55 HP / 0.41 kW), designed by Airtec Srl to carry out intensive grinding, deburring, milling and finishing operations on moulds and metal parts.

  • 0.55 HP (0.41 kW) 22,000 RPM Pneumatic Motor: Delivers a high no-load speed of 22,000 RPM at 6.2 bar pressure for rapid material removal.

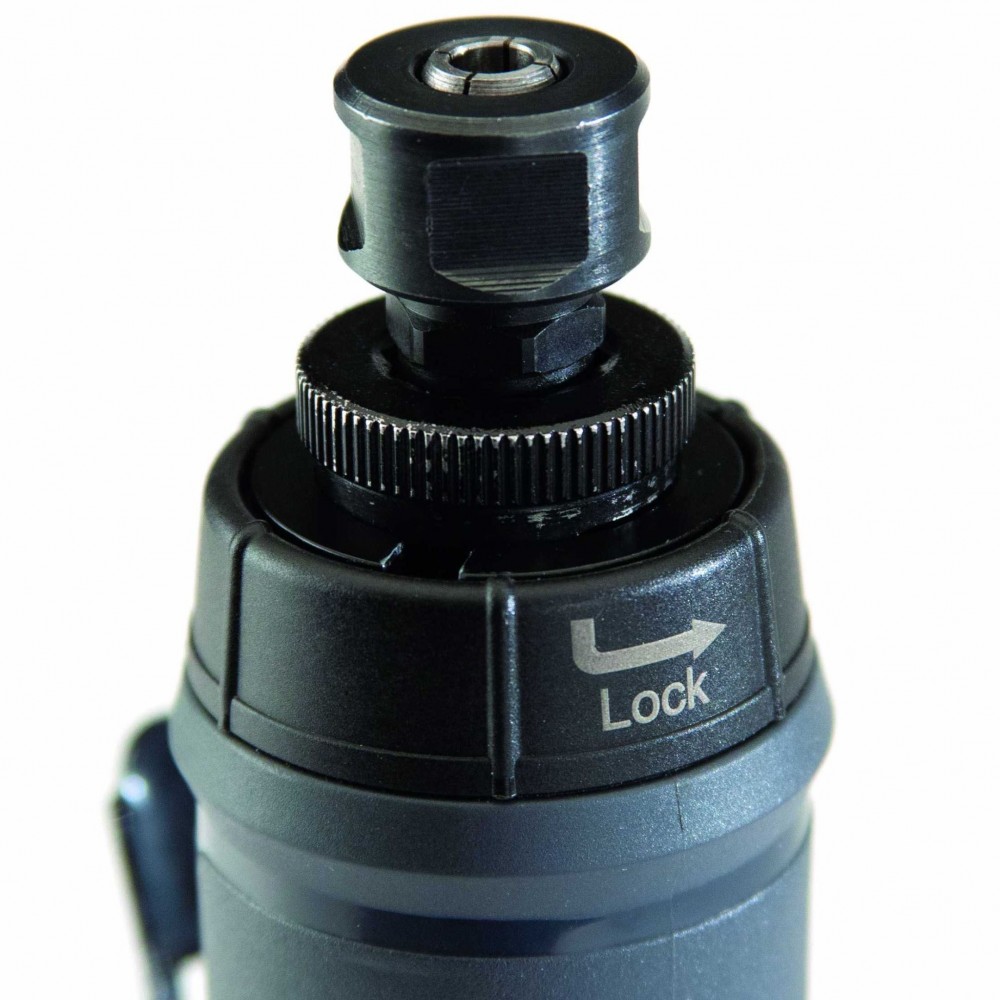

  • Integrated Spindle Lock System: Quickly change accessories by simply squeezing and rotating the front cover of the machine.
  • Air Regulator and Swivel Joint: Equipped with an integrated flow regulator on the body, rear air exhaust and anti-kink swivel air inlet joint.
  • Blade Holder Collet Ø 6 mm (Ø 3 mm Option): equipped with standard 6 mm collet, with the possibility of fitting the 3 mm collet on request for micro-detail work.
Shipping cost: €15.00 for
€133.22
115,78 € Save €17.45
Tax included

94,90 € Tax excluded

Quantity
Available product, order it now.

Technical Features and Performance of the Airtec Mod. 270 Grinder

The Airtec Mod. 270 compressed air straight grinder (Code 13200070) is the ideal professional tool for mold makers, model makers, mechanical workshops, and carpentry shops requiring constant power and maneuverability in small spaces. The innovative spindle locking system using the front cap eliminates the need for double keys when changing rotary cutters.

The tool operates at a recommended operating pressure of 6.2 bar via a 1/4" BSPT threaded connection and a hose with a recommended internal diameter of 10 mm, recording an average air consumption of 9.3 litres per second. The ergonomic body, just 185 mm long and weighing just 0.70 kg, allows for a firm grip with low vibration levels (2.7 m/s²).

Detailed Technical Data Sheet

  • Product Code / SKU: Cod. 13200070 / Mod. 270
  • Manufacturer / Brand: Airtec Srl
  • Product Type: High Power Pneumatic Straight Grinder / Milling Machine
  • Power Output: 0.55 HP / 0.41 kW
  • Collet Size: Ø 6 mm (prepared for optional Ø 3 mm collet - Cod. 4040512243)
  • No-Load Speed: 22,000 rpm
  • Recommended Air Pressure: 6.2 bar
  • Average Air Consumption: 9.3 l/sec
  • Air Connection: 1/4" BSPT (Swivel)
  • Recommended Air Hose Internal Diameter: 10 mm
  • Ergonomic and Construction Features:
    • Push/turn shaft lock on front cap
    • Integrated airflow regulator on the body
    • Rear air exhaust
  • Noise and Vibration Levels:
    • Sound pressure: 87.5 ± 3 dB(A)
    • Sound power: 98.5 ± 3 dB(A)
    • Vibration level: 2.7 m/s²
  • Dimensions and Weight:
    • Total length: 185 mm
    • Net weight: 0.70 kg
  • Recommended Optional Accessories:
    • Exhaust silencer pipe (Mod. AC 7 - Cod. 10700750)
Wide selection of high-performance professional pneumatic grinders

AIRTEC: PROFESSIONAL PNEUMATIC TOOLS FOR WORKSHOPS AND INDUSTRY

Airtec is a brand specialising in professional pneumatic tools, designed to guarantee high performance, operational continuity and maximum reliability in mechanical, industrial and maintenance work. Airtec solutions are designed for intensive use, with robust, ergonomic tools suited to demanding working conditions.

The range mainly comprises professional pneumatic grinders, available in various configurations for cutting, deburring, finishing and material removal. Each tool stands out for its power, precision, smooth rotation, low vibration and long service life.

Airtec is recognised for reliability, build quality and consistent performance, with tools designed to ensure fast, safe and high-quality work. Professionals choose Airtec for efficiency, robustness and precision, essential elements in everyday pneumatic operations.
