357 3/4" MECHONEER PNEUMATIC IMPACT WRENCH AIRTEC
3/4" pneumatic impact wrench Airtec Mod. 357 with MECHONEER® hammer system.
The pneumatic impact wrench Airtec Mod. 357 (Cod. 12103067 ) with 3/4" square drive is the high-performance professional tool equipped with the revolutionary patented MECHONEER® impact system , capable of developing a maximum unlocking torque of 2,600 Nm with a low weight of just 3.5 kg.
- MECHONEER® Hybrid Hammer System: combines Twin Hammer impact strength with Pin-less structural precision.
- 2,600 Nm Release Torque: Extraordinary power for loosening heavily tightened or rusted nuts and bolts on industrial and commercial vehicles.
- Intuitive One-Hand Control: power selector and reverse switch integrated into the trigger (2 screwing positions + full power unscrewing).
- Compact and Ergonomic Structure: 193 mm long body with air exhaust conveyed into the handle and integrated silencer up to 85.6 dB(A).
Shipping cost: €15.00
for
Technical Features and Performance of the Airtec Mod. 357 Pneumatic Impact Wrench
The Airtec Mod. 357 impact wrench represents the pinnacle of pneumatic technology for tire repairers, industrial vehicle workshops, agricultural machinery, and heavy-duty carpentry. Designed to combine the maneuverability of a 3.5 kg tool with the performance needed for working on fasteners up to 32 mm (M32), it offers ideal balance to reduce operator fatigue during prolonged work sessions.

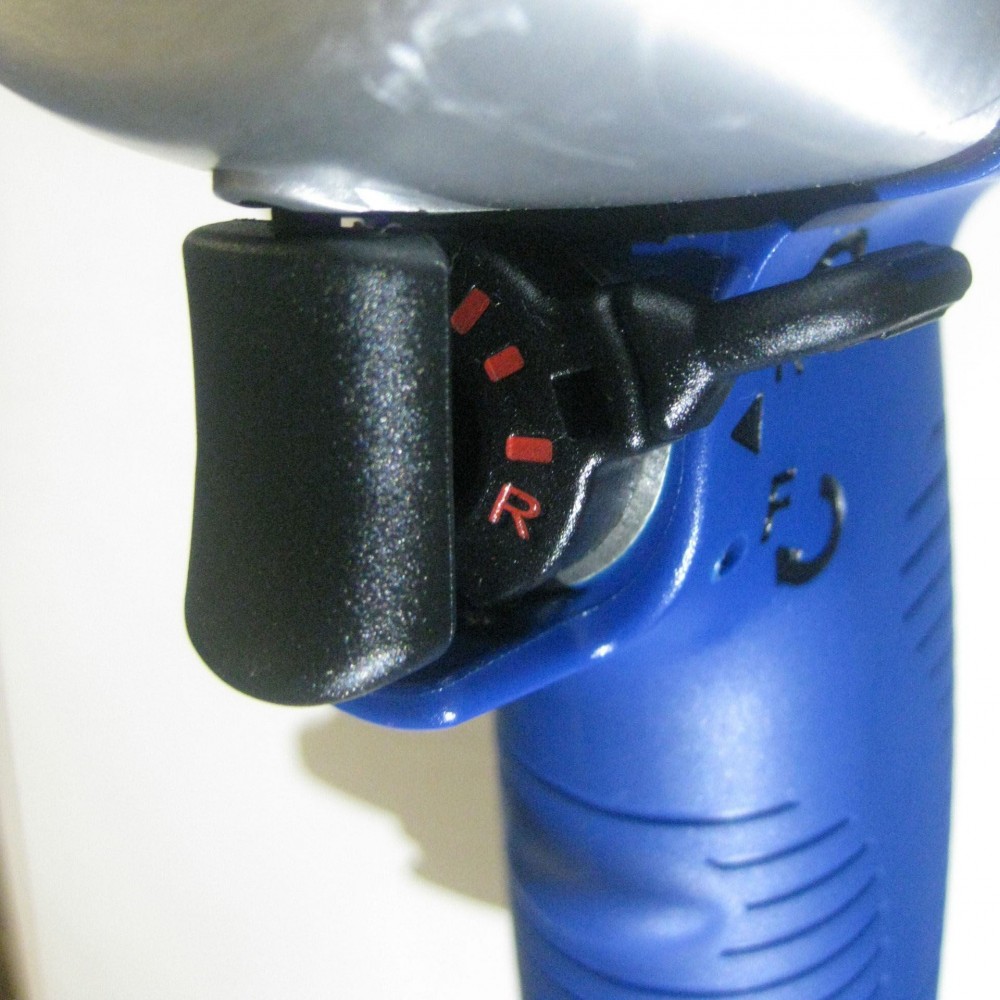

Power adjustment is done directly via the multifunction trigger, allowing you to select the desired tightening level without taking your hand off the handle.
Technological Insight: How the MECHONEER® Batting System Works

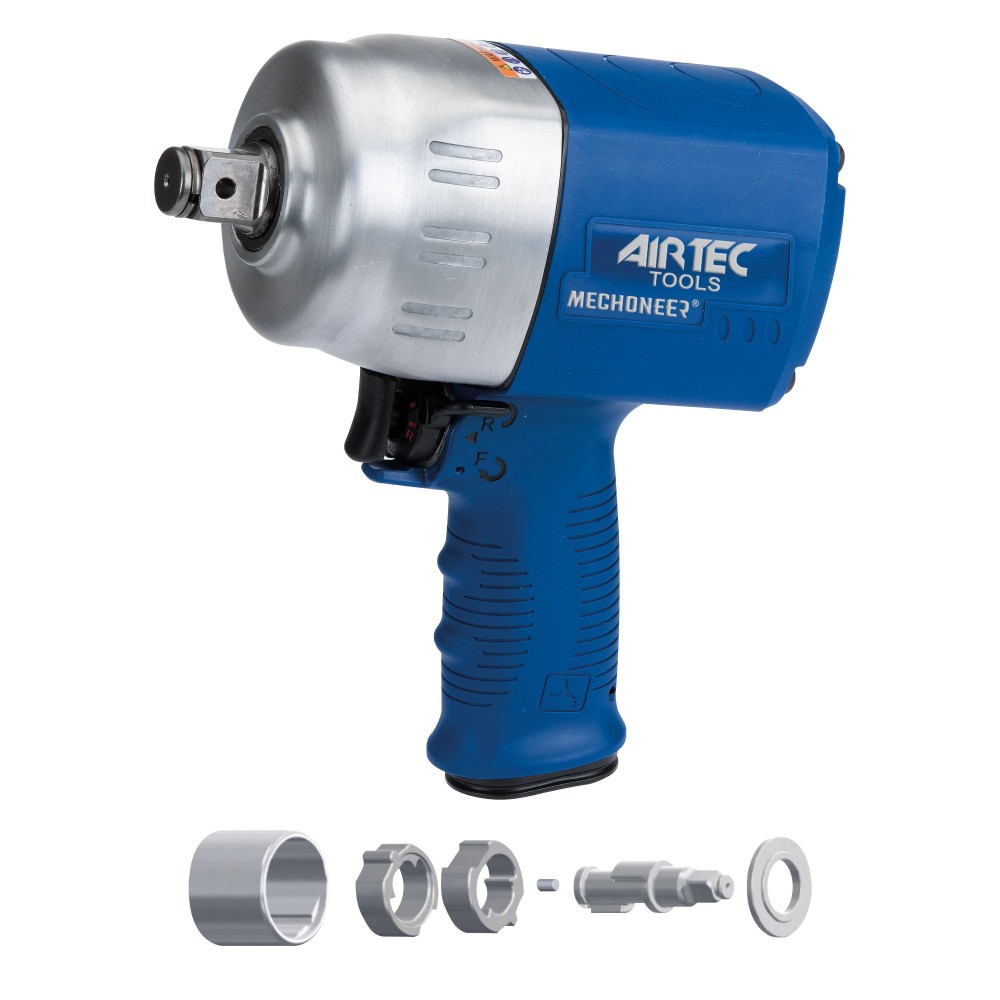

The patented MECHONEER® mechanism developed by Airtec is a hybrid impulse system that combines the Twin Hammer and Pin-less construction principles, reducing the number of moving components subject to wear.
The Mechanics of the Hybrid Mechanism:
- Twin Hammer Concept: The drive shaft (anvil) is driven simultaneously by a double hammer for a balanced, symmetrical and very high energy impact.
- Pin-less concept: the blades are guided by the cage, which is dragged directly by the rotor stem without the use of intermediate pins subject to breakage.
- Concentricity and Perfect Alignment: A centering pin connects the rear of the shaft to the rear of the rotor, ensuring perfect alignment between the rotor, cover, and cylinder. This eliminates misalignment, eliminates vibration, and prevents internal engine air leaks that would otherwise cause power losses.
- Leak-Proof Sealed Cover: The rear cover is sealed with the cage, keeping the lubricating grease inside the hammers and preventing premature wear.
- Through-Bolt Assembly: The engine structure is held in place by through-bolts that prevent the components from moving over time.
To consult all the sound pressure, vibration and overall dimensions measurements, you can view the attached technical data sheet .
Detailed Technical Data Sheet
- Item Code (SKU): 12103067
- Model: Mod. 357
- Manufacturer / Brand: Airtec Srl
- Square drive: 3/4"
- Bolt capacity: 32 mm
- Nut Busting Torque: 2,600 Nm
- Maximum working torque: 2,200 Nm
- Recommended torque range: 270 ÷ 1,860 Nm
- No-load speed: 5,500 rpm
- Impact System: MECHONEER® Hybrid
- Recommended operating pressure: 6.2 bar
- Air connection: 3/8" BSP
- Recommended air hose internal diameter: 10 mm
- Average air consumption: 3.7 l/sec
- Air exhaust: Conveyed into the handle
- Sound pressure level: 85.6 ± 3 dB(A)
- Sound power level: 96.6 ± 3 dB(A)
- Vibration level: 7.7 m/s²
- Body dimensions (W x D x H): 193 x 55 x 220 mm
- Net weight: 3.50 kg
