53742 1T SPRING-LOADED PNEUMATIC COMPRESSOR JBM

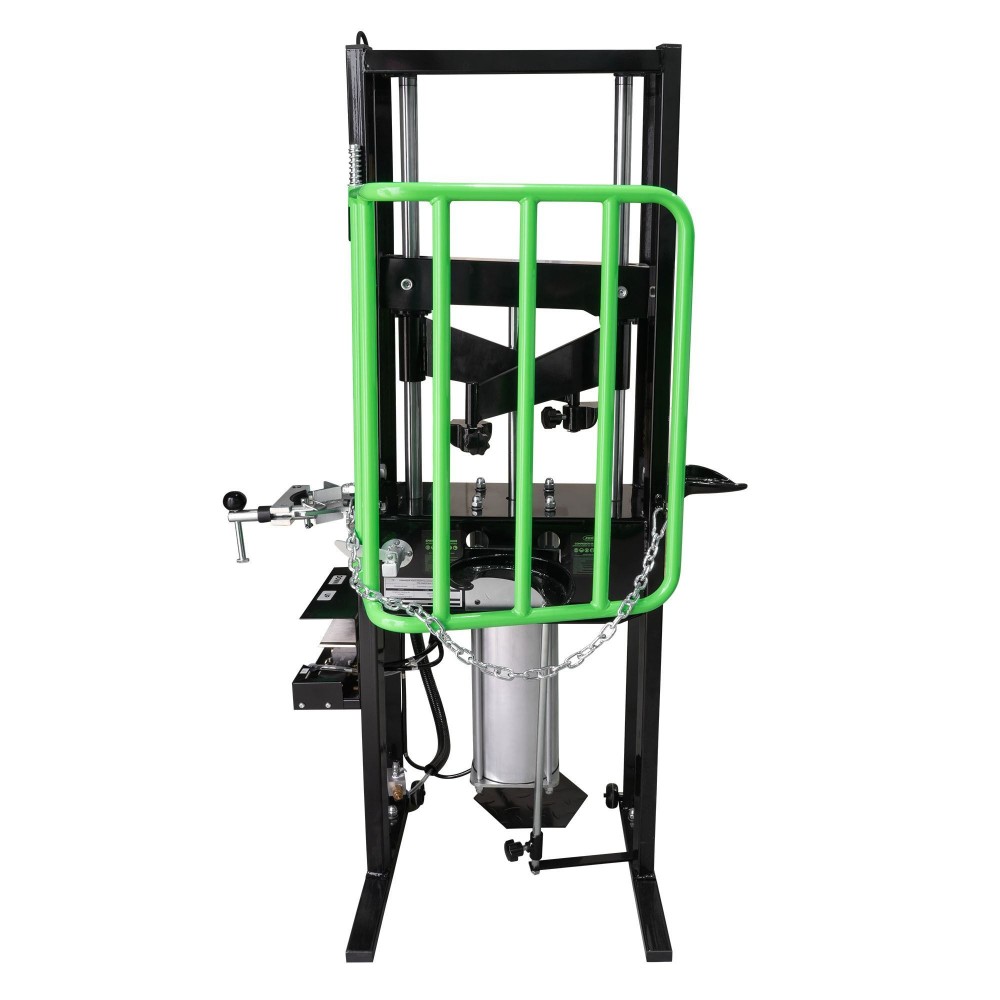

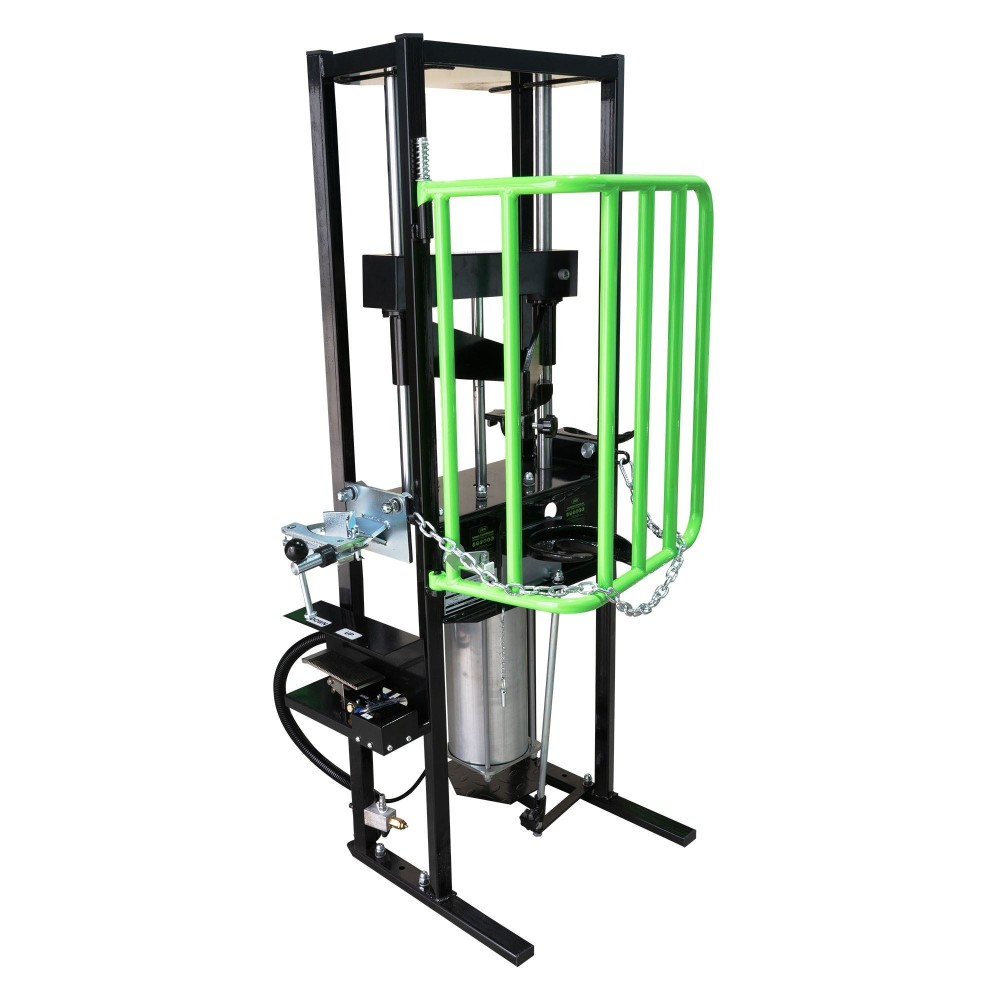

1 Ton Pneumatic Spring Compressor for Shock Absorbers JBM Art. 53742.

The 1 Ton pneumatic spring compressor JBM Art. 53742 (EAN Code 8435034537420 ) is the professional workshop station designed for the safe, fast and efficient compression of shock absorber springs in McPherson and conventional suspension systems.

  • High Push Capacity (1 Ton): pneumatic drive that allows high resistance springs to be compressed without physical effort for the operator.

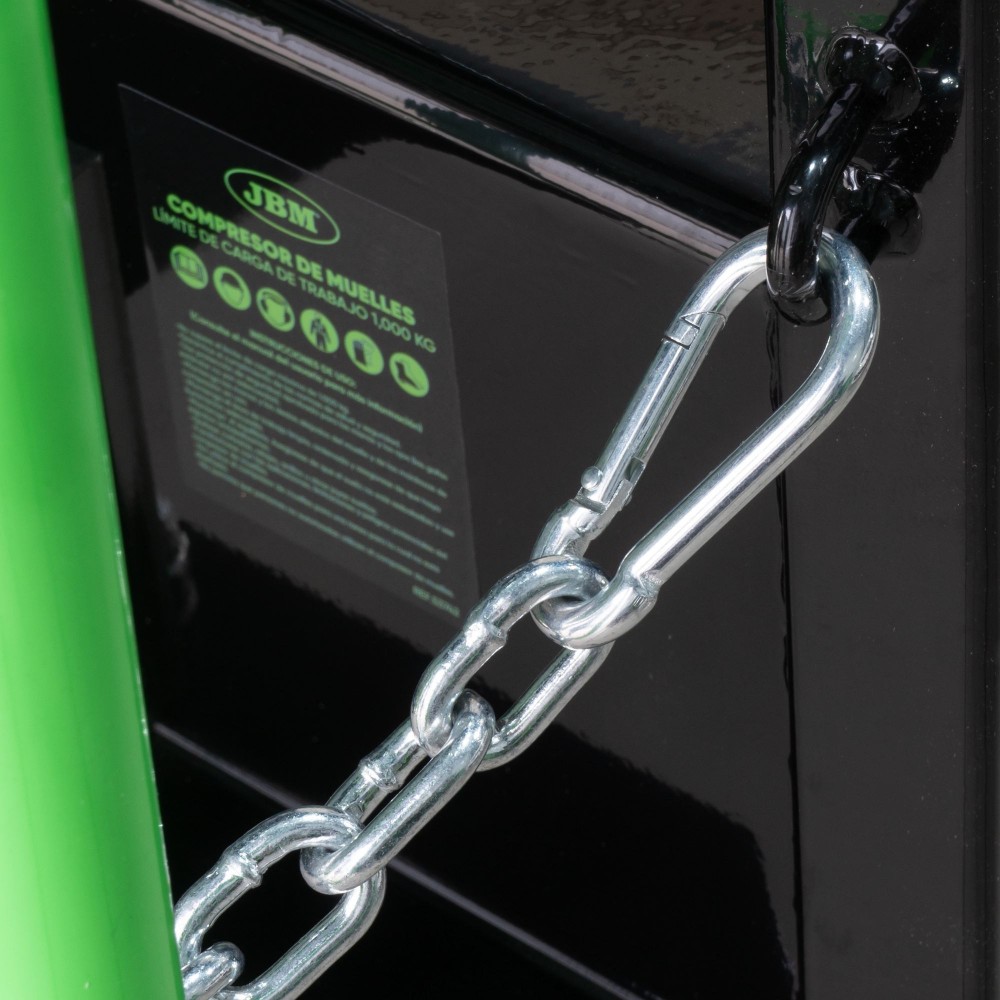

  • Cage and Safety Guards: tubular protective cage and locking chain to ensure maximum operator safety during work phases.
  • Compatibility with Various Spring Sizes: Supports spring diameters from 102 to 165 mm, with a cylinder stroke of 420 mm and a maximum working length of 450 mm.
  • Self-supporting column structure (62 kg): robust and highly stable column frame for fixed installation in the workshop or tyre shop.

Here you can find the demonstration video

Shipping cost: Free for
€1,096.78
1021,07 € Save €75.71
Tax included

836,94 € Tax excluded

Quantity
Available product, order it now.

Technical Characteristics and Performance of the JBM Spring Pneumatic Compressor Art. 53742

The JBM pneumatic shock absorber spring compressor (Item 53742) is a special tool essential for auto repair shops, inspection centers, and tire dealers replacing shock absorbers, struts, and suspension springs. Powered by compressed air with an operating pressure of up to 8-9 bar, it develops a compression force of 1,000 kg, drastically reducing intervention times and eliminating the risks associated with manual compressors.

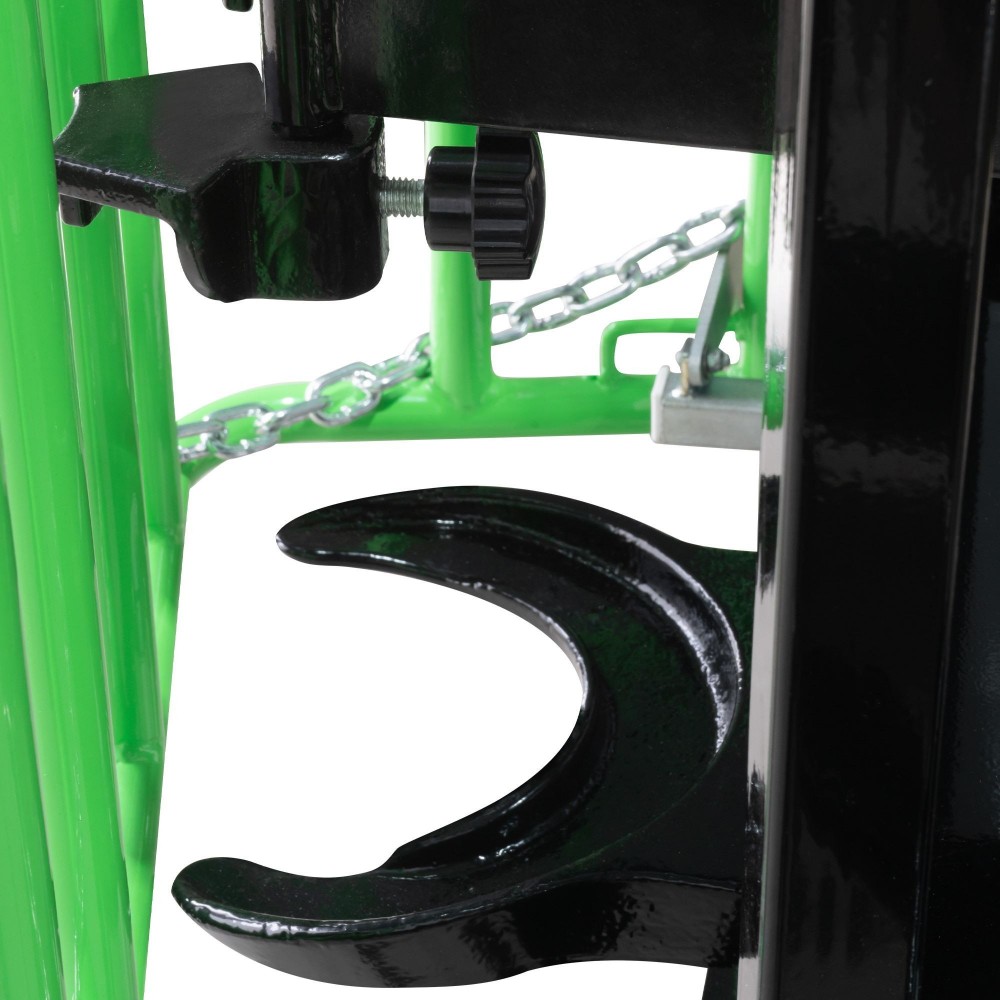

Adjustable supports and clamps securely hold the shock absorber body and activate the pneumatic cylinder with a maximum stroke of 420 mm. The integrated metal protective cage prevents accidental spring expulsion under load, ensuring full compliance with workshop safety standards.

Detailed Technical Data Sheet

  • Item Code (SKU): 53742
  • EAN Code: 84350345437420
  • Manufacturer / Brand: JBM Campllong SL
  • Product type: Pneumatic compressor for shock absorber springs
  • Maximum thrust capacity: 1 tonne (1,000 kg)
  • Maximum working length: 450 mm
  • Effective cylinder stroke: 420 mm
  • Compatible spring diameter: 102 ÷ 165 mm
  • Maximum operating air pressure: 8 ÷ 9 BAR

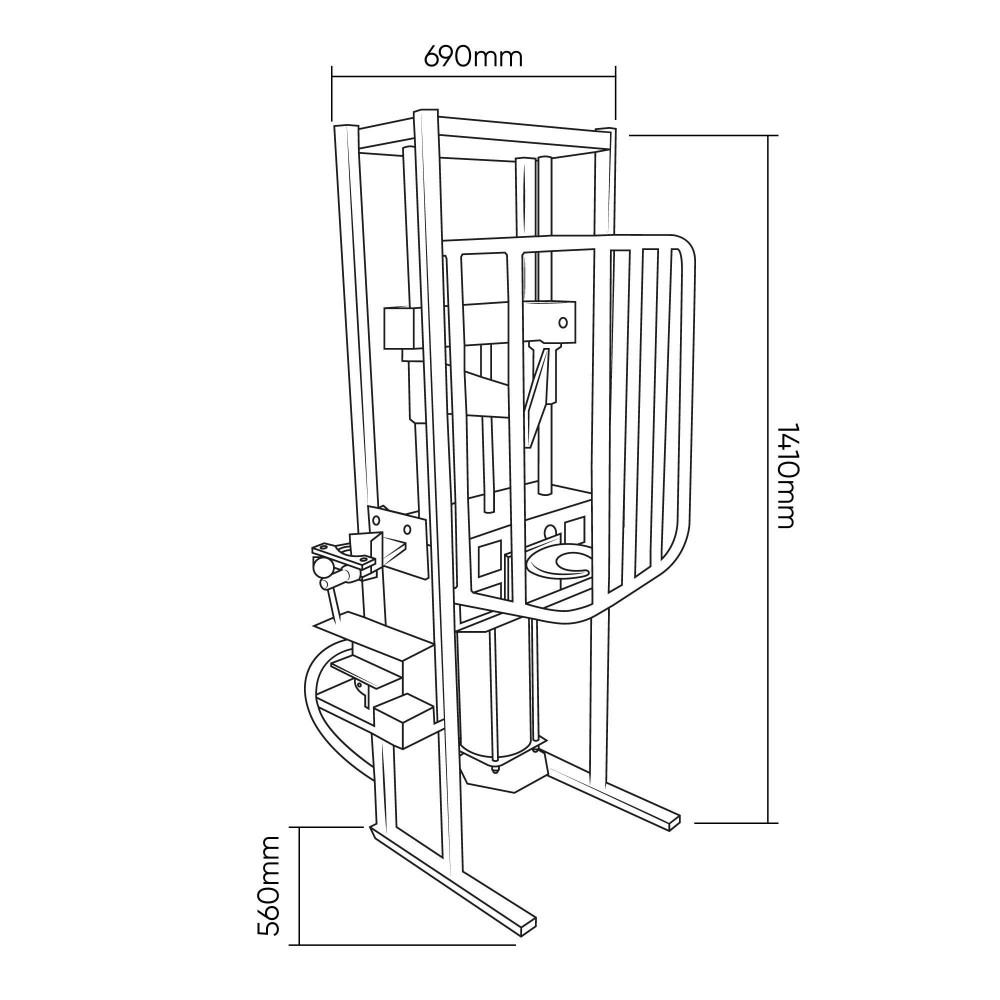

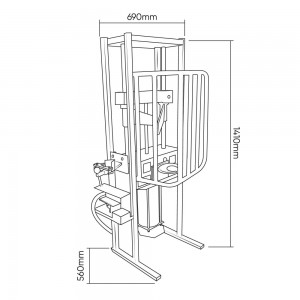

  • External dimensions (L x W x H): 690 x 560 x 1410 mm
  • Net / Gross Weight: 62.00 kg / 63.40 kg
JBM offers a vast and innovative range of tools, equipment and complete solutions for workshops, automotive and industrial sectors, standing out for the constant introduction of new products.

JBM: PROFESSIONAL EQUIPMENT FOR WORKSHOPS, THE AUTOMOTIVE SECTOR AND INDUSTRIAL SECTORS

JBM is a brand specialising in professional tools, equipment and solutions for mechanical workshops, auto electricians, tyre fitters, body shops and industrial departments. Its range stands out for its continuous innovation, breadth of offering and ability to meet the real needs of professionals in the automotive sector.

The JBM range includes hydraulic tools, tyre equipment, vehicle accessories, maintenance and repair tools, workshop trolleys, professional kits and solutions designed for day-to-day workshop tasks. Every product is designed to ensure reliability, ergonomics, durability and practicality, with a constant focus on introducing new technologies and new models.

JBM is recognised for quality, innovation and the comprehensiveness of its range, having become a benchmark for those seeking versatile, robust equipment suitable for intensive use. Professionals choose JBM for efficiency, safety and value for money, essential elements for carrying out quick and precise work on cars, motorbikes and commercial vehicles.
