54517 15/20/40T TELESCOPIC OLEO-PNEUMATIC JACK JBM

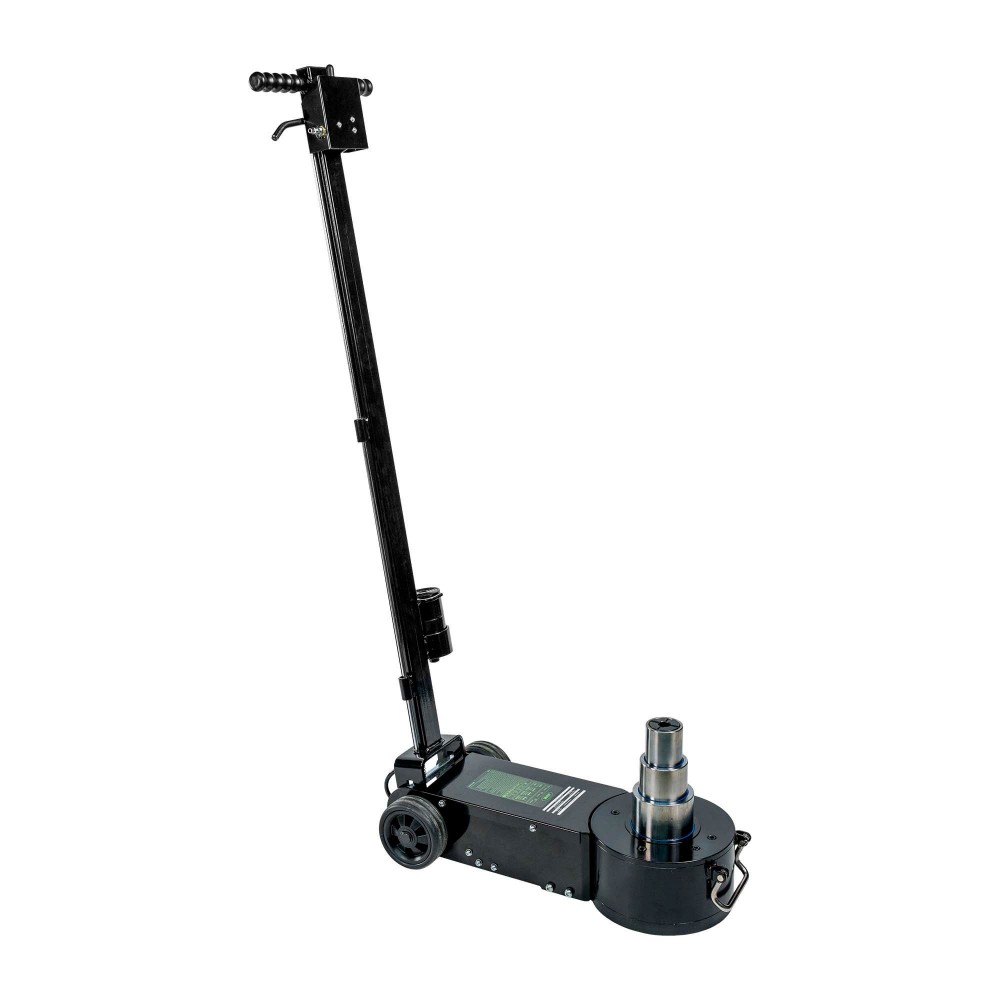

3-stage telescopic hydraulic-pneumatic jack 15/20/40 tonnes JBM Art. 54517.

The JBM Art. 54517 telescopic oleo-pneumatic jack (EAN Code 8435034545173 ) is the ultra-low professional lift with very high capacity, designed for rapid and safe lifting and positioning under trucks, buses, heavy machinery and industrial vehicles.

  • Three Levels of Telescopic Lift (15/25/40 Ton): Delivers a maximum capacity of 40 tons at the first piston (up to 185 mm), 25 tons at the second piston (up to 240 mm) and up to 15 tons at the third piston (up to 301 mm).
  • Extra-Low Profile (Minimum Height 125 mm): allows easy insertion under axles and bodies with a particularly low loading surface.

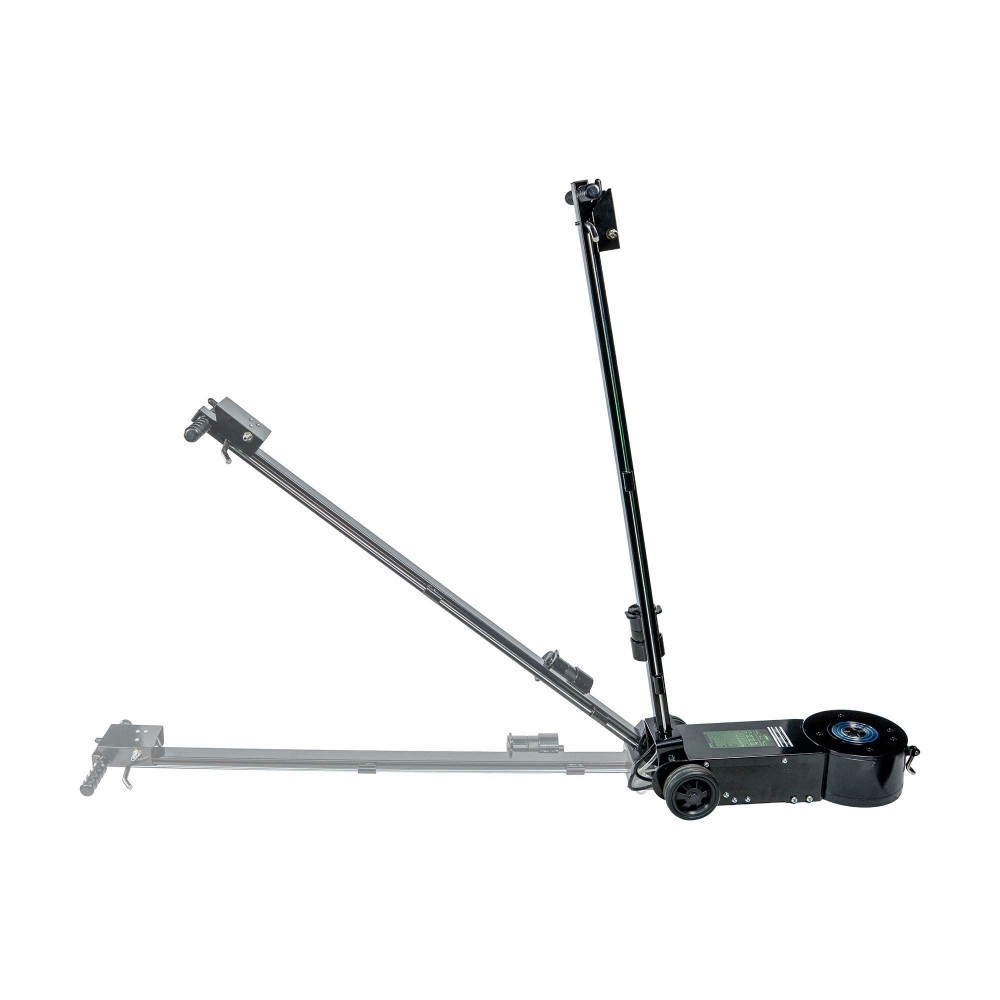

  • 180° Reclining Mobile Handle: ergonomic joint for precise and versatile positioning on different support points of the frame.
  • Precision Air Flow Control Valve: ensures rapid, controlled and progressive lifting and lowering at operating pressures between 7 and 10 bar.
Shipping cost: Free for
€986.98
824,8 € Save €162.18
Tax included

676,07 € Tax excluded

Quantity
Available product, order it now.

Technical Features and Performance of the JBM Oil-Pneumatic Jack Art. 54517

The JBM pneumatic trolley jack (Art. 54517) is an indispensable tool for truck workshops, tire dealers specializing in commercial/industrial vehicles, and heavy machinery maintenance departments. The combination of a high-power hydraulic system with compressed air thrust ensures fast lifting operations without physical effort for the operator.

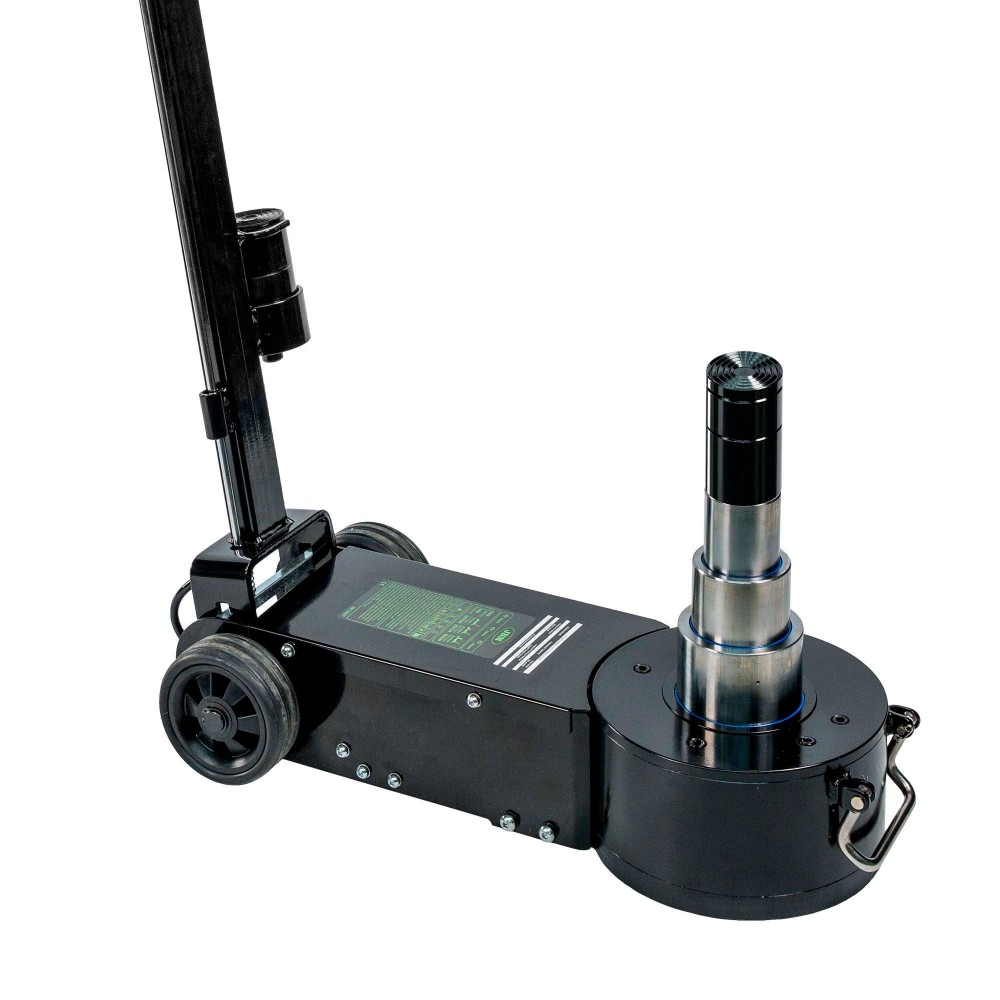

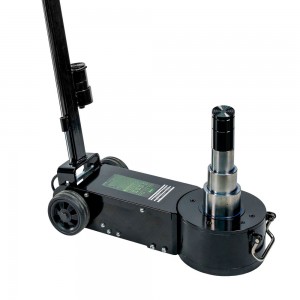

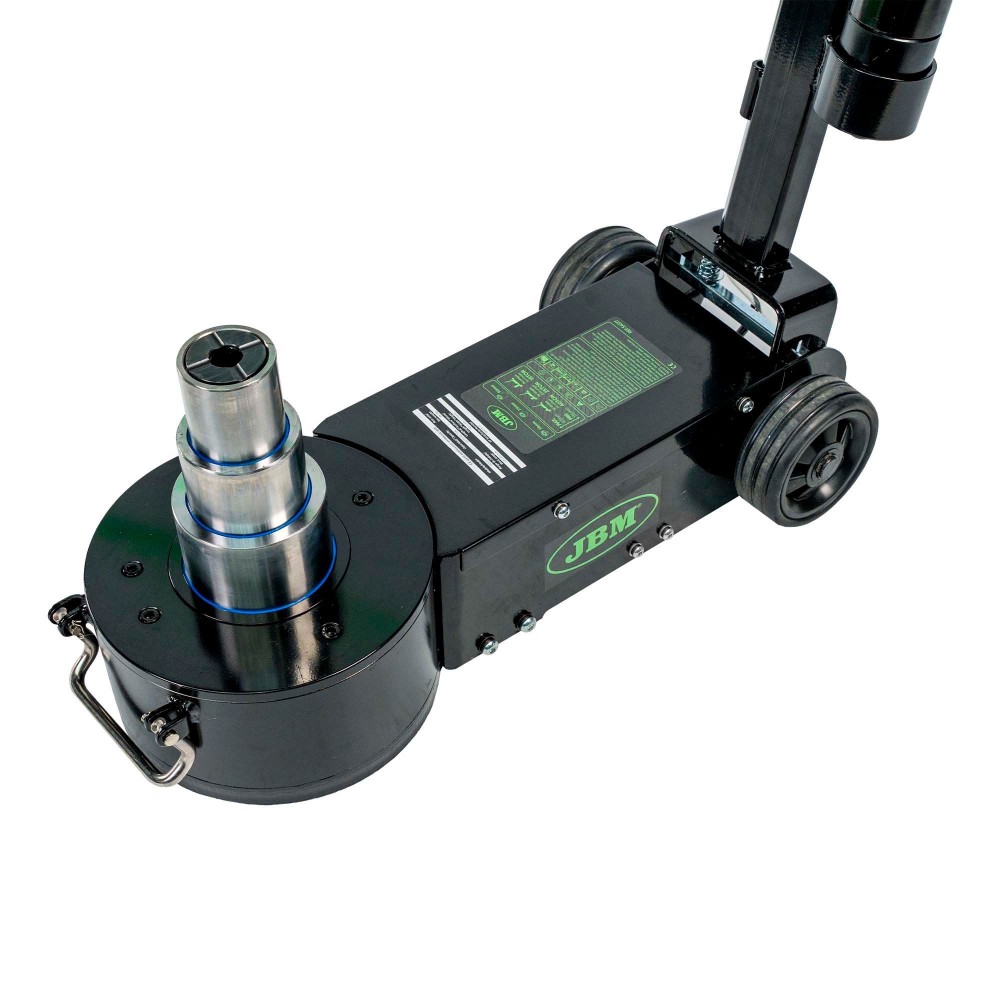

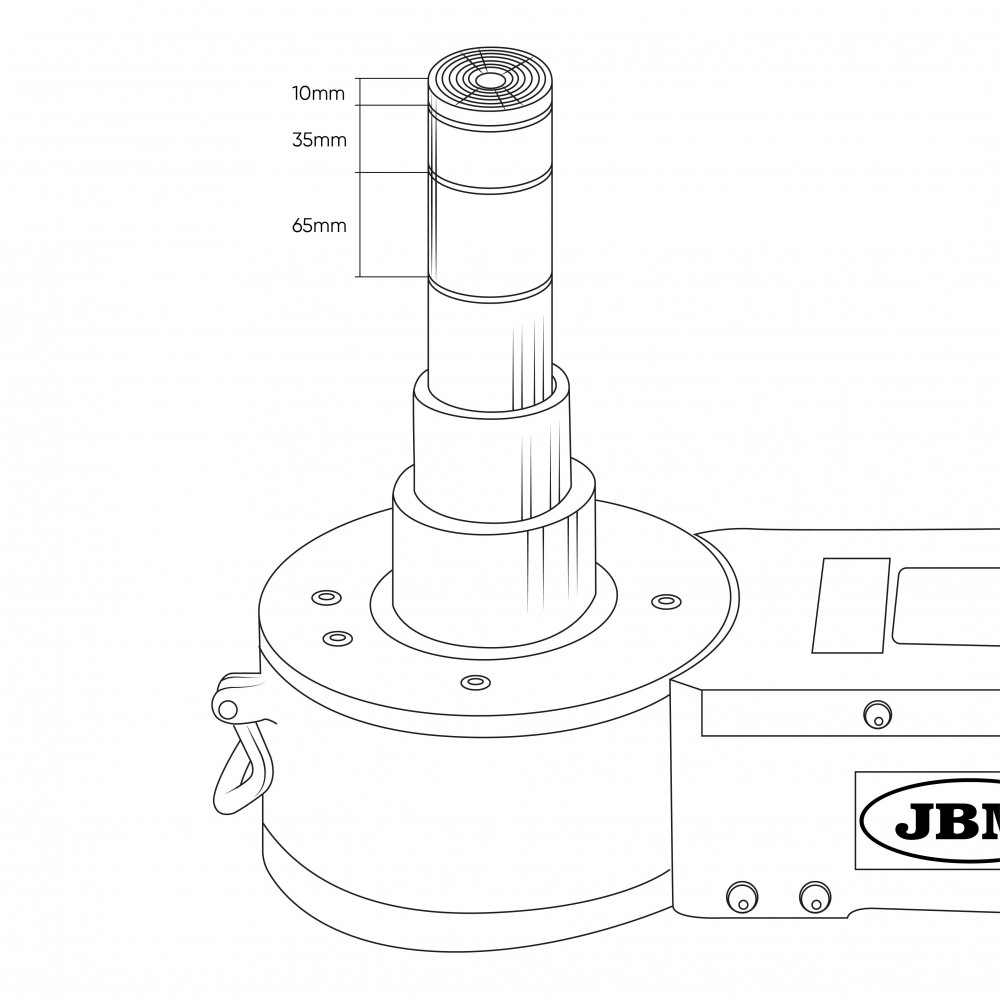

The three concentric pistons provide a progressive thrust up to a maximum height of 301 mm, which can be further extended thanks to the two 35 mm and 65 mm spacer adapters included. Manufactured in compliance with European safety directives EN ISO 12100 and EN 1494, the lift ensures maximum structural stability during all phases of operation.

Detailed Technical Data Sheet

  • Item Code (SKU): 54517
  • EAN Code: 8435034545173
  • Manufacturer / Brand: JBM Campllong SL
  • Product type: 3-stage telescopic hydraulic-pneumatic trolley jack
  • Load capacity per stage: 1st stage (40 T) / 2nd stage (25 T) / 3rd stage (15 T)
  • Minimum ground clearance: 125 mm
  • Maximum piston height: 185 mm (1st st.) / 240 mm (2nd st.) / 301 mm (3rd st.)
  • Adapters / Extensions included: 35 mm and 65 mm
  • Air operating pressure: 7 ÷ 10 BAR
  • Actual air consumption: 9.5 CFM
  • Air intake connection: 1/4"

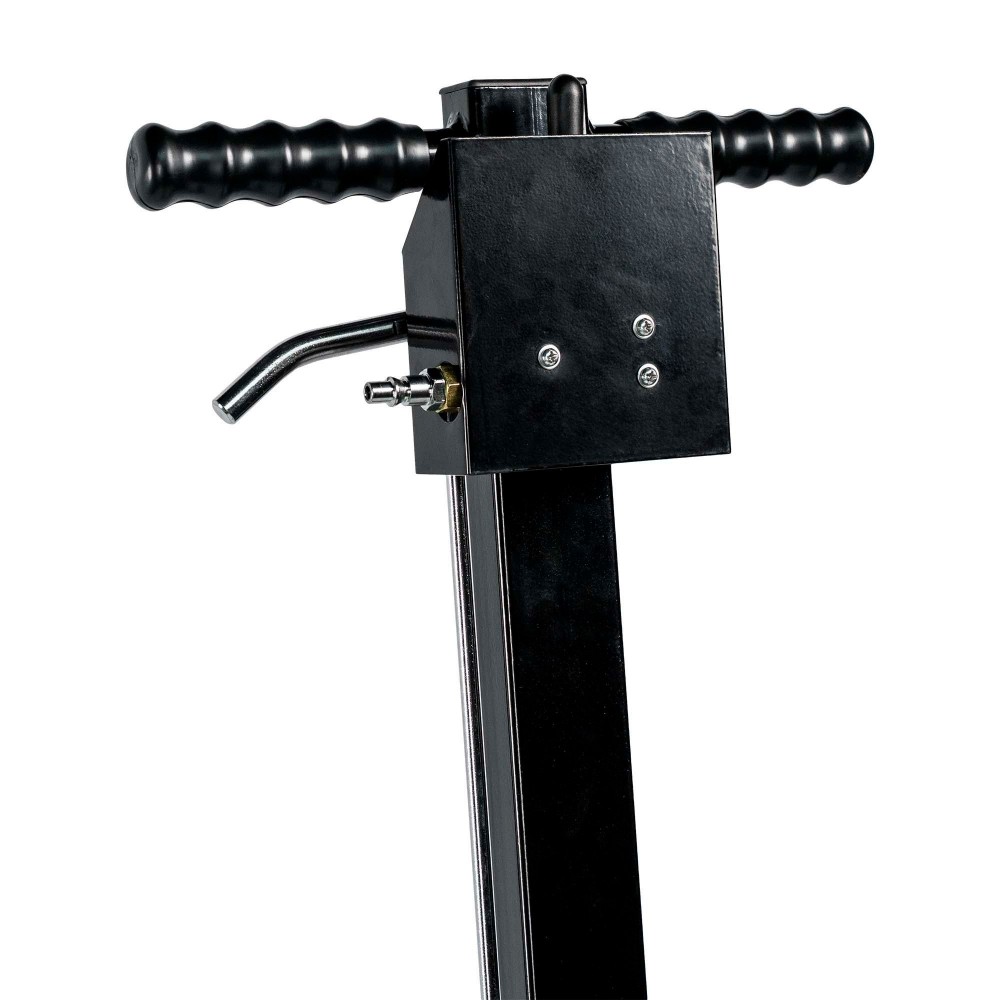

  • Handle features: Reclines up to 180° with integrated controls
  • Compliance with European directives: EN ISO 12100, EN 1494

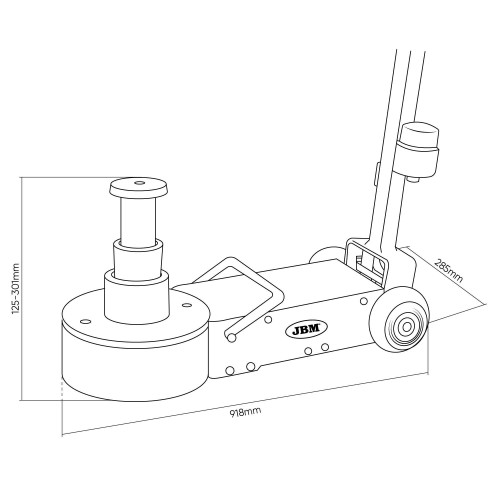

  • Overall dimensions (L x W x H): 918 x 285 x 1195 mm
  • Net weight: 38.70 kg
