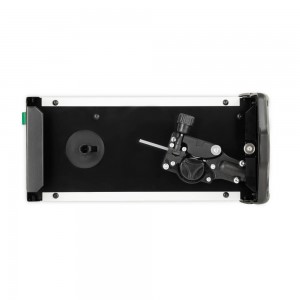

  • TELWIN 816169 BIMAX 150i SYNERGIC SALDATRICE INVERTER MULTIPROCESSO Dinamitek 6
  • TELWIN 816169 BIMAX 150i SYNERGIC SALDATRICE INVERTER MULTIPROCESSO Dinamitek 7
  • TELWIN 816169 BIMAX 150i SYNERGIC SALDATRICE INVERTER MULTIPROCESSO Dinamitek 8

816169 BIMAX 150I SYNERGIC MULTI-PROCESS INVERTER WELDER TELWIN

Weld with wire with or without gas and with MMA electrode with maximum simplicity thanks to the multiprocess inverter welder Telwin Bimax 150i Synergic Cod. 816169.

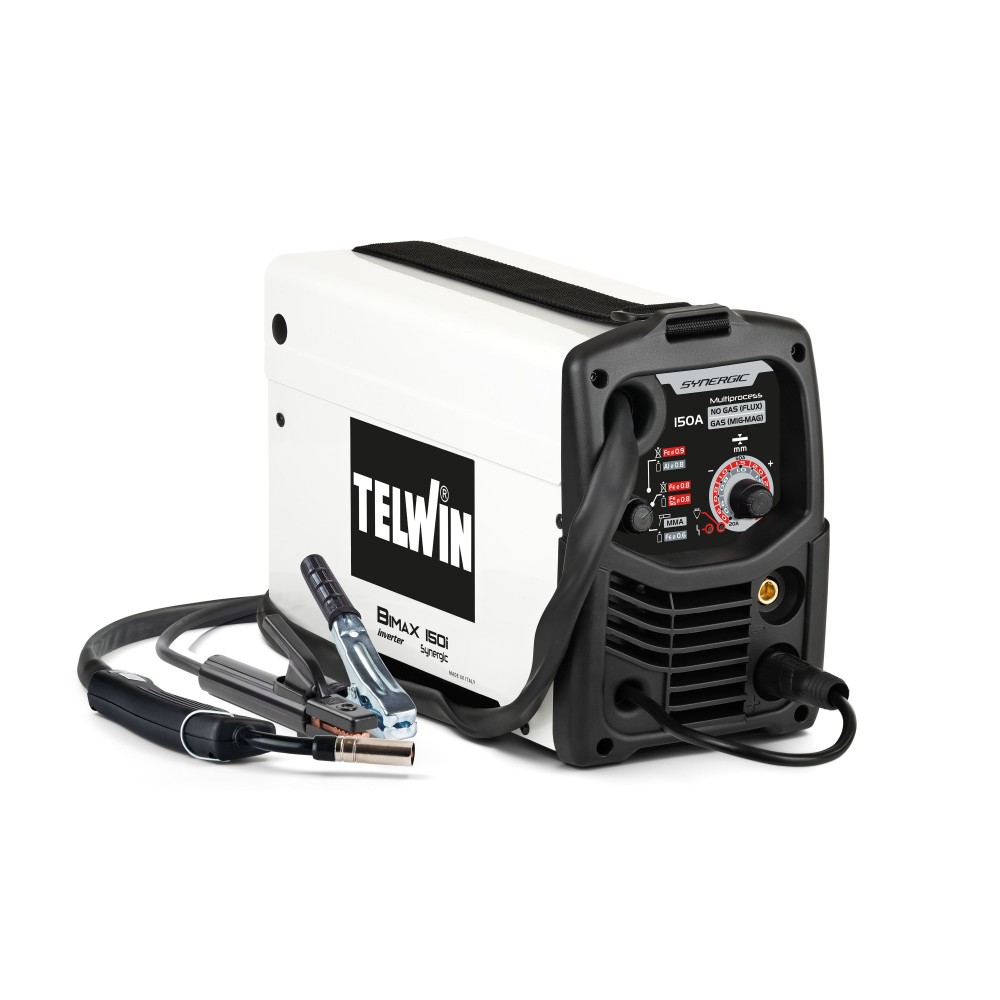

The Telwin Bimax 150i Synergic (Item Code: 816169) from the Elements line is the compact and portable 150 A multi-process inverter welder (MIG-MAG / FLUX without gas / MMA). Designed to guarantee maximum versatility on different materials (steel, stainless steel, aluminium and flux-cored wire), it is equipped with the innovative synergic parameter adjustment system: simply set the thickness of the piece to start welding immediately with impeccable results even for less experienced operators.

  • 3-in-1 multiprocess (MIG-MAG / FLUX / MMA): allows welding with gas wire (MIG-MAG), gas-cored wire without gas (NO GAS/FLUX with external polarity change) and with rutile electrode up to Ø 2.5 mm.

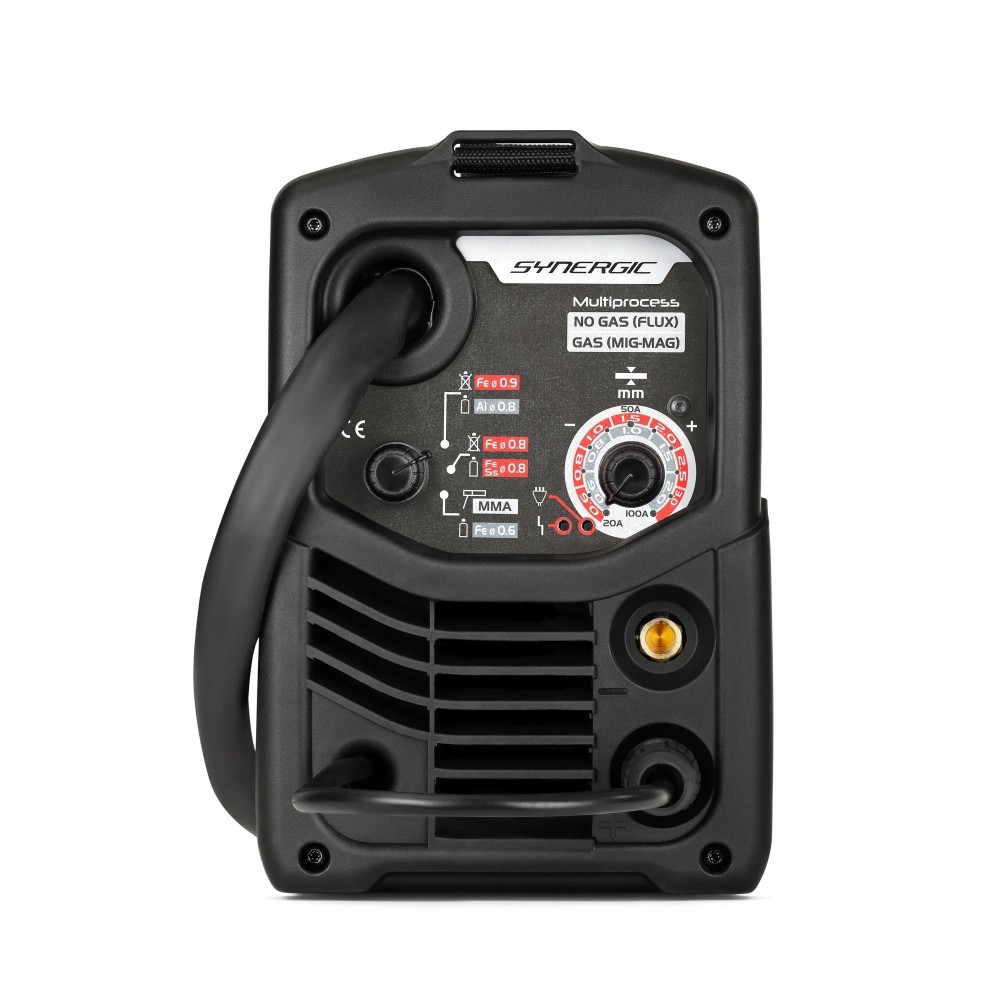

  • Intuitive Synergic Regulation: simplified control panel with quick program selection for material, wire diameter and thickness to be welded.

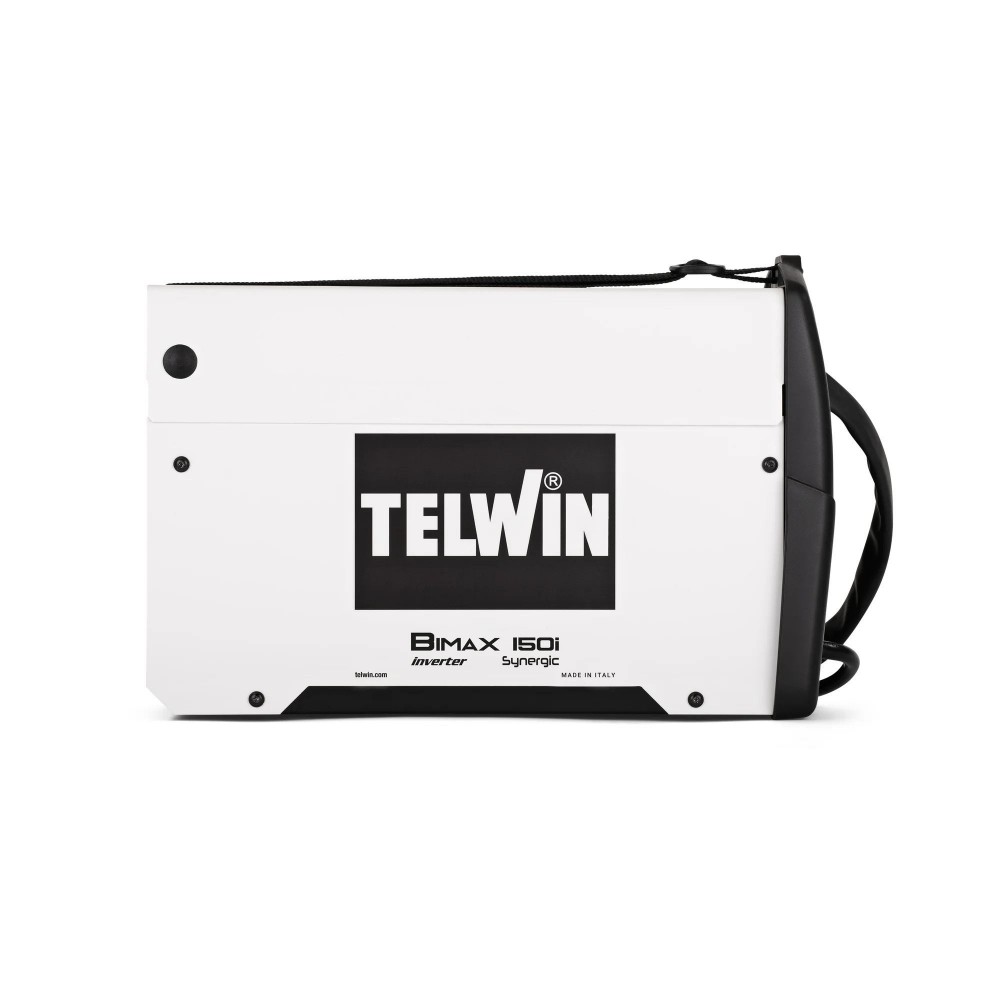

  • Compact, Lightweight and Portable (7.1 kg): Small footprint, robust construction and adjustable shoulder strap for carrying in all indoor and outdoor workplaces.
  • Advanced MMA functions and generator protection: integrates Arc-Force, Hot-Start and Anti-Stick devices as well as multi-level electronic protections and usability with generator (230V ±15%).
Shipping cost: Free for
458,05 €
Tax included

375,45 € Tax excluded

Quantity
Available product, order it now.

Technical Features and Advantages of the Telwin Bimax 150i Synergic Welder (816169)

Made in Italy by specialist Telwin , the Bimax 150i Synergic inverter welder (Cod. 816169) is the ideal solution for maintenance, light carpentry, bodywork, and domestic or artisanal installations. Inverter technology ensures low energy consumption (maximum absorbed power 2.65 kW) and an extremely stable and controlled welding arc.

Synergic Regulation, Polarity Change and MMA Welding

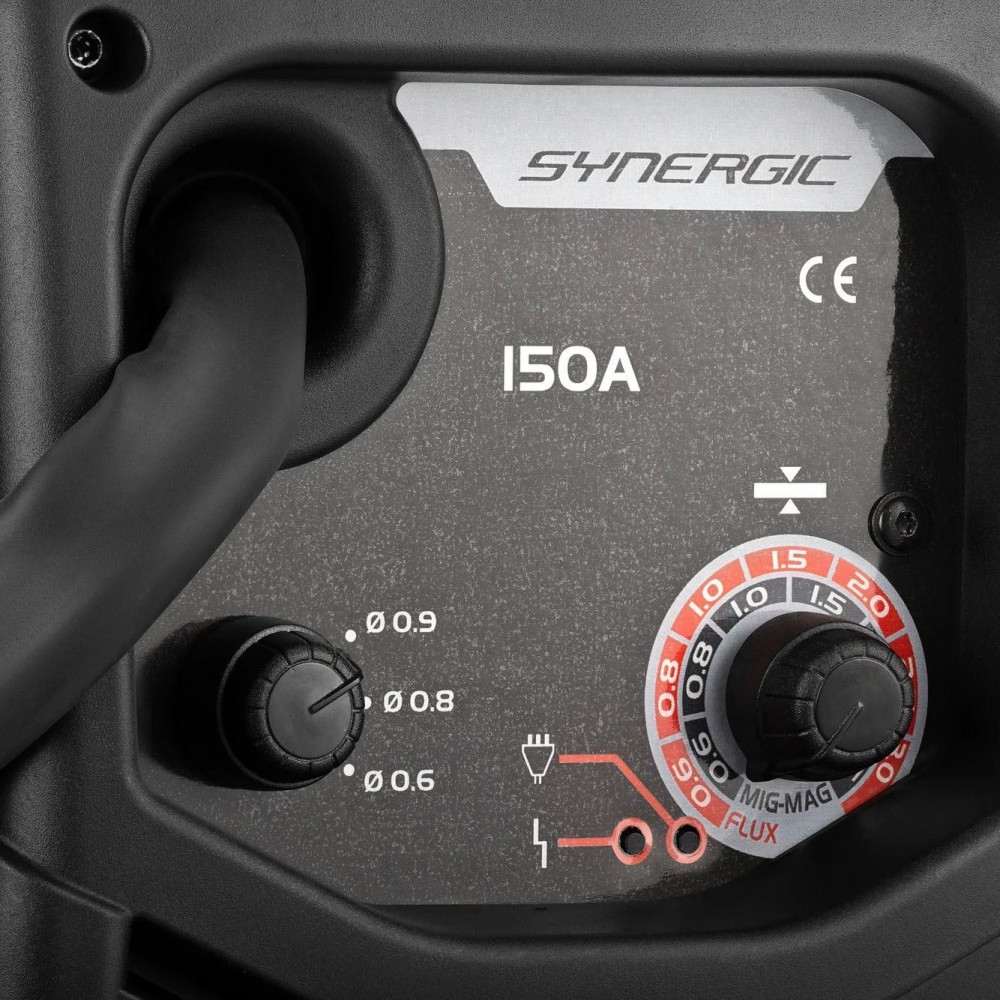

  • Intelligent Synergy: Eliminates setup difficulties. By selecting the process type, material, and setting the dial to the sheet thickness, the machine automatically adjusts the wire feed speed and optimal tension.

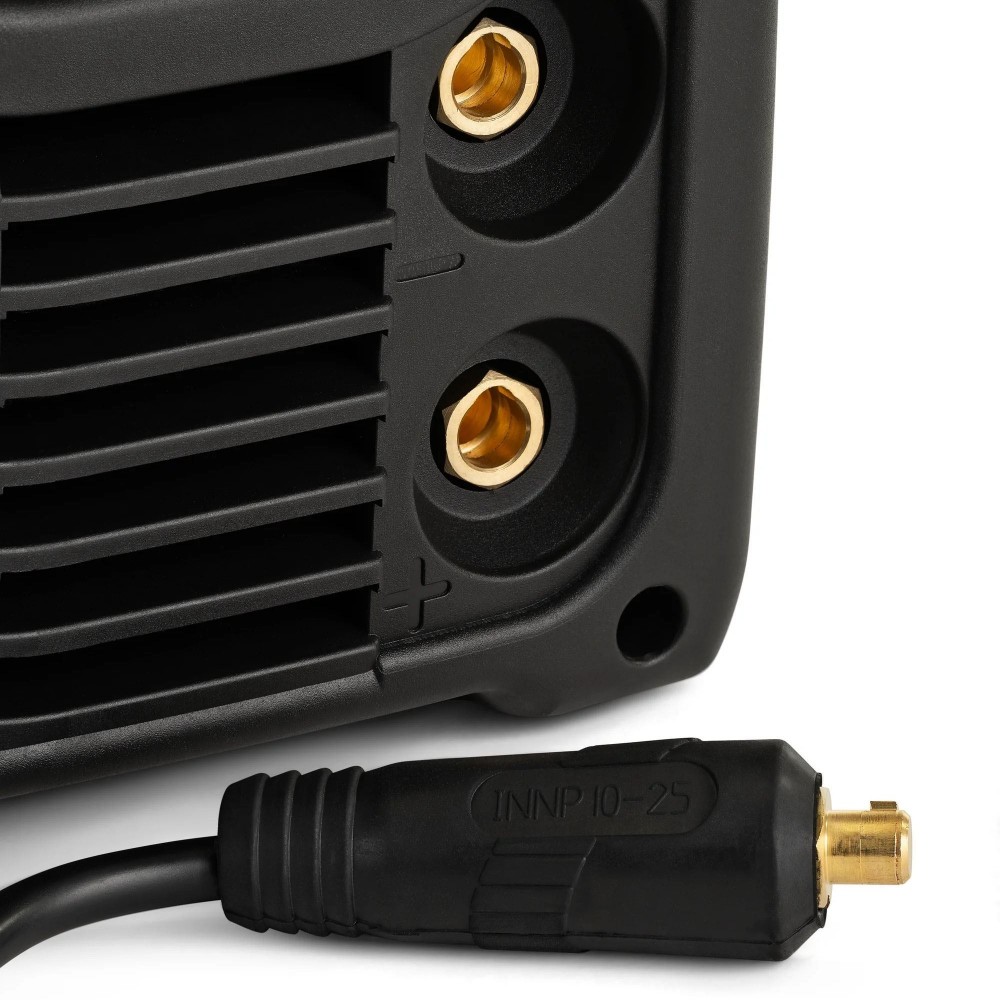

  • Quick External Polarity Change: Allows you to switch in just a few seconds from standard MIG-MAG welding with a gas cylinder (for steel, stainless steel or aluminium) to gas-free FLUX welding with flux-cored wire, ideal for outdoor work and in windy conditions.
  • MMA Electrode Welding: Allows the use of rutile electrodes with diameters from 1.6 to 2.5 mm thanks to the presence of the automatic Hot-Start (easy striking), Arc-Force (arc stability) and Anti-Stick (prevents the electrode from sticking) devices.

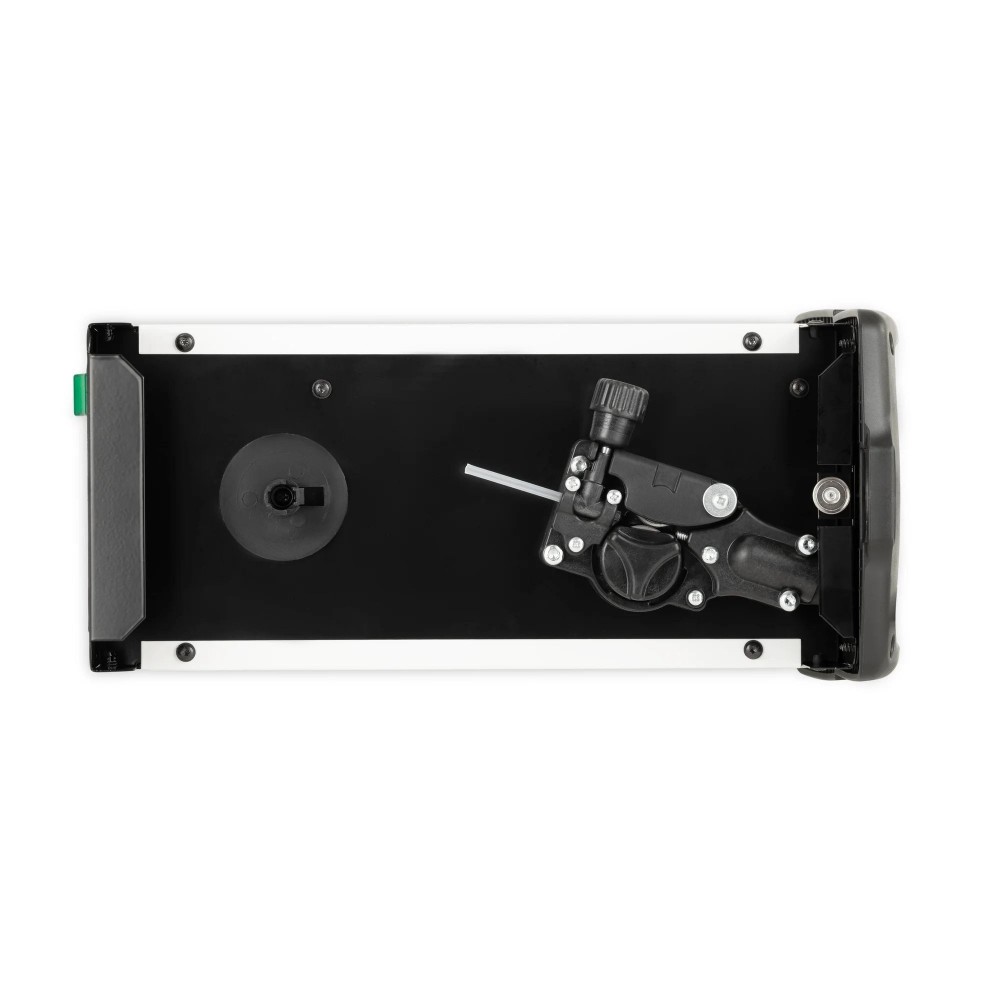

  • Use with Small Spools (Ø 100 mm): Internal housing designed for 0.8 kg / 1 kg wire spools (diameter 100 mm) to keep the tool light and easy to handle.

Detailed Technical Data Sheet

  • Item Code (SKU): 816169
  • Manufacturer / Brand: Telwin (Elements Line)
  • Model: Bimax 150i Synergic
  • Product type: MIG-MAG / FLUX / MMA multi-process wire inverter welder

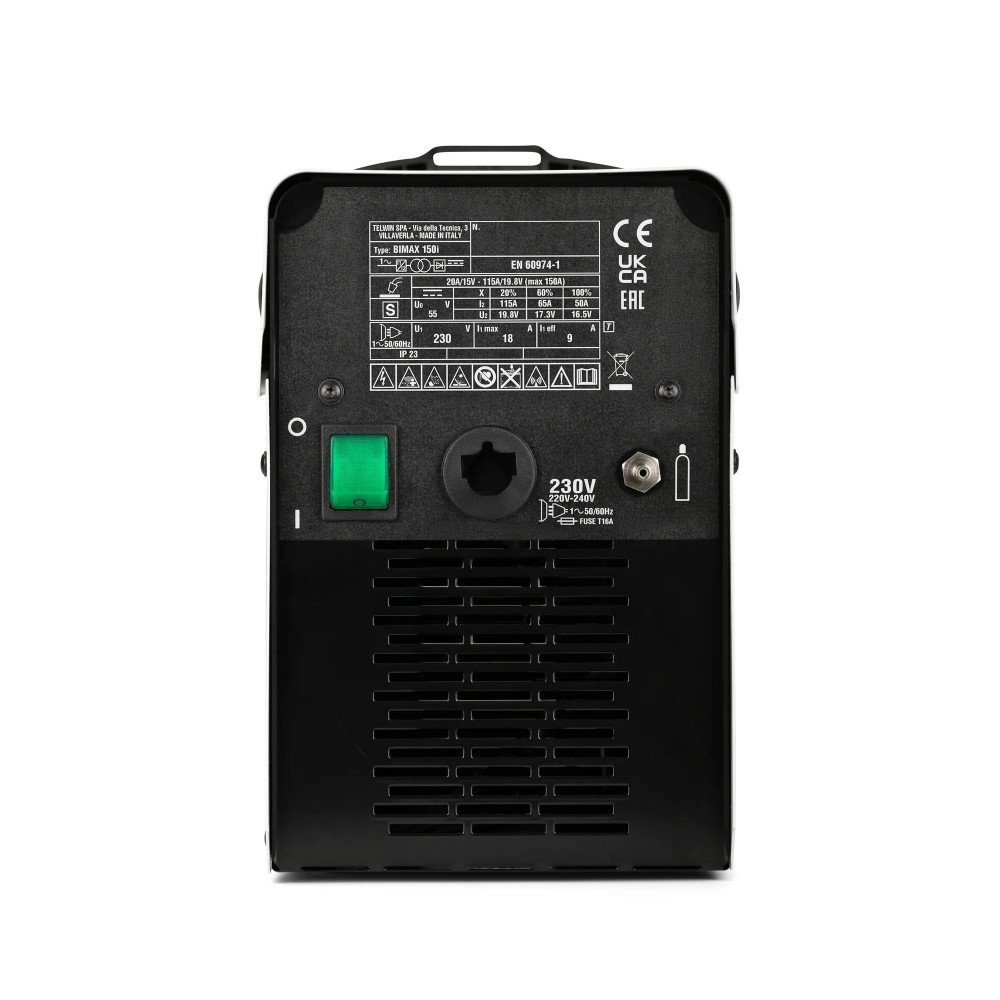

  • Single-phase mains voltage: 230 V (50 / 60 Hz)
  • DC current regulation range: 20 ÷ 150 A
  • Maximum DC current (EN60974-1): 115 A @ 20%
  • Current at 60% DC: 65 A
  • Current at 35% DC: 85 A
  • Maximum open circuit voltage in DC: 55 V
  • Maximum power consumption: 2.65 kW (1.3 kW at 60%)
  • Maximum current draw: 18 A (9 A at 60%)
  • Recommended mains fuse: 16 A
  • Efficiency / Power factor (cosphi): 85% / 0.64
  • Welding wire diameter Steel: Ø 0.6 - 0.8 mm
  • Stainless steel welding wire diameter: Ø 0.8 mm
  • Aluminum welding wire diameter: Ø 0.8 mm
  • Flux cored welding wire diameter (FLUX): Ø 0.8 - 0.9 mm
  • Useful electrode diameter in DC (MMA): Ø 1.6 - 2.5 mm (Rutile)
  • Usable wire spool size: Ø 100 mm
  • Integrated protections: Thermostatic, overvoltage, undervoltage, overcurrent, motor generator (±15%)
  • Dimensions (L x W x H): 37.9 x 17.2 x 25.2 cm
  • Net weight: 7.1 kg
  • Accessories included in the package: 2m MIG TW 160 torch (Code 742989), Dallas 300 electrode holder (Code 712260), Colorado 150B earth clamp (Code 712001), 1.8m 16 mm² cable with Atlas 25 plug (Code 124508), Carrying strap
  • Recommended optional accessories: Disposable cylinder connection kit (802032), Refillable cylinder connection kit (802708), Aluminum welding kit (802036), MIG Ready Box C consumables box (804149)
