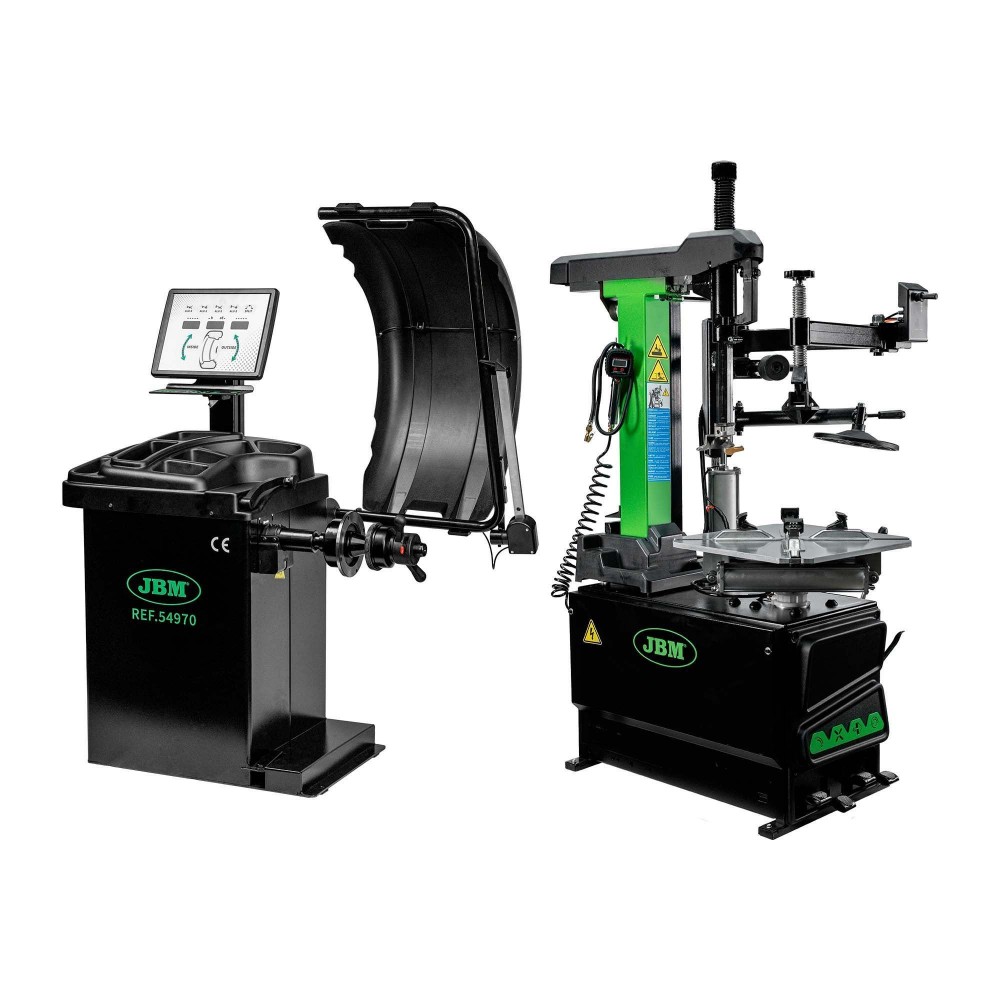

SERIE631 54970 DIGITAL WHEEL BALANCER WITH BRAKE PEDAL AND LASER AND 54964 TIRE CHANGER JBM

Enhance your workshop’s performance with the JBM SERIE631 advanced tire change kit, complete with a digital wheel balancer with laser pointer and automatic tilting tower tire changer.

The JBM SERIE631 tire changing kit (EAN Code: 8435034590111) represents the ideal professional solution for tire dealers and high-volume workshops working on special alloy wheels and high-performance, run-flat and low-profile tires. The kit combines the high-precision JBM 54970 digital wheel balancer with foot brake and laser pointer and the JBM 54964 automatic tire changer with tilting column and 360° auxiliary arm .

  • Advanced Digital Wheel Balancer 54970 (200W): equipped with laser pointer for the exact position of adhesive weights, electromagnetic foot brake, automatic positioning of the unbalance and automatic measurement of distance and diameter.
  • Automatic Tyre Changer 54964 (220V): equipped with pneumatically controlled tilting column, rotation torque of 1078 Nm, internal clamping up to 24" and working pressure 8-10 bar.
  • 360° Auxiliary Arm and Roller Disc: Integrated mechanical rotating arm, nylon bead roller and pneumatic roller disc to operate safely on hard tires without scratching the rim.
  • Single-phase 220V power supply: both machines are designed for connection to a 220V electrical network.
Shipping cost: Free for
€4,422.50
4268,81 € Save €153.69
Tax included

3.499,03 € Tax excluded

Quantity
Available product, order it now.

Technical Features of the JBM SERIE631 Tire Change Set

Developed by JBM to offer maximum operating speed, automation, and pinpoint precision in the management of high-end wheels, the SERIE631 kit integrates the most advanced technologies to assist the operator's daily work. The combination of the laser-guided wheel balancer and the pneumatic alignment tire changer eliminates downtime and ensures maximum wheel care.

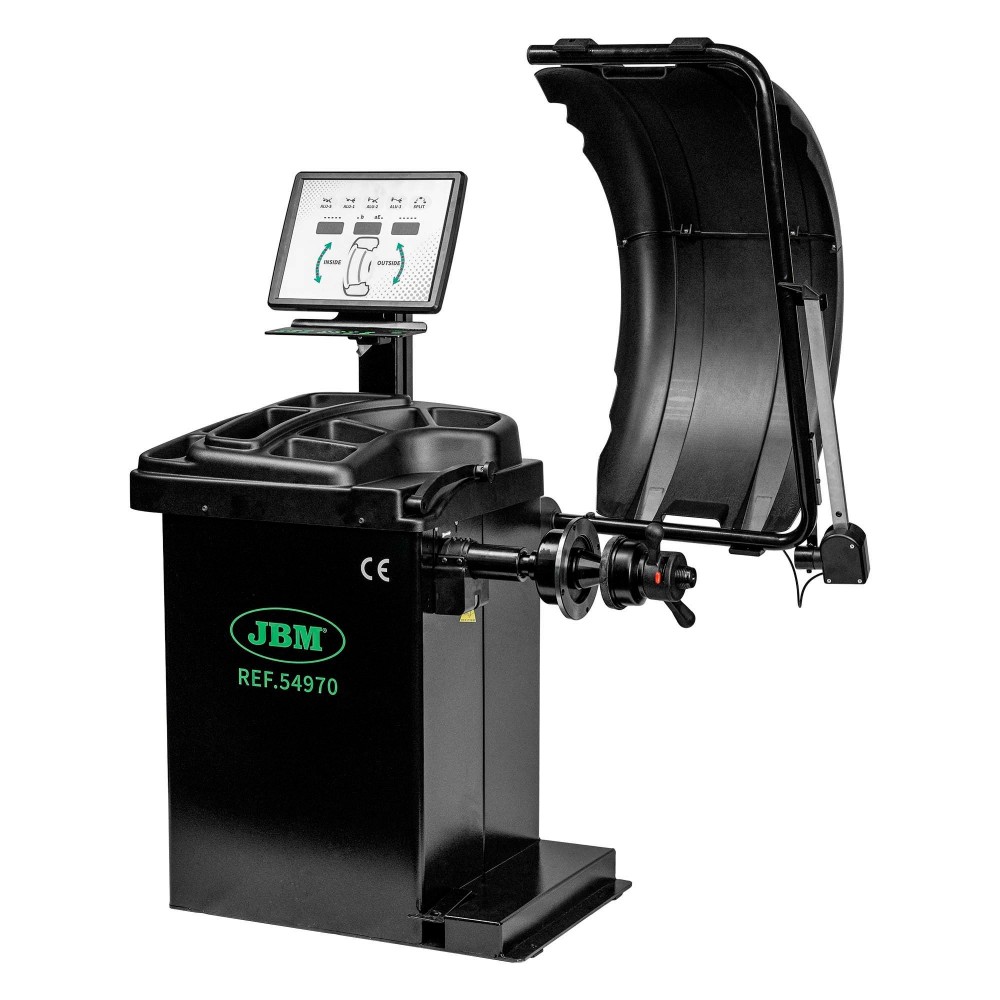

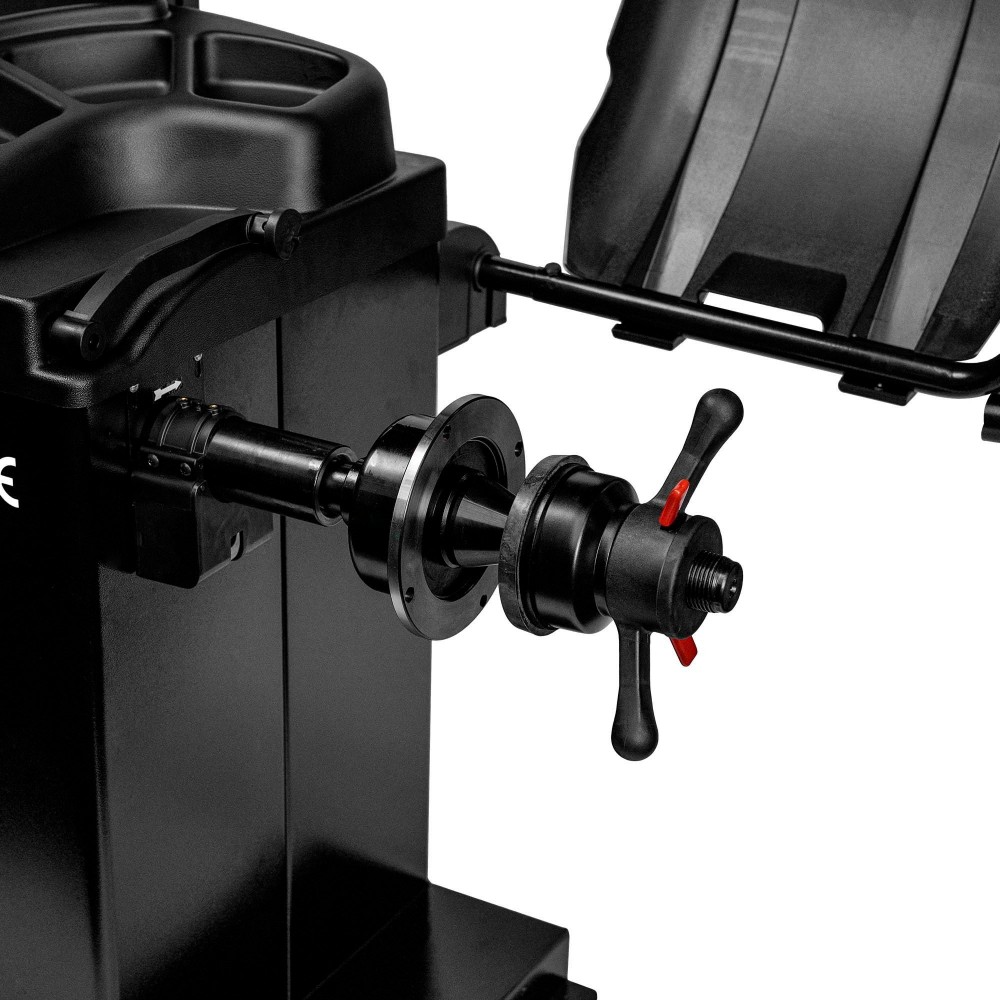

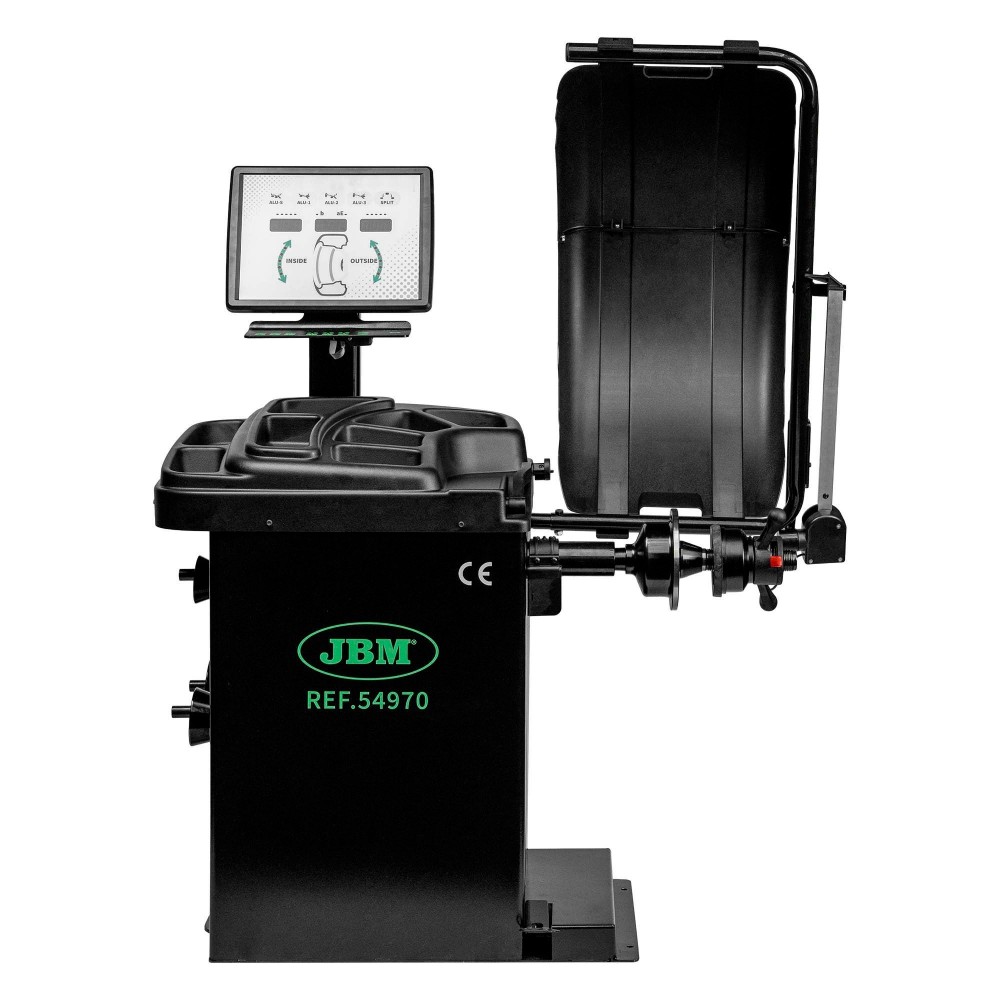

1. Digital Wheel Balancer with Brake Pedal and Laser JBM 54970

Superior wheel balancing machine designed to speed up and automate every stage of wheel balancing, particularly suitable for premium alloy wheels and adhesive weights.

  • Laser Pointer and Electromagnetic Brake: the pedal activates the electromagnetic brake, automatically positioning the imbalance points, while the laser indicates the exact point of application of the counterweights.
  • Automatic Measurement: Accelerated data entry thanks to automatic detection of distance, diameter and width of the rim.

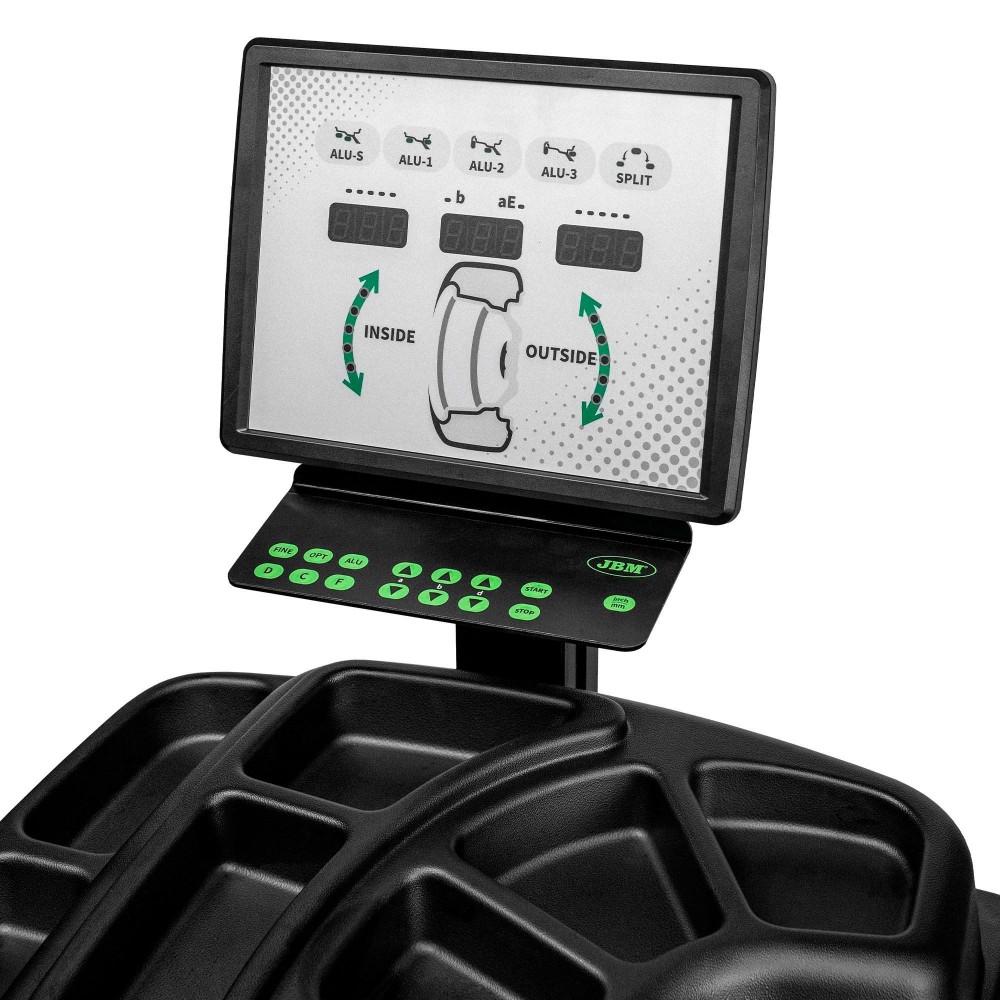

  • Advanced functions: ALU-S, ALU-1/2/3, Normal, SPLIT programs, OPT optimization and hidden weight function behind the spokes.
  • Working specifications: accuracy ±1g, cycle time of only 8 seconds on wheels up to 65kg and diameter from 10" to 24".

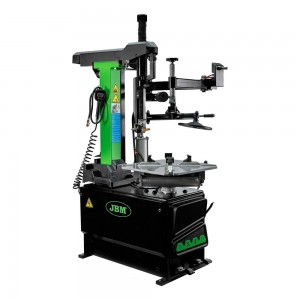

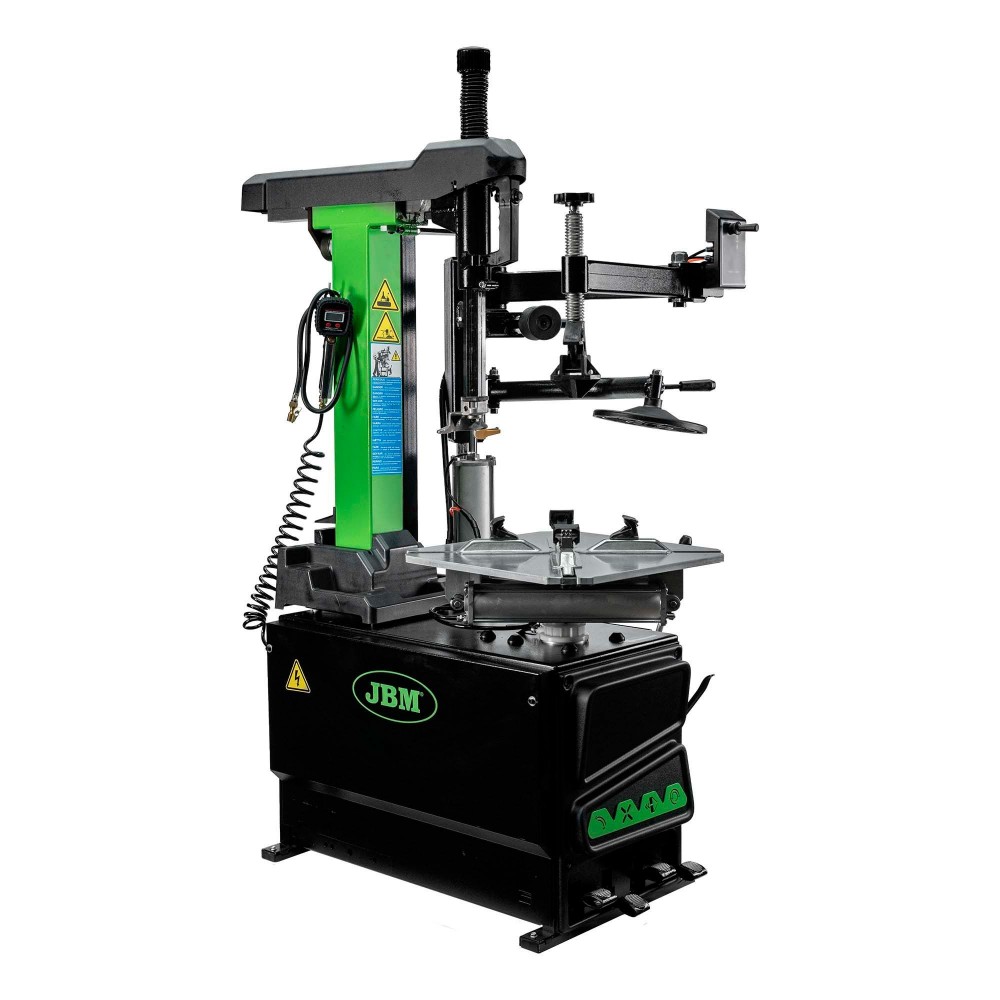

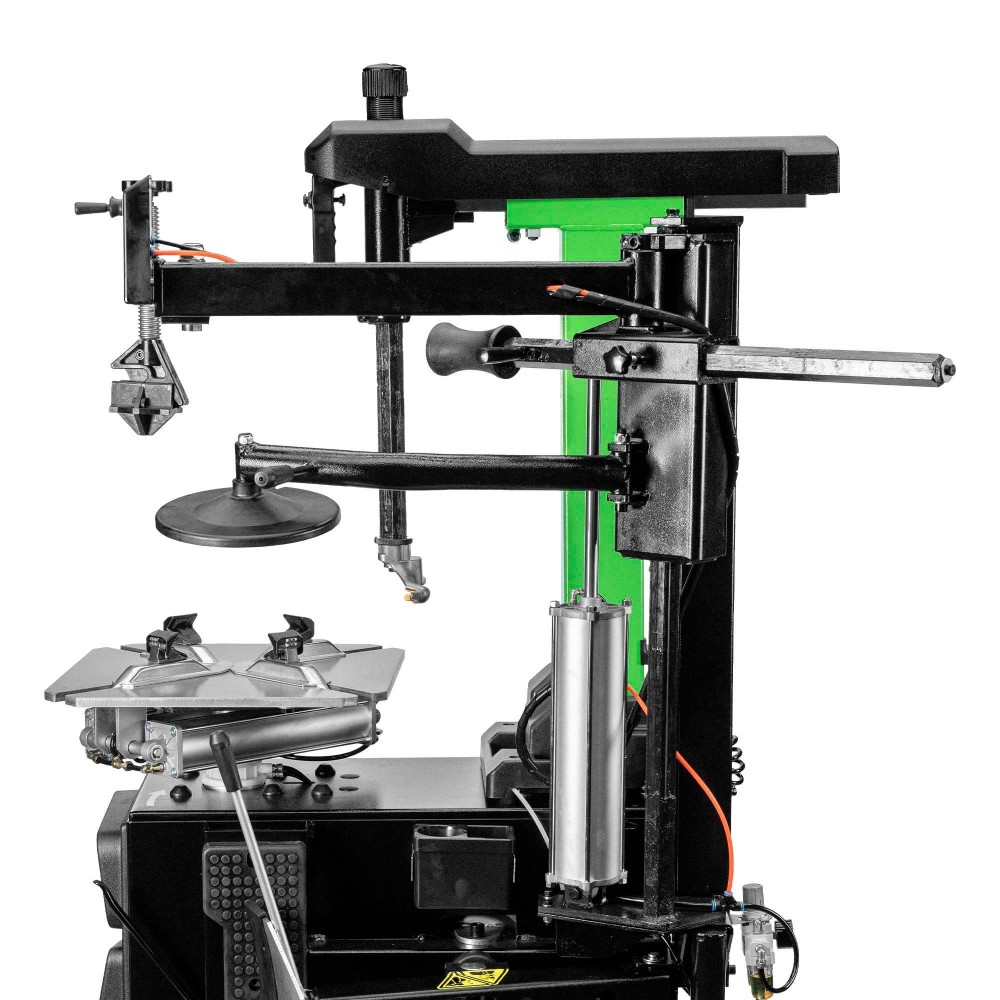

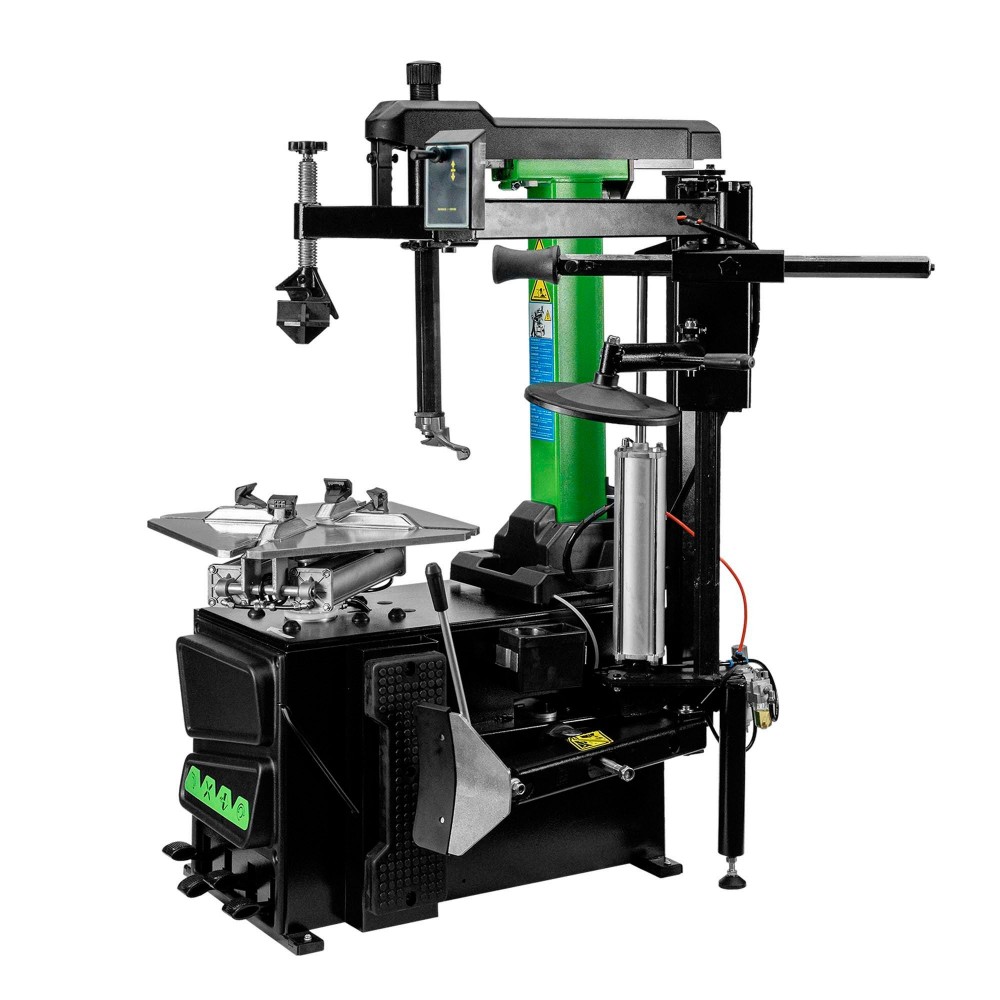

2. Automatic Tire Changer with Tilting Tower and Auxiliary Arm JBM 54964

High-performance tyre changer with pneumatically controlled rear tilting column and automatic coupling rods.

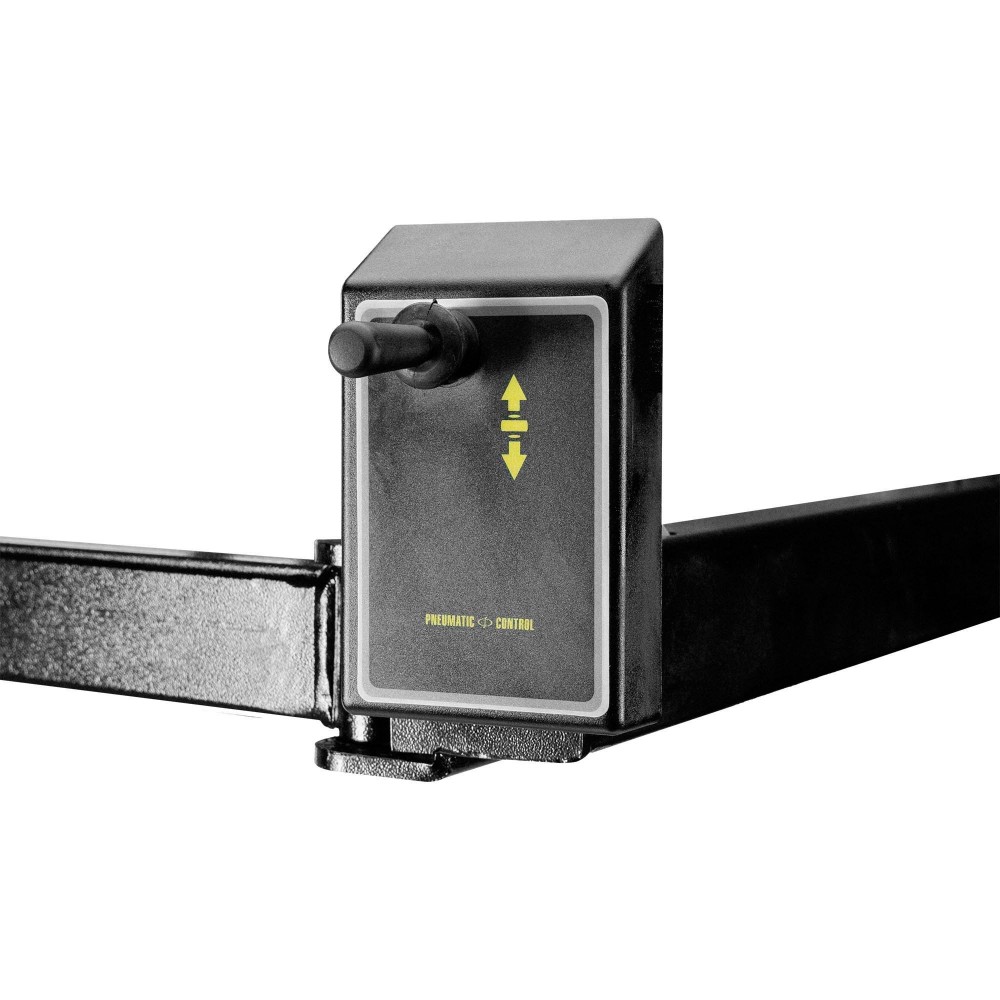

  • Automatic tilting tower: allows for quick positioning and automatic alignment of the disassembly turret without having to reset the measurements between wheels of the same diameter.

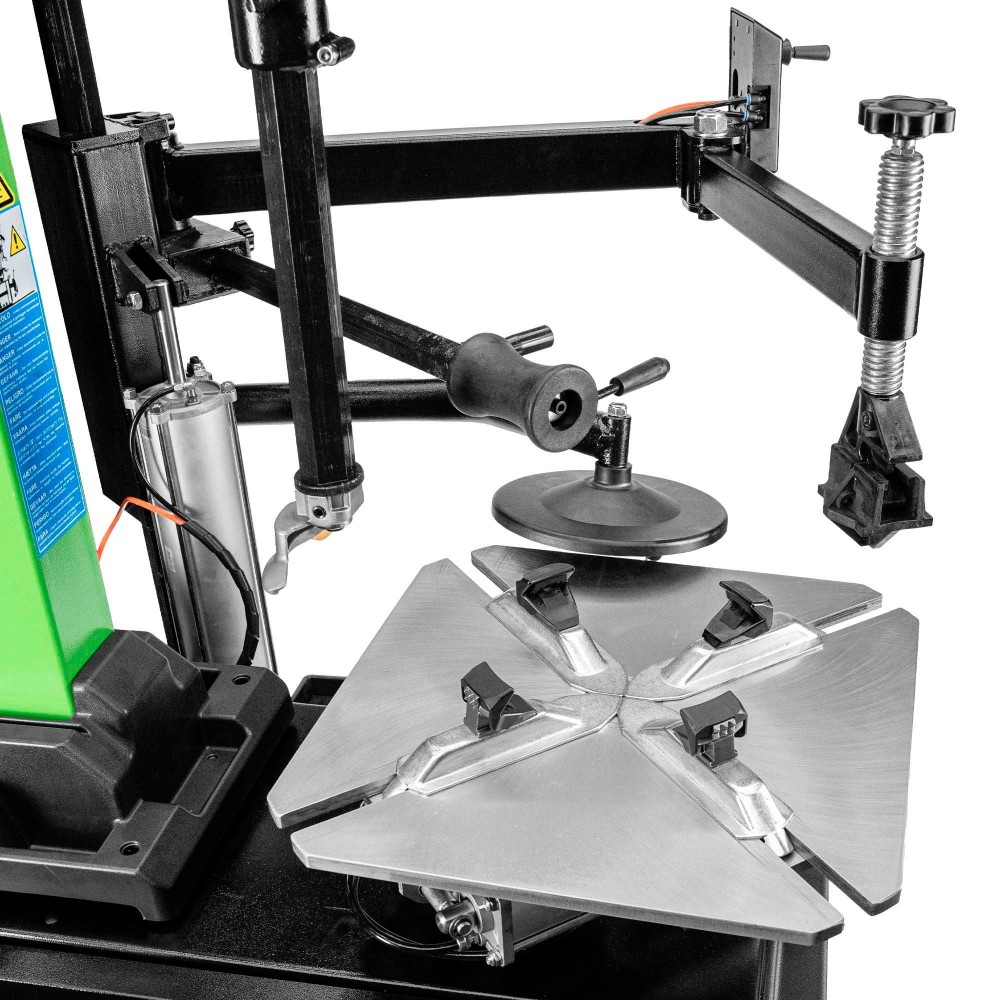

  • 360° auxiliary arm and bead roller: the 360° rotating mechanical arm and the nylon roller accompany the bead of low profile and Run Flat tyres, avoiding any harmful metal contact with the rim.
  • Clamping capacity: 1021" external and 1224" internal clamping, for wheels with diameters up to 1000 mm (39") and widths up to 355 mm (14").

Detailed Technical Data Sheet

  • Kit Code (SKU): SERIE631
  • EAN Kit Code: 8435034590111
  • Manufacturer / Brand: JBM (JBM Campllong SL)
  • Set Composition: Laser Wheel Balancer 54970 + Automatic Tire Changer 54964

Specifications Wheel Balancer 54970

  • EAN Code: 8435034549706
  • Power supply / Voltage: 220V / 50Hz (Single phase)
  • Motor power: 200 W (0.2 kW)
  • Rotation speed: 200 rpm
  • Measuring time: 8 s
  • Balancing accuracy: ±1 g
  • Maximum wheel load: 65.00 kg
  • Wheel diameter: 10" - 24"
  • Rim Width: 1.5" - 20"
  • Special functions: Electromagnetic foot brake, laser pointer, ALU-S, SPLIT, OPT, hidden weight
  • Noise level: < 70 dB
  • Net weight: 126.00 kg
  • Dimensions (L x W x H): 1178 x 918 x 1664 mm

54964 Tire Changer Specifications

  • EAN Code: 8435034549645
  • Power supply / Voltage: 220V (Single phase)
  • Motor power: 0.75 kW / 1.1 kW
  • Air operating pressure: 8 - 10 bar (up to 10 bar)
  • Maximum torque: 1078 Nm
  • External / Internal Clamping: 10" - 21" / 12" - 24"
  • Maximum wheel diameter: ? 1000 mm (39") / 10" - 24"
  • Maximum wheel width: ? 355 mm (14")
  • Noise level: ? 75 dB
  • Net weight of the machine: 298.00 kg
  • Dimensions (L x W x H): 880 x 435 x 1880 mm
