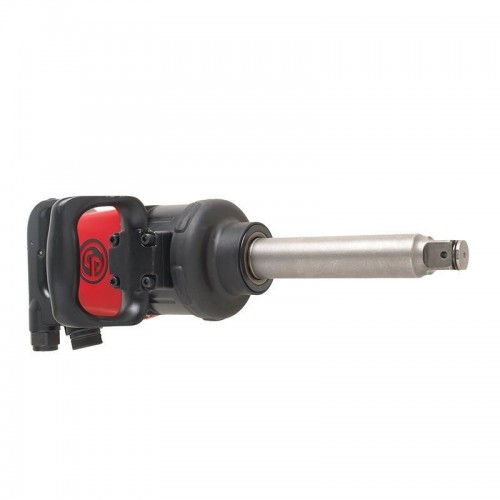

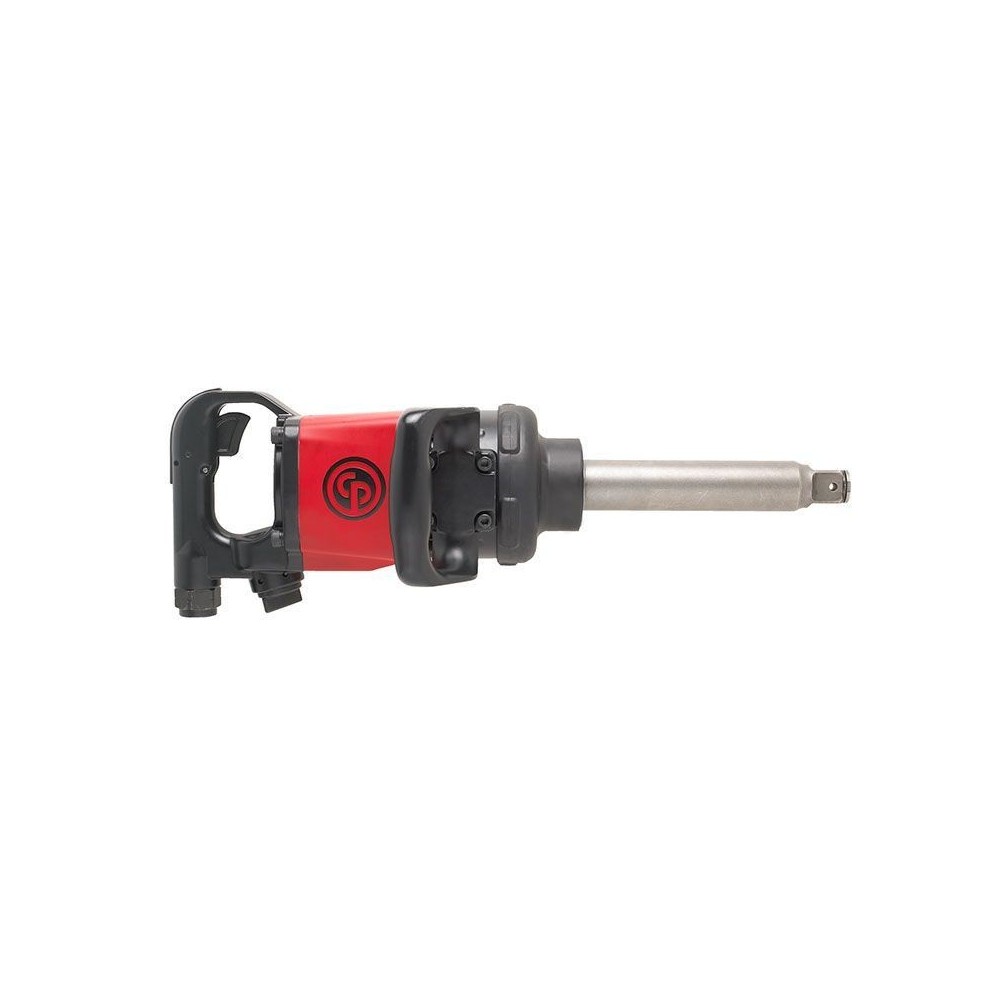

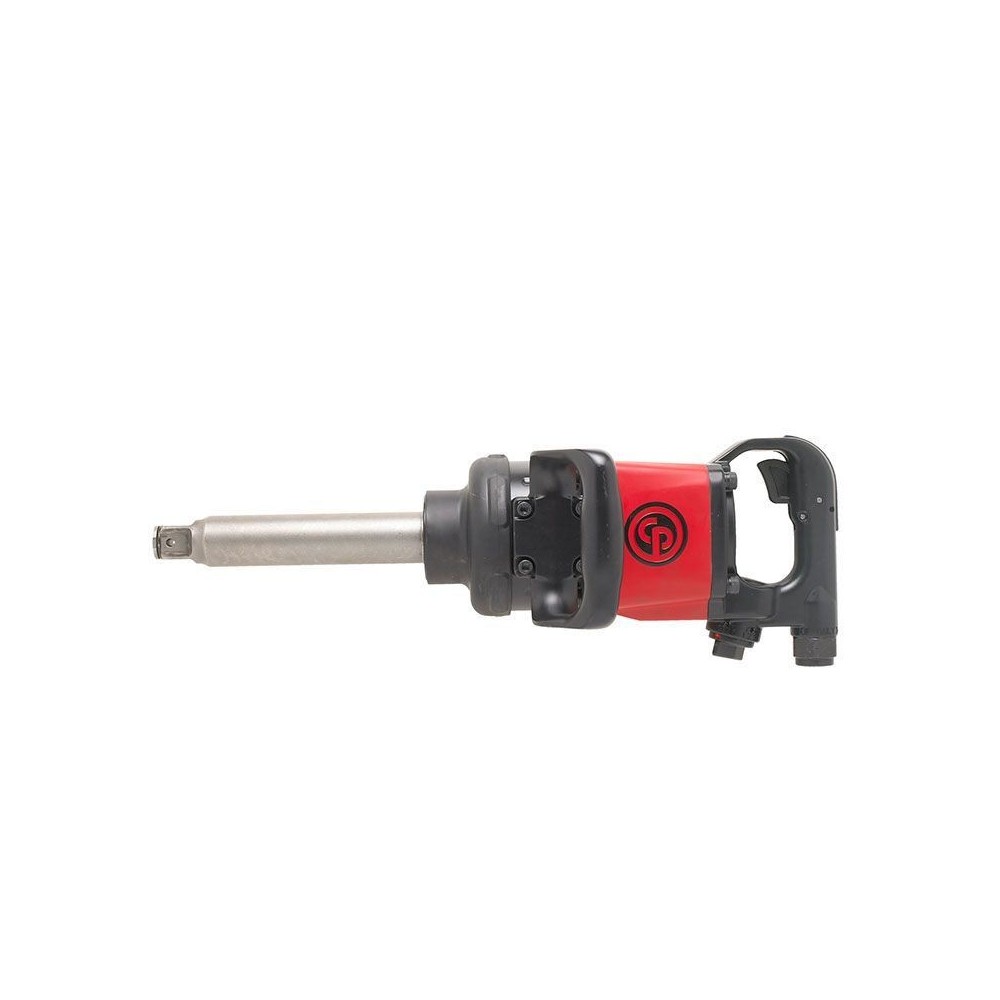

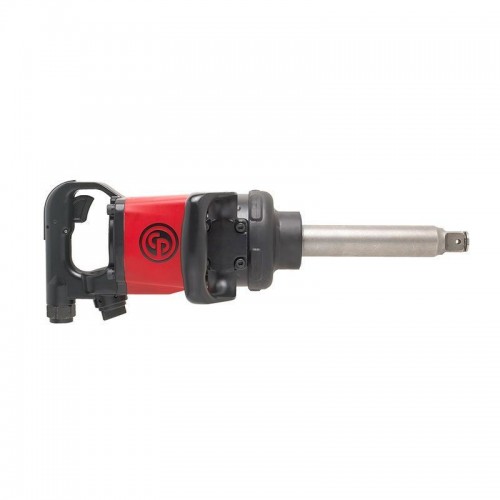

CP7782-6 1" PNEUMATIC IMPACT WRENCH CHICAGO PNEUMATIC

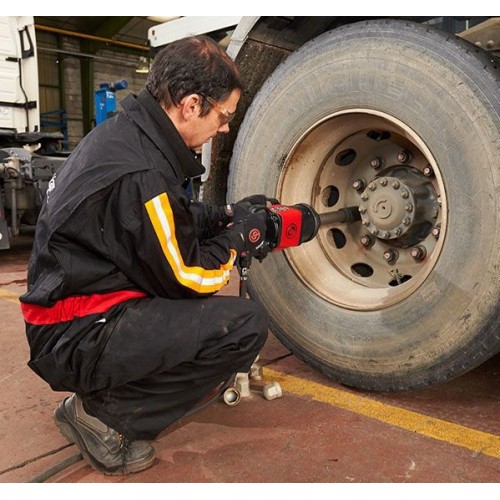

Tackle tire changes on heavy-duty vehicles, trucks, and buses with the power of the Chicago Pneumatic CP7782-6 1" Pneumatic Impact Wrench.
The CP7782-6 1" Long Shaft Impact Wrench (part number 8941077826) is the ultra-high-performance tool designed specifically for heavy-duty tire change jobs. Featuring a 6" (152 mm) shaft extension and a sturdy D-handle with side grip, it delivers impressive maximum torque of up to 2,600 Nm .
- Long 6" shaft: allows you to easily reach the nuts inside the deep rims of dual tyres on trucks and buses.
- Pinless Rocking Dog Mechanism: Reinforced, pinless, sealed rocking claw percussion system for long-lasting durability.
- Heavy Duty Ergonomic Design: Aluminum body with D-handle and side handle for perfect control when tightening.
Shipping cost: Free
for
Technical Features and Advantages of the Chicago Pneumatic CP7782-6 Impact Wrench
Designed to meet the demanding needs of heavy-duty tire shops, truck repair shops, and industrial vehicle maintenance, the Chicago Pneumatic CP7782-6 pneumatic impact wrench combines extremely solid aluminum construction with impressive torque reserves. The extended 6-inch shaft provides quick and direct access to deep-seated wheel nuts, eliminating the need for additional rigid extensions.
Mechanical Performance and Impact Mechanism
- Extraordinary Breakout Torque: Develops a maximum unscrewing torque of 2,600 Nm and a maximum forward torque of 2,000 Nm (minimum forward torque of 500 Nm).
- Reinforced Impact Mechanism: Featuring a grease-lubricated and sealed "Pinless Rocking Dog" impact system, designed to withstand constant heavy-load wear.
- 1" Dual Retainer Square Drive: 1" square drive featuring a dual retainer system for maximum security in holding heavy impact sockets.
- Maneuverability and Control: D-handle combined with an ergonomic side handle, to effectively distribute the weight of the tool (11.6 kg) and reduce operator fatigue.
Air Supply Specifications
To deliver its maximum performance, the tool requires a dynamic working pressure of 6.3 bar with a loaded air consumption of 19 l/s The air inlet has a 1/2" NPT thread and requires a minimum internal diameter of 13 mm (0.5 in) of supply tubing.
Detailed Technical Data Sheet
- Item Code (SKU): 8941077826 (Model CP7782-6)
- Manufacturer: Chicago Pneumatic
- Output square drive: 1" Sq (with Dual stop)
- Shaft Type: Long Extended (6" / 152 mm)
- Maximum reverse torque (unscrewing): 2600 Nm
- Maximum forward torque (screwing): 2000 Nm
- Minimum forward torque: 500 Nm
- Free speed: 5200 rpm
- Murmurs per minute: 500 bpm
- Impact mechanism: Pinless rocking dog
- Handle type: AD (D-handle) with side handle included
- Main body material: Aluminum
- Overall length (L): 520 mm
- Tool weight: 11.6 kg
- Power-to-weight ratio: 250 Nm/kg
- Air inlet: 1/2" NPT
- Max. dynamic working pressure: 6.3 bar
- Air consumption at load: 19 l/s
- Sound power level: 111 dB(A)
- Sound pressure level: 100 dB(A)
- Vibration level: 7.8 m/s² (Uncertainty K: 1.8 m/s²)
