216SL 20V CORDLESS MITER SAW FEMI

Description and Fields of Application

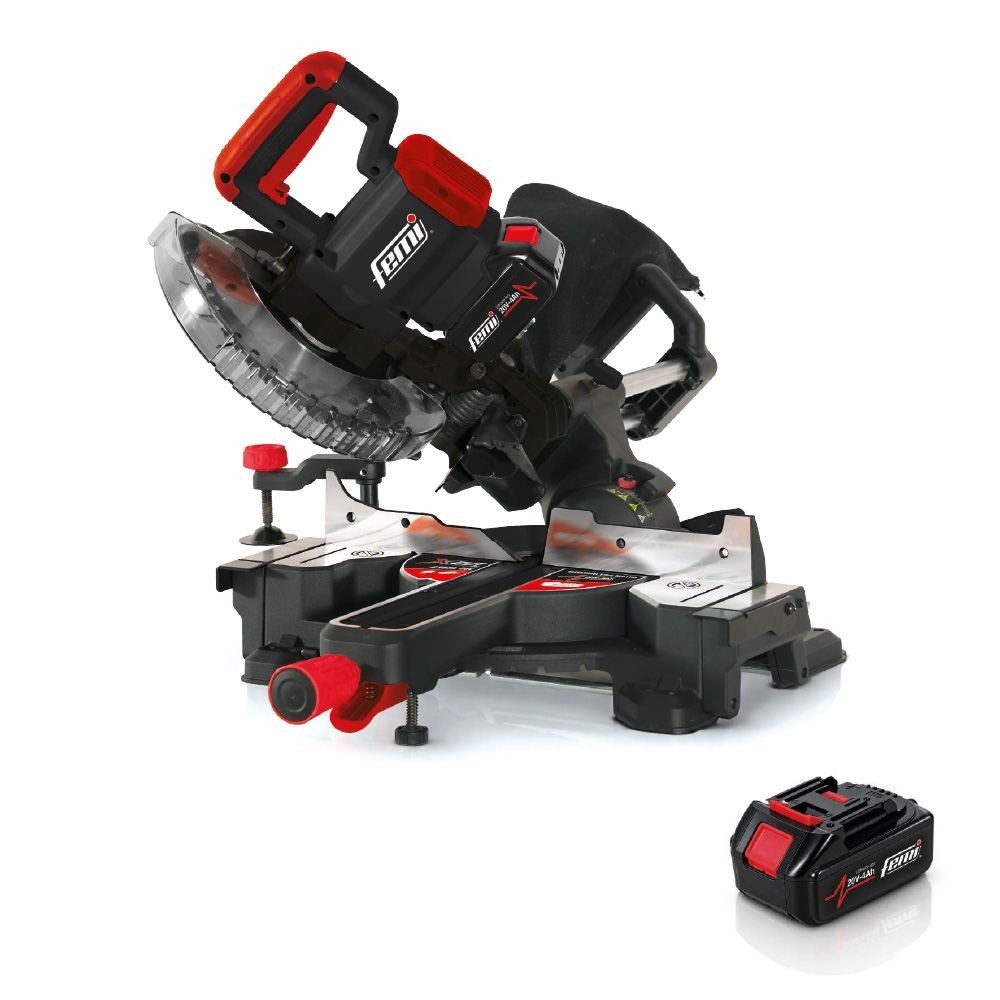

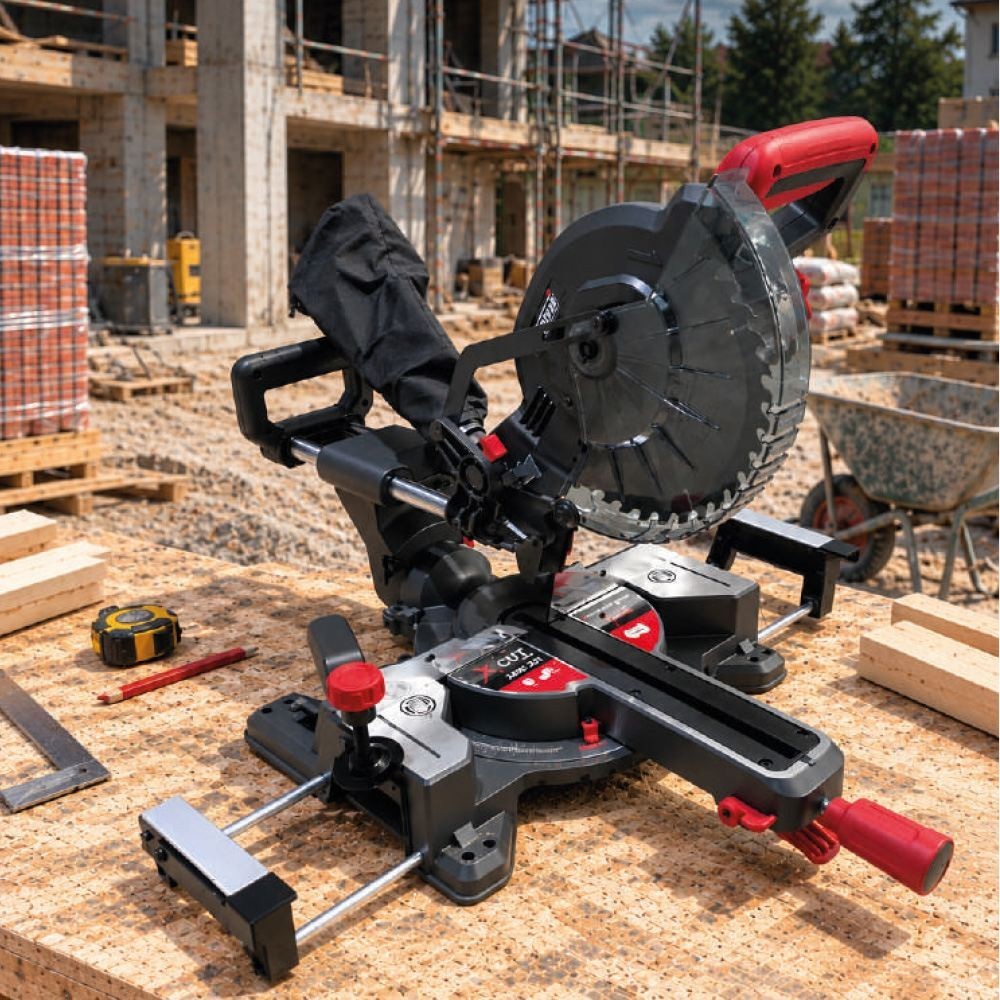

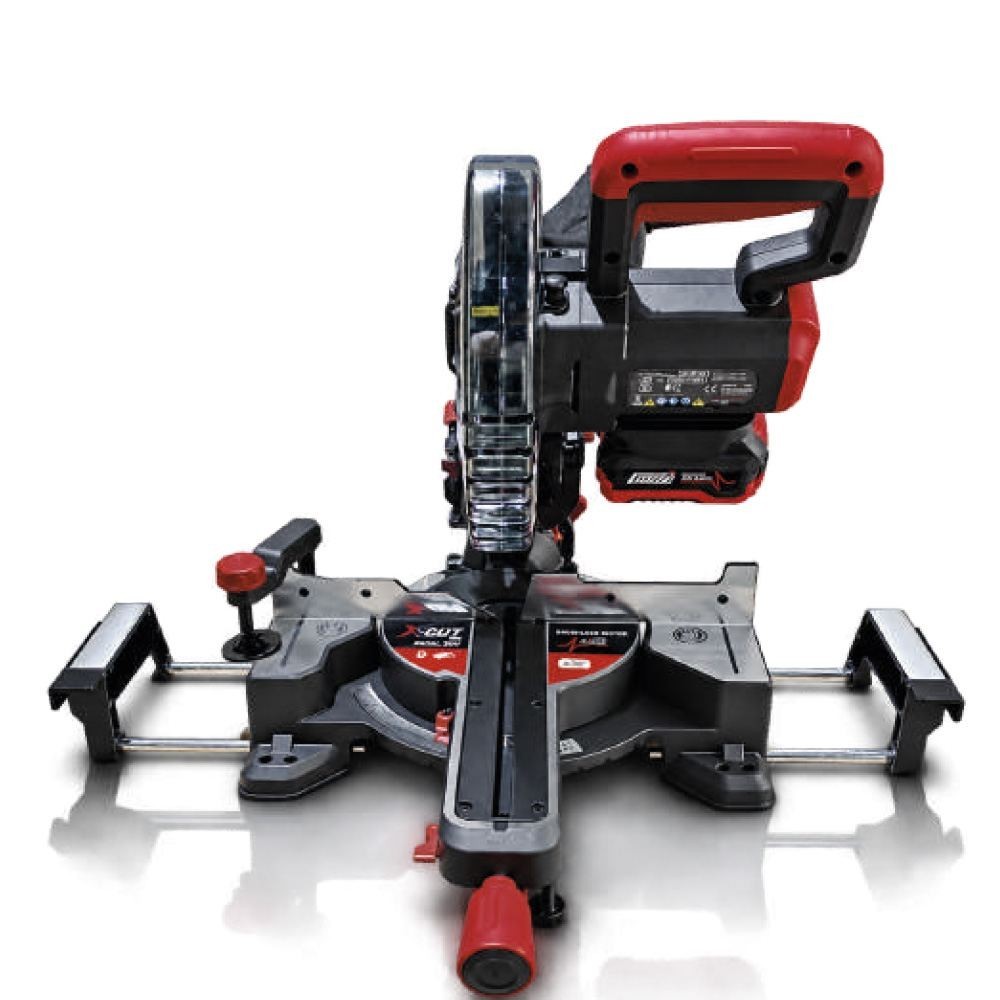

The Femi CUT 216SL 20V cordless radial mitre saw (Part No. 8.42.70.51) represents the ideal combination of operational efficiency, portability, and mechanical precision. Powered by a powerful 20V motor, this radial mitre saw is designed for cross-cutting and cutting along the grain of soft, hard, and solid woods, as well as for working with panels and beams. Its compact, lightweight design (just 10.3 kg) and the complete absence of electrical cables make it perfect for construction sites, on-site installation work, carpentry shops, and artisan workshops that require high professional standards and extreme flexibility.

Mechanical Characteristics and Radial Cutting Capacity

The Femi X-Cut 216SL 20V guarantees superior cutting performance thanks to a mechanical structure designed down to the smallest details:

• Large Radial Capacity: The radial sliding function allows you to easily process wood pieces up to 240 mm wide with a cutting depth of up to 70 mm.
• Head Tilt and Swivel Table: Precision blade tilt lock at 0°, 33.9°, and 45°. The swivel table features quick-click positions for instant, error-free angle setting.
• Silent Blade as Standard: Included as standard is a professional blade Ø 216 mm with 30 mm hole, 2.0 mm thickness and Z36 teeth equipped with sound-proof notches to reduce vibrations and noise during processing.
• Shadow Line Lighting System: The integrated LED light projects the blade's shadow directly onto the workpiece, accurately indicating the actual cutting line and ensuring perfect visibility. A laser indicator is also included for additional visual guidance.
• Extendable Worktop: Equipped with extractable and removable side extensions with end-of-travel stops to facilitate serial cutting of long beams and strips.
• Quick Workpiece Clamping: Standard clamp for secure locking in height and depth.

Battery and Charging System

The miter saw is powered by the 20V Femi cordless system:

• 20V – 4Ah Lithium battery (code 7242002): High performance to deliver constant power and ensure long working autonomy.
• 2Ah battery charger (code 7242001): Ensures quick and efficient charging, reducing waiting times and keeping the miter saw always ready for use.

Performance at Different Cutting Angles

• Straight Cut 0°: 240 × 70 mm
• 45° Bevel Cut (Flat): 175 × 65 mm
• Bevel Cut 0°–45° LEFT (Head): 240 × 40 mm
• Combined cut 45° + 45°: 160 × 50 mm

Technical Specifications

Recommended Compatible Accessories and Blades

• F30 Z36 Blade for Wood (Code 3290029): Ø 216 mm, thickness 2.0 mm, 36 teeth – for chopping and cutting along the grain.
• F30 Z60 blade for wood and plastic (Code 3290030): Ø 216 mm, thickness 2.0 mm, 60 teeth – for high precision finishing.
• Compatible Femi Folding Workbenches:
  • JOBBY 300 PLUS (Dimensions: 650×420×740/820/870 mm)
  • MULTY 360 (Dimensions: 1150×630×630/770/830 mm)
  • SMARTY 330 (Dimensions: 1250×490×835 mm)

Warnings and Safety Instructions

Always use appropriate personal protective equipment (safety glasses, ear defenders, and a dust mask). Secure the workpiece to be cut using the standard clamp before operating the blade. Disconnect the 20V battery before performing any cleaning, maintenance, or blade replacement.
