Description and Fields of Professional Application

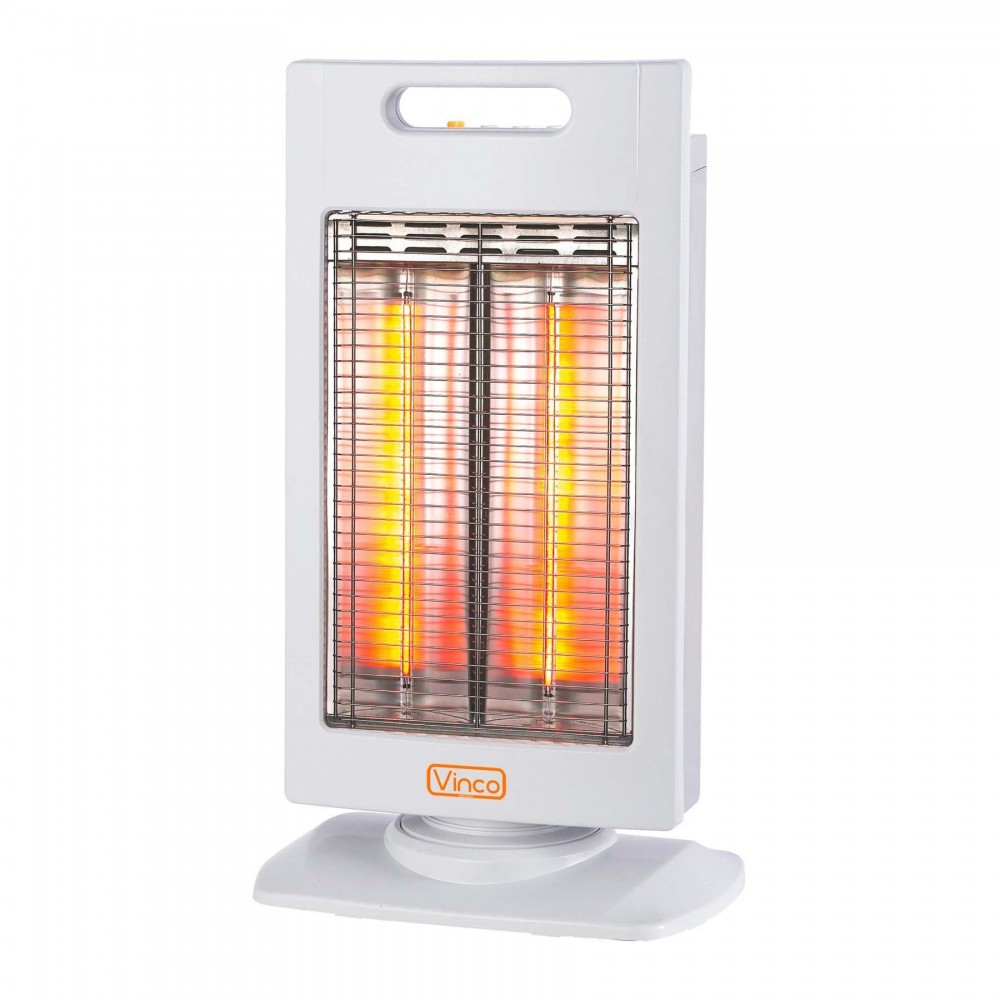

The Vinco 70182 carbon fiber radiant heater (Model TCCH12-4) is an advanced auxiliary heater designed to provide maximum direct thermal comfort at individual workstations. It is ideal for heating work areas in workshops, craft workshops, prefabricated construction sites, crates, and assembly stations. Unlike traditional halogen or quartz heaters, carbon fiber infrared technology generates a deeper, more enveloping heat wave frequency, directly heating people and work surfaces with significantly reduced electricity consumption (only 900W at maximum power).
Advantages of Carbon Fiber and 90° Oscillation
- Highly Efficient Radiant Heating: Carbon fiber heating elements convert almost all electrical energy into immediate radiant heat, without drying out the air or raising dust in the work environment.
- Dual Power Level (450W / 900W): Allows you to modulate the electrical absorption by selecting 450 Watts for maintenance or 900 Watts for maximum heat output.
- Wide Beam Auto-Oscillation (90°): Automatic right/left rotation distributes the infrared beam evenly across the entire workstation.
- Programmable Shut-Off Timer (up to 7.5 Hours): Allows you to set the desired operating duration to optimize energy consumption management during the company shift.
- Anti-Tip Safety Switch: Built-in mechanical device that immediately cuts off the power supply in the event of accidental impact or fall of the appliance.
- Integrated Carrying Handle and Lightweight Structure: Weight limited to approximately 2.5 kg for easy positioning and movement within the workshop.
Technical Specifications
| Parameter | Detail / Value |
|---|
| Manufacturer / Brand | Vinco Srl |
| Product Code / SKU | 70182 (Model TCCH12-4) |
| EAN Code / Barcode | 8028815701822 |
| Heating Technology | High efficiency carbon fiber heating elements |
| Power Supply | 230 V ~ 50 Hz |
| Maximum Rated Power | 900 W |
| Power Selections | 2 Levels: 450W / 900W |
| Oscillation Angle | 90° (automatic right/left oscillation) |
| Integrated Timer | Adjustable up to 7.5 hours |
| Security Systems | Anti-tip protection device (anti-fall) and front metal grille |
| Product Dimensions (L x W x H) | 31.2 x 16 x 60 cm |
| Net / Gross Weight | 2.5 kg / 3.0 kg |
Operational Safety Warnings
Place the stove on a flat, hard, and horizontal surface. Do not obstruct the front grille and maintain a minimum safety distance of 1 meter from flammable materials, fabrics, or wrapping paper. Do not touch the heating elements with bare hands. Unplug the appliance from the electrical outlet before cleaning or moving it.
