Description and Fields of Professional Application

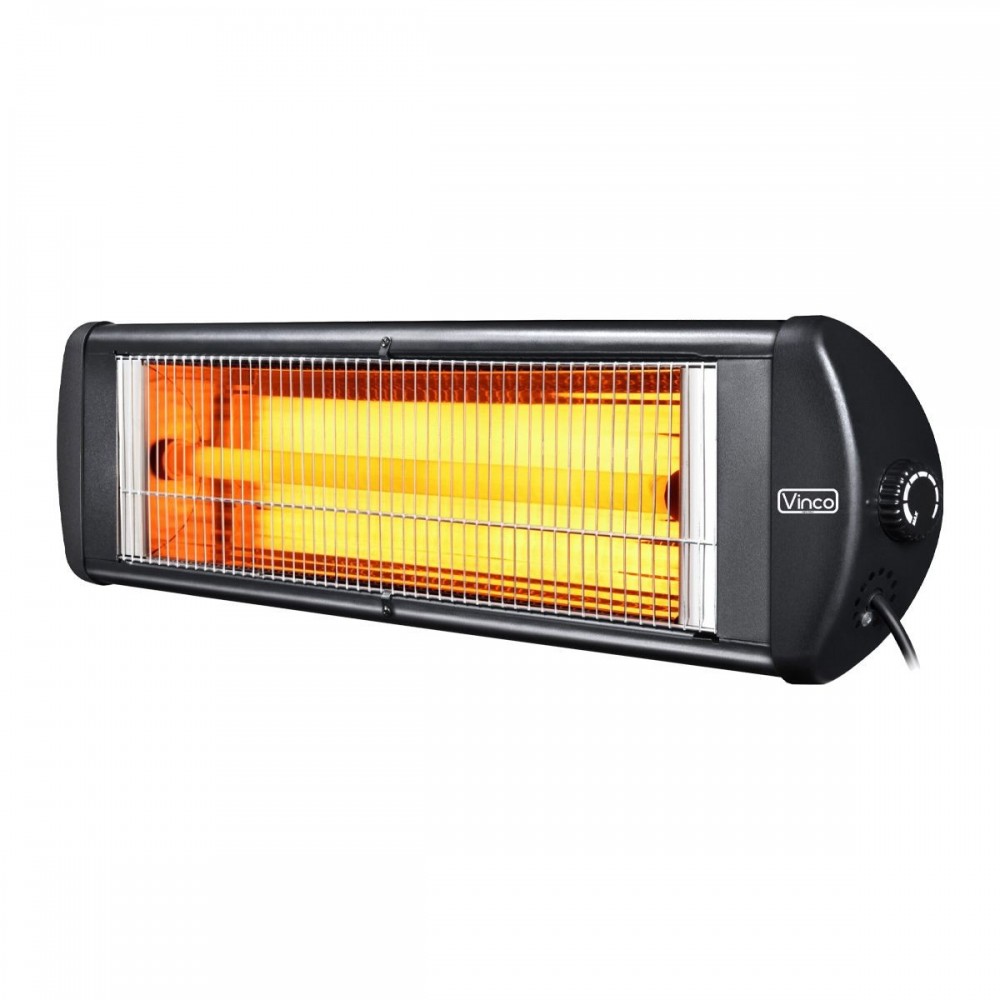

The Vinco 70167 Infrared Heater (Model EXO-25) is a 2.5 kW adjustable heat lamp designed to meet the needs of targeted heating in industrial, artisanal, and commercial workplaces. In mechanical workshops, carpentry workshops, assembly departments, warehouses, or outdoor areas of commercial premises, heating entire volumes of air is often wasteful and ineffective. The Vinco's infrared radiation technology solves this problem by instantly transferring heat energy to people and the workbench, ensuring immediate operational comfort and increasing worker productivity and safety during the winter season.
IP55 Protection Rating and Industrial Robustness
Designed to withstand the stresses typical of busy work environments and outdoor areas, the Vinco 70167 heater boasts high-level construction features:
- Waterproof and Dustproof IP55: Total seal against processing dust and certified resistance to water jets and pouring rain, allowing for completely safe installation both in humid industrial environments and outdoors.
- Aluminum Parabolic Reflector: Amplifies and focuses the infrared beam, effectively covering a working area of 20 to 30 m².
- Space-Saving Wall Installation: Supplied as standard with adjustable brackets and anchoring kit for wall mounting, completely freeing up the floor and avoiding obstacles for the passage of trolleys or tools.
- Integrated Thermostat with Graduated Knob: Allows continuous regulation of the working temperature from a minimum to a maximum level based on the operator's needs.
Safety and Maintenance
Equipped with a tight-mesh metal front grille to prevent accidental contact with the incandescent filament and active thermal protection. To maintain radiant output over time, it is recommended to periodically blow dry compressed air into the internal aluminum reflector to remove any deposited processing dust.
Technical Specifications
| Parameter | Detail / Value |
|---|
| Manufacturer / Brand | Vinco Srl |
| Product Code / Model | 70167 (Mod. EXO-25) |
| EAN / Barcode | 8028815701679 |
| Power Supply | 230 V ~ 50/60 Hz (Single-phase) |
| Maximum Power Output | 2500 W (2.5 kW) |
| Radiation Surface | 20 - 30 m² |
| IP Protection Rating | IP55 (Waterproof and dustproof) |
| Heating Element | IR infrared lamp with aluminum reflector |
| Assembly | Wall mounted using the included fixing brackets |
| Product Dimensions (WxDxH) | 91 x 12.5 x 22 cm |
| Net / Gross Weight | 2.3 kg / 2.9 kg |
| Main Intended Users | Mechanical workshops, artisan workshops, body shops, warehouses, commercial outdoor areas |
Warnings and Safety Distances in the Workplace
Install the wall heater at least 1.8 meters from the ground and at least 0.5 meters from the ceiling. Maintain a safety distance of at least 1 meter from combustible or flammable materials (solvents, paints, greasy rags, wood). The reflector should always point toward the operator's work area and never toward the ceiling. Before cleaning or maintenance, always unplug the heater from the power supply and wait for the casing to cool completely.
