Description and Fields of Application

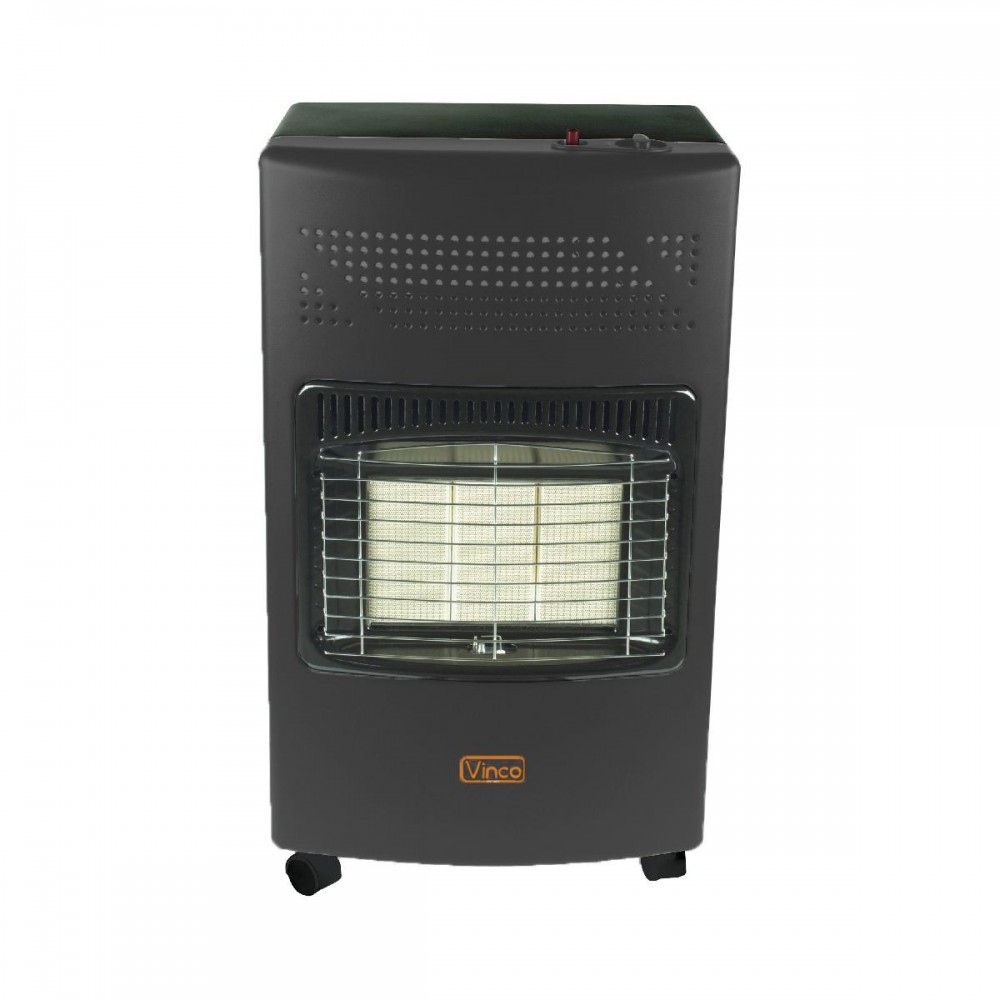

The Vinco 71406 Infrared Gas Heater is a self-contained seasonal heating appliance with high thermal output, designed to quickly heat living spaces, offices, laboratories, and commercial premises measuring between 20 and 80 m². Powered by LPG (Butane/Propane) gas cylinders with a capacity of up to 15 kg, this heater uses infrared ceramic panel technology to generate immediate heat through radiation, optimizing energy consumption and keeping noise levels low.
3 Power Levels and Convenient Electronic Ignition
The stove allows you to easily select the desired heat level via the upper knob and the innovative automatic electronic ignition:
- Electronic Push Button Ignition: Compared to traditional manual piezoelectric systems, the electronic ignition powered by 1 AAA battery ensures instant and effortless starting.
- Minimum Power (1.5 kW / 1400W): Low gas consumption of just 109 g/h, perfect for maintaining the temperature for a long time.
- Medium Power (2.8 kW / 2800W): Balanced consumption of 210 g/h for ideal comfort throughout the day.
- Maximum Power (4.2 kW / 4200W): Maximum consumption of 305 g/h to quickly heat cold or large rooms.
Triple Integrated Security System
The Vinco 71406 stove is built in full compliance with the European regulation GAR 2016/426 and integrates three active protection devices for maximum protection of the home and family:
- Oxygen Deficiency Sensor (ODS): Constantly monitors the air quality in the room and automatically cuts off the gas supply if the carbon dioxide concentration exceeds safety limits.
- Anti-Tip Switch: An integrated mechanical device immediately cuts off the gas supply in the event of accidental impacts or the appliance falling.
- Flame Failure Sensor (Thermocouple): Stops the flow of gas if the pilot light is accidentally extinguished by drafts.
- Front Protective Grille: Sturdy metal grille that prevents accidental contact with the incandescent ceramic burner.
Technical Specifications
| Parameter | Detail / Value |
|---|
| Brand / Manufacturer |
Vinco Srl |
| Product Code / SKU |
71406 (Model HT-H-0001) |
| EAN Code / Barcode |
8028815714068 |
| Body Color |
Dark Grey |
| Heating Type |
Infrared radiant ceramic plates |
| Gas Supply and Pressure |
G30 Butane (28-30 mbar) / G31 Propane (37 mbar) - Cat. I3+(28-30/37) |
| Selectable Thermal Power |
1.5 kW (1400 W) / 2.8 kW (2800 W) / 4.2 kW (4200 W) |
| Gas Consumption (Min / Med / Max) |
109 g/h / 210 g/h / 305 g/h |
| Ignition System |
Push-button electronics (requires 1 AAA battery, not included) |
| Recommended Coverage Area |
20 - 80 m² |
| Cylinder Housing |
Rear compartment for cylinders up to 15 kg max |
| Protection Systems |
ODS (Oxygen Detection) sensor, thermocouple, anti-tip device |
| Mobility |
4 360° swivel wheels integrated into the base |
| Product Dimensions (WxDxH) |
43 x 37 x 78 cm |
| Net / Gross Weight |
9.0 kg / 10.0 kg |
Safety and Installation Warnings
Use only in suitable, well-ventilated areas. Do not install in bedrooms, bathrooms, basements, or recreational vehicles. Maintain a safe distance of at least 1 meter from flammable materials (curtains, furniture, sofas). For the electronic ignition to function properly, insert one AAA battery into the battery compartment located under the red ignition button. The gas pressure regulator and hose are not included and must be purchased separately (regulator code RGSP recommended).
