Description and Fields of Application

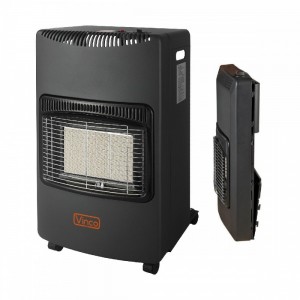

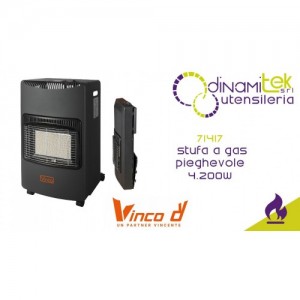

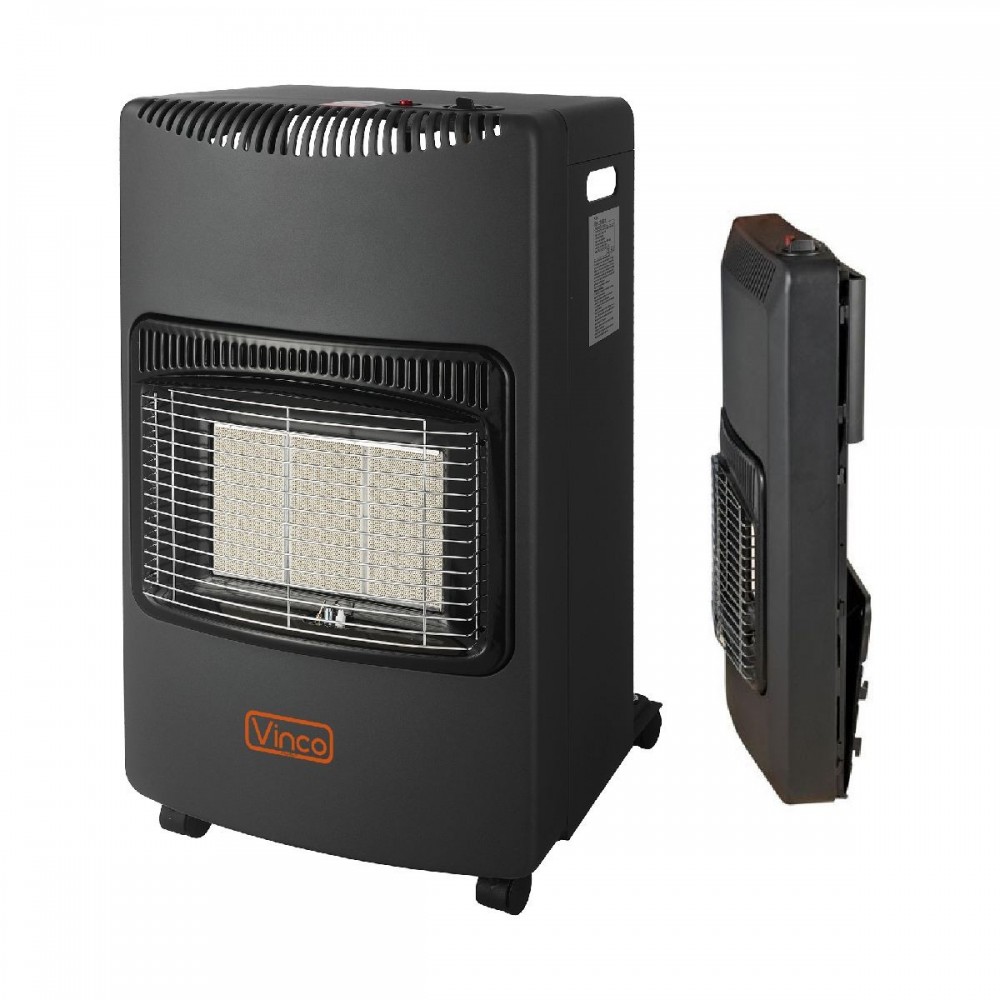

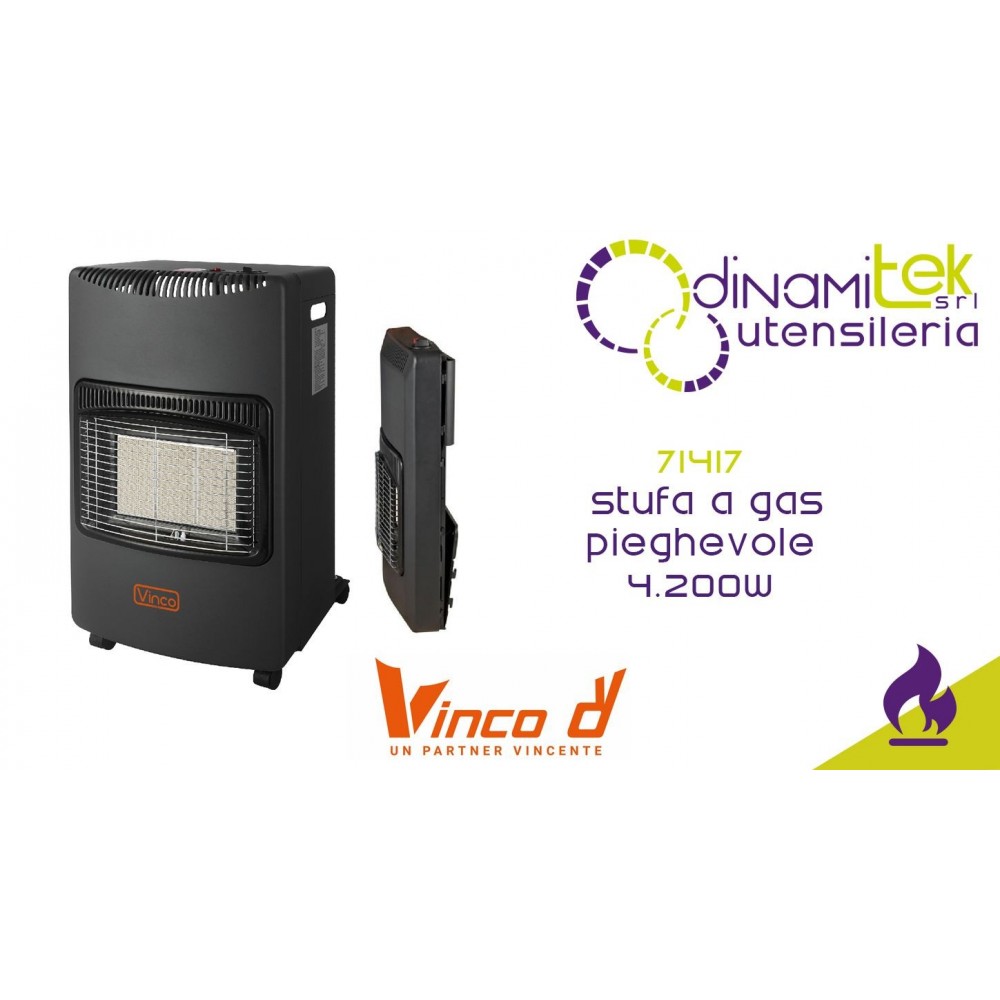

The Vinco 71417 Folding Gas Heater is a high-performance auxiliary radiant heater, ideal for quickly heating daytime bedrooms, living rooms, offices, workshops, and well-ventilated spaces. Powered by butane or propane gas cylinders up to 15 kg, the heater uses ceramic panel technology to radiate heat evenly throughout the room without dispersion. The clever "Foldable" design allows for easy assembly and folds the structure when not in use, optimizing space in your home or warehouse.
Three Power Levels and Optimized Consumption
Thanks to the upper control knob and the integrated piezo ignition, you can easily set the desired power on 3 different heat output levels:
- Minimum Power (1.5 kW / 1400W): Low consumption of approximately 109-110 g/h, ideal for maintaining warmth.
- Medium Power (2.8 kW / 2800W): Average consumption of approximately 210 g/h for balanced heating.
- Maximum Power (4.2 kW / 4200W): Maximum consumption of approximately 305 g/h for immediate and intense heat output at first start-up.
Integrated Security Systems
The Vinco 71417 stove is designed with user safety first, integrating advanced protection devices:
- Oxygen Detection Sensor (ODS): Safety device that automatically interrupts the flow of gas if the percentage of oxygen in the environment drops below the safety levels.
- Flame Failure Sensor (Thermocouple): Shuts off gas supply if the pilot flame accidentally goes out.
- Anti-Tip Switch: Shuts off the gas supply in the event of accidental knocks or tipping of the appliance.
- Front Protective Grille: Sturdy metal grille that prevents direct contact with the incandescent ceramic elements.
Robust Structure and Maximum Mobility
Made with a thick, painted sheet metal body in a subtle gray/black color, the stove comes standard with four 360° swivel wheels , making it easy to move from room to room. The rear compartment allows for safe storage and dispensing of gas from standard cylinders up to 15 kg.
Technical Specifications
| Parameter | Detail / Value |
|---|
| Brand / Manufacturer | Vinco Srl |
| Product Code / SKU | 71417 (Model DA-201) |
| EAN Code / Barcode | 8028815714174 |
| Product Type | Foldable infrared gas heater |
| Gas Power Supply | G30 Butane (28-30 mbar) / G31 Propane (37 mbar) |
| Selectable Powers | 3 positions: 1.5 kW (Min) / 2.8 kW (Med) / 4.2 kW (Max) |
| Hourly Gas Consumption | 109 g/h (Min) - 210 g/h (Med) - 305 g/h (Max) |
| Ignition System | Piezoelectric with pilot flame |
| Cylinder Compartment Capacity | Accommodates LPG cylinders up to 15 kg max |
| Radiant Element | 3 High efficiency and low noise ceramic plates |
| Security Systems | ODS (Oxygen Depletion) sensor, safety thermocouple, anti-tip device |
| Mobility | 4 swivel wheels as standard |
| Product Dimensions (WxDxH) | 42 x 39 x 72 cm |
| Net / Gross Weight | 8.0 kg / 9.0 kg |
Warnings and Safety Tips
Use only in well-ventilated areas (recommended minimum volume > 80 m³). Do not use in bedrooms, bathrooms, basements, or on recreational vehicles (campers/caravans). Maintain a minimum safety distance of 50 cm from the sides and rear of the heater and 100 cm from the front of the heater to walls, furniture, curtains, and flammable materials. Always replace the cylinder outdoors or in an area free from open flames. Periodically check the condition and expiration date of the rubber gas hose.
