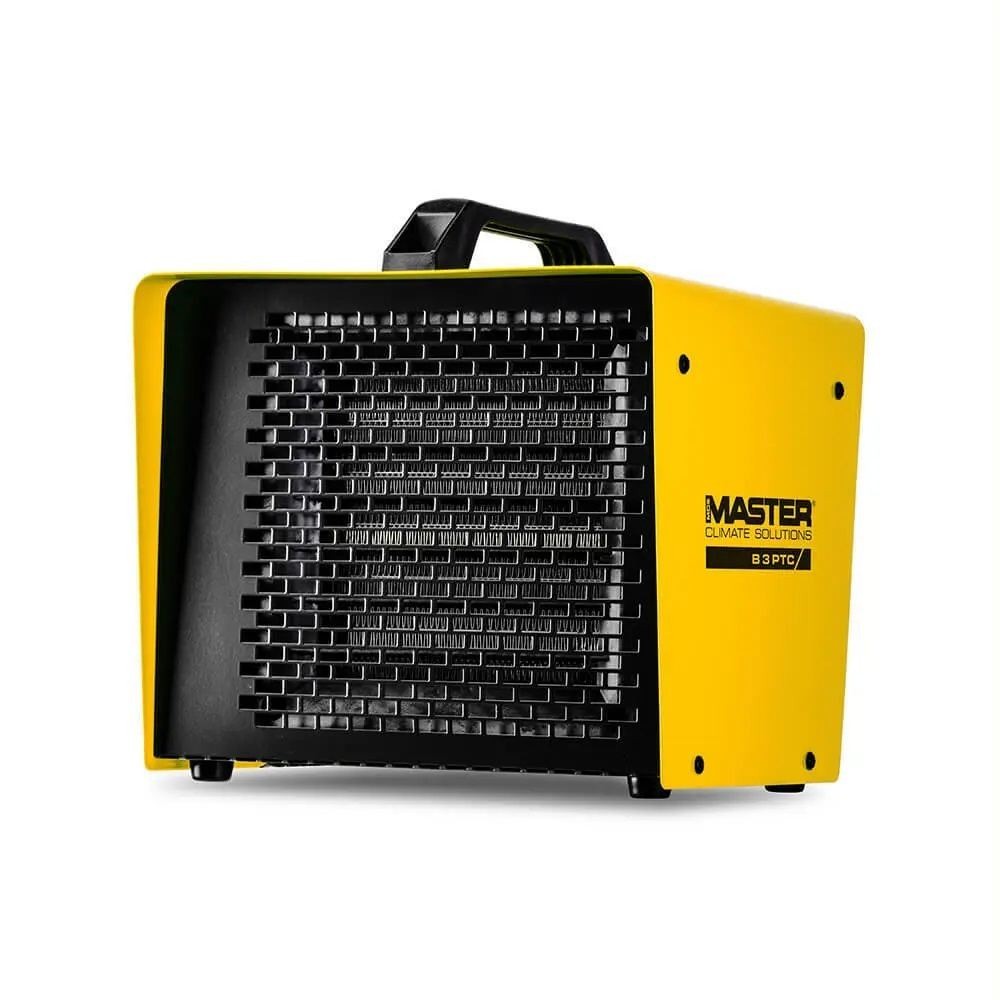

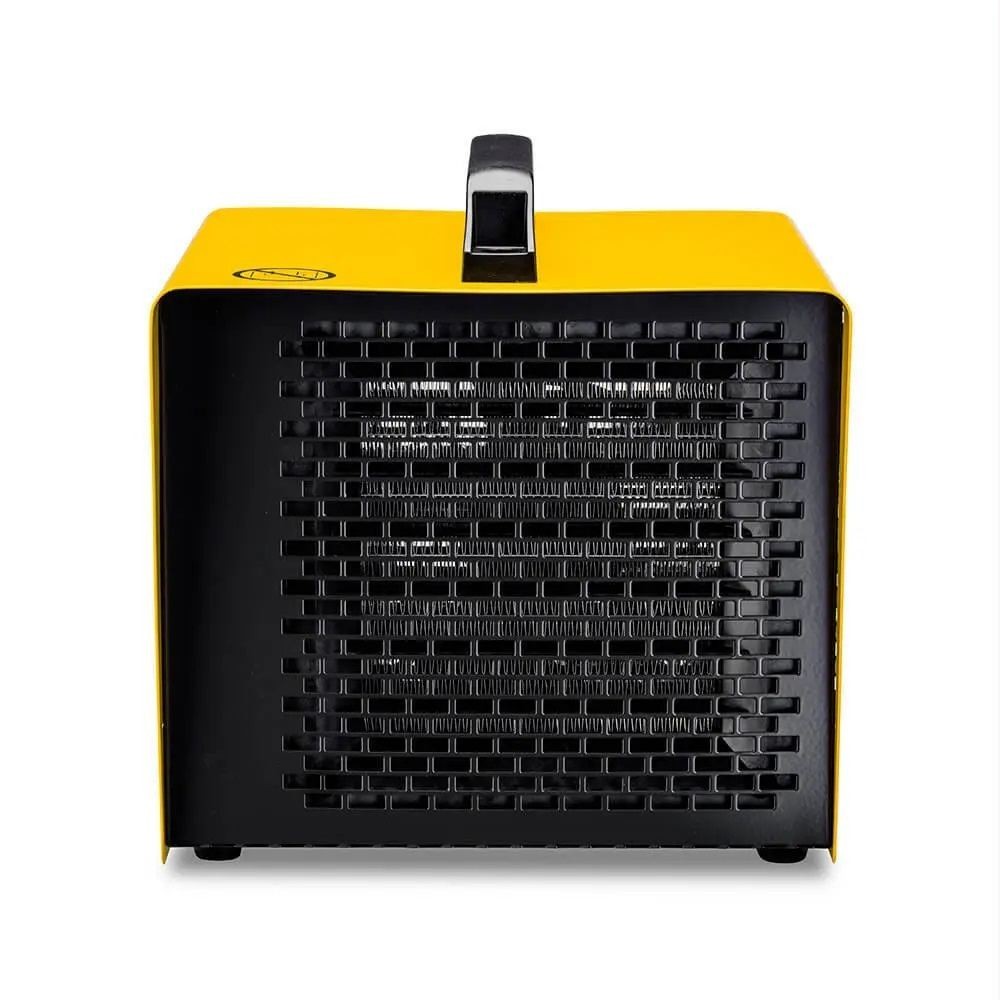

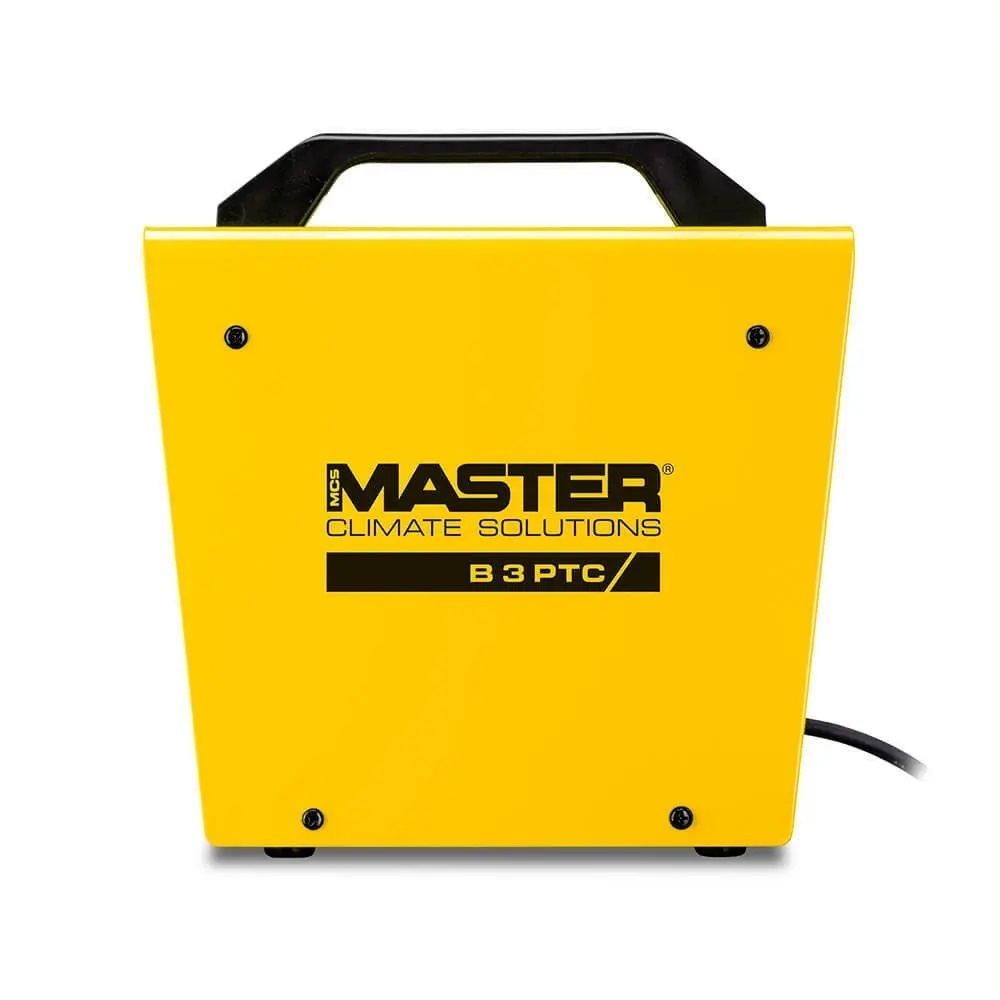

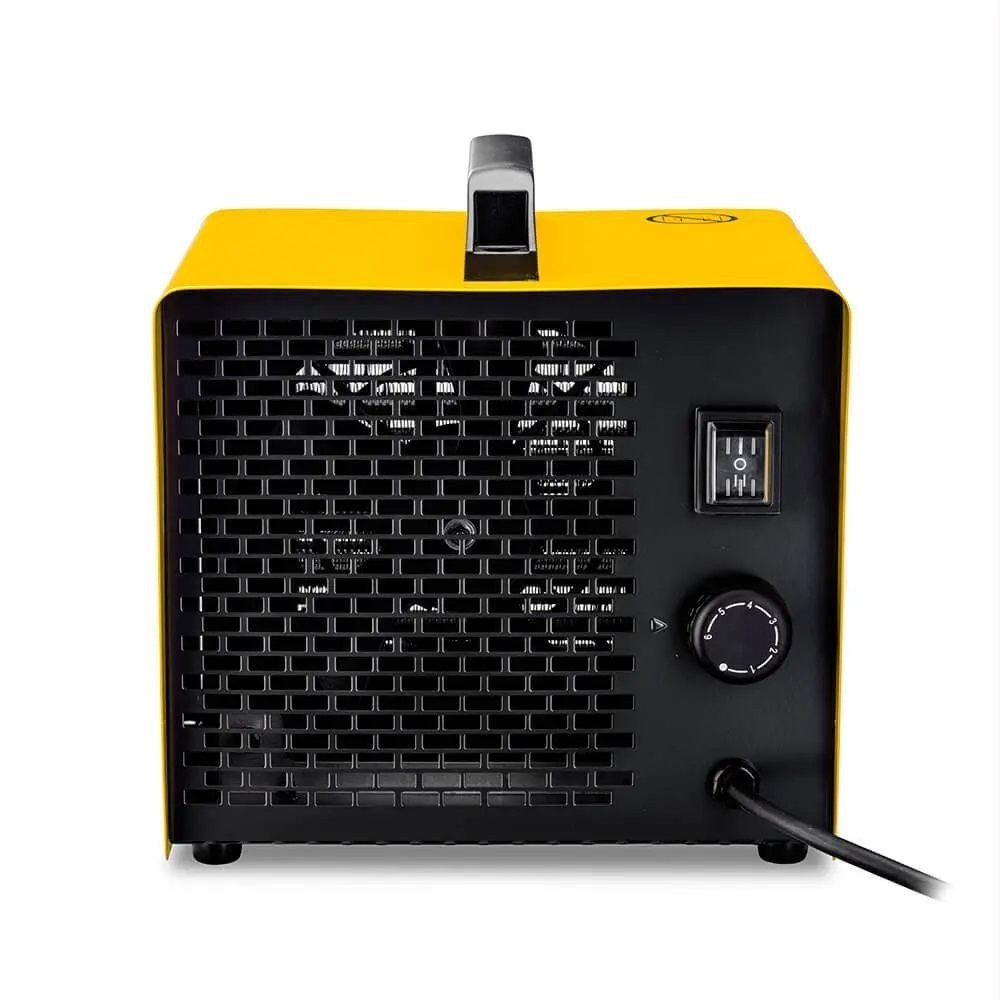

B 3PTC ELECTRIC FAN AIR HEATER MASTER CLIMATE SOLUTION

Description and Fields of Professional Application

The Master B 3PTC portable electric hot air generator (a Dantherm Group brand) is a professional 3 kW single-voltage device designed for temporary or emergency heating in closed or poorly ventilated workspaces. It's ideal for heating workstations in workshops, carpentry and mechanical workshops, paint booths, construction site offices, and commercial spaces where combustion heaters are not permitted. PTC ceramic heating element technology ensures instantaneous air heating with maximum energy efficiency.

Operational Benefits for Workshops, Craftsmen and Construction Sites

• Zero Oxygen Consumption and No Emissions: It runs on electricity without producing fumes, harmful odors or condensation, maintaining healthy air inside closed work environments.
• High Performance PTC Ceramic Heating Elements: Reaches the set temperature in a few seconds with an increased air flow of 258 m³/h.

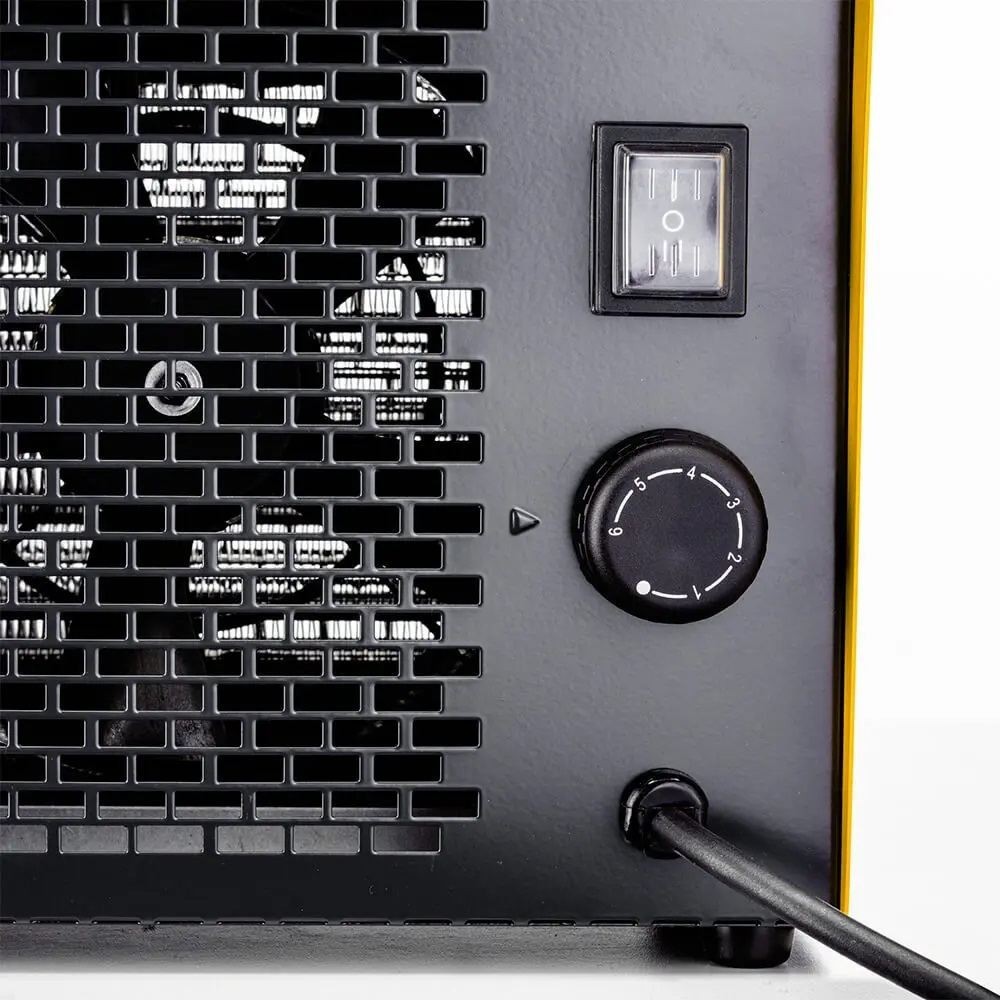

• Multi-Position Power Selector: Adjustable to 1.5 kW (220 V) for heat maintenance or 3.0 kW for maximum heating power (2580 kcal/h).
• Summer/Winter Switch Function: Can also be used in the warm months as a simple fan for recirculating and cooling air in workstations.
• Integrated Room Thermostat: Automatically maintains the desired temperature (from 0°C to 40°C) while optimising energy consumption.
• Maximum Continuous Safety: Equipped with overtemperature thermostat, motor with thermal protection and manual reset system.
• Sturdy and Portable Structure: Extremely low net weight of only 3.4 kg with carrying handle and small footprint for loading in a van.

Technical Specifications

Operational Safety Warnings

Make sure the power outlet is adequately protected by a circuit breaker and equipped with a 16A ground connection. Never block the rear and front air vents during operation. Place the generator on a solid surface, free from dust or flammable materials.
