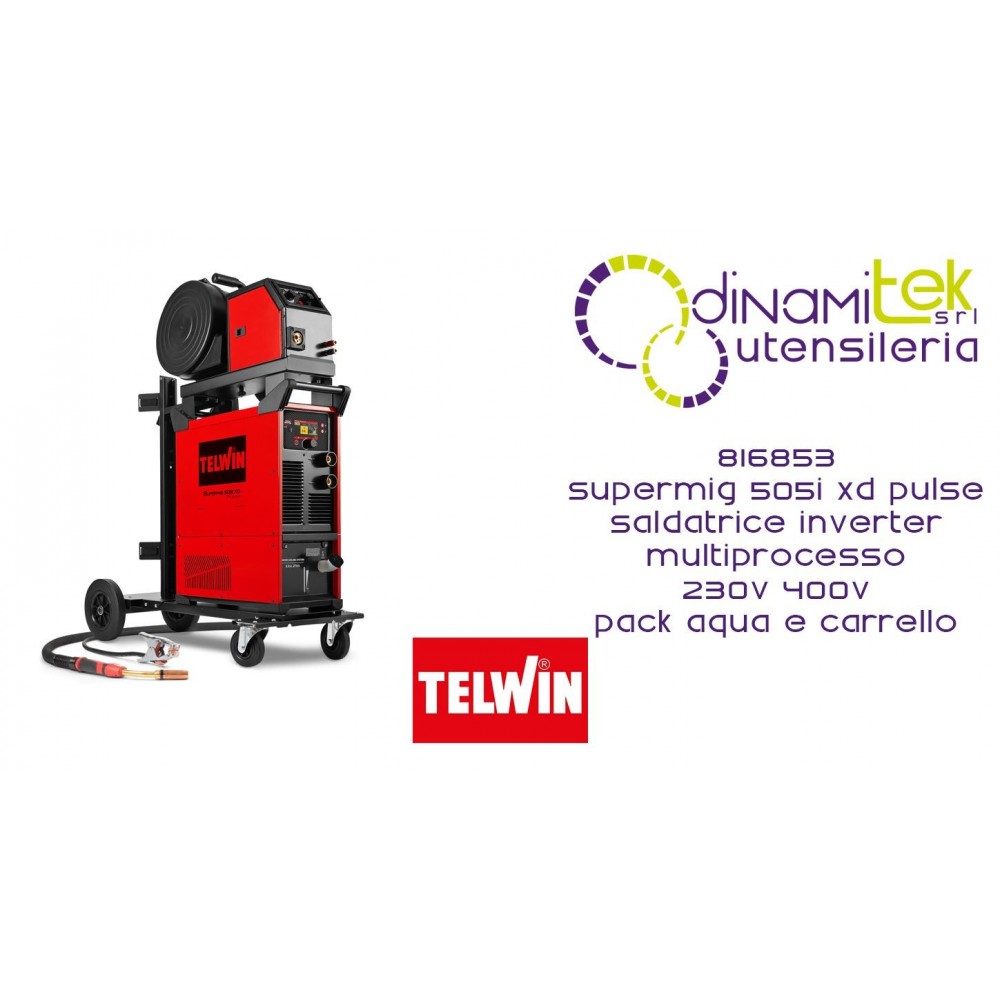

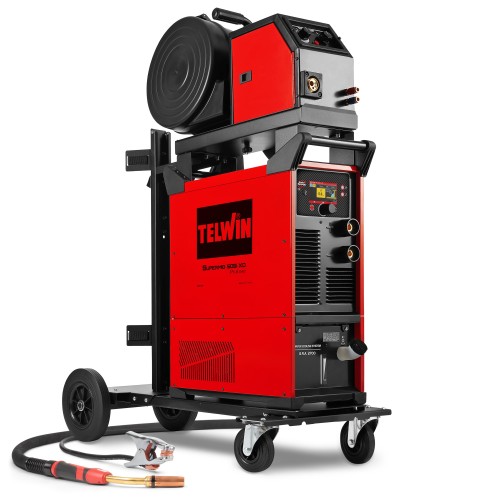

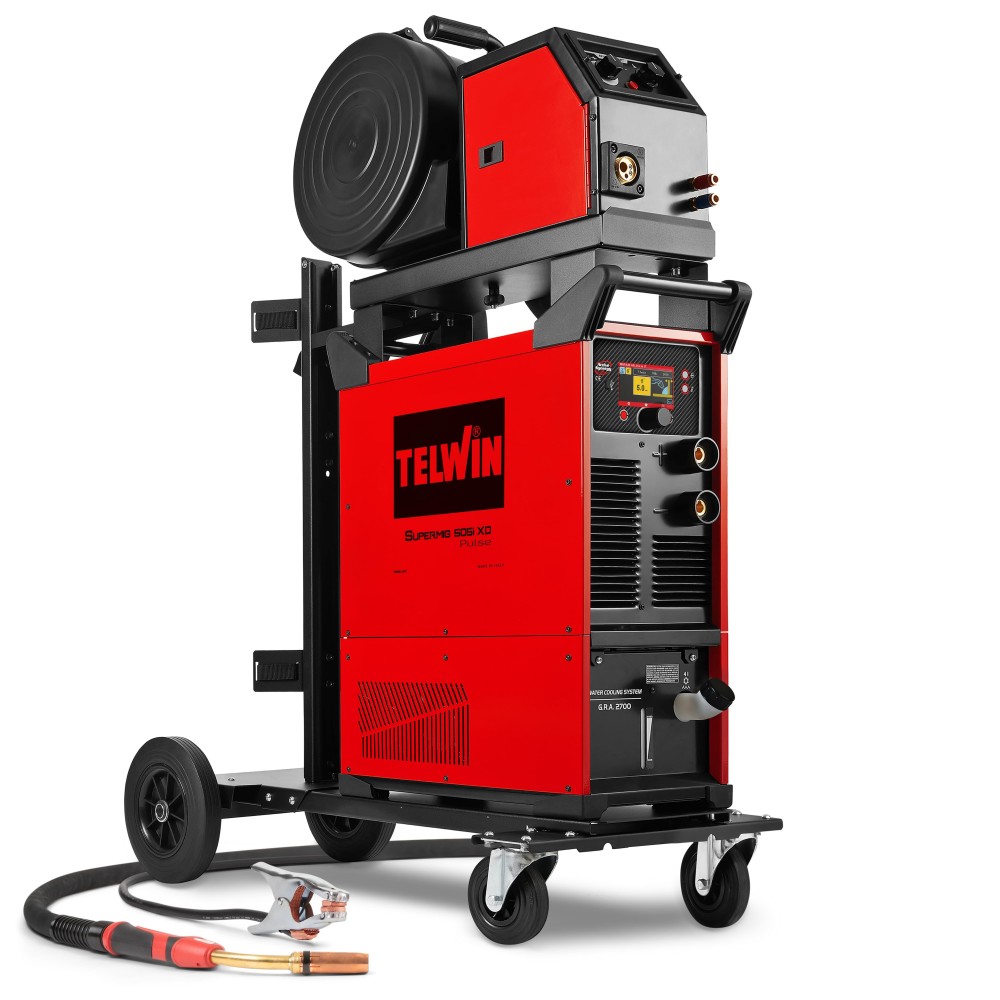

816853 SUPERMIG 505I XD PULSE MULTIPROCESS INVERTER WELDER 230V 400V AQUA PACK AND TROLLEY TELWIN

The multi-process flagship with AQUA cooling for unlimited industrial performance! The Telwin Supermig 505i XD Pulse Pack Aqua + Cart (code 816853) is the definitive 400A inverter welding system for Industry 4.0. This "all-inclusive" configuration integrates the power of the WAVE OS operating system with the efficiency of the GRA 2700 water cooling unit, allowing continuous work cycles (eXtra Duty) even in the most demanding conditions. Complete with external 4-roller wire feed unit, cooled torch and Federal cart , it offers total control over MIG-MAG (pulsed and POP), MMA and TIG processes, guaranteeing millimetric precision on aluminum, stainless steel and special steels.

Shipping cost: €50.00 for
5576,14 €
Tax included

4.570,61 € Tax excluded

Quantity
Available product, order it now.

Telwin Supermig 505i XD Pulse Pack Aqua: Cooled Multiprocess Excellence

The 816853 system is a three-phase inverter welding station designed to excel in any industrial environment. Thanks to XD (eXtra Duty) technology, the machine is certified for a high duty cycle (400A @ 60%), ideal for heavy carpentry, shipyards and intensive production lines.

WAVE OS Operating System and Pulsed Welding

  • WAVE OS: An advanced interface that transforms welding into a customizable experience. It includes EASY (immediate synergic adjustment) and EXPERT (control of 18 advanced parameters) modes. Data can be exported via USB for quality control.
  • Pulsed and POP (Pulse on Pulse): Ideal for heat-sensitive materials, they reduce spatter and guarantee weld seams with an aesthetic comparable to TIG, dramatically increasing productivity.
  • Advanced Thermal Control (ATC): Telwin technology that facilitates welding on thin thicknesses (0.5-0.8 mm) preventing material deformations.

AQUA Industrial Configuration

The Pack Aqua version stands out for its integrated GRA 2700 cooling unit, which protects the torch and internal components from high thermal loads. The TS 555 4-roller wire feed unit ensures smooth wire feed even with long hose bundles, while the Federal trolley guarantees maximum mobility of the system and cylinder in the workshop.

Safety and Robustness

The machine is equipped with a tunnel ventilation system that isolates the electronics from dust and metal debris. It includes a VRD device for safe operation in humid environments and complete protection against voltage fluctuations (+15% / -25%).

Main Technical Specifications

  • Product Code: 816853.
  • Power supply: Three-phase 230 / 400 V.
  • Current Regulation Range: 20 - 400 A (at 400V).
  • Max Current (EN 60974-1): 400 @ 60% A.
  • Degree of Protection: IP23.
  • Weight and Dimensions: 87.14 kg | 100 x 50 x 133 cm.

System Composition (Included)

The package comes ready to use with the following professional components:

  • Generator: Supermig 505i XD Pulse.
  • External wire feeder: TS 555 with 4 rollers and 4 metre cable bundle (70mm²).
  • Cooling: GRA 2700 Group.
  • Torch: MIG-MAG MT500 AQUA (3 meters).
  • Cart: Federal model for generator and cylinder.
  • Accessories: Ground cable and clamp.
A leading Italian company in welding, plasma cutting and charging and starting systems. Professional solutions for workshops, body shops, construction sites and industry, featuring reliable, high-performance technologies.

TELWIN: ITALIAN WELDING TECHNOLOGY SINCE 1963

Telwin is a long-established Italian brand, specialising in inverter welders, plasma cutters and charging/starting systems for the professional sector. Its solutions are designed for high-intensity environments such as mechanical workshops, automotive workshops, body shops, construction sites and industrial maintenance, where precision and operational continuity are essential.

The range includes MIG/MAG, TIG, MMA, high-precision plasma cutting, smart battery chargers, digital starters and multifunction stations for body shops.

The various product lines are distinguished by power, duty cycle, inverter technology, portability and electronic protection systems, making them suitable for both fixed workstations and mobile applications.

Telwin is recognised for structural reliability, arc stability, certified safety and continuous innovation, supported by in-house research and technological development.

Professionals choose Telwin for consistent performance, weld bead quality, reduced processing times and operational continuity even under demanding conditions.



816853
