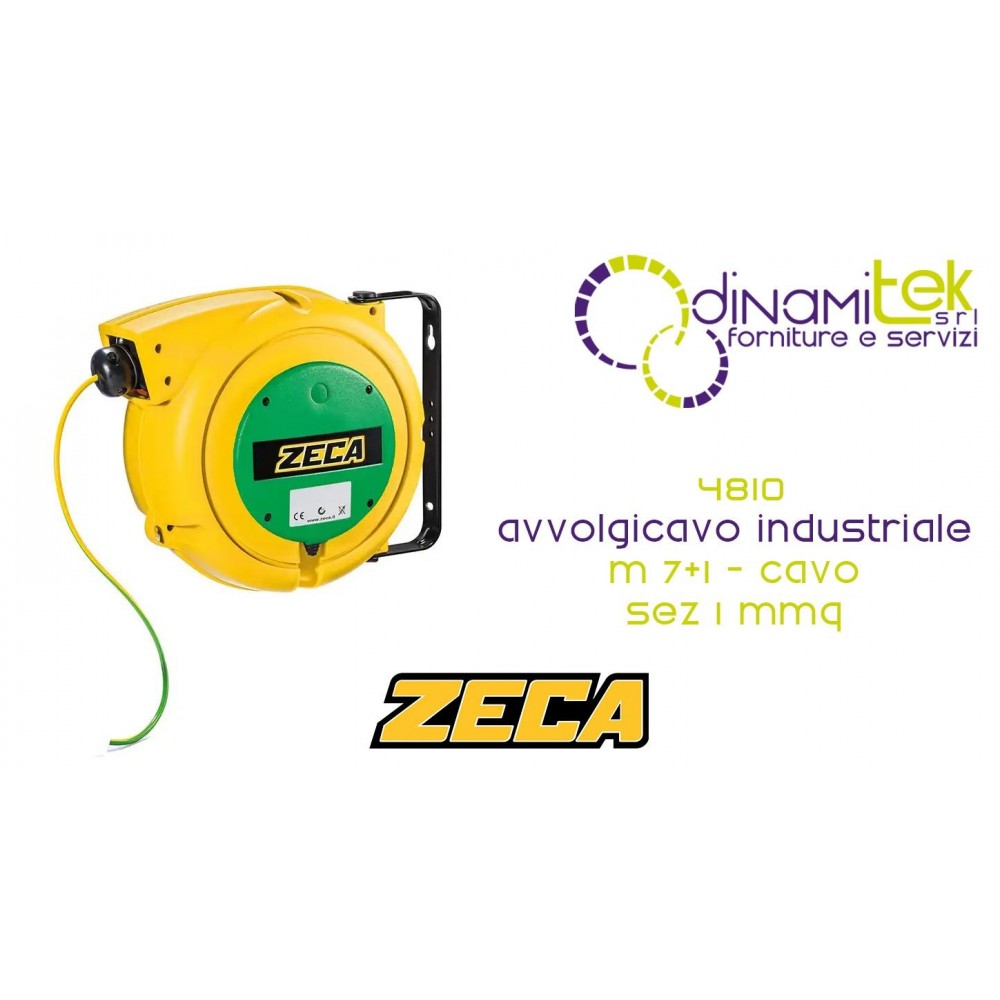

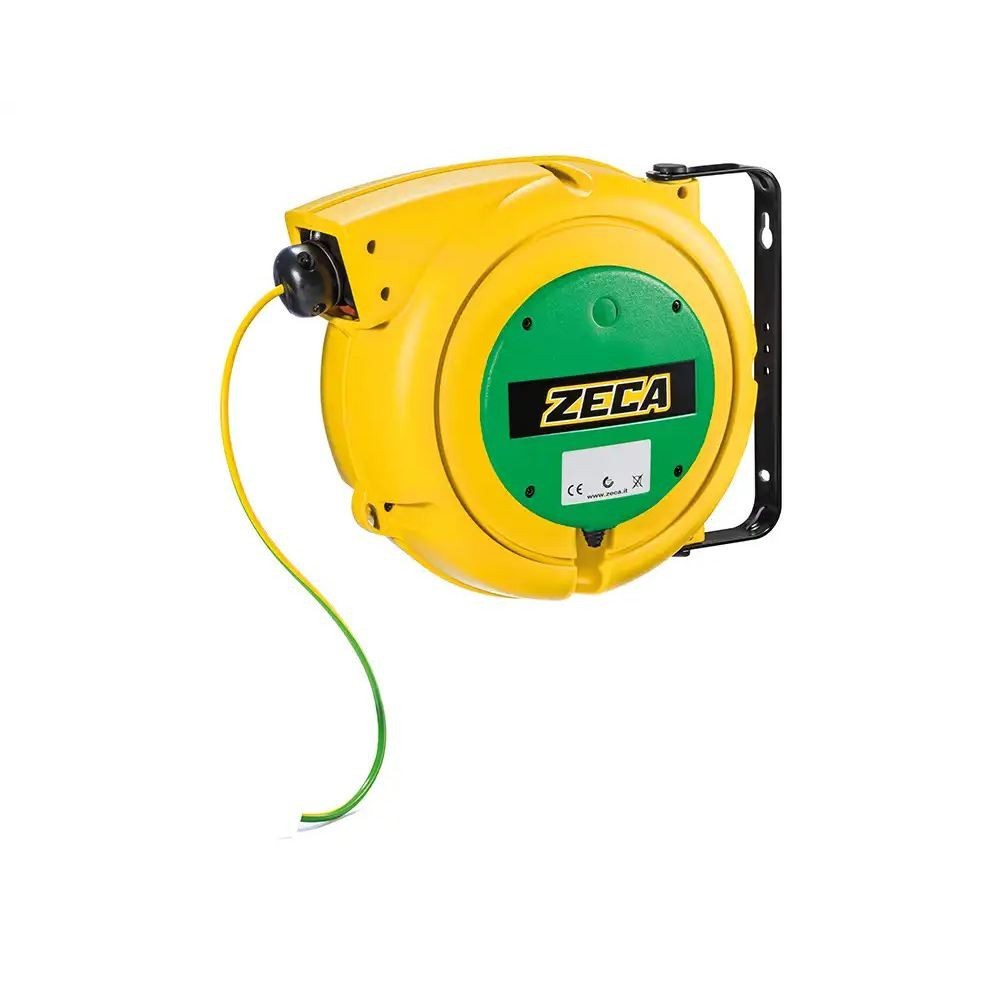

4810 4000 SERIES INDUSTRIAL CABLE REEL, 7+1 M, 1 MM² CABLE SECTION ZECA

Precision and order for your complex connections with Zeca 4810

The Zeca 4810 cable reel is an indispensable tool for anyone managing automation or signal transmission systems. Featuring eight 1 mm² conductors and a total length of 8 meters, it centralizes connections in a single, tidy and safe solution. The robust, impact-resistant plastic construction protects internal components, ensuring reliability and long life even in intensive industrial environments.

Shipping cost: Free for
256,29 €
Tax included

210,07 € Tax excluded

Quantity
Available product, order it now.

Multi-conductor efficiency: The Industrial 4000 Series

The Zeca 4810 model belongs to the versatile 4000 Series , designed to offer specific solutions where standard cables are not enough. With as many as 8 conductors, this reel is perfect for managing complex wiring, ensuring constant transmission thanks to the specific collector with the Zeca patent and an insulation voltage of 2.5 KV.

Advantages and strengths

  • Flexibility of use: Equipped with a roller cable guide mouth that facilitates sliding and a rack device that allows the cable to be blocked every 50 cm.
  • Robust construction: The shock-resistant plastic structural elements make it resistant to daily mechanical stress.
  • Contact Safety: Integrates a double ground contact for superior electrical protection during operation.
  • Customizable installation: The standard adjustable bracket allows for wall mounting, while with the optional accessory Art. 949/804-4000, fixed ceiling application is possible.

Applications and examples of use

Thanks to the cable cross-section and the number of poles, the Zeca 4810 finds application in:

  • Industrial automation: For connecting sensors, actuators and mobile control desks.
  • Diagnostic laboratories: Coordinated management of multiple electrical signals for test instruments.
  • Assembly lines: Powering small power tools or monitoring systems within an 8-meter radius.

Technical Data

Characteristic Value
Total cable length 8 meters (7m reel + 1m piece)
Number of conductors and cross-section 8 X 1 mm²
Cable type PVC
Maximum voltage (V max) 500 V
Degree of protection IP42]
Operating temperature -5°C / +50°C
Weight 5.0 kg
Leading Italian company in the automotive and industrial sectors, specialising in cable reels and professional equipment for mechanical workshops

ZECA: ITALIAN EXCELLENCE FOR PROFESSIONALS SINCE 1929

Zeca is a historic brand specializing in cable reels, hose reels, professional lamps and work organization tools.

Its solutions are designed for high-intensity environments such as workshops, automotive, construction, agriculture, and industry.

The product range includes electric and signal transmission cable reels, hose reels for air and fluids, rechargeable and under-hood lamps, balancers, and garage tools.

The different lines differ in terms of materials, capacity, cable length and degree of protection, so that they can be adapted to fixed or mobile locations.

Zeca is well-known for its products' durability, certified safety (ISO 9001, 14001, 45001) and continuous innovation, backed by patents and rigorous internal testing.

Professionals choose Zeca for mechanical reliability and practicality even in harsh conditions.
